Top-level parent class for all implemented interfaces. More...

#include <interface.h>

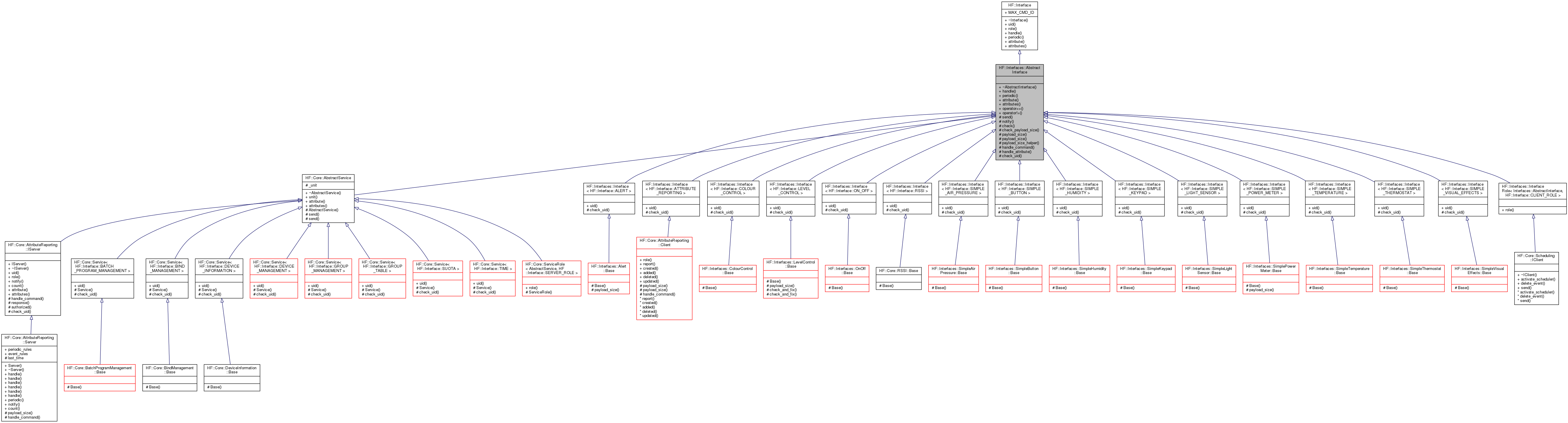

Inheritance diagram for HF::Interfaces::AbstractInterface:

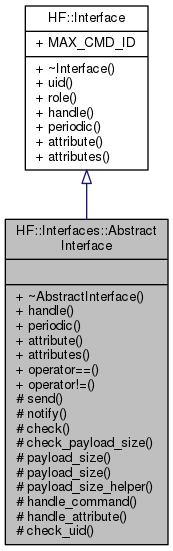

Collaboration diagram for HF::Interfaces::AbstractInterface:

Public Member Functions
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interface
virtual uint16_t	uid () const =0
	This method returns the interface UID. More...

virtual Interface::Role	role () const =0
	Return the Interface::Role this interface implements. More...

Protected Member Functions
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual bool	check_uid (uint16_t uid) const =0
	Check if the given UID matches the interface UID. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Top-level parent class for all implemented interfaces.

This class provides the implementation of the common functionality present in all interfaces implementations.

Definition at line 197 of file interface.h.

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Interfaces::AbstractInterface::attribute ( uint8_t uid )

inlinevirtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

Reimplemented in HF::Interfaces::ColourControl::IServer, HF::Interfaces::SimplePowerMeter::Server, HF::Interfaces::SimpleThermostat::Server, HF::Interfaces::SimpleButton::Server, HF::Interfaces::LevelControl::Server, HF::Interfaces::Alert::Server, HF::Interfaces::SimpleLightSensor::Server, HF::Interfaces::SimpleAirPressure::Server, HF::Interfaces::SimpleTemperature::Server, HF::Interfaces::OnOff::Server, and HF::Interfaces::SimpleHumidity::Server.

Definition at line 209 of file interface.h.

References HF::Interface::uid(), and UNUSED.

          {
             UNUSED(uid);
             return nullptr;
          }

Here is the call graph for this function:

◆ attributes()

virtual HF::Attributes::UIDS HF::Interfaces::AbstractInterface::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

inlinevirtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Implements HF::Interface.

Definition at line 215 of file interface.h.

References UNUSED.

          {
             UNUSED(pack_id);
             return HF::Attributes::UIDS();
          }

◆ check()

Common::Result HF::Interfaces::AbstractInterface::check	(	Protocol::Message &	message,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protected

Check if message has correct attributes to be processed by the interface.

The attributes checked are :

Interface UID;
Interface Role;

See also: HF::Interface::handle

Parameters

[in]	message	incoming message.
[in]	payload	message payload.
[in]	offset	offset in payload array to start reading.

Return values

Common::Result::OK	if message is for this interface;
Common::Result::FAIL_ARG	otherwise.

◆ check_payload_size()

Common::Result HF::Interfaces::AbstractInterface::check_payload_size	(	Protocol::Message &	message,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protected

Check if payload data size if sufficient for processing the message.

See also: HF::Interface::handle

Parameters

[in]	message	incoming message.
[in]	payload	message payload.
[in]	offset	offset in payload array to start reading.

Return values

Common::Result::OK	if message is for this interface;
Common::Result::FAIL_ARG	otherwise.

◆ check_uid()

virtual bool HF::Interfaces::AbstractInterface::check_uid ( uint16_t uid ) const

protectedpure virtual

Check if the given UID matches the interface UID.

Parameters

[in] uid the UID value to check against the interface UID.

Return values

true	the UIDs match,
false	otherwise.

Implemented in HF::Core::AttributeReporting::IServer, HF::Core::Service< HF::Interface::SUOTA >, HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >, HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT >, HF::Core::Service< HF::Interface::DEVICE_MANAGEMENT >, HF::Core::Service< HF::Interface::BIND_MANAGEMENT >, HF::Core::Service< HF::Interface::GROUP_TABLE >, HF::Core::Service< HF::Interface::DEVICE_INFORMATION >, and HF::Core::Service< HF::Interface::TIME >.

◆ handle()

Common::Result HF::Interfaces::AbstractInterface::handle	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

virtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Implements HF::Interface.

Reimplemented in HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, and HF::Units::Unit< HF::Profiles::SimpleLight >.

◆ handle_attribute()

virtual Common::Result HF::Interfaces::AbstractInterface::handle_attribute	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle attributes request/response messages, i.e. :

Protocol::Message:Type::GET_ATTR_REQ;
Protocol::Message:Type::SET_ATTR_REQ;
Protocol::Message:Type::SET_ATTR_RESP_REQ;
Protocol::Message:Type::GET_ATTR_PACK_REQ;
Protocol::Message:Type::SET_ATTR_PACK_REQ;
Protocol::Message:Type::SET_ATTR_PACK_RESP_REQ;

Reimplemented in HF::Interfaces::LevelControl::Server, HF::Interfaces::SimpleLightSensor::Client, HF::Interfaces::SimpleTemperature::Client, and HF::Interfaces::SimpleHumidity::Client.

◆ handle_command()

virtual Common::Result HF::Interfaces::AbstractInterface::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented in HF::Core::AttributeReporting::Server, HF::Core::AttributeReporting::IServer, HF::Interfaces::ColourControl::IServer, HF::Core::AttributeReporting::Client, HF::Core::GroupManagement::Client, HF::Core::GroupManagement::IServer, HF::Core::Scheduling::IServer, HF::Core::BatchProgramManagement::Client, HF::Core::GroupTable::Client, HF::Core::BatchProgramManagement::IServer, HF::Interfaces::SimplePowerMeter::Client, HF::Core::GroupTable::IServer, HF::Core::SUOTA::Client, HF::Interfaces::SimpleButton::Client, HF::Interfaces::SimpleVisualEffects::Server, HF::Interfaces::Alert::Client, HF::Core::SUOTA::Server, HF::Interfaces::LevelControl::Server, HF::Interfaces::OnOff::Server, and HF::Interfaces::SimpleKeypad::Server.

◆ notify()

virtual void HF::Interfaces::AbstractInterface::notify	(	const HF::Attributes::IAttribute &	old_value,
		const HF::Attributes::IAttribute &	new_value
	)		const

inlineprotectedvirtual

Notify that an attribute value as changed.

Parameters

[in]	old_value	attribute's old value.
[in]	new_value	attribute's new value.

Reimplemented in HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, and HF::Units::Unit< HF::Profiles::SimpleLight >.

Definition at line 248 of file interface.h.

References UNUSED.

Referenced by HF::Core::GroupManagement::IServer::number_of_groups_update().

          {
             UNUSED(old_value);
             UNUSED(new_value);
          }

Here is the caller graph for this function:

◆ payload_size() [1/2]

virtual uint16_t HF::Interfaces::AbstractInterface::payload_size ( Protocol::Message & message ) const

protectedvirtual

Return the minimal payload size that should be present for the given message.

Parameters

[in] message message that was received.

Returns: the minimum size in bytes that the packet payload should hold.

Reimplemented in HF::Core::AttributeReporting::Client.

◆ payload_size() [2/2]

virtual uint16_t HF::Interfaces::AbstractInterface::payload_size ( Protocol::Message::Interface & itf ) const

inlineprotectedvirtual

Return the minimal payload size that a message should hold when addressed at the given interface.

Parameters

[in] itf the interface being address.

Returns: the minimum number of bytes for the message for the interface.

Reimplemented in HF::Core::AttributeReporting::Server, HF::Core::AttributeReporting::Client, HF::Core::GroupManagement::Client, HF::Core::GroupManagement::IServer, HF::Core::BatchProgramManagement::Client, HF::Core::GroupTable::Client, HF::Core::GroupTable::IServer, HF::Interfaces::SimplePowerMeter::Base, HF::Interfaces::Alert::Base, and HF::Interfaces::LevelControl::Base.

Definition at line 307 of file interface.h.

References UNUSED.

          {
             UNUSED(itf);
             return 0;
          }

◆ payload_size_helper()

template<typename _Message >

uint16_t HF::Interfaces::AbstractInterface::payload_size_helper ( ) const

inlineprotected

Helper function template to retrieve minimum size required for serializing/deserializing the class given.

Template Parameters

_Message message class to get the minimum size to of.

Returns: the minimum size required to serializing/deserializing given class.

Definition at line 322 of file interface.h.

          {
             _Message message;

             return message.size();
          }

◆ periodic()

void HF::Interfaces::AbstractInterface::periodic ( uint32_t time )

inlinevirtual

Handle periodic processing.

Parameters

[in] time current system clock value in seconds.

Implements HF::Interface.

Reimplemented in HF::Interfaces::SimplePowerMeter::Server, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, and HF::Units::Unit< HF::Profiles::SimpleLight >.

Definition at line 204 of file interface.h.

References UNUSED.

          {
             UNUSED(time);
          }

◆ send()

virtual void HF::Interfaces::AbstractInterface::send	(	const Protocol::Address &	addr,
		Protocol::Message &	message
	)

protectedpure virtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implemented in HF::Core::Scheduling::IClient, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Core::AbstractService.

Referenced by HF::Interfaces::SimpleHumidity::Client::read(), HF::Interfaces::SimpleTemperature::Client::read(), and HF::Interfaces::SimpleLightSensor::Client::read().

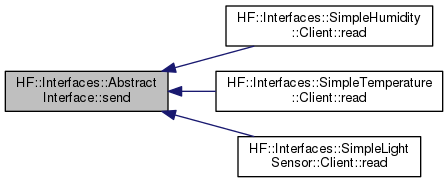

Here is the caller graph for this function:

The documentation for this struct was generated from the following file:

interface.h
