Group Management Service : Client side implementation. More...

#include <group_management.h>

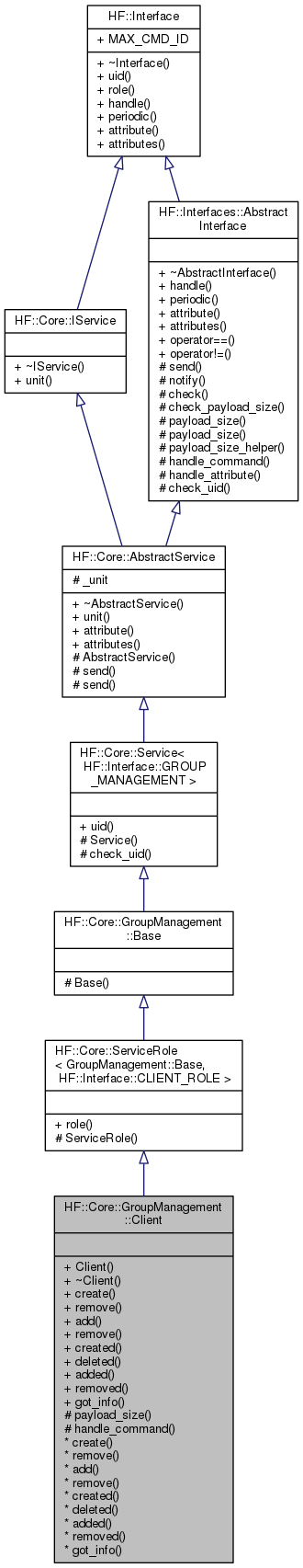

Inheritance diagram for HF::Core::GroupManagement::Client:

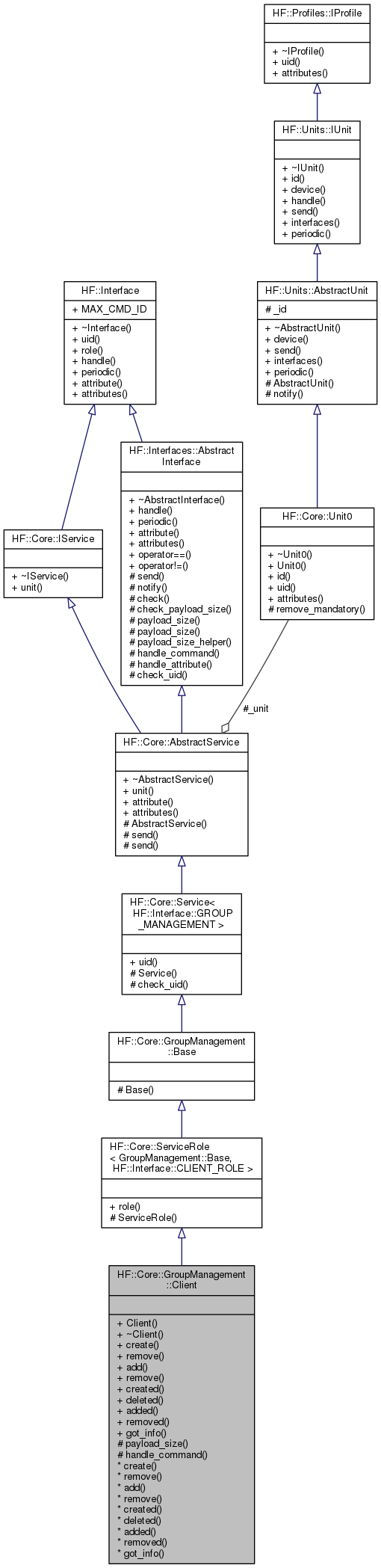

Collaboration diagram for HF::Core::GroupManagement::Client:

Public Member Functions
Commands
void	create (std::string name)
	Send a HAN-FUN message containing a `GroupManagement::CREATE_CMD`, to the D:0/U:0 network address. More...

void	remove (uint16_t group)
	Send a HAN-FUN message containing a `GroupManagement::DELETE_CMD`, to the D:0/U:0 network address. More...

void	add (uint16_t group, uint16_t device, uint8_t unit)
	Send a HAN-FUN message containing a `GroupManagement::ADD_CMD`, to the D:0/U:0 network address. More...

void	remove (uint16_t group, uint16_t device, uint8_t unit)
	Send a HAN-FUN message containing a `GroupManagement::REMOVE_CMD`, to the D:0/U:0 network address. More...

Events
virtual void	created (CreateResponse &response)=0
	This method is called when a response to a create message is received. More...

virtual void	deleted (DeleteResponse &response)=0
	This method is called when a response to a delete message is received. More...

virtual void	added (AddResponse &response)=0
	This method is called when a response to a add message is received. More...

virtual void	removed (RemoveResponse &response)=0
	This method is called when a response to a remove message is received. More...

virtual void	got_info (InfoResponse &response)=0
	This method is called when a response to a get info message is received. More...

Public Member Functions inherited from HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::CLIENT_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::CLIENT_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::GroupManagement::Base
	Base (Unit0 &unit)
	Constructor.

Protected Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >
	Service (Unit0 &unit)
	Constructor. More...

bool	check_uid (uint16_t uid) const
	Check if the given `uid` value matches the service's `UID` value. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Detailed Description

Group Management Service : Client side implementation.

This class provides the client side of the Group Management interface.

Definition at line 1153 of file group_management.h.

Member Function Documentation

◆ add()

void HF::Core::GroupManagement::Client::add	(	uint16_t	group,
		uint16_t	device,
		uint8_t	unit
	)

Send a HAN-FUN message containing a GroupManagement::ADD_CMD, to the D:0/U:0 network address.

Parameters

[in]	group	the group identifier to add the device.
[in]	device	the device identifier to add the unit from.
[in]	unit	the unit identifier of the given `device` to add from the given `group`.

◆ added()

virtual void HF::Core::GroupManagement::Client::added ( AddResponse & response )

pure virtual

This method is called when a response to a add message is received.

Parameters

[in] response the added response that was received.

◆ create()

void HF::Core::GroupManagement::Client::create ( std::string name )

Send a HAN-FUN message containing a GroupManagement::CREATE_CMD, to the D:0/U:0 network address.

Parameters

[in] name the name of the group to be created.

◆ created()

virtual void HF::Core::GroupManagement::Client::created ( CreateResponse & response )

pure virtual

This method is called when a response to a create message is received.

Parameters

[in] response the create response that was received.

◆ deleted()

virtual void HF::Core::GroupManagement::Client::deleted ( DeleteResponse & response )

pure virtual

This method is called when a response to a delete message is received.

Parameters

[in] response the delete response that was received.

◆ got_info()

virtual void HF::Core::GroupManagement::Client::got_info ( InfoResponse & response )

pure virtual

This method is called when a response to a get info message is received.

Parameters

[in] response the get info response that was received.

◆ handle_command()

Common::Result HF::Core::GroupManagement::Client::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ payload_size()

uint16_t HF::Core::GroupManagement::Client::payload_size ( Protocol::Message::Interface & itf ) const

protectedvirtual

Return the minimal payload size that a message should hold when addressed at the given interface.

Parameters

[in] itf the interface being address.

Returns: the minimum number of bytes for the message for the interface.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ remove() [1/2]

void HF::Core::GroupManagement::Client::remove ( uint16_t group )

Send a HAN-FUN message containing a GroupManagement::DELETE_CMD, to the D:0/U:0 network address.

Parameters

[in] group the group address to delete.

◆ remove() [2/2]

void HF::Core::GroupManagement::Client::remove	(	uint16_t	group,
		uint16_t	device,
		uint8_t	unit
	)

Send a HAN-FUN message containing a GroupManagement::REMOVE_CMD, to the D:0/U:0 network address.

Parameters

[in]	group	the group identifier the device belongs to.
[in]	device	the device identifier to delete the unit from.
[in]	unit	the unit identifier of the given `device` to delete from the given `group`.

◆ removed()

virtual void HF::Core::GroupManagement::Client::removed ( RemoveResponse & response )

pure virtual

This method is called when a response to a remove message is received.

Parameters

[in] response the removed response that was received.

The documentation for this struct was generated from the following file:

group_management.h
