HF::Core::AbstractService Struct Reference

This is the parent class for all services implementations. More...

#include <core.h>

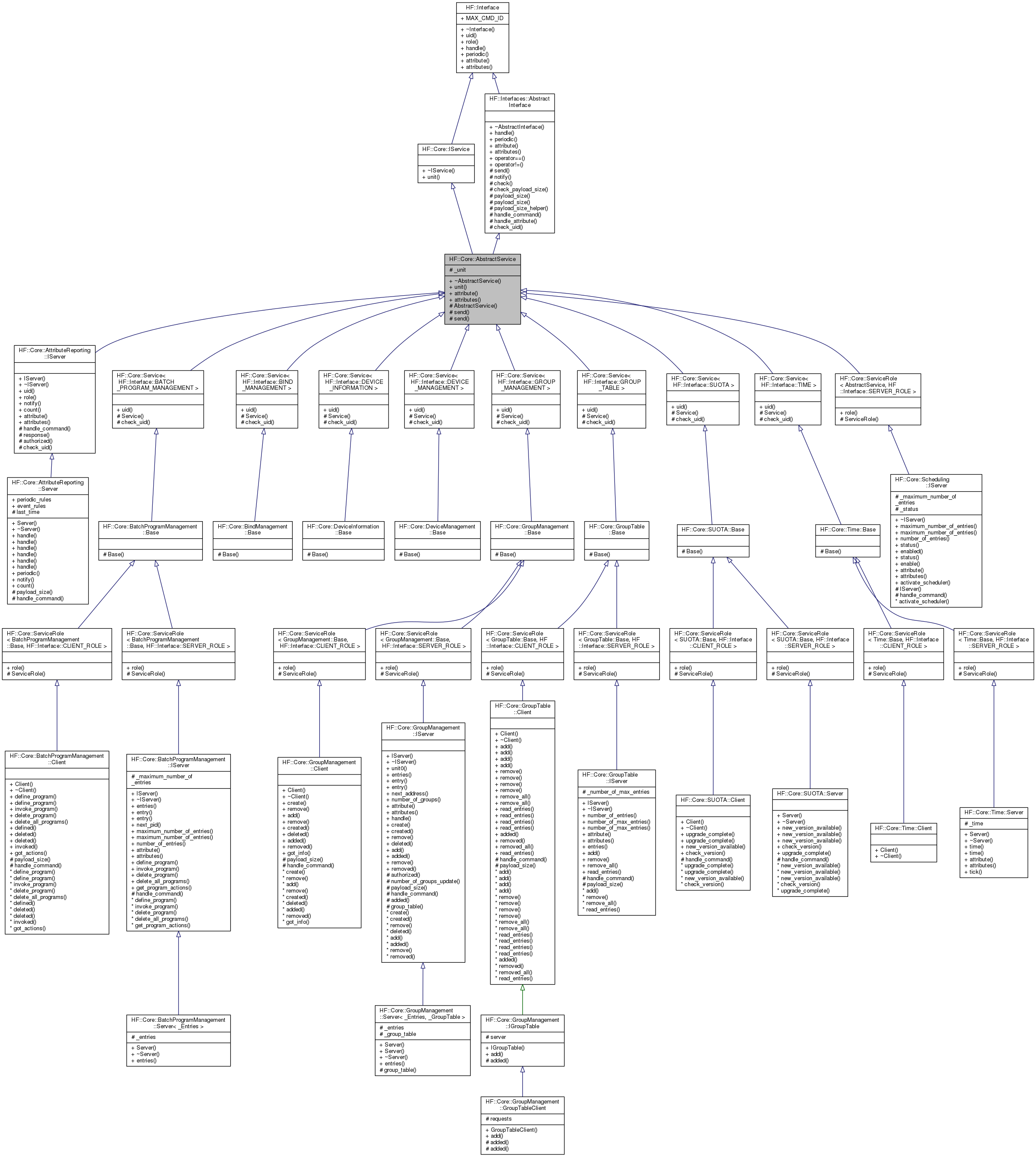

Inheritance diagram for HF::Core::AbstractService:

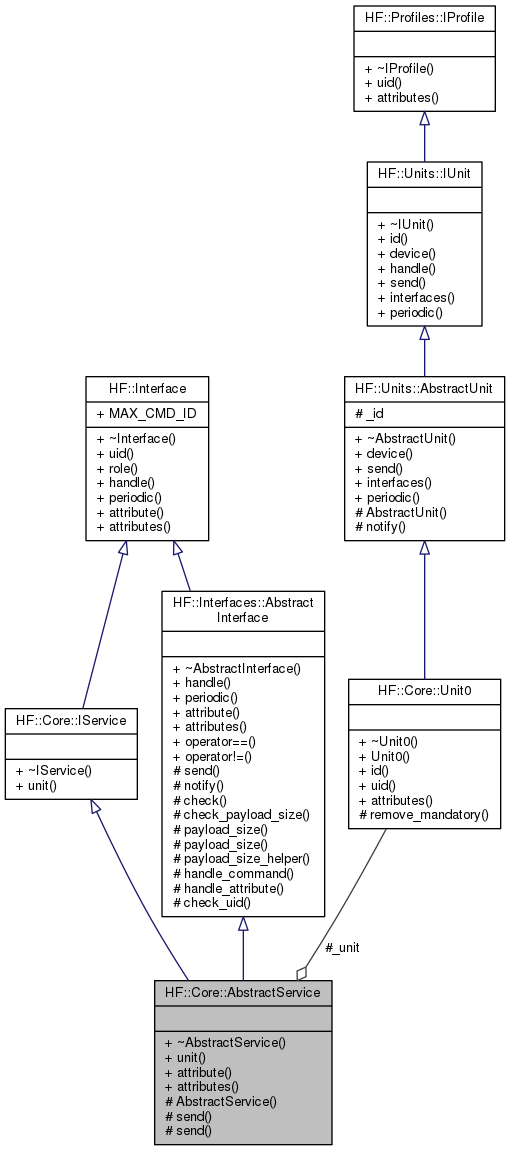

Collaboration diagram for HF::Core::AbstractService:

Public Member Functions
Unit0 &	unit () const
	The device this unit is associated with.
HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given uid. More...
HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...
Public Member Functions inherited from HF::Interface
virtual uint16_t	uid () const =0
	This method returns the interface UID. More...
virtual Interface::Role	role () const =0
	Return the Interface::Role this interface implements. More...
Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
void	periodic (uint32_t time)
	Handle periodic processing. More...
HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given uid. More...

Protected Member Functions
	AbstractService (Unit0 &unit)
	Constructor. More...
void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message msg to the network address given by addr. More...
void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...
Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...
Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...
Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if payload data size if sufficient for processing the message. More...
virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...
virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...
template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...
virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
virtual bool	check_uid (uint16_t uid) const =0
	Check if the given UID matches the interface UID. More...

Protected Attributes
Unit0 &	_unit
	Reference to the unit the service belongs to.

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...
enum	UID {   DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004,   DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008,   WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102,   POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400,   ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202,   SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302,   SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306,   SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...
Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

This is the parent class for all services implementations.

Definition at line 137 of file core.h.

Constructor & Destructor Documentation

AbstractService()

HF::Core::AbstractService::AbstractService ( Unit0 &  unit )

inlineprotected

Constructor.

Parameters

[in]

unit

reference to the unit that holds this service.

Definition at line 167 of file core.h.

                                     : _unit(unit)
         {}

Member Function Documentation

attribute()

HF::Attributes::IAttribute* HF::Core::AbstractService::attribute ( uint8_t  uid )

inlinevirtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in]

uid

identifier of the attribute in the interface.

Returns

a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

Definition at line 147 of file core.h.

References HF::Interface::uid().

         {
            return AbstractInterface::attribute(uid);
         }

Here is the call graph for this function:

attributes()

HF::Attributes::UIDS HF::Core::AbstractService::attributes ( uint8_t  pack_id = HF::Attributes::Pack::MANDATORY ) const

inlinevirtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in]

pack_id

the Attribute pack ID to get the attributes UIDs for.

Returns

vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

Definition at line 152 of file core.h.

         {
            return AbstractInterface::attributes(pack_id);
         }

send() [1/2]

void HF::Core::AbstractService::send ( const Protocol::Address &  addr, Protocol::Message &  message  )

inlineprotectedvirtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implements HF::Interfaces::AbstractInterface.

Definition at line 171 of file core.h.

References HF::Units::AbstractUnit::send(), and unit().

         {
            unit().send(addr, message, nullptr);
         }

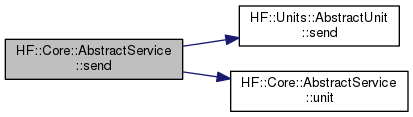

Here is the call graph for this function:

send() [2/2]

void HF::Core::AbstractService::send ( const Protocol::Address &  addr, Protocol::Message &  message, Transport::Link *  link  )

inlineprotected

Create and send a new packet with the given message to the given address.

Parameters

[in]	addr	address to send the message to.
[in]	message	message to send.
[in]	link	preferred link to send the message on.

Definition at line 177 of file core.h.

References HF::Units::AbstractUnit::send(), and unit().

         {
            unit().send(addr, message, link);
         }

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• core.h
