HF::Protocol::Packet Struct Reference

HAN-FUN Protocol Packet. More...

#include <protocol.h>

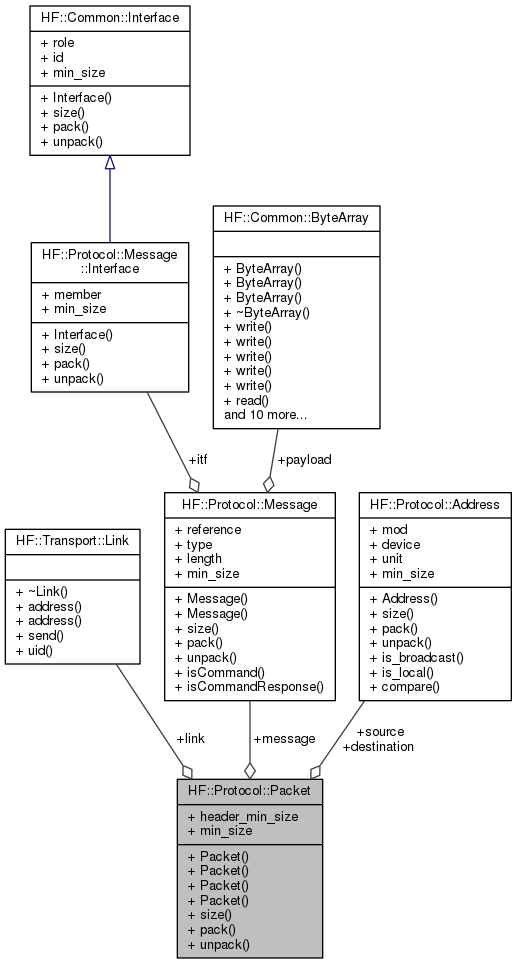

Collaboration diagram for HF::Protocol::Packet:

Public Member Functions
	Packet (Message &message)
	Constructor. More...
	Packet (Address &dst_addr, Message &message, uint8_t unit=BROADCAST_UNIT)
	Constructor. More...
	Packet (Address &src_addr, Address &dst_addr, Message &message)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
Address	source
	Source Address. More...
Address	destination
	Destination Address. More...
Message	message
	Packet message payload;.
Transport::Link *	link
	Link where this packet originated from.

Static Public Attributes
static constexpr uint16_t	header_min_size
	Minimum pack/unpack required header data size.
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

HAN-FUN Protocol Packet.

Definition at line 298 of file protocol.h.

Constructor & Destructor Documentation

Packet() [1/3]

HF::Protocol::Packet::Packet ( Message &  message )

inline

Constructor.

Parameters

[in]

message

message this packet holds.

Definition at line 318 of file protocol.h.

: message(message), link(nullptr) {}

Packet() [2/3]

HF::Protocol::Packet::Packet ( Address &  dst_addr, Message &  message, uint8_t  unit = BROADCAST_UNIT  )

inline

Constructor.

Parameters

[in]	dst_addr	destination device address.
[in]	message	message to be sent.
[in]	unit	destination unit for this packet.

Definition at line 327 of file protocol.h.

                                                                                   :
            destination(dst_addr), message(message), link(nullptr)
         {
            source.mod    = Address::DEVICE;
            source.device = BROADCAST_ADDR;
            source.unit   = unit;
         }

Packet() [3/3]

HF::Protocol::Packet::Packet ( Address &  src_addr, Address &  dst_addr, Message &  message  )

inline

Constructor.

Parameters

[in]	src_addr	source device address for packet.
[in]	dst_addr	destination device address for packet.
[in]	message	message payload.

Definition at line 342 of file protocol.h.

                                                                       :
            source(src_addr), destination(dst_addr), message(message), link(nullptr)
         {}

Member Function Documentation

pack()

uint16_t HF::Protocol::Packet::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Protocol::Packet::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

unpack()

uint16_t HF::Protocol::Packet::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Referenced by HF::Transport::AbstractLayer::receive().

Here is the caller graph for this function:

Field Documentation

destination

Address HF::Protocol::Packet::destination

Destination Address.

Definition at line 301 of file protocol.h.

Referenced by HF::Devices::AbstractDevice::to_local().

source

Address HF::Protocol::Packet::source

Source Address.

Definition at line 300 of file protocol.h.

Referenced by HF::Devices::AbstractDevice::from_local().

---

The documentation for this struct was generated from the following file:

• protocol.h
