HF::Protocol::Address Struct Reference

Network Address. More...

#include <protocol.h>

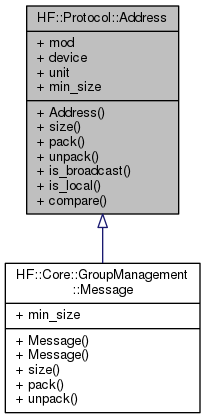

Inheritance diagram for HF::Protocol::Address:

Collaboration diagram for HF::Protocol::Address:

Public Types
enum	Type { DEVICE = 0, GROUP = 1 }
	HAN-FUN Network Destination Address Types. More...

Public Member Functions
	Address (uint16_t _dev=BROADCAST_ADDR, uint8_t _unit=BROADCAST_UNIT, Type _mod=DEVICE)
	Create a new message address. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
bool	is_broadcast ()
	Checks if this address if for the Protocol::BROADCAST_ADDR and Protocol::BROADCAST_UNIT. More...
bool	is_local (uint16_t address)
	Checks if the given device address is equal to the device address present in this Protocol::Address object. More...
int	compare (const Address &other) const
	Compare this address with the given address in other. More...

Data Fields
uint16_t	mod: 1
	Address modifier. More...
uint16_t	device: 15
	Device Address. More...
uint8_t	unit
	Source Unit. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

Network Address.

Definition at line 201 of file protocol.h.

Member Enumeration Documentation

Type

enum HF::Protocol::Address::Type

HAN-FUN Network Destination Address Types.

Enumerator
DEVICE	Destination address is for single device.
GROUP	Destination address is for a group of devices.

Definition at line 211 of file protocol.h.

         {
            DEVICE = 0,
            GROUP  = 1,
         } Type;

Constructor & Destructor Documentation

Address()

HF::Protocol::Address::Address ( uint16_t  _dev = BROADCAST_ADDR, uint8_t  _unit = BROADCAST_UNIT, Type  _mod = DEVICE  )

inline

Create a new message address.

Parameters

[in]	_dev	device address. Default HF_BROADCAST_ADDR.
[in]	_unit	unit address. Default HF_BROADCAST_UNIT.
[in]	_mod	address modifier. Default DEVICE_ADDR.

Definition at line 224 of file protocol.h.

                                    :
            mod(_mod), device(_dev), unit(_unit)
         {}

Member Function Documentation

compare()

int HF::Protocol::Address::compare ( const Address &  other ) const

inline

Compare this address with the given address in other.

This method should return < 0 if this address is less that, 0 if it is equal and > 0 if greater that the other address.

Parameters

[in]

other

address to compare to.

Return values

<0	if address less than other;
0	if address equal to other;
>0	if address greater than other.

Definition at line 280 of file protocol.h.

References HF::Protocol::BROADCAST_ADDR.

         {
            auto serialize = [this](const Address &a)
                             {
                                return (((a.mod & 0x01) << 15) | (a.device & BROADCAST_ADDR)) |
                                       a.unit;
                             };

            uint32_t t = serialize(*this);
            uint32_t o = serialize(other);

            return t - o;
         }

is_broadcast()

bool HF::Protocol::Address::is_broadcast ( )

inline

Checks if this address if for the Protocol::BROADCAST_ADDR and Protocol::BROADCAST_UNIT.

Return values

true	if it is the network's broadcast address,
false	otherwise.

Definition at line 249 of file protocol.h.

References HF::Protocol::BROADCAST_ADDR, HF::Protocol::BROADCAST_UNIT, device, and unit.

         {
            return device == BROADCAST_ADDR && unit == BROADCAST_UNIT;
         }

is_local()

bool HF::Protocol::Address::is_local ( uint16_t  address )

inline

Checks if the given device address is equal to the device address present in this Protocol::Address object.

Parameters

[in]

address

network address to match.

Return values

true	if it is the network's address are equal,
false	otherwise.

Definition at line 263 of file protocol.h.

References device.

         {
            return this->device == address;
         }

pack()

uint16_t HF::Protocol::Address::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Protocol::Address::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

unpack()

uint16_t HF::Protocol::Address::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Field Documentation

device

uint16_t HF::Protocol::Address::device

Device Address.

Definition at line 204 of file protocol.h.

Referenced by HF::Devices::AbstractDevice::from_local(), is_broadcast(), is_local(), and HF::Devices::AbstractDevice::to_local().

mod

uint16_t HF::Protocol::Address::mod

Address modifier.

Definition at line 203 of file protocol.h.

unit

uint8_t HF::Protocol::Address::unit

Source Unit.

Definition at line 206 of file protocol.h.

Referenced by is_broadcast().

---

The documentation for this struct was generated from the following file:

• protocol.h
