HF::Common::ByteArray Struct Reference

This class represents a byte array. More...

#include <common.h>

Inherits std::vector< T >.

Collaboration diagram for HF::Common::ByteArray:

Public Member Functions
	ByteArray (uint16_t size=0)
	Create a byte array with the given initial size. More...
	ByteArray (const uint8_t data[], const uint16_t size)
	Create a byte array with the given initial data. More...
	ByteArray (std::initializer_list< uint8_t > raw)
	Create byte array from the values in the given list. More...
virtual	~ByteArray ()
	Destructor.
uint16_t	write (uint16_t offset, uint8_t data)
	Write a byte into the array at the given offset. More...
uint16_t	write (uint16_t offset, uint16_t data)
	Write a word in the big endian format into the array at the given offset. More...
uint16_t	write (uint16_t offset, uint32_t data)
	Write a double-word in big endian format into the array at the given offset. More...
uint16_t	write (uint16_t offset, bool data)
	Write a byte into the array at the given offset. (uint16_t, uint8_t) More...
template<typename T >
uint16_t	write (uint16_t offset, T data)
	Write a byte into the array at the given offset. (uint16_t, uint8_t) More...
uint16_t	read (uint16_t offset, uint8_t &data) const
	Read the byte at offset into data. More...
uint16_t	read (uint16_t offset, uint16_t &data) const
	Read the word in big-endian format at offset into data. More...
uint16_t	read (uint16_t offset, uint32_t &data) const
	Read the double-word in big-endian format at offset into data. More...
uint16_t	read (uint16_t offset, bool &data) const
	Read the byte at offset into data. (uint16_t, uint8_t) More...
template<typename T >
uint16_t	read (uint16_t offset, T &data) const
	Read the byte at offset into data. (uint16_t, uint8_t) More...
bool	available (uint16_t offset, uint16_t expected) const
	Check if the array as at least expected bytes available from the given offset. More...
uint16_t	available (uint16_t offset) const
	Return the number of data bytes available from the given offset. More...
void	extend (uint16_t _size)
	Extend the byte array by the given size. More...
void	ensure (uint16_t _offset, uint16_t _size)
	Ensure that the byte array can hold the number of bytes given in _size, from the given offset. More...

Detailed Description

This class represents a byte array.

The method in this class are used to serialize the messages to be sent over the network, converting between the host's endianness and the big-endian network format.

Definition at line 239 of file inc/hanfun/common.h.

Constructor & Destructor Documentation

ByteArray() [1/3]

HF::Common::ByteArray::ByteArray

(

uint16_t

size = 0

)

Create a byte array with the given initial size.

Parameters

[in]

size

the initial size of the byte array.

ByteArray() [2/3]

HF::Common::ByteArray::ByteArray	(	const uint8_t	data[],
		const uint16_t	size
	)

Create a byte array with the given initial data.

Parameters

[in]	data	data to initialize the byte array with.
[in]	size	size in bytes of the data.

ByteArray() [3/3]

HF::Common::ByteArray::ByteArray ( std::initializer_list< uint8_t >  raw )

inline

Create byte array from the values in the given list.

Parameters

[in]

raw

values to add to the byte array.

Definition at line 261 of file inc/hanfun/common.h.

                                                    : vector(raw)
         {}

Member Function Documentation

available() [1/2]

bool HF::Common::ByteArray::available ( uint16_t  offset, uint16_t  expected  ) const

inline

Check if the array as at least expected bytes available from the given offset.

Parameters

[in]	offset	the offset from where to start counting.
[in]	expected	the number of byte required.

Return values

true	if enough data is available,
false	otherwise.

Definition at line 377 of file inc/hanfun/common.h.

Referenced by ensure().

         {
            return expected <= available(offset);
         }

Here is the caller graph for this function:

available() [2/2]

uint16_t HF::Common::ByteArray::available ( uint16_t  offset ) const

inline

Return the number of data bytes available from the given offset.

Parameters

[in]

offset

the offset from where to start counting.

Returns

number of data bytes available from the given offset.

Definition at line 389 of file inc/hanfun/common.h.

         {
            return (size() >= offset ? size() - offset : 0);
         }

ensure()

void HF::Common::ByteArray::ensure ( uint16_t  _offset, uint16_t  _size  )

inline

Ensure that the byte array can hold the number of bytes given in _size, from the given offset.

Parameters

[in]	_offset	offset index to check from.
[in]	_size	number of bytes to ensure that exist.

Definition at line 424 of file inc/hanfun/common.h.

References available().

         {
            if (!available(_offset, _size))
            {
               _size = _size - available(_offset) + std::max<int16_t>(
                  (int16_t) (_offset - size()), 0);
               vector<uint8_t>::reserve(size() + _size);
               std::fill_n(back_inserter(*this), _size, 0);
            }
         }

Here is the call graph for this function:

extend()

void HF::Common::ByteArray::extend ( uint16_t  _size )

inline

Extend the byte array by the given size.

This is the same as calling : array.reserve(array.size() + _size)

Parameters

[in]

_size

number of bytes to extent the array by.

Definition at line 412 of file inc/hanfun/common.h.

         {
            vector<uint8_t>::reserve(size() + _size);
         }

read() [1/5]

uint16_t HF::Common::ByteArray::read	(	uint16_t	offset,
		uint8_t &	data
	)		const

Read the byte at offset into data.

Parameters

[in]	offset	offset to read the byte from.
[out]	data	reference to save the read value to.

Returns

number of bytes read (1).

Referenced by read(), HF::Interfaces::SimpleVisualEffects::OnEffect::unpack(), msg_t::unpack(), HF::UID::UID_T::unpack(), HF::Core::SessionManagement::GetEntriesMessage::unpack(), HF::UID::NONE::unpack(), HF::Interfaces::SimpleVisualEffects::BlinkEffect::unpack(), HF::Interfaces::SimplePowerMeter::Measurement::unpack(), hello_msg_t::unpack(), HF::Interfaces::SimpleVisualEffects::FadeEffect::unpack(), HF::Attributes::UIDS::unpack(), HF::UID::ByteArray< MAC, 6, MAC_UID >::unpack(), HF::Core::Scheduling::Entry< _Type >::unpack(), HF::Core::GroupTable::ReadEntries::unpack(), HF::Core::SUOTA::UpgradeStatus::unpack(), HF::Interfaces::SimpleVisualEffects::BreatheEffect::unpack(), HF::Core::GroupTable::ReadEntriesResponse::unpack(), HF::Attributes::Attribute< bool >::unpack(), HF::UID::URI::unpack(), HF::Common::SerializableHelper< T, EnableIf(IsIntegral(T))>::unpack(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::unpack(), HF::Common::SerializableHelper< Common::ByteArray >::unpack(), and HF::Protocol::SetAttributePack::Response::Result::unpack().

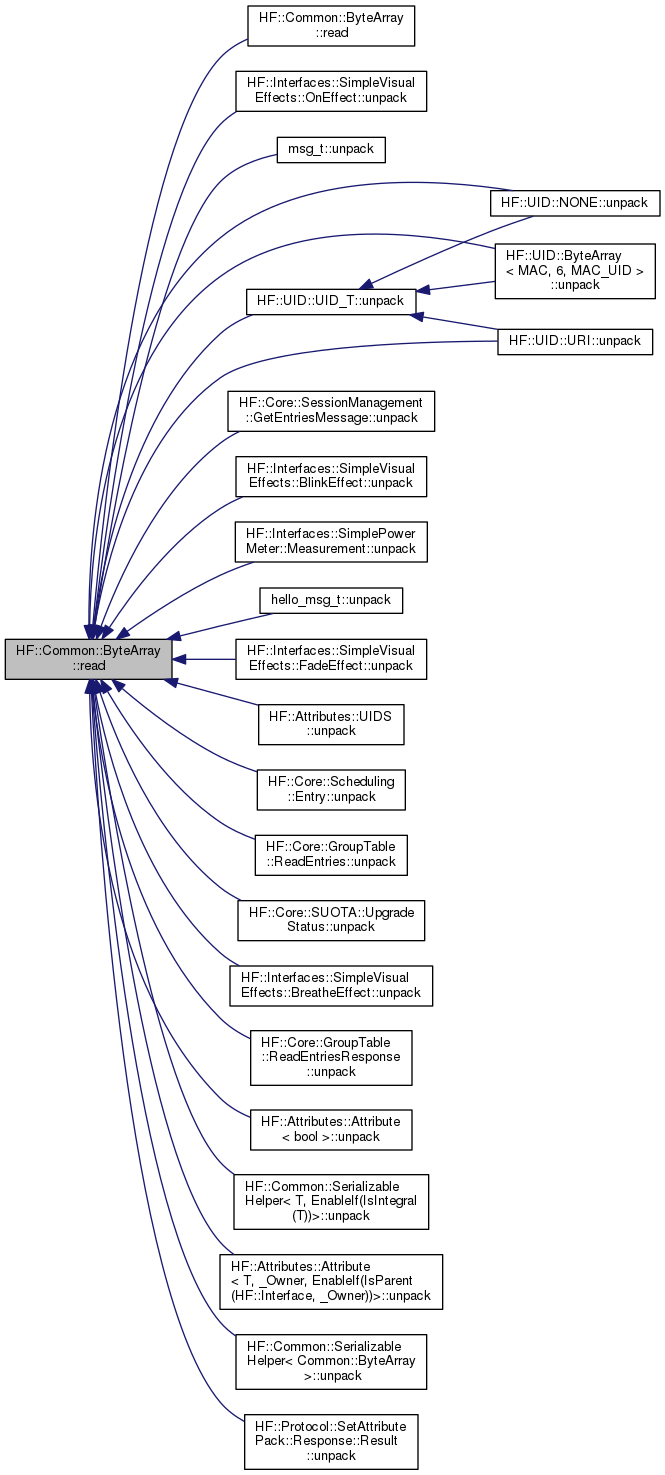

Here is the caller graph for this function:

read() [2/5]

uint16_t HF::Common::ByteArray::read	(	uint16_t	offset,
		uint16_t &	data
	)		const

Read the word in big-endian format at offset into data.

Parameters

[in]	offset	offset to read the word from.
[out]	data	reference to save the read value to.

Returns

number of bytes read (2).

read() [3/5]

uint16_t HF::Common::ByteArray::read	(	uint16_t	offset,
		uint32_t &	data
	)		const

Read the double-word in big-endian format at offset into data.

Parameters

[in]	offset	offset to read the double-word from.
[out]	data	reference to save the read value to.

Returns

number of bytes read (4).

read() [4/5]

uint16_t HF::Common::ByteArray::read ( uint16_t  offset, bool &  data  ) const

inline

Read the byte at offset into data. (uint16_t, uint8_t)

Parameters

[in]	offset	offset to read the byte from.
[out]	data	reference to save the read value to.

Returns

number of bytes read (1). (uint16_t, uint8_t)

Definition at line 344 of file inc/hanfun/common.h.

References read().

         {
            uint8_t temp;
            uint16_t result = read(offset, temp);

            data = (temp & 0x01) != 0;

            return result;
         }

Here is the call graph for this function:

read() [5/5]

template<typename T >

uint16_t HF::Common::ByteArray::read ( uint16_t  offset, T &  data  ) const

inline

Read the byte at offset into data. (uint16_t, uint8_t)

Parameters

[in]	offset	offset to read the byte from.
[out]	data	reference to save the read value to.

Returns

number of bytes read (1). (uint16_t, uint8_t)

Definition at line 356 of file inc/hanfun/common.h.

References read().

         {
            typedef typename std::make_unsigned<T>::type Type;
            Type temp;
            uint16_t result = read(offset, temp);

            data = static_cast<T>(temp);

            return result;
         }

Here is the call graph for this function:

write() [1/5]

uint16_t HF::Common::ByteArray::write	(	uint16_t	offset,
		uint8_t	data
	)

Write a byte into the array at the given offset.

Parameters

[in]	offset	offset to write the byte to.
[in]	data	byte value to write to the array.

Returns

number of bytes written (1).

Referenced by msg_t::pack(), HF::Interfaces::SimpleVisualEffects::OnEffect::pack(), HF::UID::UID_T::pack(), HF::Core::SessionManagement::GetEntriesMessage::pack(), HF::UID::NONE::pack(), HF::Interfaces::SimpleVisualEffects::BlinkEffect::pack(), hello_msg_t::pack(), HF::Interfaces::SimplePowerMeter::Measurement::pack(), HF::Interfaces::SimpleVisualEffects::FadeEffect::pack(), HF::UID::ByteArray< MAC, 6, MAC_UID >::pack(), HF::Core::Scheduling::Entry< _Type >::pack(), HF::Core::SUOTA::UpgradeStatus::pack(), HF::Core::GroupTable::ReadEntries::pack(), HF::Interfaces::SimpleVisualEffects::BreatheEffect::pack(), HF::Core::GroupTable::ReadEntriesResponse::pack(), HF::Attributes::Attribute< bool >::pack(), HF::UID::URI::pack(), HF::Common::SerializableHelper< T, EnableIf(IsIntegral(T))>::pack(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::pack(), HF::Common::SerializableHelper< Common::ByteArray >::pack(), HF::Protocol::SetAttributePack::Response::Result::pack(), and write().

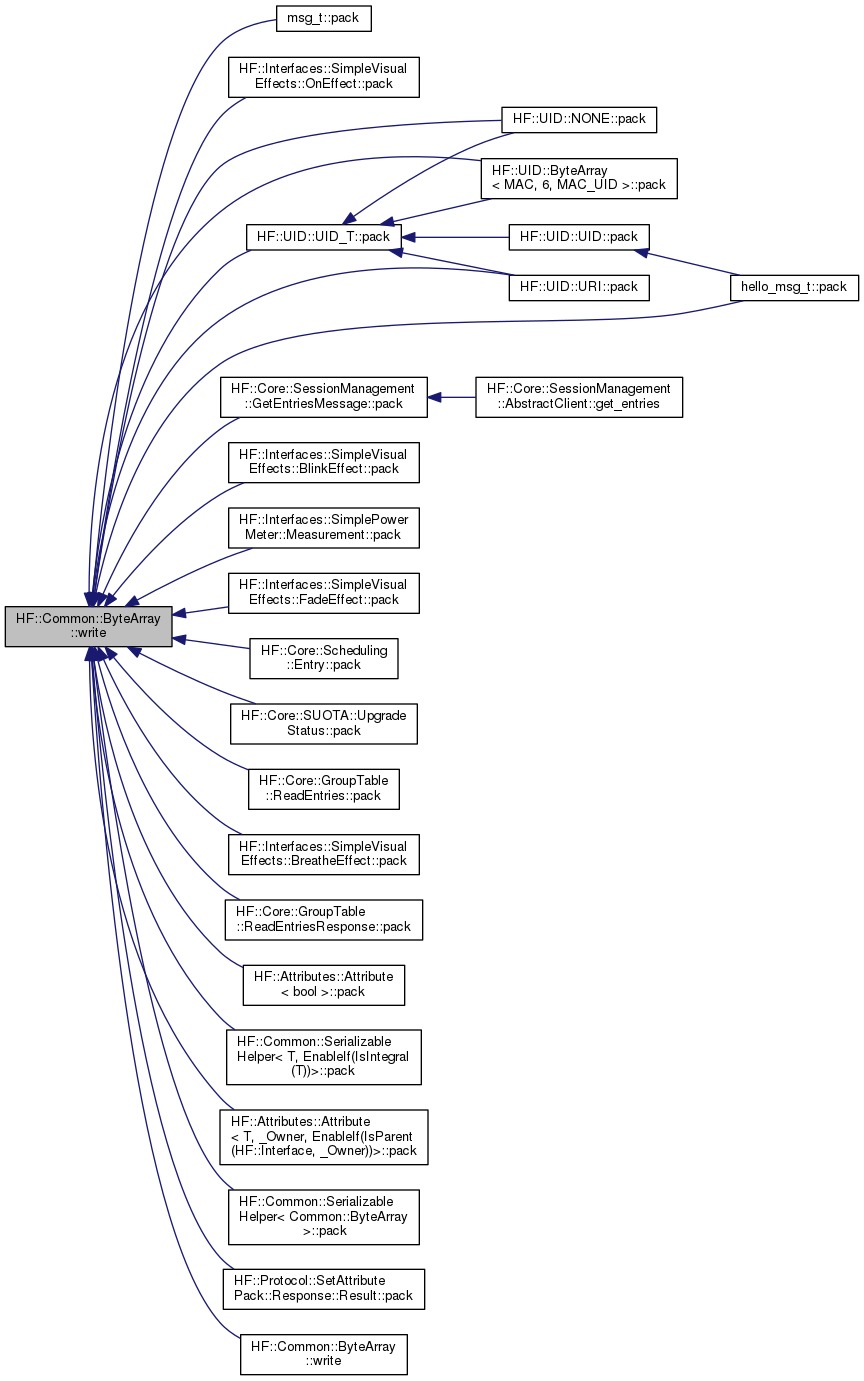

Here is the caller graph for this function:

write() [2/5]

uint16_t HF::Common::ByteArray::write	(	uint16_t	offset,
		uint16_t	data
	)

Write a word in the big endian format into the array at the given offset.

Parameters

[in]	offset	offset to write the word to.
[in]	data	word value to write to the array.

Returns

number of bytes written (2).

write() [3/5]

uint16_t HF::Common::ByteArray::write	(	uint16_t	offset,
		uint32_t	data
	)

Write a double-word in big endian format into the array at the given offset.

Parameters

[in]	offset	offset to write the double-word to.
[in]	data	double-word value to write to the array.

Returns

number of bytes written (4).

write() [4/5]

uint16_t HF::Common::ByteArray::write ( uint16_t  offset, bool  data  )

inline

Write a byte into the array at the given offset. (uint16_t, uint8_t)

Parameters

[in]	offset	offset to write the byte to.
[in]	data	byte value to write to the array.

Returns

number of bytes written (1). (uint16_t, uint8_t)

Definition at line 300 of file inc/hanfun/common.h.

References write().

         {
            return write(offset, static_cast<uint8_t>(data ? 0x01 : 0x00));
         }

Here is the call graph for this function:

write() [5/5]

template<typename T >

uint16_t HF::Common::ByteArray::write ( uint16_t  offset, T  data  )

inline

Write a byte into the array at the given offset. (uint16_t, uint8_t)

Parameters

[in]	offset	offset to write the byte to.
[in]	data	byte value to write to the array.

Returns

number of bytes written (1). (uint16_t, uint8_t)

Definition at line 307 of file inc/hanfun/common.h.

References write().

         {
            typedef typename std::make_unsigned<T>::type Type;
            return write(offset, static_cast<Type>(data));
         }

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• inc/hanfun/common.h
