#include <protocol.h>

Inherited by HF::Core::BatchProgramManagement::Action.

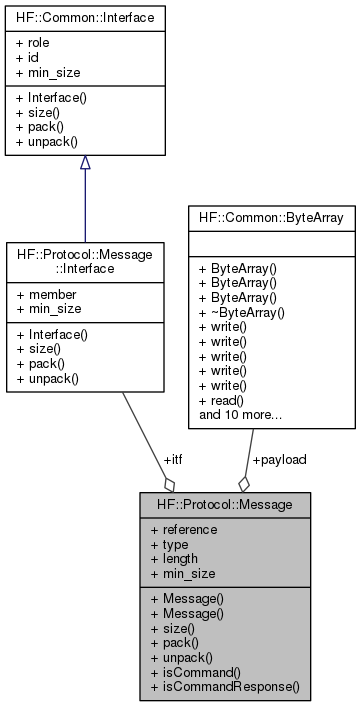

Collaboration diagram for HF::Protocol::Message:

Data Structures
struct	Interface
	Interface Address. More...

Public Types
enum	Type { COMMAND_REQ = 0x01, COMMAND_RESP_REQ = 0x02, COMMAND_RES = 0x03, GET_ATTR_REQ = 0x04, GET_ATTR_RES = 0x05, SET_ATTR_REQ = 0x06, SET_ATTR_RESP_REQ = 0x07, SET_ATTR_RES = 0x08, GET_ATTR_PACK_REQ = 0x09, GET_ATTR_PACK_RES = 0x0A, SET_ATTR_PACK_REQ = 0x0B, SET_ATTR_PACK_RESP_REQ = 0x0C, SET_ATTR_PACK_RES = 0x0D, ATOMIC_SET_ATTR_PACK_REQ = 0x0E, ATOMIC_SET_ATTR_PACK_RESP_REQ = 0x0F, ATOMIC_SET_ATTR_PACK_RES = 0x10 }
	Message types. More...

Public Member Functions
	Message (uint16_t size=0, Type _type=COMMAND_REQ)
	Constructor. More...

	Message (const Message &parent, uint16_t size)
	Create a new message that is a response to the given message in `parent`. More...

uint16_t	size () const
	Number bytes needed to serialize the message. More...

uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

bool	isCommand () const
	Check if message type is equal to `COMMAND_REQ` or to `COMMAND_RESP_REQ`. More...

bool	isCommandResponse () const
	Check if message type is equal to `COMMAND_RES`. More...

Data Fields
uint8_t	reference
	Application reference. More...

Type	type
	Message type. More...

Interface	itf
	Interface Address. More...

Common::ByteArray	payload
	Message payload.

uint16_t	length
	The payload length value read when unpacking the message.

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

Network Message.

Definition at line 60 of file protocol.h.

Member Enumeration Documentation

◆ Type

enum HF::Protocol::Message::Type

Message types.

Enumerator
COMMAND_REQ	Command request.
COMMAND_RESP_REQ	Command request with response required.
COMMAND_RES	Command response.
GET_ATTR_REQ	Get attributes request.
GET_ATTR_RES	Get attributes response.
SET_ATTR_REQ	Set attributes request.
SET_ATTR_RESP_REQ	Set attributes request with response required.
SET_ATTR_RES	Set attributes response.
GET_ATTR_PACK_REQ	Get pack attributes request.
GET_ATTR_PACK_RES	Get pack attributes response.
SET_ATTR_PACK_REQ	Set pack attributes request.
SET_ATTR_PACK_RESP_REQ	Set pack attributes request with response required.
SET_ATTR_PACK_RES	Set pack attributes response.
ATOMIC_SET_ATTR_PACK_REQ	Atomic set pack attributes request.
ATOMIC_SET_ATTR_PACK_RESP_REQ	Atomic set pack attributes request with response required.
ATOMIC_SET_ATTR_PACK_RES	Atomic set pack attributes response.

Definition at line 65 of file protocol.h.

          {
             COMMAND_REQ                   = 0x01,
             COMMAND_RESP_REQ              = 0x02,
             COMMAND_RES                   = 0x03,

             GET_ATTR_REQ                  = 0x04,
             GET_ATTR_RES                  = 0x05,

             SET_ATTR_REQ                  = 0x06,
             SET_ATTR_RESP_REQ             = 0x07,
             SET_ATTR_RES                  = 0x08,

             GET_ATTR_PACK_REQ             = 0x09,
             GET_ATTR_PACK_RES             = 0x0A,

             SET_ATTR_PACK_REQ             = 0x0B,
             SET_ATTR_PACK_RESP_REQ        = 0x0C,
             SET_ATTR_PACK_RES             = 0x0D,

             ATOMIC_SET_ATTR_PACK_REQ      = 0x0E,
             ATOMIC_SET_ATTR_PACK_RESP_REQ = 0x0F,
             ATOMIC_SET_ATTR_PACK_RES      = 0x10,
          } Type;

Constructor & Destructor Documentation

◆ Message() [1/2]

HF::Protocol::Message::Message	(	uint16_t	size = `0`,
		Type	_type = `COMMAND_REQ`
	)

inline

Constructor.

Parameters

[in]	size	message payload size.
[in]	_type	message type.

Definition at line 145 of file protocol.h.

References HF::Protocol::MAX_PAYLOAD, and size().

                                                              :
             reference(0), type(_type), payload(Common::ByteArray(size)), length(0)
          {
             assert(size <= MAX_PAYLOAD);
          }

Here is the call graph for this function:

◆ Message() [2/2]

HF::Protocol::Message::Message	(	const Message &	parent,
		uint16_t	size
	)

Create a new message that is a response to the given message in parent.

Note: If parent is already a response then the new message has the same type.

Parameters

[in]	parent	reference to the message to create a response for.
[in]	size	size of the payload buffer.

Member Function Documentation

◆ isCommand()

bool HF::Protocol::Message::isCommand ( ) const

Check if message type is equal to COMMAND_REQ or to COMMAND_RESP_REQ.

Return values

true	if message type is equal to `COMMAND_REQ` or to `COMMAND_RESP_REQ`.
false	otherwise.

◆ isCommandResponse()

bool HF::Protocol::Message::isCommandResponse ( ) const

Check if message type is equal to COMMAND_RES.

Return values

true	if message type is equal to `COMMAND_RES`..
false	otherwise.

◆ pack()

uint16_t HF::Protocol::Message::pack	(	Common::ByteArray &	array,
		uint16_t	offset = `0`
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns: the number of bytes written.

◆ size()

uint16_t HF::Protocol::Message::size ( ) const

Number bytes needed to serialize the message.

Returns: number of bytes the message requires to be serialized.

Referenced by Message().

Here is the caller graph for this function:

◆ unpack()

uint16_t HF::Protocol::Message::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = `0`
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns: the number of bytes read.

Warning: This DOES NOT copy the payload portion from the given array into the payload field in this object.

Field Documentation

◆ itf

Interface HF::Protocol::Message::itf

Interface Address.

Definition at line 129 of file protocol.h.

Referenced by HF::Core::SessionManagement::AbstractClient::get_entries(), HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::handle(), HF::Interfaces::SimpleHumidity::Client::read(), HF::Interfaces::SimpleTemperature::Client::read(), HF::Interfaces::SimpleLightSensor::Client::read(), and HF::Core::SessionManagement::AbstractClient::request().

◆ reference

uint8_t HF::Protocol::Message::reference

Application reference.

Definition at line 126 of file protocol.h.

◆ type

Type HF::Protocol::Message::type

Message type.

See also: Message::Type

Definition at line 127 of file protocol.h.

Referenced by HF::Interfaces::SimpleHumidity::Client::read(), HF::Interfaces::SimpleTemperature::Client::read(), and HF::Interfaces::SimpleLightSensor::Client::read().

The documentation for this struct was generated from the following file:

protocol.h
