HF::Interface Struct Reference

Common interface for all Interfaces. More...

#include <interface.h>

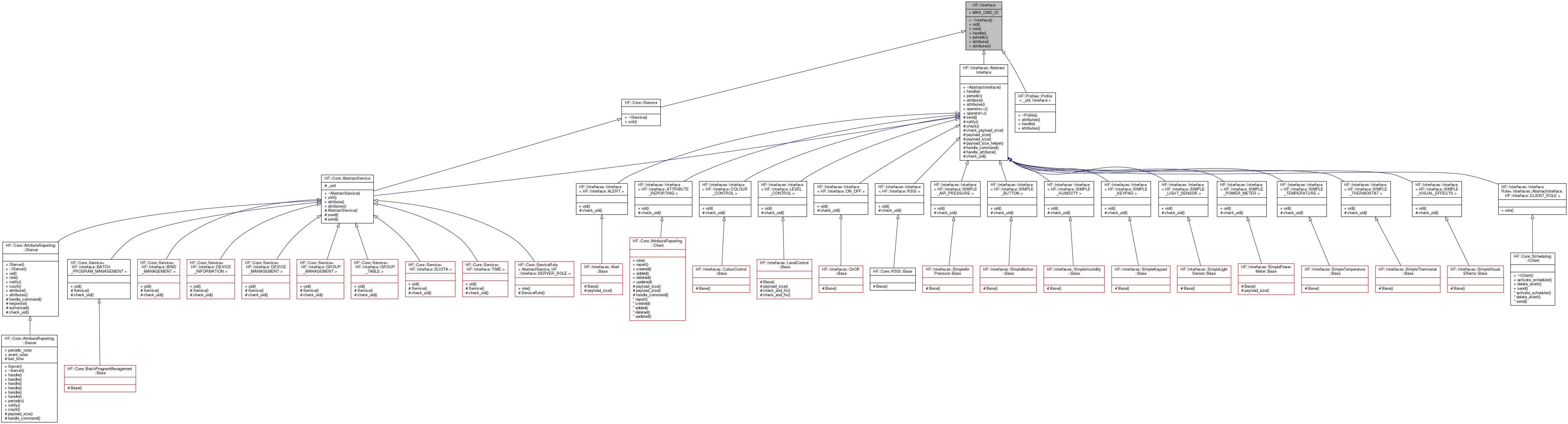

Inheritance diagram for HF::Interface:

Collaboration diagram for HF::Interface:

Data Structures
struct	Any
	Helper class to match any interface. More...

Public Types
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...
enum	UID {   DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004,   DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008,   WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102,   POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400,   ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202,   SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302,   SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306,   SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Public Member Functions
virtual uint16_t	uid () const =0
	This method returns the interface UID. More...
virtual Interface::Role	role () const =0
	Return the Interface::Role this interface implements. More...
virtual Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0
	Handle incoming messages from the network. More...
virtual void	periodic (uint32_t time)=0
	Handle periodic processing. More...
virtual HF::Attributes::IAttribute *	attribute (uint8_t uid)=0
	Return a pointer to the interface attribute with the given uid. More...
virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const =0
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Static Public Attributes
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Common interface for all Interfaces.

Definition at line 43 of file interface.h.

Member Enumeration Documentation

Role

enum HF::Interface::Role

Interface roles.

Enumerator
CLIENT_ROLE	Client Role.
SERVER_ROLE	Server Role.

Definition at line 48 of file interface.h.

      {
         CLIENT_ROLE = 0,
         SERVER_ROLE = 1,
      } Role;

UID

enum HF::Interface::UID

Interfaces Unique Identifiers (UID).

Enumerator
DEVICE_MANAGEMENT	Device Management interface UID.
BIND_MANAGEMENT	Bind Management interface UID.
GROUP_MANAGEMENT	Group Management interface UID.
IDENTIFY	Identify interface UID. Not implemented
DEVICE_INFORMATION	Device information interface UID.
ATTRIBUTE_REPORTING	Attribute Reporting interface UID.
BATCH_PROGRAM_MANAGEMENT	Batch Program Management interface UID.
EVENT_SCHEDULING	Event Scheduling interface UID. Not implemented
WEEKLY_SCHEDULING	Weekly Scheduling interface UID. Not implemented
GROUP_TABLE	Group Table interface UID.
TAMPER_ALERT	Tamper Alert interface UID. Not implemented
TIME	Time interface UID. Not implemented
POWER	Power interface UID. Not implemented
KEEP_ALIVE	Keep Alive interface UID. Not implemented
RSSI	RSSI interface UID.
SUOTA	SUOTA interface UID.
ALERT	Alert interface UID.
ON_OFF	ON-OFF interface UID.
LEVEL_CONTROL	Level Control interface UID.
COLOUR_CONTROL	Colour Control interface UID.
SIMPLE_KEYPAD	Simple Keypad interface UID.
SIMPLE_POWER_METER	Simple Power Meter interface UID.
SIMPLE_TEMPERATURE	Simple Temperature interface UID.
SIMPLE_HUMIDITY	Simple Humidity interface UID.
SIMPLE_THERMOSTAT	Simple Thermostat interface UID.
SIMPLE_BUTTON	Simple Button interface UID.
SIMPLE_VISUAL_EFFECTS	Simple Visual Effects interface UID.
SIMPLE_AIR_PRESSURE	Simple Air Pressure interface UID.
SIMPLE_LIGHT_SENSOR	Simple Light Sensor interface UID.
RESERVED	Proprietary interfaces.
MAX_UID	Max interface UID value.
ANY_UID	Any interface UID value.

Definition at line 57 of file interface.h.

      {
         /* Core Services */
         DEVICE_MANAGEMENT        = 0x0001,
         BIND_MANAGEMENT          = 0x0002,
         GROUP_MANAGEMENT         = 0x0003,
         IDENTIFY                 = 0x0004,
         DEVICE_INFORMATION       = 0x0005,
         ATTRIBUTE_REPORTING      = 0x0006,
         BATCH_PROGRAM_MANAGEMENT = 0x0007,
         EVENT_SCHEDULING         = 0x0008,
         WEEKLY_SCHEDULING        = 0x0009,
         GROUP_TABLE              = 0x000A,
         TAMPER_ALERT             = 0x0101,
         TIME                     = 0x0102,
         POWER                    = 0x0110,
         KEEP_ALIVE               = 0x0115,
         RSSI                     = 0x0111,
         SUOTA                    = 0x0400,

         /* Functional Interfaces. */
         ALERT                 = 0x0100,
         ON_OFF                = 0x0200,
         LEVEL_CONTROL         = 0x0201,
         COLOUR_CONTROL        = 0x0202,
         SIMPLE_KEYPAD         = 0x0203,
         SIMPLE_POWER_METER    = 0x0300,
         SIMPLE_TEMPERATURE    = 0x0301,
         SIMPLE_HUMIDITY       = 0x0302,
         SIMPLE_THERMOSTAT     = 0x0303,
         SIMPLE_BUTTON         = 0x0304,
         SIMPLE_VISUAL_EFFECTS = 0x0305,
         SIMPLE_AIR_PRESSURE   = 0x0306,
         SIMPLE_LIGHT_SENSOR   = 0x0307,

         /* Reserved */
         RESERVED = 0x7F00,
         MAX_UID  = 0x7FFE,
         ANY_UID  = 0x7FFF,
      } UID;

Member Function Documentation

attribute()

virtual HF::Attributes::IAttribute* HF::Interface::attribute ( uint8_t  uid )

pure virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in]

uid

identifier of the attribute in the interface.

Returns

a pointer to the attribute if it exists, nullptr otherwise.

Implemented in HF::Core::AttributeReporting::IServer, HF::Interfaces::ColourControl::IServer, HF::Core::GroupManagement::IServer, HF::Core::Scheduling::IServer, HF::Core::BatchProgramManagement::IServer, HF::Interfaces::SimplePowerMeter::Server, HF::Core::GroupTable::IServer, HF::Interfaces::SimpleThermostat::Server, HF::Interfaces::SimpleButton::Server, HF::Interfaces::LevelControl::Server, HF::Interfaces::Alert::Server, HF::Core::Time::Server, HF::Interfaces::SimpleLightSensor::Server, HF::Interfaces::SimpleAirPressure::Server, HF::Interfaces::SimpleTemperature::Server, HF::Interfaces::AbstractInterface, HF::Interfaces::OnOff::Server, HF::Interfaces::SimpleHumidity::Server, and HF::Core::AbstractService.

attributes()

virtual HF::Attributes::UIDS HF::Interface::attributes ( uint8_t  pack_id = HF::Attributes::Pack::MANDATORY ) const

pure virtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in]

pack_id

the Attribute pack ID to get the attributes UIDs for.

Returns

vector containing the attributes UIDs.

Implemented in HF::Core::AttributeReporting::IServer, HF::Interfaces::ColourControl::IServer, HF::Core::GroupManagement::IServer, HF::Core::Scheduling::IServer, HF::Core::BatchProgramManagement::IServer, HF::Interfaces::SimplePowerMeter::Server, HF::Core::GroupTable::IServer, HF::Interfaces::SimpleThermostat::Server, HF::Interfaces::SimpleButton::Server, HF::Interfaces::Alert::Server, HF::Interfaces::LevelControl::Server, HF::Core::Time::Server, HF::Interfaces::SimpleLightSensor::Server, HF::Interfaces::SimpleAirPressure::Server, HF::Interfaces::SimpleTemperature::Server, HF::Interfaces::AbstractInterface, HF::Interfaces::OnOff::Server, HF::Interfaces::SimpleHumidity::Server, and HF::Core::AbstractService.

handle()

virtual Common::Result HF::Interface::handle ( Protocol::Packet &  packet, Common::ByteArray &  payload, uint16_t  offset  )

pure virtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns

the result of the message processing.

Implemented in HF::Core::GroupManagement::IServer, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Interfaces::AbstractInterface.

Referenced by HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::handle(), and HF::Unit0< IUnit0, ITF... >::handle().

Here is the caller graph for this function:

periodic()

virtual void HF::Interface::periodic ( uint32_t  time )

pure virtual

Handle periodic processing.

Parameters

[in]

time

current system clock value in seconds.

Implemented in HF::Core::AttributeReporting::Server, HF::Interfaces::SimplePowerMeter::Server, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Interfaces::AbstractInterface.

role()

virtual Interface::Role HF::Interface::role ( ) const

pure virtual

Return the Interface::Role this interface implements.

Returns

the Interface::Role implemented by the interface.

Implemented in HF::Core::AttributeReporting::IServer, HF::Core::AttributeReporting::Client, HF::Interfaces::InterfaceRole< SimplePowerMeter::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleThermostat::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleLightSensor::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< OnOff::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleButton::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleHumidity::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimplePowerMeter::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< Interfaces::AbstractInterface, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleKeypad::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleHumidity::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< Alert::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleTemperature::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleAirPressure::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleTemperature::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleVisualEffects::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleThermostat::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< ColourControl::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< LevelControl::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleButton::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< Alert::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleKeypad::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< SimpleAirPressure::Base, HF::Interface::CLIENT_ROLE >, HF::Interfaces::InterfaceRole< OnOff::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleVisualEffects::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< SimpleLightSensor::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< LevelControl::Base, HF::Interface::SERVER_ROLE >, HF::Interfaces::InterfaceRole< ColourControl::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< SUOTA::Base, HF::Interface::SERVER_ROLE >, HF::Core::ServiceRole< Time::Base, HF::Interface::SERVER_ROLE >, HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::SERVER_ROLE >, HF::Core::ServiceRole< SUOTA::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< GroupTable::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< Time::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::SERVER_ROLE >, HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::CLIENT_ROLE >, HF::Core::ServiceRole< GroupTable::Base, HF::Interface::SERVER_ROLE >, and HF::Core::ServiceRole< AbstractService, HF::Interface::SERVER_ROLE >.

Referenced by HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::interfaces().

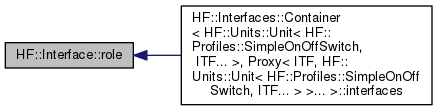

Here is the caller graph for this function:

uid()

virtual uint16_t HF::Interface::uid ( ) const

pure virtual

This method returns the interface UID.

Subclasses MUST override this method to provide a valid value for the interface being implemented.

This method returns a uint16_t and not a Interface::UID, to provide support for proprietary interfaces.

Returns

the UID for the interface.

Implemented in HF::Core::AttributeReporting::IServer, HF::Interfaces::Interface< HF::Interface::SIMPLE_BUTTON >, HF::Interfaces::Interface< HF::Interface::SIMPLE_TEMPERATURE >, HF::Interfaces::Interface< HF::Interface::SIMPLE_AIR_PRESSURE >, HF::Interfaces::Interface< HF::Interface::ON_OFF >, HF::Interfaces::Interface< HF::Interface::COLOUR_CONTROL >, HF::Interfaces::Interface< HF::Interface::SIMPLE_THERMOSTAT >, HF::Interfaces::Interface< HF::Interface::SIMPLE_LIGHT_SENSOR >, HF::Interfaces::Interface< HF::Interface::SIMPLE_POWER_METER >, HF::Interfaces::Interface< HF::Interface::LEVEL_CONTROL >, HF::Interfaces::Interface< HF::Interface::RSSI >, HF::Interfaces::Interface< HF::Interface::ALERT >, HF::Interfaces::Interface< HF::Interface::SIMPLE_VISUAL_EFFECTS >, HF::Interfaces::Interface< HF::Interface::SIMPLE_HUMIDITY >, HF::Interfaces::Interface< HF::Interface::SIMPLE_KEYPAD >, HF::Interfaces::Interface< HF::Interface::ATTRIBUTE_REPORTING >, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::SimpleLight >, HF::Core::Service< HF::Interface::SUOTA >, HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >, HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT >, HF::Core::Service< HF::Interface::DEVICE_MANAGEMENT >, HF::Core::Service< HF::Interface::BIND_MANAGEMENT >, HF::Core::Service< HF::Interface::GROUP_TABLE >, HF::Core::Service< HF::Interface::DEVICE_INFORMATION >, and HF::Core::Service< HF::Interface::TIME >.

Referenced by HF::Core::AbstractService::attribute(), HF::Interfaces::AbstractInterface::attribute(), HF::Profiles::Profile< SIMPLE_LIGHT_SENSOR, Interfaces::SimpleLightSensor::Server >::attributes(), and HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::interfaces().

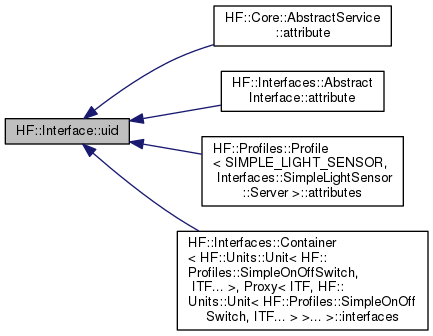

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following file:

• interface.h
