Simple Light Sensor Interface : Server side implementation. More...

#include <simple_light_sensor.h>

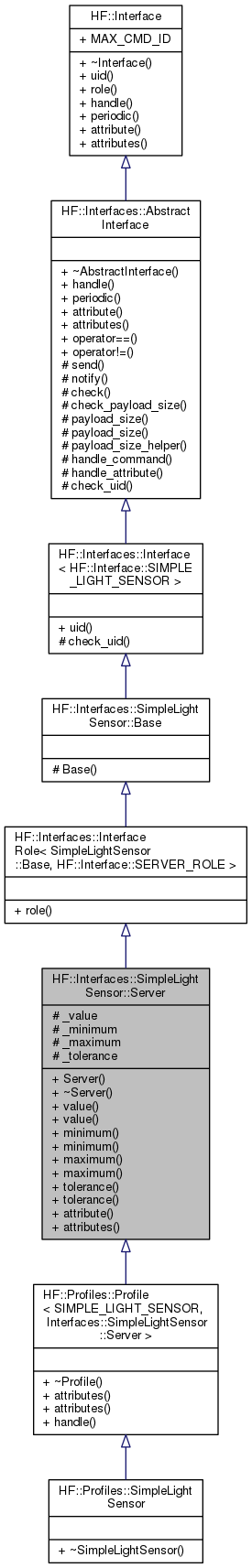

Inheritance diagram for HF::Interfaces::SimpleLightSensor::Server:

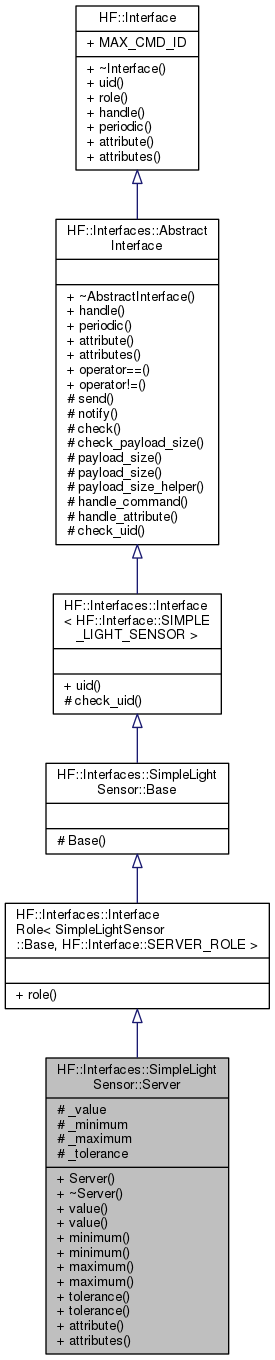

Collaboration diagram for HF::Interfaces::SimpleLightSensor::Server:

Public Member Functions
	Server (uint32_t minimum=std::numeric_limits< uint32_t >::min(), uint32_t maximum=std::numeric_limits< uint32_t >::max(), uint32_t tolerance=0)
	Constructor. More...

virtual	~Server ()
	Destructor.

uint32_t	value () const
	Get the Value for the Simple Light Sensor server. More...

void	value (uint32_t __value)
	Set the Value for the Simple Light Sensor server. More...

uint32_t	minimum () const
	Get the Minimum for the Simple Light Sensor server. More...

void	minimum (uint32_t __value)
	Set the Minimum for the Simple Light Sensor server. More...

uint32_t	maximum () const
	Get the Maximum for the Simple Light Sensor server. More...

void	maximum (uint32_t __value)
	Set the Maximum for the Simple Light Sensor server. More...

uint32_t	tolerance () const
	Get the Tolerance for the Simple Light Sensor server. More...

void	tolerance (uint32_t __value)
	Set the Tolerance for the Simple Light Sensor server. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< SimpleLightSensor::Base, HF::Interface::SERVER_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_LIGHT_SENSOR >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Protected Attributes
uint32_t	_value
	Value.

uint32_t	_minimum
	Minimum.

uint32_t	_maximum
	Maximum.

uint32_t	_tolerance
	Tolerance.

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Member Functions inherited from HF::Interfaces::SimpleLightSensor::Base
	Base ()
	Constructor.

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_LIGHT_SENSOR >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Detailed Description

Simple Light Sensor Interface : Server side implementation.

This class provides the server side of the Simple Light Sensor interface.

Definition at line 158 of file simple_light_sensor.h.

Constructor & Destructor Documentation

◆ Server()

HF::Interfaces::SimpleLightSensor::Server::Server	(	uint32_t	minimum = `std::numeric_limits<uint32_t>::min()`,
		uint32_t	maximum = `std::numeric_limits<uint32_t>::max()`,
		uint32_t	tolerance = `0`
	)

inline

Constructor.

Parameters

[in]	minimum	Minimum measurable lux.
[in]	maximum	Maximum measurable lux.
[in]	tolerance	Tolerance.

Definition at line 176 of file simple_light_sensor.h.

                                           :
                _value(0), _minimum(minimum), _maximum(maximum), _tolerance(tolerance)
             {}

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Interfaces::SimpleLightSensor::Server::attribute ( uint8_t uid )

virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ attributes()

HF::Attributes::UIDS HF::Interfaces::SimpleLightSensor::Server::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

virtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ maximum() [1/2]

uint32_t HF::Interfaces::SimpleLightSensor::Server::maximum ( ) const

Get the Maximum for the Simple Light Sensor server.

Returns: the current Maximum.

◆ maximum() [2/2]

void HF::Interfaces::SimpleLightSensor::Server::maximum ( uint32_t __value )

Set the Maximum for the Simple Light Sensor server.

Parameters

[in] __value the Maximum value to set the server to.

◆ minimum() [1/2]

uint32_t HF::Interfaces::SimpleLightSensor::Server::minimum ( ) const

Get the Minimum for the Simple Light Sensor server.

Returns: the current Minimum.

◆ minimum() [2/2]

void HF::Interfaces::SimpleLightSensor::Server::minimum ( uint32_t __value )

Set the Minimum for the Simple Light Sensor server.

Parameters

[in] __value the Minimum value to set the server to.

◆ tolerance() [1/2]

uint32_t HF::Interfaces::SimpleLightSensor::Server::tolerance ( ) const

Get the Tolerance for the Simple Light Sensor server.

Returns: the current Tolerance.

◆ tolerance() [2/2]

void HF::Interfaces::SimpleLightSensor::Server::tolerance ( uint32_t __value )

Set the Tolerance for the Simple Light Sensor server.

Parameters

[in] __value the Tolerance value to set the server to.

◆ value() [1/2]

uint32_t HF::Interfaces::SimpleLightSensor::Server::value ( ) const

Get the Value for the Simple Light Sensor server.

Returns: the current Value.

◆ value() [2/2]

void HF::Interfaces::SimpleLightSensor::Server::value ( uint32_t __value )

Set the Value for the Simple Light Sensor server.

Parameters

[in] __value the Value value to set the server to.

The documentation for this class was generated from the following file:

simple_light_sensor.h
