Interface/Service Attribute API. More...

#include <attributes.h>

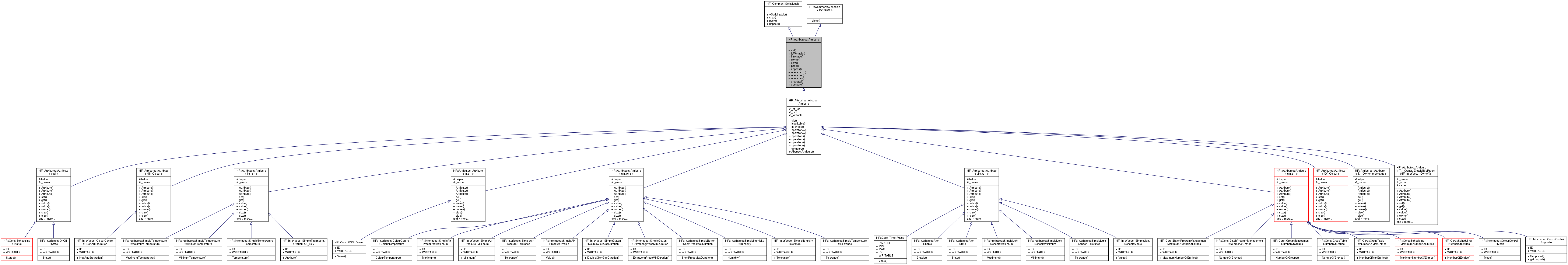

Inheritance diagram for HF::Attributes::IAttribute:

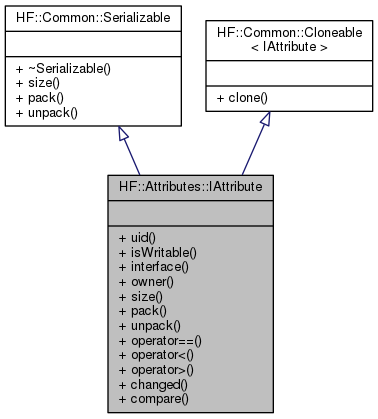

Collaboration diagram for HF::Attributes::IAttribute:

Public Member Functions
virtual uint8_t	uid () const =0
	Attribute's UID. More...

virtual bool	isWritable () const =0
	Indicate if the attribute is writable. More...

virtual uint16_t	interface () const =0
	Return the UID of the interface the attribute belongs to. More...

virtual HF::Interface const *	owner () const =0
	Pointer to the interface that owns this attribute. More...

virtual uint16_t	size (bool with_uid) const =0
	Number bytes needed to serialize the message. More...

virtual uint16_t	pack (Common::ByteArray &array, uint16_t offset, bool with_uid) const =0
	Write the object on to a ByteArray so it can be sent over the network. More...

virtual uint16_t	unpack (const Common::ByteArray &array, uint16_t offset, bool with_uid)=0
	Read a message from a ByteArray. More...

virtual float	changed (const IAttribute &other) const =0
	This method is used to get the percentage of change that the attribute has in relation to the value present in `other`. More...

virtual int	compare (const IAttribute &other) const =0
	Compare this attribute with the given attribute in `other`. More...

Public Member Functions inherited from HF::Common::Serializable
virtual	~Serializable ()
	Destructor.

virtual uint16_t	size () const =0
	Number bytes needed to serialize the message. More...

virtual uint16_t	pack (ByteArray &array, uint16_t offset=0) const =0
	Write the object on to a ByteArray so it can be sent over the network. More...

virtual uint16_t	unpack (const ByteArray &array, uint16_t offset=0)=0
	Read a message from a ByteArray. More...

Public Member Functions inherited from HF::Common::Cloneable< IAttribute >
virtual IAttribute *	clone () const=0
	Create a clone object of the object where this method is being called. More...

Detailed Description

Interface/Service Attribute API.

Definition at line 44 of file attributes.h.

Member Function Documentation

◆ changed()

virtual float HF::Attributes::IAttribute::changed ( const IAttribute & other ) const

pure virtual

This method is used to get the percentage of change that the attribute has in relation to the value present in other.

Parameters

[in] other attribute holding a previous value.

Returns: float indicating the percentage of change.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

◆ compare()

virtual int HF::Attributes::IAttribute::compare ( const IAttribute & other ) const

pure virtual

Compare this attribute with the given attribute in other.

This method should return < 0 if this attribute is less that, 0 if it is equal and > 0 if greater that the other attribute.

Parameters

[in] other attribute to compare to.

Return values

<0	if attribute less than `other`;
0	if attribute equal to `other`;
>0	if attribute greater than `other`.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, HF::Attributes::Attribute< bool >, and HF::Attributes::AbstractAttribute.

◆ interface()

virtual uint16_t HF::Attributes::IAttribute::interface ( ) const

pure virtual

Return the UID of the interface the attribute belongs to.

Returns: UID of the interface the attribute belongs to.

Implemented in HF::Attributes::AbstractAttribute.

Referenced by HF::Attributes::AbstractAttribute::compare().

Here is the caller graph for this function:

◆ isWritable()

virtual bool HF::Attributes::IAttribute::isWritable ( ) const

pure virtual

Indicate if the attribute is writable.

Return values

true	if the attribute is writable,
false	otherwise.

Implemented in HF::Attributes::AbstractAttribute.

◆ owner()

virtual HF::Interface const* HF::Attributes::IAttribute::owner ( ) const

pure virtual

Pointer to the interface that owns this attribute.

This can return nullptr if the attribute was created for a remote interface.

Returns: pointer to the interface that owns this attribute, or nullptr if owner is a remote object.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

◆ pack()

virtual uint16_t HF::Attributes::IAttribute::pack	(	Common::ByteArray &	array,
		uint16_t	offset,
		bool	with_uid
	)		const

pure virtual

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.
[in]	with_uid	include `uid` field in the serialization.

Returns: the number of bytes written.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

◆ size()

virtual uint16_t HF::Attributes::IAttribute::size ( bool with_uid ) const

pure virtual

Number bytes needed to serialize the message.

Parameters

[in] with_uid include uid size in the calculation.

Returns: number of bytes the message requires to be serialized.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

◆ uid()

virtual uint8_t HF::Attributes::IAttribute::uid ( ) const

pure virtual

Attribute's UID.

Returns: the attribute's UID value.

Implemented in HF::Attributes::AbstractAttribute.

Referenced by HF::Attributes::AbstractAttribute::compare().

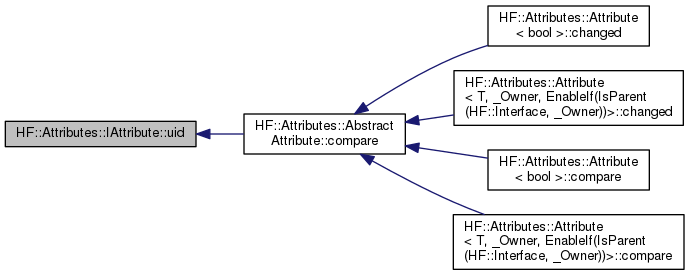

Here is the caller graph for this function:

◆ unpack()

virtual uint16_t HF::Attributes::IAttribute::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset,
		bool	with_uid
	)

pure virtual

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.
[in]	with_uid	`true` if the `uid` field was included in the serialization, `false` otherwise.

Returns: the number of bytes read.

Implemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

The documentation for this struct was generated from the following file:

attributes.h
