HF::Attributes::Attribute< T, _Owner, typename > Struct Template Reference

Helper template class to declare an attribute with the given T type. More...

#include <attributes.h>

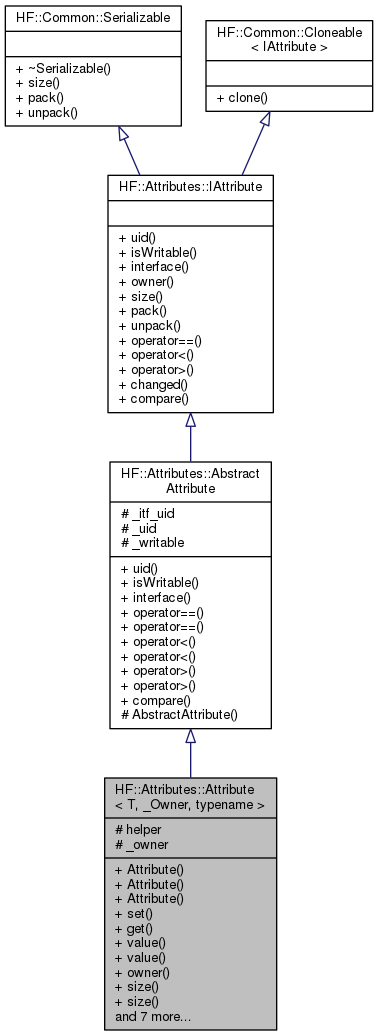

Inheritance diagram for HF::Attributes::Attribute< T, _Owner, typename >:

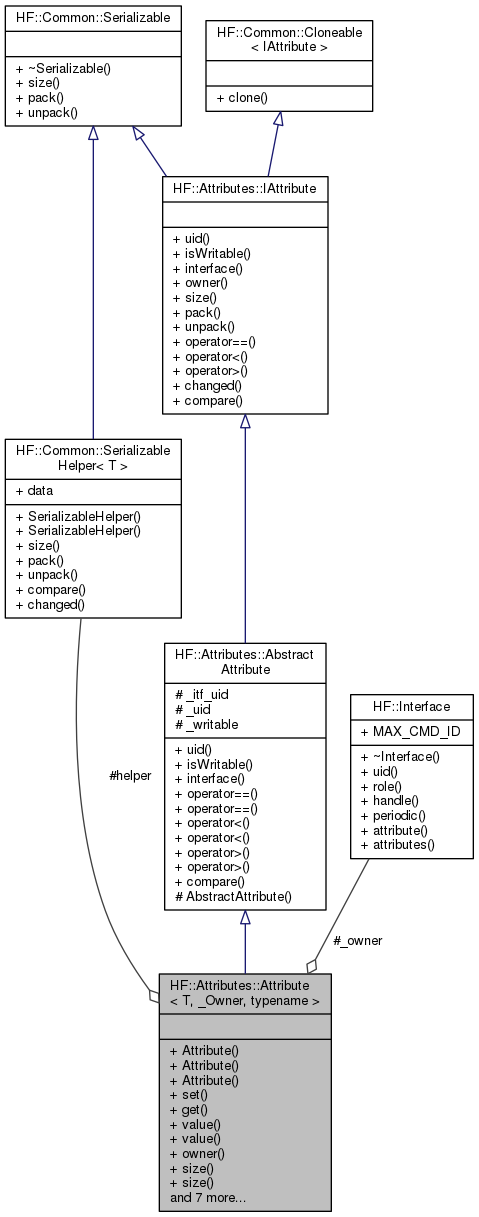

Collaboration diagram for HF::Attributes::Attribute< T, _Owner, typename >:

Public Member Functions
	Attribute (const uint16_t interface, const uint8_t uid, const HF::Interface *__owner, T data, bool writable=false)
	Attribute template constructor. More...
	Attribute (const uint16_t interface, const uint8_t uid, bool writable=false)
	Attribute template constructor. More...
	Attribute (const uint16_t interface, const uint8_t uid, T data, bool writable=false)
	Attribute template constructor. More...
HF::Interface const *	owner () const
	Pointer to the interface that owns this attribute. More...
uint16_t	size (bool with_uid) const
	Number bytes needed to serialize the message. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset, bool with_uid) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset, bool with_uid)
	Read a message from a ByteArray. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
IAttribute *	clone () const
	Create a clone object of the object where this method is being called. More...
int	compare (const IAttribute &other) const
	Compare this attribute with the given attribute in other. More...
float	changed (const IAttribute &other) const
	This method is used to get the percentage of change that the attribute has in relation to the value present in other. More...
Public Member Functions inherited from HF::Attributes::AbstractAttribute
uint8_t	uid () const
	Attribute's UID. More...
bool	isWritable () const
	Indicate if the attribute is writable. More...
uint16_t	interface () const
	Return the UID of the interface the attribute belongs to. More...
Public Member Functions inherited from HF::Common::Serializable
virtual	~Serializable ()
	Destructor.

Additional Inherited Members
Protected Attributes inherited from HF::Attributes::AbstractAttribute
const uint16_t	_itf_uid
	Interface this attribute belongs to. More...
const uint8_t	_uid
	Attribute unique identifier. More...
const bool	_writable
	Attribute access mode. More...

Detailed Description

template<typename T, typename _Owner = void, typename = void>
struct HF::Attributes::Attribute< T, _Owner, typename >

Helper template class to declare an attribute with the given T type.

Template Parameters

T	underling data type for the attribute.
_Owner	underling data type for the attribute's owner.

Definition at line 349 of file attributes.h.

Constructor & Destructor Documentation

Attribute() [1/3]

template<typename T, typename _Owner = void, typename = void>

HF::Attributes::Attribute< T, _Owner, typename >::Attribute ( const uint16_t  interface, const uint8_t  uid, const HF::Interface *  __owner, T  data, bool  writable = false  )

inline

Attribute template constructor.

Parameters

[in]	interface	attribute's interface UID.
[in]	uid	attribute's UID.
[in]	data	attribute's value.
[in]	__owner	pointer to attribute's interface owner object.
[in]	writable	attribute's writable information.

Definition at line 360 of file attributes.h.

                                                 :
            AbstractAttribute(interface, uid, writable), helper(data), _owner(__owner)
         {}

Attribute() [2/3]

template<typename T, typename _Owner = void, typename = void>

HF::Attributes::Attribute< T, _Owner, typename >::Attribute ( const uint16_t  interface, const uint8_t  uid, bool  writable = false  )

inline

Attribute template constructor.

Parameters

[in]	interface	attribute's interface UID.
[in]	uid	attribute's UID.
[in]	writable	attribute's writable information.

Definition at line 372 of file attributes.h.

                                                                                      :
            AbstractAttribute(interface, uid, writable), _owner(nullptr)
         {}

Attribute() [3/3]

template<typename T, typename _Owner = void, typename = void>

HF::Attributes::Attribute< T, _Owner, typename >::Attribute ( const uint16_t  interface, const uint8_t  uid, T  data, bool  writable = false  )

inline

Attribute template constructor.

Parameters

[in]	interface	attribute's interface UID.
[in]	uid	attribute's UID.
[in]	data	attribute's value.
[in]	writable	attribute's writable information.

Definition at line 384 of file attributes.h.

                                                                                              :
            AbstractAttribute(interface, uid, writable), helper(data), _owner(nullptr)
         {}

Member Function Documentation

changed()

template<typename T, typename _Owner = void, typename = void>

float HF::Attributes::Attribute< T, _Owner, typename >::changed ( const IAttribute< T, _Owner, typename > &  other ) const

inlinevirtual

This method is used to get the percentage of change that the attribute has in relation to the value present in other.

Parameters

[in]

other

attribute holding a previous value.

Returns

float indicating the percentage of change.

Implements HF::Attributes::IAttribute.

Definition at line 496 of file attributes.h.

         {
            int res = AbstractAttribute::compare(other);

            if (res == 0)
            {
               Attribute<T> *temp = (Attribute<T> *) & other;
               return helper.changed(temp->helper);
            }

            return 0.0;
         }

clone()

template<typename T, typename _Owner = void, typename = void>

IAttribute* HF::Attributes::Attribute< T, _Owner, typename >::clone ( ) const

inlinevirtual

Create a clone object of the object where this method is being called.

Returns

a new object that is a clone of this object.

Implements HF::Common::Cloneable< IAttribute >.

Definition at line 477 of file attributes.h.

         {
            return new HF::Attributes::Attribute<T>(this->_itf_uid, this->_uid, this->_owner,
                                                    this->helper.data, this->_writable);
         }

compare()

template<typename T, typename _Owner = void, typename = void>

int HF::Attributes::Attribute< T, _Owner, typename >::compare ( const IAttribute< T, _Owner, typename > &  other ) const

inlinevirtual

Compare this attribute with the given attribute in other.

This method should return < 0 if this attribute is less that, 0 if it is equal and > 0 if greater that the other attribute.

Parameters

[in]

other

attribute to compare to.

Return values

<0	if attribute less than other;
0	if attribute equal to other;
>0	if attribute greater than other.

Reimplemented from HF::Attributes::AbstractAttribute.

Definition at line 483 of file attributes.h.

         {
            int res = AbstractAttribute::compare(other);

            if (res == 0)
            {
               Attribute<T> *temp = (Attribute<T> *) & other;
               res = helper.compare(temp->helper);
            }

            return res;
         }

owner()

template<typename T, typename _Owner = void, typename = void>

HF::Interface const* HF::Attributes::Attribute< T, _Owner, typename >::owner ( ) const

inlinevirtual

Pointer to the interface that owns this attribute.

This can return nullptr if the attribute was created for a remote interface.

Returns

pointer to the interface that owns this attribute, or nullptr if owner is a remote object.

Implements HF::Attributes::IAttribute.

Definition at line 414 of file attributes.h.

         {
            return _owner;
         }

pack() [1/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::pack ( Common::ByteArray &  array, uint16_t  offset, bool  with_uid  ) const

inlinevirtual

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.
[in]	with_uid	include uid field in the serialization.

Returns

the number of bytes written.

Implements HF::Attributes::IAttribute.

Definition at line 429 of file attributes.h.

         {
            HF_SERIALIZABLE_CHECK(array, offset, size(with_uid));

            uint16_t start = offset;

            if (with_uid)
            {
               offset += array.write(offset, uid());
            }

            offset += helper.pack(array, offset);

            return offset - start;
         }

pack() [2/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inlinevirtual

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Implements HF::Common::Serializable.

Definition at line 445 of file attributes.h.

         {
            return helper.pack(array, offset);
         }

size() [1/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::size ( bool  with_uid ) const

inlinevirtual

Number bytes needed to serialize the message.

Parameters

[in]

with_uid

include uid size in the calculation.

Returns

number of bytes the message requires to be serialized.

Implements HF::Attributes::IAttribute.

Definition at line 419 of file attributes.h.

         {
            return size() + (with_uid ? sizeof(uint8_t) : 0);
         }

size() [2/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::size ( ) const

inlinevirtual

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Implements HF::Common::Serializable.

Definition at line 424 of file attributes.h.

Referenced by HF::Attributes::Attribute< bool >::pack(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::pack(), HF::Attributes::Attribute< bool >::size(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::size(), HF::Attributes::Attribute< bool >::unpack(), and HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::unpack().

         {
            return helper.size();
         }

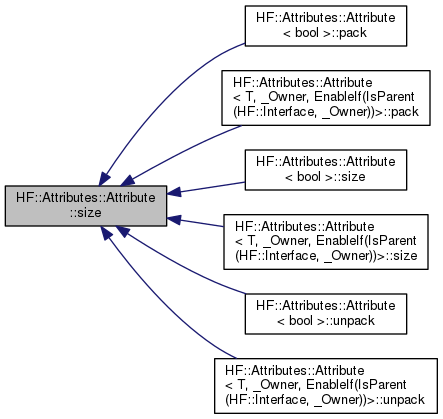

Here is the caller graph for this function:

unpack() [1/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::unpack ( const Common::ByteArray &  array, uint16_t  offset, bool  with_uid  )

inlinevirtual

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.
[in]	with_uid	true if the uid field was included in the serialization, false otherwise.

Returns

the number of bytes read.

Implements HF::Attributes::IAttribute.

Definition at line 450 of file attributes.h.

         {
            HF_SERIALIZABLE_CHECK(array, offset, size(with_uid));

            uint16_t start = offset;

            if (with_uid)
            {
               uint8_t temp;
               offset += array.read(offset, temp);

               if (temp != uid())
               {
                  return 0;
               }
            }

            offset += helper.unpack(array, offset);

            return offset - start;
         }

unpack() [2/2]

template<typename T, typename _Owner = void, typename = void>

uint16_t HF::Attributes::Attribute< T, _Owner, typename >::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inlinevirtual

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Implements HF::Common::Serializable.

Definition at line 472 of file attributes.h.

         {
            return helper.unpack(array, offset);
         }

---

The documentation for this struct was generated from the following file:

• attributes.h
