Parent class for Attribute API implementation. More...

#include <attributes.h>

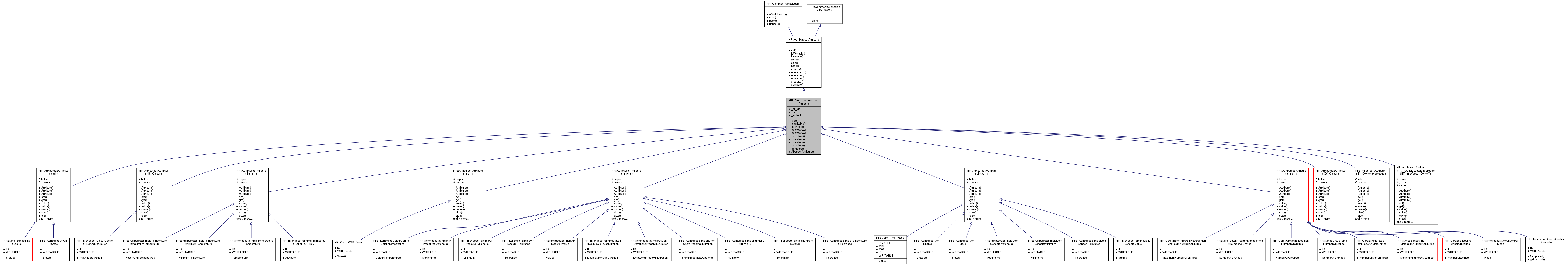

Inheritance diagram for HF::Attributes::AbstractAttribute:

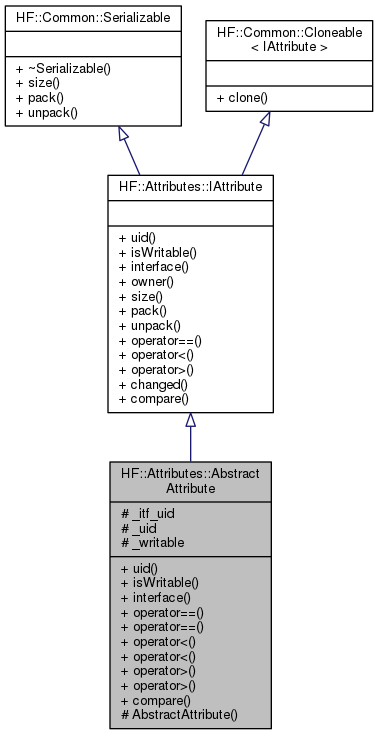

Collaboration diagram for HF::Attributes::AbstractAttribute:

Public Member Functions
uint8_t	uid () const
	Attribute's UID. More...

bool	isWritable () const
	Indicate if the attribute is writable. More...

uint16_t	interface () const
	Return the UID of the interface the attribute belongs to. More...

int	compare (const IAttribute &other) const
	Compare this attribute with the given attribute in `other`. More...

Public Member Functions inherited from HF::Attributes::IAttribute
virtual HF::Interface const *	owner () const =0
	Pointer to the interface that owns this attribute. More...

virtual uint16_t	size (bool with_uid) const =0
	Number bytes needed to serialize the message. More...

virtual uint16_t	pack (Common::ByteArray &array, uint16_t offset, bool with_uid) const =0
	Write the object on to a ByteArray so it can be sent over the network. More...

virtual uint16_t	unpack (const Common::ByteArray &array, uint16_t offset, bool with_uid)=0
	Read a message from a ByteArray. More...

virtual float	changed (const IAttribute &other) const =0
	This method is used to get the percentage of change that the attribute has in relation to the value present in `other`. More...

Public Member Functions inherited from HF::Common::Serializable
virtual	~Serializable ()
	Destructor.

virtual uint16_t	size () const =0
	Number bytes needed to serialize the message. More...

virtual uint16_t	pack (ByteArray &array, uint16_t offset=0) const =0
	Write the object on to a ByteArray so it can be sent over the network. More...

virtual uint16_t	unpack (const ByteArray &array, uint16_t offset=0)=0
	Read a message from a ByteArray. More...

Public Member Functions inherited from HF::Common::Cloneable< IAttribute >
virtual IAttribute *	clone () const=0
	Create a clone object of the object where this method is being called. More...

Protected Attributes
const uint16_t	_itf_uid
	Interface this attribute belongs to. More...

const uint8_t	_uid
	Attribute unique identifier. More...

const bool	_writable
	Attribute access mode. More...

Detailed Description

Parent class for Attribute API implementation.

Definition at line 270 of file attributes.h.

Member Function Documentation

◆ compare()

int HF::Attributes::AbstractAttribute::compare ( const IAttribute & other ) const

inlinevirtual

Compare this attribute with the given attribute in other.

This method should return < 0 if this attribute is less that, 0 if it is equal and > 0 if greater that the other attribute.

Parameters

[in] other attribute to compare to.

Return values

<0	if attribute less than `other`;
0	if attribute equal to `other`;
>0	if attribute greater than `other`.

Implements HF::Attributes::IAttribute.

Reimplemented in HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>, HF::Attributes::Attribute< T, _Owner, typename >, HF::Attributes::Attribute< int8_t >, HF::Attributes::Attribute< uint32_t >, HF::Attributes::Attribute< int16_t >, HF::Attributes::Attribute< HS_Colour >, HF::Attributes::Attribute< XY_Colour >, HF::Attributes::Attribute< uint8_t >, HF::Attributes::Attribute< uint16_t >, and HF::Attributes::Attribute< bool >.

Definition at line 329 of file attributes.h.

References HF::Attributes::IAttribute::interface(), interface(), HF::Attributes::IAttribute::uid(), and uid().

Referenced by HF::Attributes::Attribute< bool >::changed(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::changed(), HF::Attributes::Attribute< bool >::compare(), and HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::compare().

          {
             int res = this->interface() - other.interface();

             if (res != 0)
             {
                return res;
             }

             return this->uid() - other.uid();
          }

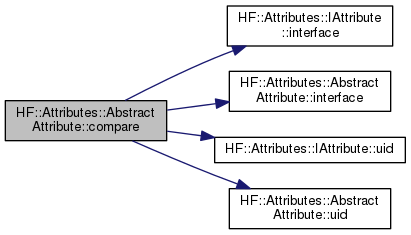

Here is the call graph for this function:

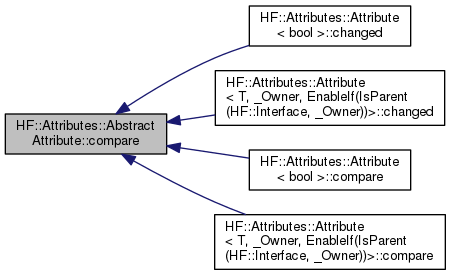

Here is the caller graph for this function:

◆ interface()

uint16_t HF::Attributes::AbstractAttribute::interface ( ) const

inlinevirtual

Return the UID of the interface the attribute belongs to.

Returns: UID of the interface the attribute belongs to.

Implements HF::Attributes::IAttribute.

Definition at line 294 of file attributes.h.

References _itf_uid.

Referenced by compare().

          {
             return _itf_uid;
          }

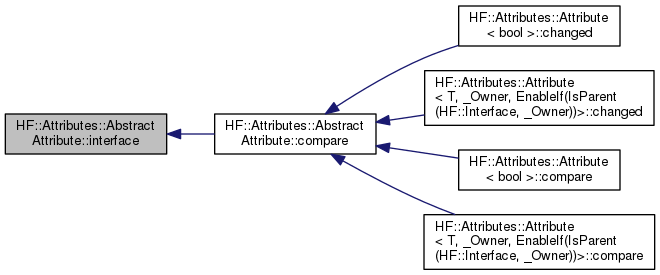

Here is the caller graph for this function:

◆ isWritable()

bool HF::Attributes::AbstractAttribute::isWritable ( ) const

inlinevirtual

Indicate if the attribute is writable.

Return values

true	if the attribute is writable,
false	otherwise.

Implements HF::Attributes::IAttribute.

Definition at line 289 of file attributes.h.

References _writable.

Referenced by HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::clone().

          {
             return _writable;
          }

Here is the caller graph for this function:

◆ uid()

uint8_t HF::Attributes::AbstractAttribute::uid ( ) const

inlinevirtual

Attribute's UID.

Returns: the attribute's UID value.

Implements HF::Attributes::IAttribute.

Definition at line 284 of file attributes.h.

References _uid.

Referenced by HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::clone(), compare(), HF::Attributes::Attribute< bool >::pack(), HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::pack(), HF::Attributes::Attribute< bool >::unpack(), and HF::Attributes::Attribute< T, _Owner, EnableIf(IsParent(HF::Interface, _Owner))>::unpack().

          {
             return _uid;
          }

Here is the caller graph for this function:

Field Documentation

◆ _itf_uid

const uint16_t HF::Attributes::AbstractAttribute::_itf_uid

protected

Interface this attribute belongs to.

Definition at line 274 of file attributes.h.

Referenced by HF::Attributes::Attribute< bool >::clone(), and interface().

◆ _uid

const uint8_t HF::Attributes::AbstractAttribute::_uid

protected

Attribute unique identifier.

Definition at line 275 of file attributes.h.

Referenced by HF::Attributes::Attribute< bool >::clone(), and uid().

◆ _writable

const bool HF::Attributes::AbstractAttribute::_writable

protected

Attribute access mode.

Definition at line 276 of file attributes.h.

Referenced by HF::Attributes::Attribute< bool >::clone(), and isWritable().

The documentation for this class was generated from the following file:

attributes.h
