Alert Interface : Server side implementation. More...

#include <alert.h>

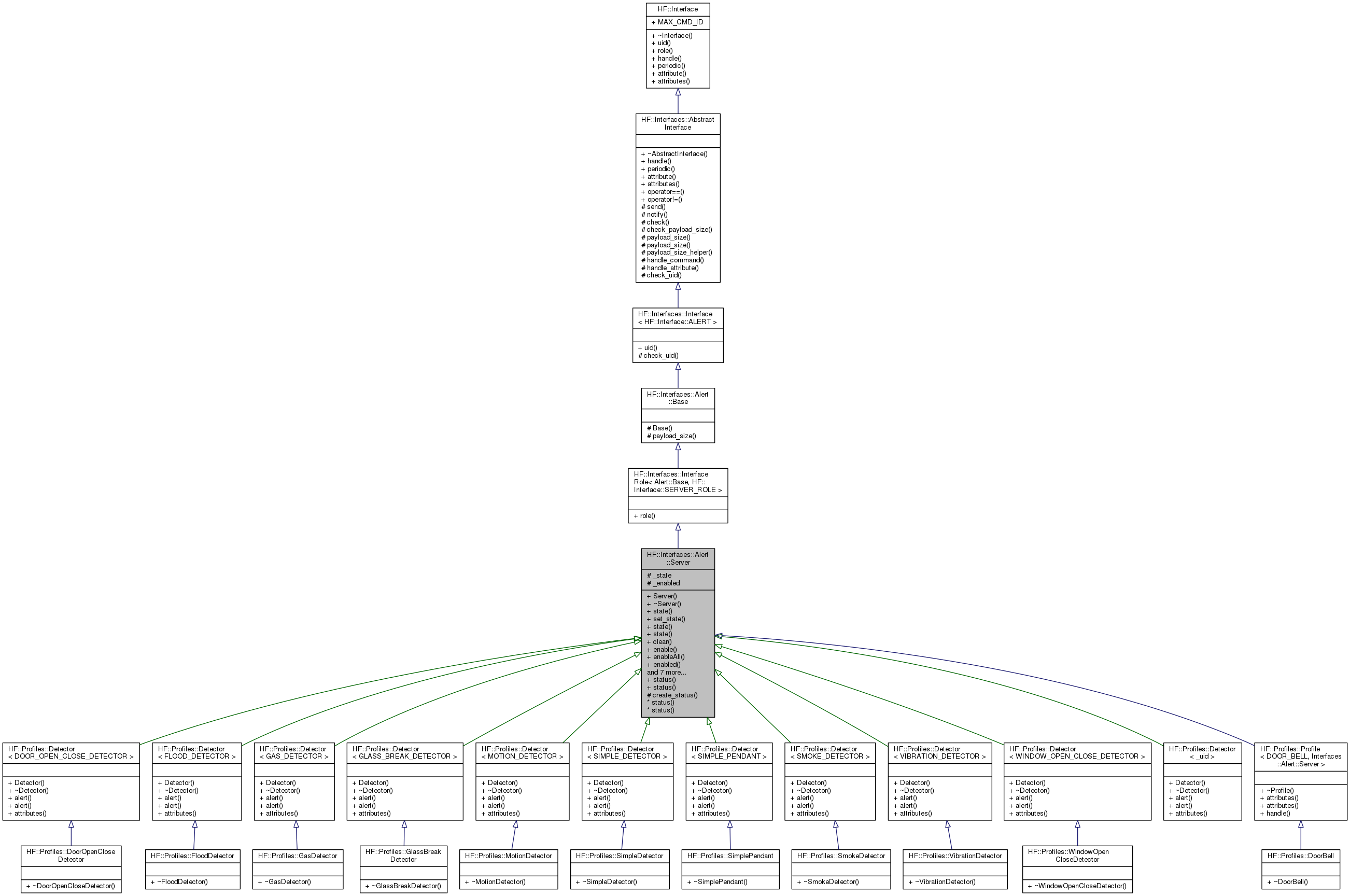

Inheritance diagram for HF::Interfaces::Alert::Server:

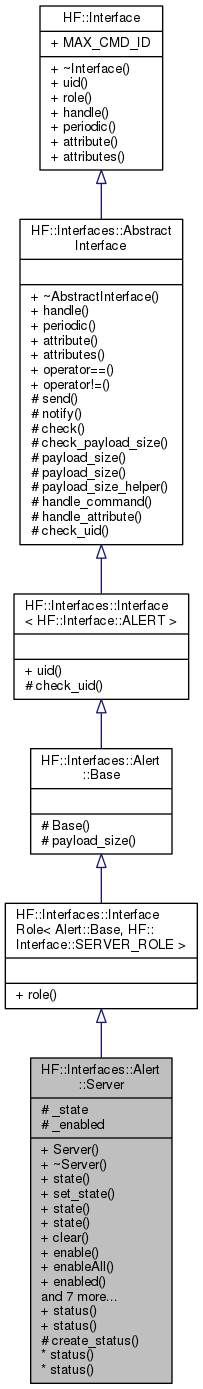

Collaboration diagram for HF::Interfaces::Alert::Server:

Public Member Functions
	Server ()
	Constructor.

virtual	~Server ()
	Destructor.

uint32_t	state ()
	Return the current state for all the alerts as a bitmask. More...

void	set_state (uint32_t value)
	Set the state bitmask to the given `value`. More...

bool	state (uint8_t index, bool value)
	Set the alert given by `index` to `value`. More...

bool	state (uint8_t index)
	Get the state of the alert given by `index`. More...

void	clear ()
	Clear all the alerts.

void	enable (uint8_t index)
	Enable alert at `index`. More...

void	enableAll ()
	Enable all alerts.

bool	enabled (uint8_t index)
	Check if alert at `index` is enabled. More...

uint32_t	enabled ()
	Return the bitmask of the enable state of the alerts. More...

void	set_enabled (uint32_t value)
	Set the bitmask of the enable state of the alerts. More...

void	disable (uint8_t index)
	Disable the alert at `index`. More...

bool	disabled (uint8_t index)
	Check if alert at `index` is disabled. More...

void	disableAll ()
	Disable all alerts.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Commands
void	status (Protocol::Address &addr, uint16_t unit_type)
	Send a HAN-FUN message containing a `Alert::STATUS_CMD`, to the given network address. More...

void	status (uint16_t unit_type)
	Send a HAN-FUN message containing a `Alert::STATUS_CMD`, to the broadcast network address. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< Alert::Base, HF::Interface::SERVER_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ALERT >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Protected Member Functions
Alert::Message *	create_status (uint16_t unit_type)
	Create a HAN-FUN message containing a `Alert::STATUS_CMD`, to be sent to the network. More...

Protected Member Functions inherited from HF::Interfaces::Alert::Base
uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ALERT >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Attributes
uint32_t	_state
	Alert's state.

uint32_t	_enabled
	Alert's enable state.

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Alert Interface : Server side implementation.

This class provides the server side of the Alert interface.

Definition at line 176 of file alert.h.

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Interfaces::Alert::Server::attribute ( uint8_t uid )

inlinevirtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Reimplemented from HF::Interfaces::AbstractInterface.

Definition at line 303 of file alert.h.

References HF::Interfaces::create_attribute(), and HF::Interfaces::Interface< HF::Interface::ALERT >::uid().

             {
                return Interfaces::create_attribute(this, uid);
             }

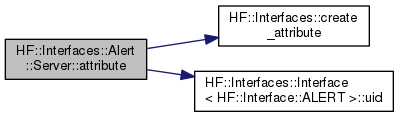

Here is the call graph for this function:

◆ attributes()

HF::Attributes::UIDS HF::Interfaces::Alert::Server::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

inlinevirtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

Definition at line 338 of file alert.h.

References HF::Interfaces::Alert::ENABLE_ATTR, HF::Interfaces::Alert::STATE_ATTR, and UNUSED.

             {
                UNUSED(pack_id);
                /* *INDENT-OFF* */
                return HF::Attributes::UIDS ({ Alert::STATE_ATTR, Alert::ENABLE_ATTR });
                /* *INDENT-ON* */
             }

◆ create_status()

Alert::Message* HF::Interfaces::Alert::Server::create_status ( uint16_t unit_type )

protected

Create a HAN-FUN message containing a Alert::STATUS_CMD, to be sent to the network.

Parameters

unit_type unit type (i.e. profile) source for the alert status message.

Returns: a pointer to a Alert::Message, or nullptr if the message can't be allocated.

◆ disable()

void HF::Interfaces::Alert::Server::disable ( uint8_t index )

Disable the alert at index.

Parameters

[in] index index of the alert to disable : [0,31].

◆ disabled()

bool HF::Interfaces::Alert::Server::disabled ( uint8_t index )

Check if alert at index is disabled.

Parameters

[in] index index of the alert to get the enable state : [0,31].

Return values

<tt>true</tt>	if the alert at `index` is disabled
<tt>false</tt>	otherwise

◆ enable()

void HF::Interfaces::Alert::Server::enable ( uint8_t index )

Enable alert at index.

Parameters

[in] index index to enable the alert : [0,31].

◆ enabled() [1/2]

bool HF::Interfaces::Alert::Server::enabled ( uint8_t index )

Check if alert at index is enabled.

Parameters

[in] index index of the alert to get the enabled state : [0,31].

Return values

<tt>true</tt>	if the alert at `index` is enabled,
<tt>false</tt>	otherwise.

◆ enabled() [2/2]

uint32_t HF::Interfaces::Alert::Server::enabled ( )

Return the bitmask of the enable state of the alerts.

Returns: the bitmask of the enable state of the alerts.

◆ set_enabled()

void HF::Interfaces::Alert::Server::set_enabled ( uint32_t value )

Set the bitmask of the enable state of the alerts.

Parameters

[in] value the bitmask of the enable state of the alerts to set.

◆ set_state()

void HF::Interfaces::Alert::Server::set_state ( uint32_t value )

Set the state bitmask to the given value.

Parameters

[in] value bitmask value to set the alert states.

◆ state() [1/3]

uint32_t HF::Interfaces::Alert::Server::state ( )

Return the current state for all the alerts as a bitmask.

Returns: the bitmask of the alert states.

Referenced by HF::Profiles::Detector< FLOOD_DETECTOR >::alert().

Here is the caller graph for this function:

◆ state() [2/3]

bool HF::Interfaces::Alert::Server::state	(	uint8_t	index,
		bool	value
	)

Set the alert given by index to value.

The alert entry MUST be enabled in order for the state to be set.

Parameters

[in]	index	index of the alert to set : `[0,31]`.
[in]	value	state to set the index to.

Returns: true if the alert state was set or false otherwise.

◆ state() [3/3]

bool HF::Interfaces::Alert::Server::state ( uint8_t index )

Get the state of the alert given by index.

Note: This will return false if index is greater than 31.

Parameters

[in] index index of the alert to get the state from : [0,31].

Returns: true if the alert is active, false otherwise.

◆ status() [1/2]

void HF::Interfaces::Alert::Server::status	(	Protocol::Address &	addr,
		uint16_t	unit_type
	)

Send a HAN-FUN message containing a Alert::STATUS_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	unit_type	the unit type (

See also: hf_profile_uid_t ) sending the message.

Referenced by HF::Profiles::Detector< FLOOD_DETECTOR >::alert(), and status().

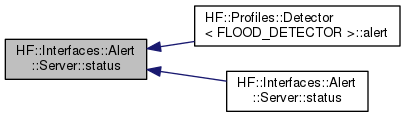

Here is the caller graph for this function:

◆ status() [2/2]

void HF::Interfaces::Alert::Server::status ( uint16_t unit_type )

inline

Send a HAN-FUN message containing a Alert::STATUS_CMD, to the broadcast network address.

Parameters

[in] unit_type the unit type (

See also: HF::Profile::UID ) sending the message.

Definition at line 329 of file alert.h.

References status().

             {
                Protocol::Address addr;
                status(addr, unit_type);
             }

Here is the call graph for this function:

The documentation for this class was generated from the following file:

alert.h
