Group Management Service : Server side implementation. More...

#include <group_management.h>

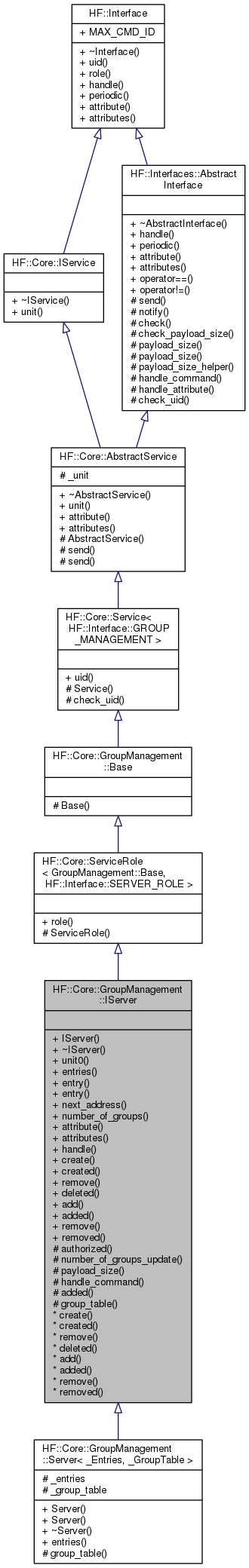

Inheritance diagram for HF::Core::GroupManagement::IServer:

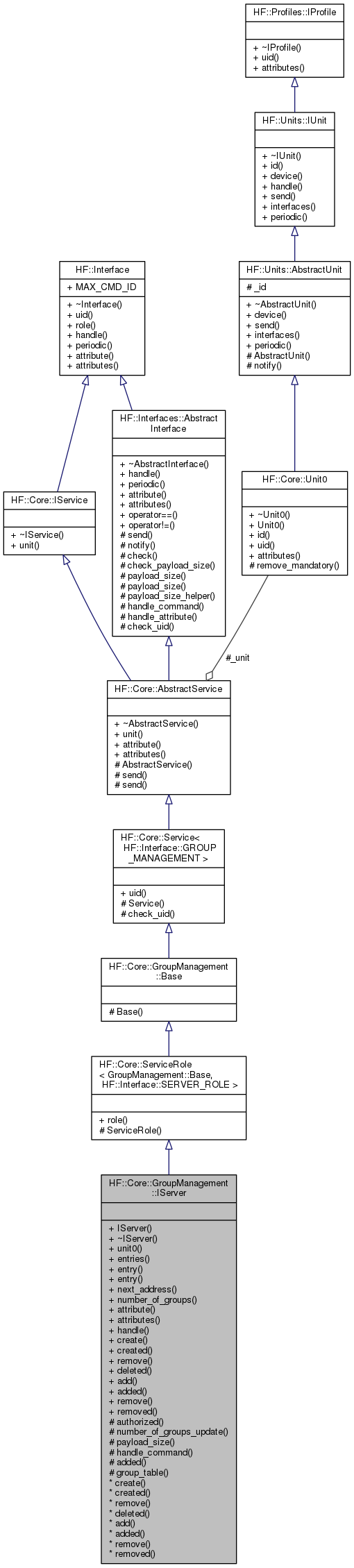

Collaboration diagram for HF::Core::GroupManagement::IServer:

Public Member Functions
	IServer (Unit0 &unit)
	Constructor.

virtual	~IServer ()
	Destructor.

HF::Devices::Concentrator::IUnit0 *	unit0 () const
	Return a reference to the unit that this service belongs to. More...

virtual IEntries &	entries () const =0
	Get a reference to the current object implementing the persistence API, for the device information. More...

GroupPtr	entry (const uint16_t address) const
	Get the group entry given by `address`. More...

GroupPtr	entry (const std::string &name) const
	Get the group entry given by `name`. More...

uint16_t	next_address () const
	Return next available address for device group. More...

uint8_t	number_of_groups () const
	Get the Number Of Groups for the Group Management server. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Events
virtual Common::Result	create (Protocol::Packet &packet, CreateMessage &msg)
	Callback that is called when a `GroupManagement::CREATE_CMD`, is received. More...

virtual void	created (const GroupPtr &group)
	Indicate that a new group was created. More...

virtual Common::Result	remove (Protocol::Packet &packet, DeleteMessage &msg)
	Callback that is called when a `GroupManagement::DELETE_CMD`, is received. More...

virtual void	deleted (const Group &group)
	Indicate that a group was deleted. More...

virtual Common::Result	add (Protocol::Packet &packet, const AddMessage &msg)
	Callback that is called when a `GroupManagement::ADD_CMD`, is received. More...

virtual void	added (const GroupPtr &group, const Member &member)
	Indicate that a new device/unit was added to an existing group. More...

virtual Common::Result	remove (Protocol::Packet &packet, const RemoveMessage &msg)
	Callback that is called when a `GroupManagement::REMOVE_CMD`, is received. More...

virtual void	removed (const GroupPtr &group, const Member &member)
	Indicate that a device/unit was removed from an existing group. More...

Public Member Functions inherited from HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
virtual bool	authorized (CMD member, const Protocol::Address &source, const Protocol::Address &destination)
	This method serves to indicate if a given `member` of the interface can be used by the `source` device affecting the `destination` device configuration on the system. More...

void	number_of_groups_update (int8_t diff) const
	Get the Number Of Groups for the Group Management server. More...

uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	added (const Protocol::Address &addr, Common::Result result, const AddMessage &request, uint8_t reference)
	Process the result of adding a device to a group. More...

virtual IGroupTable &	group_table () const =0
	Get the Group Table client associated with this Group Management server. More...

Protected Member Functions inherited from HF::Core::ServiceRole< GroupManagement::Base, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::GroupManagement::Base
	Base (Unit0 &unit)
	Constructor.

Protected Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_MANAGEMENT >
	Service (Unit0 &unit)
	Constructor. More...

bool	check_uid (uint16_t uid) const
	Check if the given `uid` value matches the service's `UID` value. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Detailed Description

Group Management Service : Server side implementation.

This class provides the server side of the Group Management interface.

Definition at line 744 of file group_management.h.

Member Function Documentation

◆ add()

virtual Common::Result HF::Core::GroupManagement::IServer::add	(	Protocol::Packet &	packet,
		const AddMessage &	msg
	)

virtual

Callback that is called when a GroupManagement::ADD_CMD, is received.

Parameters

[in]	packet	the message Packet.
[in]	msg	the `CreateMessage` received.

Returns: the response code sent in the response.

◆ added() [1/2]

virtual void HF::Core::GroupManagement::IServer::added	(	const GroupPtr &	group,
		const Member &	member
	)

inlinevirtual

Indicate that a new device/unit was added to an existing group.

Parameters

[in]	group	reference to a pointer to the group entry corresponding to the group where a member was added.
[in]	member	reference to the member added.

Definition at line 824 of file group_management.h.

References UNUSED.

             {
                UNUSED(group);
                UNUSED(member);
             }

◆ added() [2/2]

void HF::Core::GroupManagement::IServer::added	(	const Protocol::Address &	addr,
		Common::Result	result,
		const AddMessage &	request,
		uint8_t	reference
	)

protected

Process the result of adding a device to a group.

Parameters

[in]	addr	HF address of the device that requested the `HF::GroupManagement::ADD_CMD` command.
[in]	result	the result of the operation.
[in]	request	the payload for the `HF::GroupManagement::ADD_CMD` command.
[in]	reference	Application reference for the initial request.

◆ attribute()

HF::Attributes::IAttribute* HF::Core::GroupManagement::IServer::attribute ( uint8_t uid )

virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

◆ attributes()

HF::Attributes::UIDS HF::Core::GroupManagement::IServer::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

inlinevirtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

Definition at line 945 of file group_management.h.

References HF::Core::GroupManagement::NUMBER_OF_GROUPS_ATTR, and UNUSED.

             {
                UNUSED(pack_id);
                return HF::Attributes::UIDS {NUMBER_OF_GROUPS_ATTR};
             }

◆ authorized()

virtual bool HF::Core::GroupManagement::IServer::authorized	(	CMD	member,
		const Protocol::Address &	source,
		const Protocol::Address &	destination
	)

inlineprotectedvirtual

This method serves to indicate if a given member of the interface can be used by the source device affecting the destination device configuration on the system.

Parameters

[in]	member	interface member UID.
[in]	source	HF address for the requesting device.
[in]	destination	HF address for the affected device.

Return values

true	the operation is allowed,
false	otherwise.

Definition at line 969 of file group_management.h.

References UNUSED.

             {
                UNUSED(member);
                UNUSED(source);
                UNUSED(destination);
                return true;
             }

◆ create()

virtual Common::Result HF::Core::GroupManagement::IServer::create	(	Protocol::Packet &	packet,
		CreateMessage &	msg
	)

virtual

Callback that is called when a GroupManagement::CREATE_CMD, is received.

Parameters

[in]	packet	the message Packet.
[in]	msg	the `CreateMessage` received.

Returns: the response code sent in the response.

◆ created()

virtual void HF::Core::GroupManagement::IServer::created ( const GroupPtr & group )

inlinevirtual

Indicate that a new group was created.

Parameters

[in] group pointer to the group entry corresponding to the created group.

Definition at line 779 of file group_management.h.

References UNUSED.

             {
                UNUSED(group);
             }

◆ deleted()

virtual void HF::Core::GroupManagement::IServer::deleted ( const Group & group )

inlinevirtual

Indicate that a group was deleted.

Parameters

[in] group reference to a copy of the group entry that was deleted.

Definition at line 800 of file group_management.h.

References UNUSED.

             {
                UNUSED(group);
             }

◆ entries()

virtual IEntries& HF::Core::GroupManagement::IServer::entries ( ) const

pure virtual

Get a reference to the current object implementing the persistence API, for the device information.

Returns: reference to the current object for the persistence API.

Implemented in HF::Core::GroupManagement::Server< _Entries, _GroupTable >.

Referenced by entry(), next_address(), and number_of_groups().

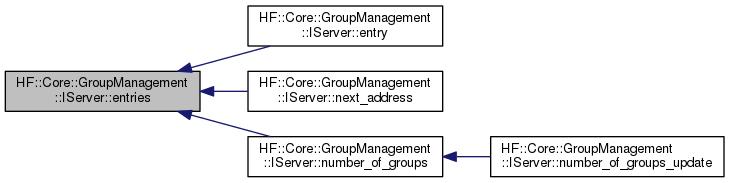

Here is the caller graph for this function:

◆ entry() [1/2]

GroupPtr HF::Core::GroupManagement::IServer::entry ( const uint16_t address ) const

inline

Get the group entry given by address.

Parameters

[in] address group address of the group to retrieve.

Returns: a pointer to the group if it exists, nullptr otherwise.

Definition at line 899 of file group_management.h.

References entries(), and HF::Core::GroupManagement::IEntries::find().

             {
                return entries().find(address);
             }

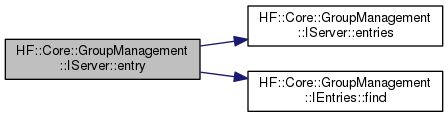

Here is the call graph for this function:

◆ entry() [2/2]

GroupPtr HF::Core::GroupManagement::IServer::entry ( const std::string & name ) const

inline

Get the group entry given by name.

Parameters

[in] name group name of the group to retrieve.

Returns: a pointer to the group if it exists, nullptr otherwise.

Definition at line 912 of file group_management.h.

References entries(), and HF::Core::GroupManagement::IEntries::find().

             {
                return entries().find(name);
             }

Here is the call graph for this function:

◆ group_table()

virtual IGroupTable& HF::Core::GroupManagement::IServer::group_table ( ) const

protectedpure virtual

Get the Group Table client associated with this Group Management server.

Returns: reference to the Group Table client used by this Group Management server.

Implemented in HF::Core::GroupManagement::Server< _Entries, _GroupTable >.

◆ handle()

Common::Result HF::Core::GroupManagement::IServer::handle	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

virtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Implements HF::Interface.

◆ handle_command()

Common::Result HF::Core::GroupManagement::IServer::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ next_address()

uint16_t HF::Core::GroupManagement::IServer::next_address ( ) const

inline

Return next available address for device group.

Returns: the address to use in the next group, or GroupAddress::NO_ADDR if no address is available.

Definition at line 920 of file group_management.h.

References entries(), and HF::Core::GroupManagement::IEntries::next_address().

             {
                return entries().next_address();
             }

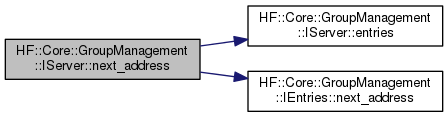

Here is the call graph for this function:

◆ number_of_groups()

uint8_t HF::Core::GroupManagement::IServer::number_of_groups ( ) const

inline

Get the Number Of Groups for the Group Management server.

Returns: the current Number Of Groups.

Definition at line 934 of file group_management.h.

References entries(), and HF::Common::IEntries< T >::size().

Referenced by number_of_groups_update().

             {
                return (uint8_t) entries().size();
             }

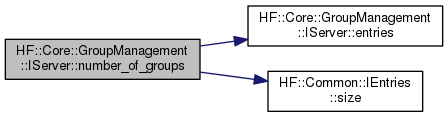

Here is the call graph for this function:

Here is the caller graph for this function:

◆ number_of_groups_update()

void HF::Core::GroupManagement::IServer::number_of_groups_update ( int8_t diff ) const

inlineprotected

Get the Number Of Groups for the Group Management server.

Parameters

[in] diff number of groups added/removed.

Returns: the current Number Of Groups.

Definition at line 985 of file group_management.h.

References HF::Interfaces::AbstractInterface::notify(), and number_of_groups().

             {
                uint8_t value = number_of_groups();

                NumberOfGroups old_attr(value - diff, this);
                NumberOfGroups new_attr(value, this);

                notify(old_attr, new_attr);
             }

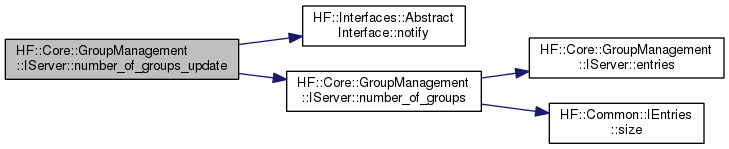

Here is the call graph for this function:

◆ payload_size()

uint16_t HF::Core::GroupManagement::IServer::payload_size ( Protocol::Message::Interface & itf ) const

protectedvirtual

Return the minimal payload size that a message should hold when addressed at the given interface.

Parameters

[in] itf the interface being address.

Returns: the minimum number of bytes for the message for the interface.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ remove() [1/2]

virtual Common::Result HF::Core::GroupManagement::IServer::remove	(	Protocol::Packet &	packet,
		DeleteMessage &	msg
	)

virtual

Callback that is called when a GroupManagement::DELETE_CMD, is received.

Parameters

[in]	packet	the message Packet.
[in]	msg	the `DeleteMessage` received.

Returns: the response code sent in the response.

◆ remove() [2/2]

virtual Common::Result HF::Core::GroupManagement::IServer::remove	(	Protocol::Packet &	packet,
		const RemoveMessage &	msg
	)

virtual

Callback that is called when a GroupManagement::REMOVE_CMD, is received.

Parameters

[in]	packet	the message Packet.
[in]	msg	the `RemoveMessage` received.

Returns: the response code sent in the response.

◆ removed()

virtual void HF::Core::GroupManagement::IServer::removed	(	const GroupPtr &	group,
		const Member &	member
	)

inlinevirtual

Indicate that a device/unit was removed from an existing group.

Parameters

[in]	group	pointer to the group entry corresponding to the affected group.
[in]	member	reference to the member entry removed.

Definition at line 847 of file group_management.h.

References UNUSED.

             {
                UNUSED(group);
                UNUSED(member);
             }

◆ unit0()

HF::Devices::Concentrator::IUnit0* HF::Core::GroupManagement::IServer::unit0 ( ) const

Return a reference to the unit that this service belongs to.

This is the same reference as AbstractService::unit, but static casted to allow access to the other interfaces.

Returns: a reference to the unit that holds this interface.

The documentation for this class was generated from the following file:

group_management.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add()

◆ added() [1/2]

◆ added() [2/2]

◆ attribute()

◆ attributes()

◆ authorized()

◆ create()

◆ created()

◆ deleted()

◆ entries()

◆ entry() [1/2]

◆ entry() [2/2]

◆ group_table()

◆ handle()

◆ handle_command()

◆ next_address()

◆ number_of_groups()

◆ number_of_groups_update()

◆ payload_size()

◆ remove() [1/2]

◆ remove() [2/2]

◆ removed()

◆ unit0()
