HF::Devices::Concentrator::IUnit0 Struct Reference

Unit 0 interface API for HAN-FUN Concentrators. More...

#include <devices.h>

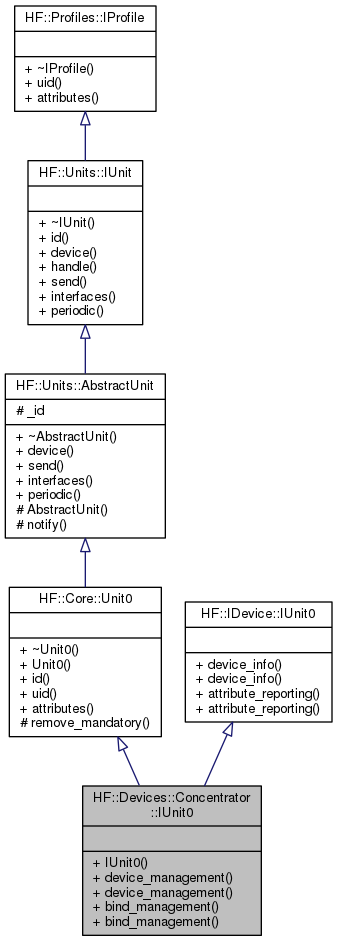

Inheritance diagram for HF::Devices::Concentrator::IUnit0:

Collaboration diagram for HF::Devices::Concentrator::IUnit0:

Public Member Functions
	IUnit0 (HF::IDevice &device)
	Constructor. More...
virtual HF::Core::DeviceManagement::IServer *	device_management ()=0
	Return a pointer to unit 0 device management service. More...
virtual HF::Core::DeviceManagement::IServer *	device_management () const =0
	Return a pointer to unit 0 device management service. More...
virtual HF::Core::BindManagement::IServer *	bind_management ()=0
	Return a pointer to unit 0 bind management service. More...
virtual HF::Core::BindManagement::IServer *	bind_management () const =0
	Return a pointer to unit 0 bind management service. More...
Public Member Functions inherited from HF::Core::Unit0
	Unit0 (IDevice &device)
	Constructor. More...
uint8_t	id () const
	Get the id number of this unit on the device. More...
uint16_t	uid () const
	Return this profile HAN-FUN UID. More...
HF::Attributes::List	attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...
Public Member Functions inherited from HF::Units::AbstractUnit
IDevice &	device () const
	Reference to the device this unit belongs to. More...
void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...
std::vector< Common::Interface >	interfaces () const
	Return a vector containing a list of extra interfaces, other than the interfaces specified by the profile the unit implements) More...
void	periodic (uint32_t time)
	Handle periodic processing. More...
Public Member Functions inherited from HF::Units::IUnit
virtual Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0
	Handle incoming messages from the network. More...
Public Member Functions inherited from HF::IDevice::IUnit0
virtual Core::DeviceInformation::Server *	device_info () const =0
	Return a pointer to unit 0 device information service. More...
virtual Core::DeviceInformation::Server *	device_info ()=0
	Return a pointer to unit 0 device information service. More...
virtual Core::AttributeReporting::IServer *	attribute_reporting () const =0
	Return a pointer to unit 0 attribute reporting service. More...
virtual Core::AttributeReporting::IServer *	attribute_reporting ()=0
	Return a pointer to unit 0 attribute reporting service. More...

Additional Inherited Members
Protected Member Functions inherited from HF::Units::AbstractUnit
	AbstractUnit (IDevice &device)
	Constructor. More...
void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify the attribute reporting service that the given attribute has changed value. More...
Protected Attributes inherited from HF::Units::AbstractUnit
uint8_t	_id
	Unit ID used to identify a given unit in a given HAN-FUN device.

Detailed Description

Unit 0 interface API for HAN-FUN Concentrators.

Definition at line 607 of file devices.h.

Constructor & Destructor Documentation

IUnit0()

HF::Devices::Concentrator::IUnit0::IUnit0 ( HF::IDevice &  device )

inline

Constructor.

Parameters

device

reference to the device this unit 0 belongs to.

Definition at line 614 of file devices.h.

                                     :
               HF::Core::Unit0(device)
            {}

Member Function Documentation

bind_management() [1/2]

virtual HF::Core::BindManagement::IServer* HF::Devices::Concentrator::IUnit0::bind_management ( )

pure virtual

Return a pointer to unit 0 bind management service.

Returns

pointer to unit 0 bind management service.

bind_management() [2/2]

virtual HF::Core::BindManagement::IServer* HF::Devices::Concentrator::IUnit0::bind_management ( ) const

pure virtual

Return a pointer to unit 0 bind management service.

Returns

pointer to unit 0 bind management service.

device_management() [1/2]

virtual HF::Core::DeviceManagement::IServer* HF::Devices::Concentrator::IUnit0::device_management ( )

pure virtual

Return a pointer to unit 0 device management service.

Returns

pointer to unit 0 device management service.

device_management() [2/2]

virtual HF::Core::DeviceManagement::IServer* HF::Devices::Concentrator::IUnit0::device_management ( ) const

pure virtual

Return a pointer to unit 0 device management service.

Returns

pointer to unit 0 device management service.

---

The documentation for this struct was generated from the following file:

• devices.h
