HF::Units::IUnit Struct Reference

This class represents the interface implemented by all HAN-FUN units. More...

#include <units.h>

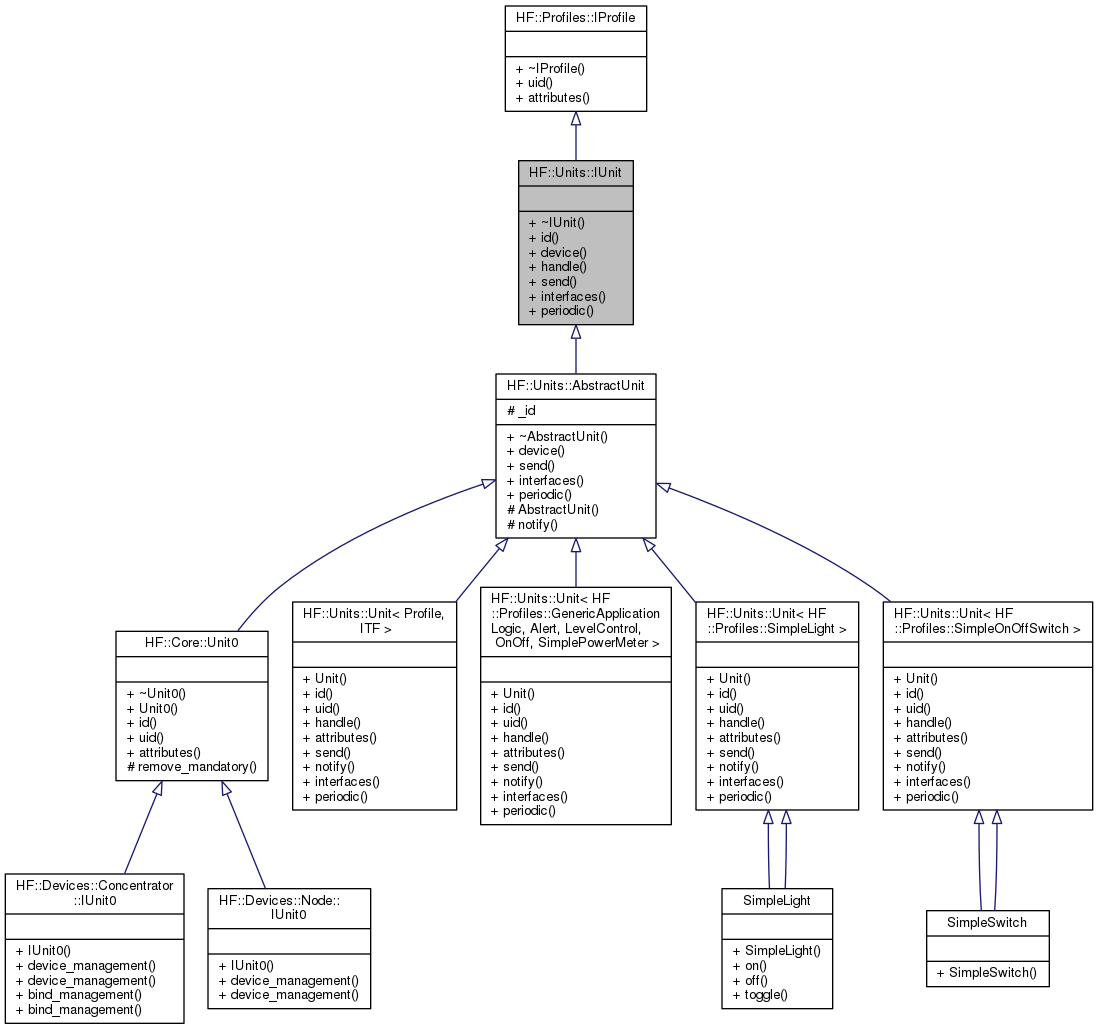

Inheritance diagram for HF::Units::IUnit:

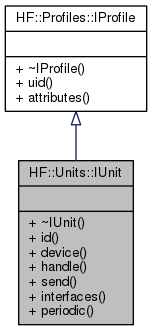

Collaboration diagram for HF::Units::IUnit:

Public Member Functions
virtual uint8_t	id () const =0
	Get the id number of this unit on the device. More...
virtual IDevice &	device () const =0
	Reference to the device this unit belongs to. More...
virtual Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0
	Handle incoming messages from the network. More...
virtual void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link=nullptr)=0
	Create and send a new packet with the given message to the given address. More...
virtual std::vector< Common::Interface >	interfaces () const =0
	Return a vector containing a list of extra interfaces, other than the interfaces specified by the profile the unit implements) More...
virtual void	periodic (uint32_t time)=0
	Handle periodic processing. More...
Public Member Functions inherited from HF::Profiles::IProfile
virtual uint16_t	uid () const =0
	Return this profile HAN-FUN UID. More...
virtual HF::Attributes::List	attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const =0
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...

Detailed Description

This class represents the interface implemented by all HAN-FUN units.

Definition at line 48 of file units.h.

Member Function Documentation

device()

virtual IDevice& HF::Units::IUnit::device ( ) const

pure virtual

Reference to the device this unit belongs to.

Returns

reference to the device this unit belongs to

Implemented in HF::Units::AbstractUnit.

handle()

virtual Common::Result HF::Units::IUnit::handle ( Protocol::Packet &  packet, Common::ByteArray &  payload, uint16_t  offset  )

pure virtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns

the result of the message processing.

Implemented in HF::Units::Unit< Profile, ITF >, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::GenericApplicationLogic, Alert, LevelControl, OnOff, SimplePowerMeter >, and HF::Units::Unit< HF::Profiles::SimpleLight >.

id()

virtual uint8_t HF::Units::IUnit::id ( ) const

pure virtual

Get the id number of this unit on the device.

Returns

id number of this unit on the device.

Implemented in HF::Units::Unit< Profile, ITF >, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::GenericApplicationLogic, Alert, LevelControl, OnOff, SimplePowerMeter >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Core::Unit0.

interfaces()

virtual std::vector<Common::Interface> HF::Units::IUnit::interfaces ( ) const

pure virtual

Return a vector containing a list of extra interfaces, other than the interfaces specified by the profile the unit implements)

Returns

vector containing the list of extra interfaces.

Implemented in HF::Units::Unit< Profile, ITF >, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::GenericApplicationLogic, Alert, LevelControl, OnOff, SimplePowerMeter >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Units::AbstractUnit.

periodic()

virtual void HF::Units::IUnit::periodic ( uint32_t  time )

pure virtual

Handle periodic processing.

Parameters

[in]

time

current system clock value in seconds.

Implemented in HF::Units::Unit< Profile, ITF >, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch >, HF::Units::Unit< HF::Profiles::GenericApplicationLogic, Alert, LevelControl, OnOff, SimplePowerMeter >, HF::Units::Unit< HF::Profiles::SimpleLight >, and HF::Units::AbstractUnit.

send()

virtual void HF::Units::IUnit::send ( const Protocol::Address &  addr, Protocol::Message &  message, Transport::Link *  link = nullptr  )

pure virtual

Create and send a new packet with the given message to the given address.

Parameters

[in]	addr	address to send the message to.
[in]	message	message to send.
[in]	link	preferred link to send the message on.

Implemented in HF::Units::AbstractUnit.

---

The documentation for this struct was generated from the following file:

• units.h
