Device Management interface : Server side API. More...

#include <device_management.h>

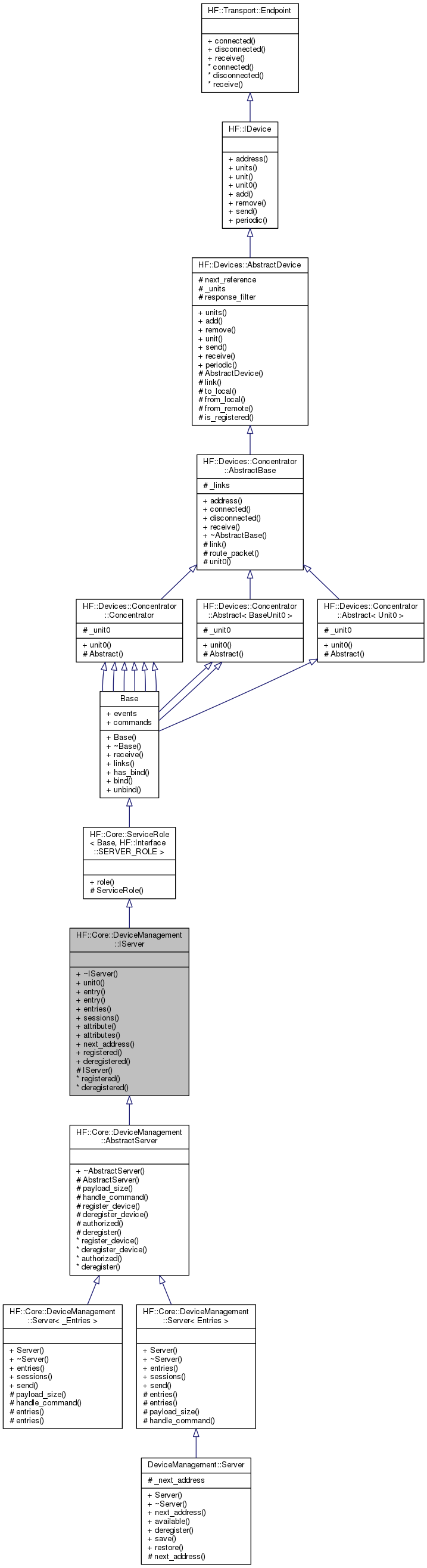

Inheritance diagram for HF::Core::DeviceManagement::IServer:

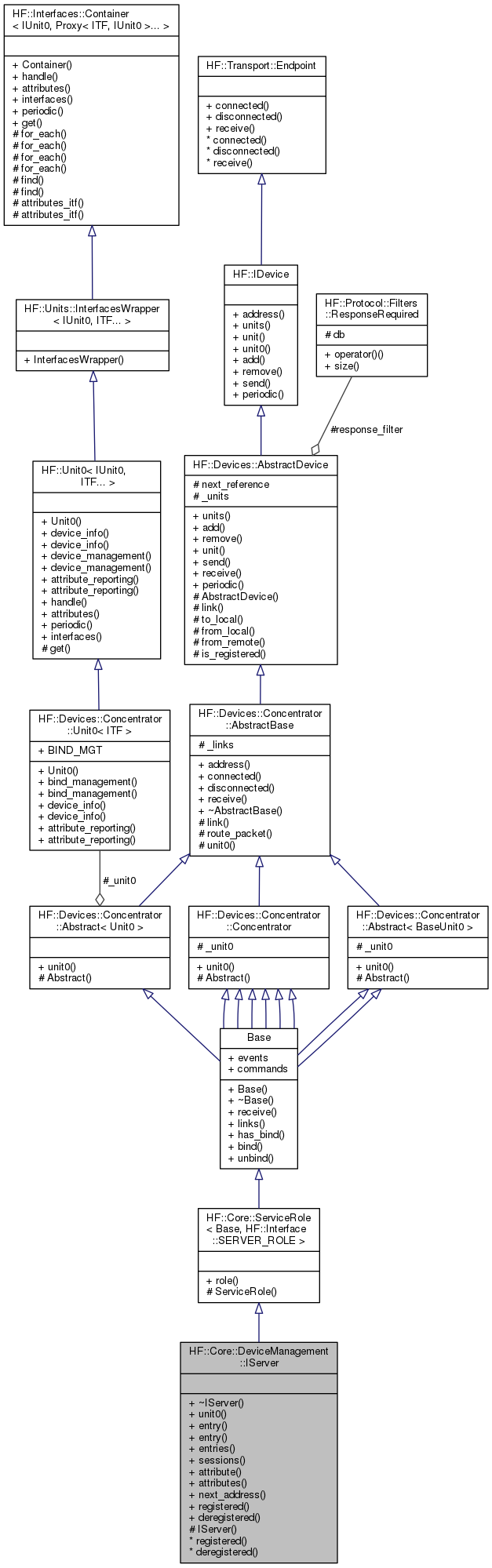

Collaboration diagram for HF::Core::DeviceManagement::IServer:

Public Member Functions
HF::Devices::Concentrator::IUnit0 &	unit0 () const
	Return a reference to the unit that this service belongs to. More...

DevicePtr	entry (uint16_t address) const
	Return the Device entry for the given address. More...

DevicePtr	entry (const HF::UID::UID &uid) const
	Return the Device entry for the given UID. More...

virtual IEntries &	entries () const =0
	Get a reference to the current object implementing the persistence API, for the device information. More...

virtual SessionManagement::IServer &	sessions ()=0
	Reference to the session management API. More...

virtual uint16_t	next_address ()
	Return next available address for registering a device. More...

Events
virtual void	registered (DevicePtr &device)
	Indicate that a device has been registered. More...

virtual void	deregistered (DevicePtr &device)
	Indicate that a device has been de-registered. More...

Public Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from Base
void	receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

bool	has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Check if bind exists. More...

uint8_t	bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Create a new bind entry. More...

bool	unbind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Remove the binding entry for the given devices. More...

Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices >
CoreServices *	unit0 () const
	Get the unit 0 used by this concentrator device. More...

Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase
uint16_t	address () const
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

void	connected (HF::Transport::Link *link)
	Callback to report that a new transport `link` was been created to a remote device. More...

void	disconnected (HF::Transport::Link *link)
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Events

Protected Member Functions
	IServer (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase
HF::Transport::Link *	link (uint16_t addr) const
	Return the link that can be used to send a packet to the device with the given address. More...

virtual void	route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Route the given packet to the corresponding device. More...

Protected Member Functions inherited from HF::Devices::AbstractDevice
virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

Additional Inherited Members
Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase
Common::SimpleList< Transport::Link * >	_links
	List of links present in this concentrator.

Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

Device Management interface : Server side API.

Definition at line 558 of file device_management.h.

Constructor & Destructor Documentation

◆ IServer()

HF::Core::DeviceManagement::IServer::IServer ( Unit0 & unit )

inlineprotected

Constructor.

Parameters

[in] unit reference to the unit containing this service.

Definition at line 679 of file device_management.h.

679 : ServiceRole(unit)

680 {}

HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >::ServiceRole

ServiceRole(Unit0 &unit)

Constructor.

Definition: core.h:243

HF::Devices::AbstractDevice::unit

Units::IUnit * unit(uint8_t id) const

Return pointer to the unit with the given id.

Member Function Documentation

◆ deregistered()

virtual void HF::Core::DeviceManagement::IServer::deregistered ( DevicePtr & device )

inlinevirtual

Indicate that a device has been de-registered.

Parameters

[in] device pointer to the device entry corresponding to the de-registered device.

Definition at line 664 of file device_management.h.

References UNUSED.

             {
                UNUSED(device);
             }

◆ entries()

virtual IEntries& HF::Core::DeviceManagement::IServer::entries ( ) const

pure virtual

Get a reference to the current object implementing the persistence API, for the device information.

Returns: reference to the current object for the persistence API.

Implemented in HF::Core::DeviceManagement::Server< _Entries >, and HF::Core::DeviceManagement::Server< Entries >.

Referenced by entry(), and next_address().

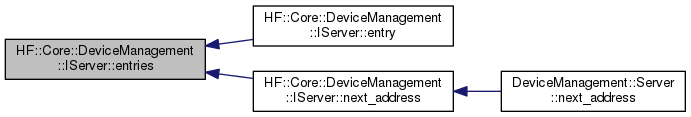

Here is the caller graph for this function:

◆ entry() [1/2]

DevicePtr HF::Core::DeviceManagement::IServer::entry ( uint16_t address ) const

Return the Device entry for the given address.

Parameters

[in] address the device address.

Return values

a	pointer the Device entry associated with the given address,
nullptr	if the entry does not exist.

◆ entry() [2/2]

DevicePtr HF::Core::DeviceManagement::IServer::entry ( const HF::UID::UID & uid ) const

inline

Return the Device entry for the given UID.

Parameters

[in] uid the device UID.

Return values

a	pointer the Device entry associated with the given UID,
nullptr	if the entry does not exist.

Definition at line 594 of file device_management.h.

References entries(), and HF::Core::DeviceManagement::IEntries::find().

             {
                return entries().find(uid);
             }

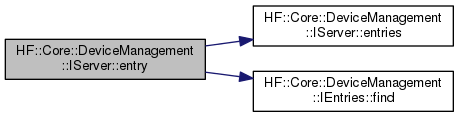

Here is the call graph for this function:

◆ next_address()

virtual uint16_t HF::Core::DeviceManagement::IServer::next_address ( )

inlinevirtual

Return next available address for registering a device.

Returns: the address to use in the next registration.

Reimplemented in DeviceManagement::Server.

Definition at line 636 of file device_management.h.

References entries(), and HF::Core::DeviceManagement::IEntries::next_address().

Referenced by DeviceManagement::Server::next_address().

             {
                return entries().next_address();
             }

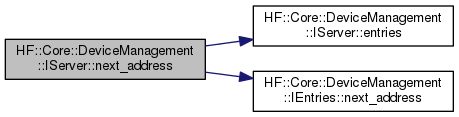

Here is the call graph for this function:

Here is the caller graph for this function:

◆ registered()

virtual void HF::Core::DeviceManagement::IServer::registered ( DevicePtr & device )

inlinevirtual

Indicate that a device has been registered.

Parameters

[in] device pointer to the device entry corresponding to the registered device.

Definition at line 653 of file device_management.h.

References UNUSED.

             {
                UNUSED(device);
             }

◆ sessions()

virtual SessionManagement::IServer& HF::Core::DeviceManagement::IServer::sessions ( )

pure virtual

Reference to the session management API.

Returns: reference to the object implementing the session management API for this device management server.

Implemented in HF::Core::DeviceManagement::Server< _Entries >, and HF::Core::DeviceManagement::Server< Entries >.

◆ unit0()

HF::Devices::Concentrator::IUnit0& HF::Core::DeviceManagement::IServer::unit0 ( ) const

virtual

Return a reference to the unit that this service belongs to.

This is the same reference as AbstractService::unit, but static casted to allow access to the the other interfaces.

Returns: a reference to the unit that holds this interface.

Implements HF::Devices::Concentrator::AbstractBase.

The documentation for this struct was generated from the following file:

device_management.h
