This is the parent class for the HAN-FUN Concentrator devices implementation. More...

#include <devices.h>

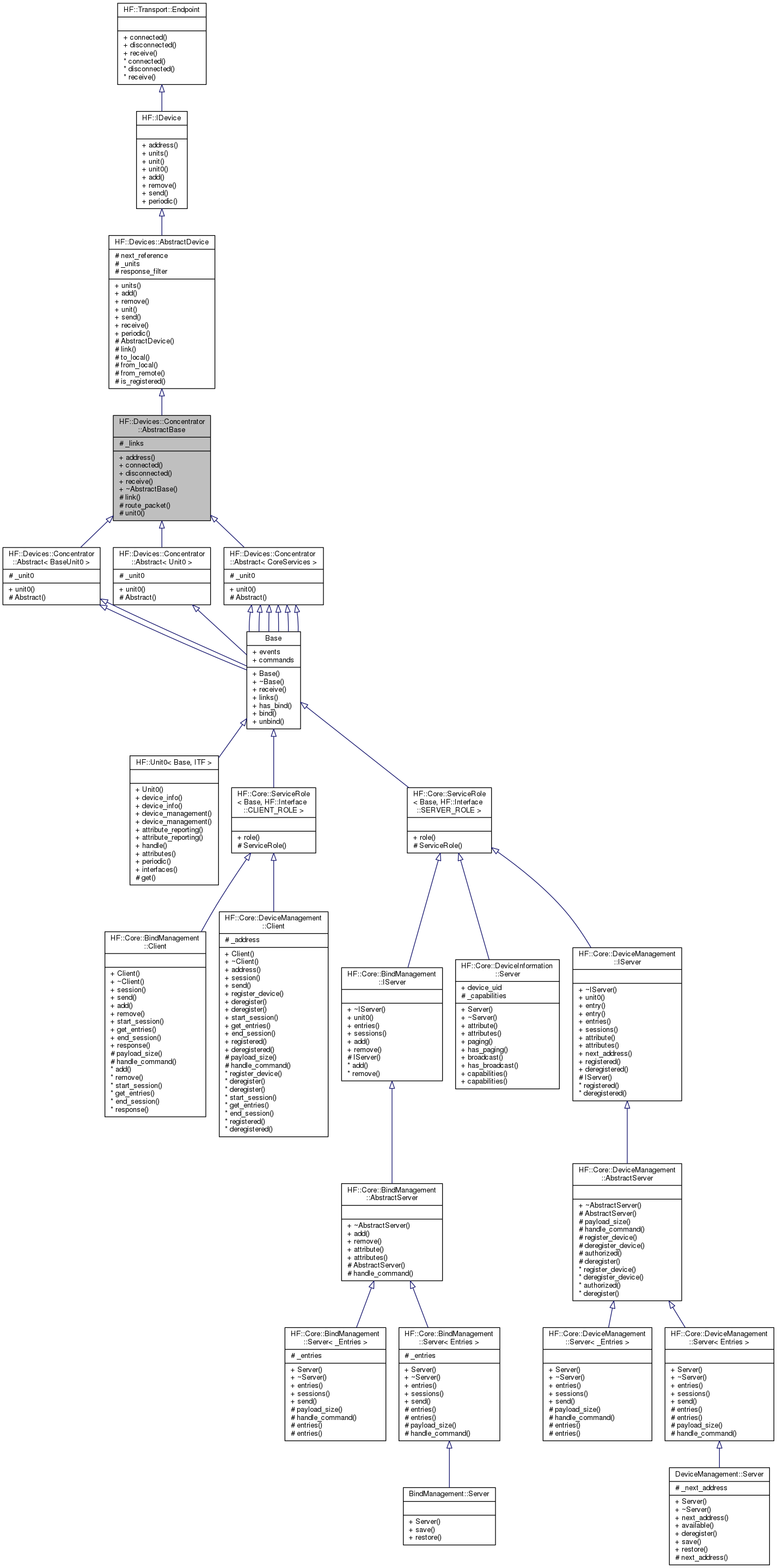

Inheritance diagram for HF::Devices::Concentrator::AbstractBase:

Collaboration diagram for HF::Devices::Concentrator::AbstractBase:

Public Member Functions
uint16_t	address () const
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

void	connected (HF::Transport::Link *link)
	Callback to report that a new transport `link` was been created to a remote device. More...

void	disconnected (HF::Transport::Link *link)
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

void	receive (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Events

Protected Member Functions
HF::Transport::Link *	link (uint16_t addr) const
	Return the link that can be used to send a packet to the device with the given address. More...

virtual void	route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Route the given packet to the corresponding device. More...

virtual Concentrator::IUnit0 *	unit0 () const =0
	Get the unit 0 used by this concentrator device. More...

Protected Member Functions inherited from HF::Devices::AbstractDevice
virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

Protected Attributes
Common::SimpleList< Transport::Link * >	_links
	List of links present in this concentrator.

Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

This is the parent class for the HAN-FUN Concentrator devices implementation.

Definition at line 850 of file devices.h.

Member Function Documentation

◆ address()

uint16_t HF::Devices::Concentrator::AbstractBase::address ( ) const

inlinevirtual

Return the device address on the HAN-FUN network, when the device is registered, or HF_BROADCAST_ADDR otherwise.

Returns: the device address on the HAN-FUN network, HF_BROADCAST_ADDR otherwise.

Implements HF::IDevice.

Definition at line 858 of file devices.h.

             {
                return 0;
             }

◆ connected()

void HF::Devices::Concentrator::AbstractBase::connected ( HF::Transport::Link * link )

virtual

Callback to report that a new transport link was been created to a remote device.

This link can then be used by the local end-point to send messages to the remote end-point.

Parameters

[in] link pointer to the created link.

Implements HF::Transport::Endpoint.

◆ disconnected()

void HF::Devices::Concentrator::AbstractBase::disconnected ( HF::Transport::Link * link )

virtual

Callback to the report that the given transport link no longer is valid and MUST not be used to send messages to the corresponding end-point.

At the time of this method call the link MUST not be used to send any further messages to the remote end-point.

Parameters

[in] link pointer to the link disconnected.

Implements HF::Transport::Endpoint.

◆ link()

HF::Transport::Link* HF::Devices::Concentrator::AbstractBase::link ( uint16_t addr ) const

protectedvirtual

Return the link that can be used to send a packet to the device with the given address.

Parameters

[in] addr the address of the device to send the packet to.

Returns: a pointer to the link that can be used to send the packet, nullptr otherwise;

Implements HF::Devices::AbstractDevice.

◆ receive()

void HF::Devices::Concentrator::AbstractBase::receive	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

virtual

Callback to deliver a packet received from the transport layer.

Parameters

[in]	packet	reference to the received packet.
[in]	payload	reference a ByteArray containing the received data.
[in]	offset	offset from where the received data starts on the `payload` byte array buffer.

Reimplemented from HF::Devices::AbstractDevice.

Reimplemented in Base.

◆ route_packet()

virtual void HF::Devices::Concentrator::AbstractBase::route_packet	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Route the given packet to the corresponding device.

Parameters

[in]	packet	reference for the packet to route.
[in]	payload	reference to the ByteArray containing the packet payload.
[in]	offset	offset from where the packet data starts.

◆ unit0()

virtual Concentrator::IUnit0* HF::Devices::Concentrator::AbstractBase::unit0 ( ) const

protectedpure virtual

Get the unit 0 used by this concentrator device.

Returns: pointer to the unit 0 used by this concentrator device.

Implements HF::IDevice.

Implemented in HF::Devices::Concentrator::Abstract< CoreServices >, HF::Devices::Concentrator::Abstract< Unit0 >, HF::Devices::Concentrator::Abstract< BaseUnit0 >, HF::Core::DeviceManagement::IServer, and HF::Core::BindManagement::IServer.

The documentation for this class was generated from the following file:

devices.h
