This class provides the basic implementation for the Device's interface. More...

#include <devices.h>

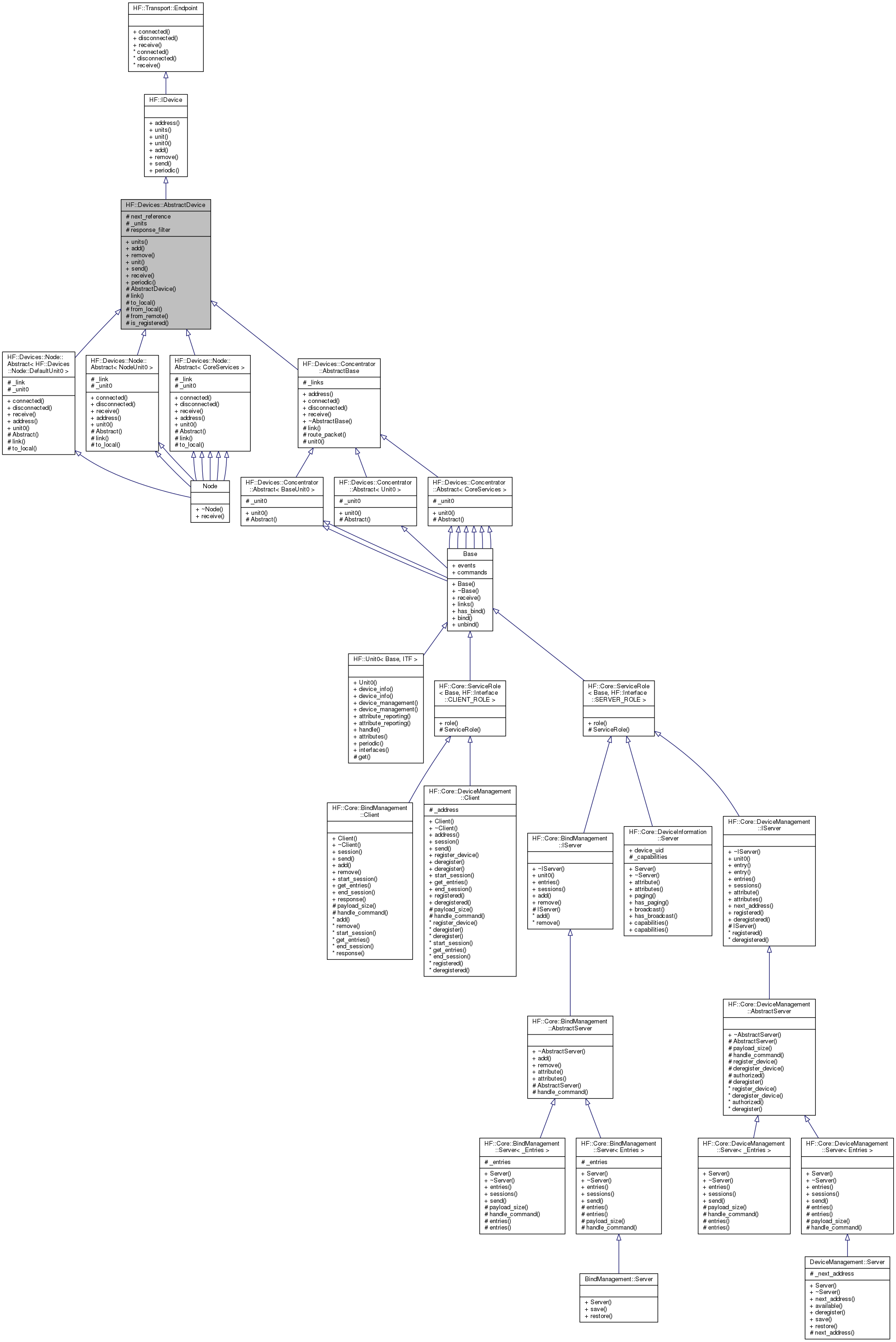

Inheritance diagram for HF::Devices::AbstractDevice:

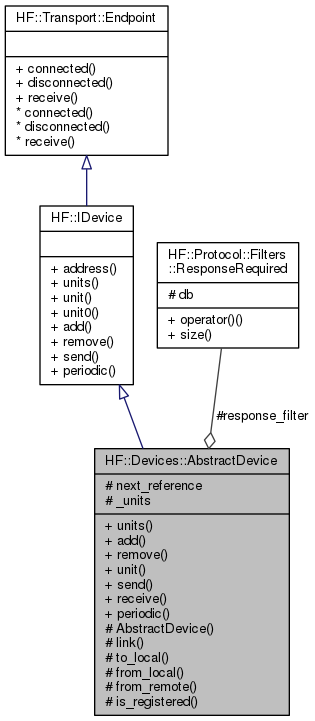

Collaboration diagram for HF::Devices::AbstractDevice:

Public Member Functions
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	receive (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Public Member Functions inherited from HF::IDevice
virtual uint16_t	address () const =0
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

virtual IUnit0 *	unit0 () const =0
	Return pointer to the unit 0 for this device. More...

Public Member Functions inherited from HF::Transport::Endpoint
virtual void	connected (Link *link)=0
	Callback to report that a new transport `link` was been created to a remote device. More...

virtual void	disconnected (Link *link)=0
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

Protected Member Functions
virtual Transport::Link *	link (uint16_t addr) const =0
	Return the link that can be used to send a packet to the device with the given address. More...

virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

Protected Attributes
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

This class provides the basic implementation for the Device's interface.

Definition at line 74 of file devices.h.

Member Function Documentation

◆ add()

void HF::Devices::AbstractDevice::add ( Units::IUnit * unit )

inlinevirtual

Add unit to devices unit lists.

Parameters

unit	pointer to the unit to add to the list.

Implements HF::IDevice.

Definition at line 85 of file devices.h.

References _units, and unit().

          {
             _units.push_front(unit);
          }

Here is the call graph for this function:

◆ from_local()

bool HF::Devices::AbstractDevice::from_local ( const Protocol::Packet & packet ) const

inlineprotected

Check if the given packet is from the local device.

Parameters

[in] packet reference to the incoming packet.

Return values

true	if the source is the local device;
false	otherwise.

Definition at line 152 of file devices.h.

References HF::IDevice::address(), HF::Protocol::Address::device, and HF::Protocol::Packet::source.

Referenced by from_remote().

          {
             return packet.source.device == address();
          }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ from_remote()

bool HF::Devices::AbstractDevice::from_remote ( const Protocol::Packet & packet )

inlineprotected

Check if the given packet is from the a remote device.

Parameters

[in] packet reference to the incoming packet.

Return values

true	if the source is a remote device;
false	otherwise.

Definition at line 165 of file devices.h.

References from_local().

          {
             return !from_local(packet);
          }

Here is the call graph for this function:

◆ is_registered()

bool HF::Devices::AbstractDevice::is_registered ( )

inlineprotected

Check if the device has a valid, i.e.

not HF::Protocol::BROADCAST_ADDR.

Returns: if the device address is different from HF::Protocol::BROADCAST_ADDR.

Definition at line 175 of file devices.h.

References HF::IDevice::address(), and HF::Protocol::BROADCAST_ADDR.

          {
             return this->address() != Protocol::BROADCAST_ADDR;
          }

Here is the call graph for this function:

◆ link()

virtual Transport::Link* HF::Devices::AbstractDevice::link ( uint16_t addr ) const

protectedpure virtual

Return the link that can be used to send a packet to the device with the given address.

Parameters

[in] addr the address of the device to send the packet to.

Returns: a pointer to the link that can be used to send the packet, nullptr otherwise;

Implemented in HF::Devices::Concentrator::AbstractBase, HF::Devices::Node::Abstract< CoreServices >, HF::Devices::Node::Abstract< NodeUnit0 >, and HF::Devices::Node::Abstract< HF::Devices::Node::DefaultUnit0 >.

◆ periodic()

void HF::Devices::AbstractDevice::periodic ( uint32_t time )

virtual

Handle periodic processing.

Parameters

[in] time current system clock value in seconds.

Implements HF::IDevice.

Referenced by HF::Unit0< IUnit0, ITF... >::periodic().

Here is the caller graph for this function:

◆ receive()

void HF::Devices::AbstractDevice::receive	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

virtual

Callback to deliver a packet received from the transport layer.

Parameters

[in]	packet	reference to the received packet.
[in]	payload	reference a ByteArray containing the received data.
[in]	offset	offset from where the received data starts on the `payload` byte array buffer.

Implements HF::Transport::Endpoint.

Reimplemented in HF::Devices::Concentrator::AbstractBase, HF::Devices::Node::Abstract< CoreServices >, HF::Devices::Node::Abstract< NodeUnit0 >, HF::Devices::Node::Abstract< HF::Devices::Node::DefaultUnit0 >, Base, and Node.

◆ remove()

void HF::Devices::AbstractDevice::remove ( Units::IUnit * unit )

inlinevirtual

Remove unit from device's unit list.

Parameters

unit	pointer to the unit to remove from the list.

Implements HF::IDevice.

Definition at line 90 of file devices.h.

References _units, and unit().

          {
             _units.remove(unit);
          }

Here is the call graph for this function:

◆ send()

void HF::Devices::AbstractDevice::send ( Protocol::Packet & packet )

virtual

Send given packet into the HAN-FUN network.

Parameters

packet reference to the packet to send to the network.

Implements HF::IDevice.

Referenced by HF::Core::BindManagement::Client::send(), HF::Core::DeviceManagement::Client::send(), HF::Core::BindManagement::Server< Entries >::send(), and HF::Core::DeviceManagement::Server< Entries >::send().

Here is the caller graph for this function:

◆ to_local()

virtual bool HF::Devices::AbstractDevice::to_local ( const Protocol::Packet & packet ) const

inlineprotectedvirtual

Check if the given packet is for this device.

Parameters

[in] packet reference to the incoming packet.

Return values

true	if the destination is the local device;
false	otherwise.

Reimplemented in HF::Devices::Node::Abstract< CoreServices >, HF::Devices::Node::Abstract< NodeUnit0 >, and HF::Devices::Node::Abstract< HF::Devices::Node::DefaultUnit0 >.

Definition at line 139 of file devices.h.

References HF::IDevice::address(), HF::Protocol::Packet::destination, and HF::Protocol::Address::device.

          {
             return packet.destination.device == address();
          }

Here is the call graph for this function:

◆ unit()

Units::IUnit* HF::Devices::AbstractDevice::unit ( uint8_t id ) const

virtual

Return pointer to the unit with the given id.

Parameters

[in] id unit identifier.

Returns: pointer to the unit with the given id, nullptr otherwise.

Implements HF::IDevice.

Referenced by add(), and remove().

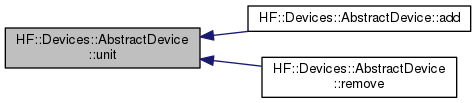

Here is the caller graph for this function:

◆ units()

const IUnits& HF::Devices::AbstractDevice::units ( ) const

inlinevirtual

Return the list of units registered in this device.

Returns: list containing the device's registered units.

Implements HF::IDevice.

Definition at line 80 of file devices.h.

References _units.

          {
             return _units;
          }

The documentation for this struct was generated from the following file:

devices.h
