HF::Devices::Node::Abstract< CoreServices > Class Template Reference

Template for declaring HAN-FUN node devices. More...

#include <devices.h>

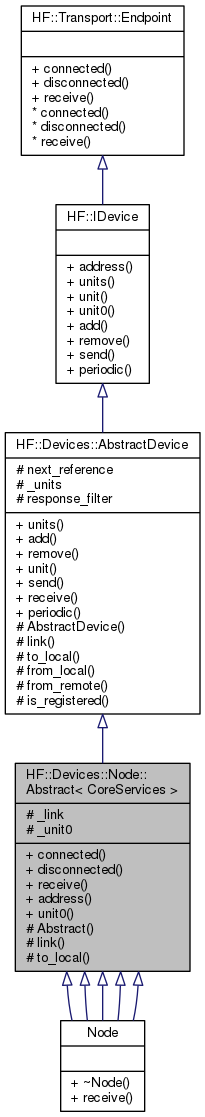

Inheritance diagram for HF::Devices::Node::Abstract< CoreServices >:

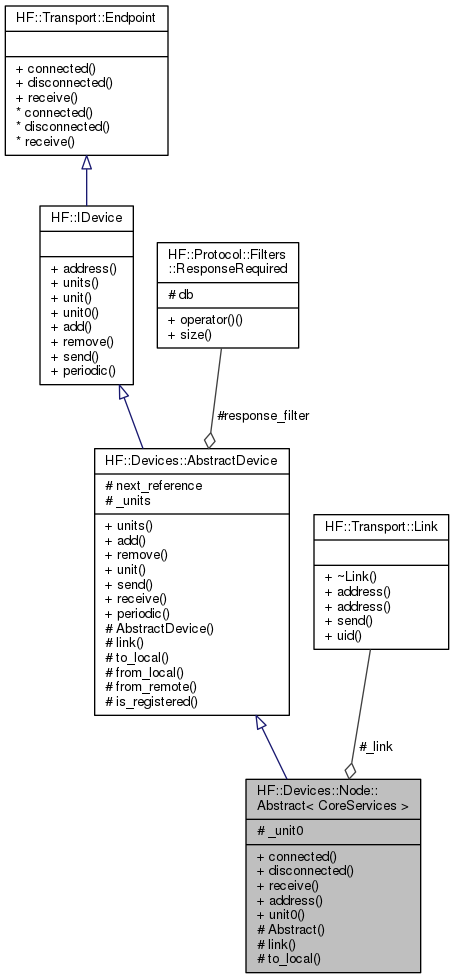

Collaboration diagram for HF::Devices::Node::Abstract< CoreServices >:

Public Member Functions
void	connected (HF::Transport::Link *link) _override
	Callback to report that a new transport link was been created to a remote device. More...
void	disconnected (HF::Transport::Link *link) _override
	Callback to the report that the given transport link no longer is valid and MUST not be used to send messages to the corresponding end-point. More...
void	receive (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) _override
	Callback to deliver a packet received from the transport layer. More...
uint16_t	address () const _override
	Return the device address on the HAN-FUN network, when the device is registered, or HF_BROADCAST_ADDR otherwise. More...
CoreServices *	unit0 () const _override
	Return pointer to the unit 0 for this device. More...
Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...
void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...
void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...
Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...
void	send (Protocol::Packet &packet)
	Send given packet into the HAN-FUN network. More...
void	periodic (uint32_t time)
	Handle periodic processing. More...
Events

Protected Member Functions
HF::Transport::Link *	link (uint16_t addr) const _override
	Return the link that can be used to send a packet to the device with the given address. More...
bool	to_local (const Protocol::Packet &packet) const _override
	Check if an incoming packet is for the node. More...
Protected Member Functions inherited from HF::Devices::AbstractDevice
bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...
bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...
bool	is_registered ()
	Check if the device has a valid, i.e. More...

Protected Attributes
HF::Transport::Link *	_link
	Link to the be used when sending packets to the network.
CoreServices	_unit0
	Unit 0 implementation this device will use.
Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.
IUnits	_units
	List containing pointers to the units present in the device.
Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

template<typename CoreServices = DefaultUnit0>
class HF::Devices::Node::Abstract< CoreServices >

Template for declaring HAN-FUN node devices.

Definition at line 425 of file devices.h.

Member Function Documentation

address()

template<typename CoreServices = DefaultUnit0>

uint16_t HF::Devices::Node::Abstract< CoreServices >::address ( ) const

inlinevirtual

Return the device address on the HAN-FUN network, when the device is registered, or HF_BROADCAST_ADDR otherwise.

Returns

the device address on the HAN-FUN network, HF_BROADCAST_ADDR otherwise.

Implements HF::IDevice.

Definition at line 456 of file devices.h.

            {
               return unit0()->device_management()->address();
            }

connected()

template<typename CoreServices = DefaultUnit0>

void HF::Devices::Node::Abstract< CoreServices >::connected ( HF::Transport::Link *  link )

inlinevirtual

Callback to report that a new transport link was been created to a remote device.

This link can then be used by the local end-point to send messages to the remote end-point.

Parameters

[in]

link

pointer to the created link.

Implements HF::Transport::Endpoint.

Definition at line 433 of file devices.h.

            {
               _link = link;
            }

disconnected()

template<typename CoreServices = DefaultUnit0>

void HF::Devices::Node::Abstract< CoreServices >::disconnected ( HF::Transport::Link *  link )

inlinevirtual

Callback to the report that the given transport link no longer is valid and MUST not be used to send messages to the corresponding end-point.

At the time of this method call the link MUST not be used to send any further messages to the remote end-point.

Parameters

[in]

link

pointer to the link disconnected.

Implements HF::Transport::Endpoint.

Definition at line 438 of file devices.h.

            {
               if (_link == link)
               {
                  _link = nullptr;
               }
            }

link()

template<typename CoreServices = DefaultUnit0>

HF::Transport::Link* HF::Devices::Node::Abstract< CoreServices >::link ( uint16_t  addr ) const

inlineprotectedvirtual

Return the link that can be used to send a packet to the device with the given address.

Parameters

[in]

addr

the address of the device to send the packet to.

Returns

a pointer to the link that can be used to send the packet, nullptr otherwise;

Implements HF::Devices::AbstractDevice.

Definition at line 479 of file devices.h.

            {
               UNUSED(addr);
               return _link;
            }

receive()

template<typename CoreServices = DefaultUnit0>

void HF::Devices::Node::Abstract< CoreServices >::receive ( Protocol::Packet &  packet, Common::ByteArray &  payload, uint16_t  offset  )

inlinevirtual

Callback to deliver a packet received from the transport layer.

Parameters

[in]	packet	reference to the received packet.
[in]	payload	reference a ByteArray containing the received data.
[in]	offset	offset from where the received data starts on the payload byte array buffer.

Reimplemented from HF::Devices::AbstractDevice.

Reimplemented in Node.

Definition at line 446 of file devices.h.

            {
               AbstractDevice::receive(packet, payload, offset);
            }

to_local()

template<typename CoreServices = DefaultUnit0>

bool HF::Devices::Node::Abstract< CoreServices >::to_local ( const Protocol::Packet &  packet ) const

inlineprotectedvirtual

Check if an incoming packet is for the node.

Parameters

[in]

packet

reference to the incoming packet.

Return values

true	if the packet if for the node;
false	otherwise.

Reimplemented from HF::Devices::AbstractDevice.

Definition at line 493 of file devices.h.

            {
               return AbstractDevice::to_local(packet) ||
                      // If we are unregistered only allow packets to unit 0.
                      (address() == Protocol::BROADCAST_ADDR && packet.destination.unit == 0);
            }

unit0()

template<typename CoreServices = DefaultUnit0>

CoreServices* HF::Devices::Node::Abstract< CoreServices >::unit0 ( ) const

inlinevirtual

Return pointer to the unit 0 for this device.

Returns

pointer to the unit 0 for this device.

Implements HF::IDevice.

Definition at line 461 of file devices.h.

            {
               return const_cast<CoreServices *>(&_unit0);
            }

---

The documentation for this class was generated from the following file:

• devices.h
