Helper class used to implement custom functionality to the device management server side. More...

#include <device_management.h>

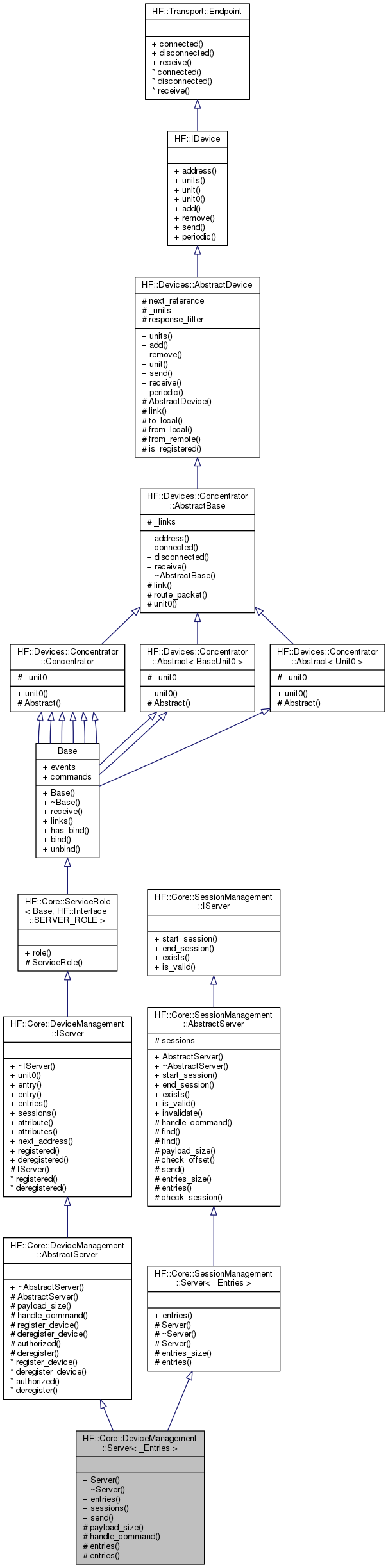

Inheritance diagram for HF::Core::DeviceManagement::Server< _Entries >:

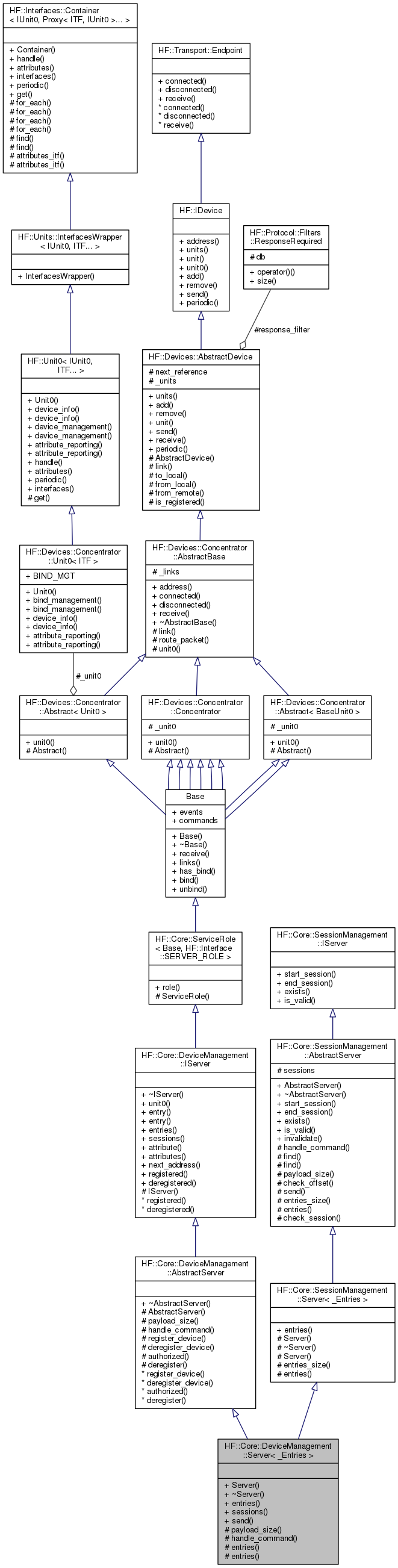

Collaboration diagram for HF::Core::DeviceManagement::Server< _Entries >:

Public Member Functions
	Server (Unit0 &unit)
	Constructor. More...

Container &	entries () const
	Get a reference to the current object implementing the persistence API, for the device information. More...

SessionMgr &	sessions ()
	Reference to the session management API. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

Public Member Functions inherited from HF::Core::DeviceManagement::IServer
HF::Devices::Concentrator::IUnit0 &	unit0 () const
	Return a reference to the unit that this service belongs to. More...

DevicePtr	entry (uint16_t address) const
	Return the Device entry for the given address. More...

DevicePtr	entry (const HF::UID::UID &uid) const
	Return the Device entry for the given UID. More...

virtual uint16_t	next_address ()
	Return next available address for registering a device. More...

virtual void	registered (DevicePtr &device)
	Indicate that a device has been registered. More...

virtual void	deregistered (DevicePtr &device)
	Indicate that a device has been de-registered. More...

Public Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from Base
void	receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

bool	has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Check if bind exists. More...

uint8_t	bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Create a new bind entry. More...

bool	unbind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Remove the binding entry for the given devices. More...

Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices >
CoreServices *	unit0 () const
	Get the unit 0 used by this concentrator device. More...

Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase
uint16_t	address () const
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

void	connected (HF::Transport::Link *link)
	Callback to report that a new transport `link` was been created to a remote device. More...

void	disconnected (HF::Transport::Link *link)
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Events
Public Member Functions inherited from HF::Core::SessionManagement::Server< _Entries >
Container &	entries () const
	Return the container for the service entries. More...

Public Member Functions inherited from HF::Core::SessionManagement::AbstractServer
	AbstractServer ()
	Constructor.

void	start_session (uint16_t address)
	Start a session for the device with the given `address`. More...

void	end_session (uint16_t address)
	Terminate the session associated with the device with the given `address`. More...

bool	exists (uint16_t address) const
	Check if a session for the device with the given `address` exists. More...

bool	is_valid (uint16_t address) const
	Check if the session for the device with the given `address` is valid, i.e., the underling entries have not been modified since the start of the session. More...

void	invalidate ()
	Invalidate all sessions.

Protected Member Functions
Container &	entries () const
	Return the container for the service entries. More...

Protected Member Functions inherited from HF::Core::DeviceManagement::AbstractServer
	AbstractServer (Unit0 &unit)
	Constructor. More...

virtual Common::Result	register_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	This method is called when a registration message is received.

virtual Common::Result	deregister_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	This method is called when a de-registration message is received.

virtual bool	authorized (uint8_t member, DevicePtr &source, DevicePtr &destination)
	This method serves to indicate if a given `member` of the interface can be used by the `source` device affecting the `destination` device configuration on the system. More...

virtual Common::Result	deregister (DevicePtr &device)
	De-register the device that corresponds to the given Device entry. More...

Protected Member Functions inherited from HF::Core::DeviceManagement::IServer
	IServer (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase
HF::Transport::Link *	link (uint16_t addr) const
	Return the link that can be used to send a packet to the device with the given address. More...

virtual void	route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Route the given packet to the corresponding device. More...

Protected Member Functions inherited from HF::Devices::AbstractDevice
virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

Protected Member Functions inherited from HF::Core::SessionManagement::Server< _Entries >
	Server (const Server &other)
	Copy-Constructor. More...

uint16_t	entries_size () const
	Get the number of entries present in the container. More...

Common::Result	entries (uint16_t offset, uint8_t count, Common::ByteArray &payload)
	Create a GetEntriesResponse message message with, `count` entries starting from the given `offset` and serialize the created message into the given byte array in `payload`. More...

Protected Member Functions inherited from HF::Core::SessionManagement::AbstractServer
Common::Result	handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0)
	Handle command request/response messages. More...

iterator	find (uint16_t address)
	Find the session associated with the given device `address`. More...

const_iterator	find (uint16_t address) const
	Find the session associated with the given device `address`. More...

uint16_t	payload_size (CMD cmd) const
	Get the minimum number of bytes necessary to pack/unpack a message of the given command. More...

Common::Result	check_offset (uint16_t offset, uint8_t &count, uint16_t size) const
	Check if the given `offset` is valid and adjust the `count` value if necessary. More...

Common::Result	check_session (uint16_t address, Common::ByteArray &payload) const
	Check if a session for the given device `address` exists and if it is valid. More...

Additional Inherited Members
Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase
Common::SimpleList< Transport::Link * >	_links
	List of links present in this concentrator.

Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Protected Attributes inherited from HF::Core::SessionManagement::AbstractServer
Container	sessions
	Session's database.

Detailed Description

template<typename _Entries = DeviceManagement::Entries>
struct HF::Core::DeviceManagement::Server< _Entries >

Helper class used to implement custom functionality to the device management server side.

Definition at line 850 of file device_management.h.

Constructor & Destructor Documentation

◆ Server()

template<typename _Entries = DeviceManagement::Entries>

HF::Core::DeviceManagement::Server< _Entries >::Server ( Unit0 & unit )

inline

Constructor.

Parameters

[in] unit reference to the unit containing this service.

Definition at line 860 of file device_management.h.

                                :
                AbstractServer(unit), SessionManagement::Server<_Entries>()
             {}

Member Function Documentation

◆ entries() [1/2]

template<typename _Entries = DeviceManagement::Entries>

Container& HF::Core::DeviceManagement::Server< _Entries >::entries ( ) const

inlinevirtual

Get a reference to the current object implementing the persistence API, for the device information.

Returns: reference to the current object for the persistence API.

Implements HF::Core::DeviceManagement::IServer.

Definition at line 867 of file device_management.h.

             {
                return SessionMgr::entries();
             }

◆ entries() [2/2]

template<typename _Entries = DeviceManagement::Entries>

Container& HF::Core::SessionManagement::Server< _Entries >::entries

inlineprotected

Return the container for the service entries.

Returns: reference to the object containing the wrapped service entries.

Definition at line 607 of file session_management.h.

             {
                return const_cast<Container &>(_entries);
             }

◆ send()

template<typename _Entries = DeviceManagement::Entries>

void HF::Core::DeviceManagement::Server< _Entries >::send	(	const Protocol::Address &	addr,
		Protocol::Message &	message
	)

inlinevirtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implements HF::Core::SessionManagement::AbstractServer.

Definition at line 879 of file device_management.h.

             {
                AbstractServer::send(addr, message);
             }

◆ sessions()

template<typename _Entries = DeviceManagement::Entries>

SessionMgr& HF::Core::DeviceManagement::Server< _Entries >::sessions ( )

inlinevirtual

Reference to the session management API.

Returns: reference to the object implementing the session management API for this device management server.

Implements HF::Core::DeviceManagement::IServer.

Definition at line 872 of file device_management.h.

             {
                return *this;
             }

The documentation for this struct was generated from the following file:

device_management.h
