This module contains the classes that implement the Session Management functionality. More...

Collaboration diagram for Session Management:

Data Structures
struct	HF::Core::SessionManagement::StartResponse
	Start Read Session Command Message. More...

struct	HF::Core::SessionManagement::GetEntriesMessage
	Get Entries Command Message. More...

struct	HF::Core::SessionManagement::IServer
	Session Management API : Server side. More...

struct	HF::Core::SessionManagement::AbstractServer::Session
	Session database entry. More...

class	HF::Core::SessionManagement::AbstractServer
	Parent class for session management functionality - Server side. More...

class	HF::Core::SessionManagement::EntriesWrapper< Parent >
	Wrapper over persistent storage APIs to invalidate sessions on save and destroy. More...

struct	HF::Core::SessionManagement::Server< _Entries >
	Helper template to inject session management functionality into services requiring it - Server side. More...

class	HF::Core::SessionManagement::AbstractClient
	Parent class for session management functionality - Client side. More...

struct	HF::Core::SessionManagement::Client< _Entry >
	Helper template to inject session management functionality into services requiring it - Client side. More...

Enumerations
enum	HF::Core::SessionManagement::CMD { HF::Core::SessionManagement::START, HF::Core::SessionManagement::GET, HF::Core::SessionManagement::END }
	Available commands for session management. More...

Functions
	HF::Core::SessionManagement::StartResponse::StartResponse (uint16_t count=0)
	Constructor. More...

uint16_t	HF::Core::SessionManagement::GetEntriesMessage::size () const
	Number bytes needed to serialize the message. More...

uint16_t	HF::Core::SessionManagement::GetEntriesMessage::pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	HF::Core::SessionManagement::GetEntriesMessage::unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

virtual void	HF::Core::SessionManagement::IServer::start_session (uint16_t address)=0
	Start a session for the device with the given `address`. More...

virtual void	HF::Core::SessionManagement::IServer::end_session (uint16_t address)=0
	Terminate the session associated with the device with the given `address`. More...

virtual bool	HF::Core::SessionManagement::IServer::exists (uint16_t address) const =0
	Check if a session for the device with the given `address` exists. More...

virtual bool	HF::Core::SessionManagement::IServer::is_valid (uint16_t address) const =0
	Check if the session for the device with the given `address` is valid, i.e., the underling entries have not been modified since the start of the session. More...

	HF::Core::SessionManagement::AbstractServer::Session::Session (uint16_t _address=HF::Protocol::BROADCAST_ADDR, bool _valid=false)
	Constructor. More...

	HF::Core::SessionManagement::AbstractServer::AbstractServer ()
	Constructor.

void	HF::Core::SessionManagement::AbstractServer::start_session (uint16_t address)
	Start a session for the device with the given `address`. More...

void	HF::Core::SessionManagement::AbstractServer::end_session (uint16_t address)
	Terminate the session associated with the device with the given `address`. More...

bool	HF::Core::SessionManagement::AbstractServer::exists (uint16_t address) const
	Check if a session for the device with the given `address` exists. More...

bool	HF::Core::SessionManagement::AbstractServer::is_valid (uint16_t address) const
	Check if the session for the device with the given `address` is valid, i.e., the underling entries have not been modified since the start of the session. More...

void	HF::Core::SessionManagement::AbstractServer::invalidate ()
	Invalidate all sessions.

Common::Result	HF::Core::SessionManagement::AbstractServer::handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0)
	Handle command request/response messages. More...

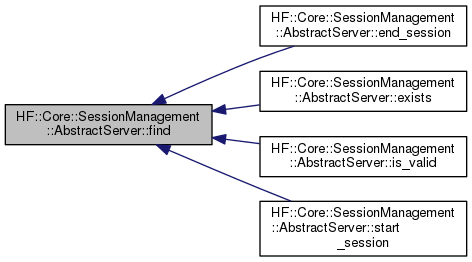

iterator	HF::Core::SessionManagement::AbstractServer::find (uint16_t address)
	Find the session associated with the given device `address`. More...

const_iterator	HF::Core::SessionManagement::AbstractServer::find (uint16_t address) const
	Find the session associated with the given device `address`. More...

uint16_t	HF::Core::SessionManagement::AbstractServer::payload_size (CMD cmd) const
	Get the minimum number of bytes necessary to pack/unpack a message of the given command. More...

Common::Result	HF::Core::SessionManagement::AbstractServer::check_offset (uint16_t offset, uint8_t &count, uint16_t size) const
	Check if the given `offset` is valid and adjust the `count` value if necessary. More...

virtual void	HF::Core::SessionManagement::AbstractServer::send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual uint16_t	HF::Core::SessionManagement::AbstractServer::entries_size () const =0
	Get the number of entries present in the container. More...

virtual Common::Result	HF::Core::SessionManagement::AbstractServer::entries (uint16_t offset, uint8_t count, Common::ByteArray &payload)=0
	Create a GetEntriesResponse message message with, `count` entries starting from the given `offset` and serialize the created message into the given byte array in `payload`. More...

Common::Result	HF::Core::SessionManagement::AbstractServer::check_session (uint16_t address, Common::ByteArray &payload) const
	Check if a session for the given device `address` exists and if it is valid. More...

	HF::Core::SessionManagement::EntriesWrapper< Parent >::EntriesWrapper (AbstractServer &_manager)
	Constructor. More...

	HF::Core::SessionManagement::EntriesWrapper< Parent >::EntriesWrapper (const EntriesWrapper &other, AbstractServer &_manager)
	Constructor. More...

Common::Result	HF::Core::SessionManagement::EntriesWrapper< Parent >::save (const value_type &entry)
	Store the given `entry` to persistent storage. More...

Common::Result	HF::Core::SessionManagement::EntriesWrapper< Parent >::destroy (const value_type &entry)
	Destroy the given `entry` in the persistent storage. More...

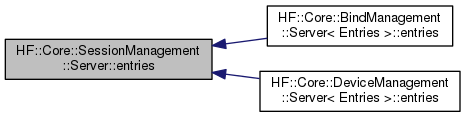

Container &	HF::Core::SessionManagement::Server< _Entries >::entries () const
	Return the container for the service entries. More...

	HF::Core::SessionManagement::Server< _Entries >::Server (const Server &other)
	Copy-Constructor. More...

uint16_t	HF::Core::SessionManagement::Server< _Entries >::entries_size () const
	Get the number of entries present in the container. More...

Common::Result	HF::Core::SessionManagement::Server< _Entries >::entries (uint16_t offset, uint8_t count, Common::ByteArray &payload)
	Create a GetEntriesResponse message message with, `count` entries starting from the given `offset` and serialize the created message into the given byte array in `payload`. More...

Common::Result	HF::Core::SessionManagement::AbstractClient::handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0)
	Handle command request/response messages. More...

uint16_t	HF::Core::SessionManagement::AbstractClient::payload_size (CMD cmd) const
	Get the minimum number of bytes necessary to pack/unpack a message of the given command. More...

template<uint8_t _role, uint16_t _uid, uint8_t _member>

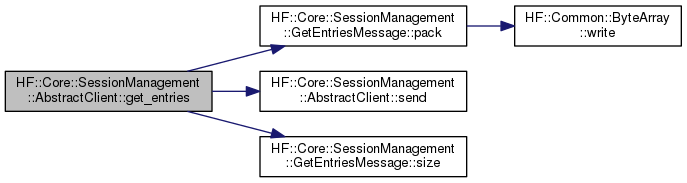

void	HF::Core::SessionManagement::AbstractClient::get_entries (uint16_t offset, uint8_t count=0) const
	Helper method to send a message to read, `count` entries starting at `offset` from the server. More...

template<uint8_t _role, uint16_t _uid, uint8_t _member>

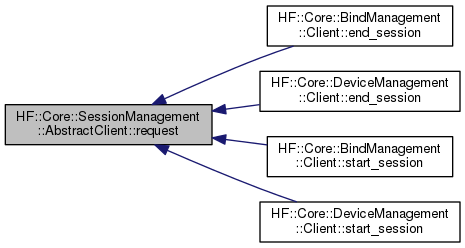

void	HF::Core::SessionManagement::AbstractClient::request () const
	Helper method to create a session management request. More...

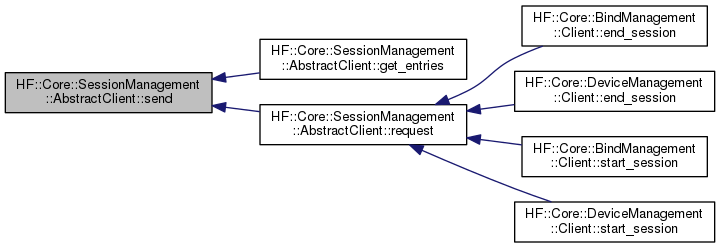

virtual void	HF::Core::SessionManagement::AbstractClient::send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

Variables
uint16_t	HF::Core::SessionManagement::StartResponse::count
	Number of device entries. More...

static constexpr uint16_t	HF::Core::SessionManagement::StartResponse::min_size = Protocol::Response::min_size + sizeof(uint16_t)
	Minimum pack/unpack required data size.

uint16_t	HF::Core::SessionManagement::GetEntriesMessage::offset
	Start index for the first entry to be provided. More...

uint8_t	HF::Core::SessionManagement::GetEntriesMessage::count
	Number of entries to be sent in the response. More...

static constexpr uint16_t	HF::Core::SessionManagement::GetEntriesMessage::min_size = sizeof(offset) + sizeof(count)
	Minimum pack/unpack required data size.

static constexpr uint16_t	HF::Core::SessionManagement::GetEntriesResponse< _Entry >::min_size
	Minimum pack/unpack required data size.

static constexpr uint16_t	HF::Core::SessionManagement::GetEntriesResponse< void >::min_size
	Minimum pack/unpack required data size.

uint16_t	HF::Core::SessionManagement::AbstractServer::Session::address
	Device address for session. More...

bool	HF::Core::SessionManagement::AbstractServer::Session::valid
	Indicate if the session is still valid. More...

Container	HF::Core::SessionManagement::AbstractServer::sessions
	Session's database.

Events
virtual void	HF::Core::SessionManagement::Client< _Entry >::entries (const GetEntriesResponse< _Entry > &response)
	This event is called when a response to a get entries is received. More...

Detailed Description

This module contains the classes that implement the Session Management functionality.

Enumeration Type Documentation

◆ CMD

enum HF::Core::SessionManagement::CMD

Available commands for session management.

Enumerator
START	Start a new session for a device.
GET	Retrieve information.
END	End the session for device.

Definition at line 42 of file session_management.h.

          {
             START,
             GET,
             END,
          } CMD;

Function Documentation

◆ EntriesWrapper() [1/2]

template<typename Parent>

HF::Core::SessionManagement::EntriesWrapper< Parent >::EntriesWrapper ( AbstractServer & _manager )

inline

Constructor.

Parameters

[in] _manager session manager the entries are associated to.

Definition at line 557 of file session_management.h.

                                                     : Parent(),
                manager(_manager)
             {}

◆ EntriesWrapper() [2/2]

template<typename Parent>

HF::Core::SessionManagement::EntriesWrapper< Parent >::EntriesWrapper	(	const EntriesWrapper< Parent > &	other,
		AbstractServer &	_manager
	)

inline

Constructor.

Parameters

[in]	other	entries container to wrap.
[in]	_manager	session manager the entries are associated to.

Definition at line 567 of file session_management.h.

                                                                                  :
                Parent(other), manager(_manager)
             {}

◆ Server()

template<typename _Entries>

HF::Core::SessionManagement::Server< _Entries >::Server ( const Server< _Entries > & other )

inlineprotected

Copy-Constructor.

Make sure that the entries are copied maintaining this object as the session manager.

Parameters

[in] other reference to the object to copy from.

Definition at line 627 of file session_management.h.

                                        :
                AbstractServer(other), _entries(other._entries, *this)
             {}

◆ Session()

HF::Core::SessionManagement::AbstractServer::Session::Session	(	uint16_t	_address = `HF::Protocol::BROADCAST_ADDR`,
		bool	_valid = `false`
	)

inline

Constructor.

Parameters

[in]	_address	device address this session belongs to.
[in]	_valid	`true` if the session is valid, `false` otherwise.

Definition at line 330 of file session_management.h.

                                                                                          :
                   address(_address), valid(_valid)
                {}

◆ StartResponse()

HF::Core::SessionManagement::StartResponse::StartResponse ( uint16_t count = 0 )

inline

Constructor.

Parameters

[in] count number of entries available.

Definition at line 65 of file session_management.h.

                                              :
                count(count)
             {}

◆ check_offset()

Common::Result HF::Core::SessionManagement::AbstractServer::check_offset	(	uint16_t	offset,
		uint8_t &	count,
		uint16_t	size
	)		const

protected

Check if the given offset is valid and adjust the count value if necessary.

Parameters

[in]	offset	offset to start reading the entries from.
[in,out]	count	number of entries to read.
[in]	size	number of entries present in the underling container.

Return values

HF::Common::Result::OK	if entries can be read.
HF::Common::Result::FAIL_ARG	if the offset value is invalid.

Referenced by HF::Core::SessionManagement::Server< Entries >::entries().

Here is the caller graph for this function:

◆ check_session()

Common::Result HF::Core::SessionManagement::AbstractServer::check_session	(	uint16_t	address,
		Common::ByteArray &	payload
	)		const

protected

Check if a session for the given device address exists and if it is valid.

In case a session does not exist or is invalid, place an GetEntriesEmptyResponse into the byte array given by payload to be sent to the remote device.

Parameters

[in]	address	device address to check the session for.
[out]	payload	the byte array to place the response in case of error.

Return values

Common::Result::FAIL_READ_SESSION	if the session does not exist;
Common::Result::FAIL_FAIL_MODIFIED	if the session is not valid;
Common::Result::OK	a session exists an is valid.

◆ destroy()

template<typename Parent>

Common::Result HF::Core::SessionManagement::EntriesWrapper< Parent >::destroy ( const value_type & entry )

inline

Destroy the given entry in the persistent storage.

Parameters

[in] entry reference to the entry to erase.

Return values

Common::Result::OK,if	the entry was destroyed.
Common::Result::FAIL_ARG	otherwise.

Definition at line 584 of file session_management.h.

             {
                auto res = Parent::destroy(entry);

                manager.invalidate();
                return res;
             }

◆ end_session() [1/2]

virtual void HF::Core::SessionManagement::IServer::end_session ( uint16_t address )

pure virtual

Terminate the session associated with the device with the given address.

Parameters

[in] address device address to end the session for.

Implemented in HF::Core::SessionManagement::AbstractServer.

◆ end_session() [2/2]

void HF::Core::SessionManagement::AbstractServer::end_session ( uint16_t address )

inlinevirtual

Terminate the session associated with the device with the given address.

Parameters

[in] address device address to end the session for.

Implements HF::Core::SessionManagement::IServer.

Definition at line 369 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::find(), and HF::Core::SessionManagement::AbstractServer::sessions.

             {
                auto it = find(address);

                if (it != sessions.end())
                {
                   sessions.erase(it);
                }
             }

Here is the call graph for this function:

◆ entries() [1/4]

virtual Common::Result HF::Core::SessionManagement::AbstractServer::entries	(	uint16_t	offset,
		uint8_t	count,
		Common::ByteArray &	payload
	)

protectedpure virtual

Create a GetEntriesResponse message message with, count entries starting from the given offset and serialize the created message into the given byte array in payload.

Remarks: if offset + count > [number of entries], the message will truncated to the available entries starting from the given offset.

Parameters

[in]	offset	the offset to start reading the entries.
[in]	count	number of entries to read.
[out]	payload	byte array to serialize the entries to.

Return values

Common::Result::OK	message created successfully;
Common::Result::FAIL_ARG	if `offset` is bigger than the number of entries.

Implemented in HF::Core::SessionManagement::Server< _Entries >, and HF::Core::SessionManagement::Server< Entries >.

◆ entries() [2/4]

template<typename _Entries>

Container& HF::Core::SessionManagement::Server< _Entries >::entries ( ) const

inline

Return the container for the service entries.

Returns: reference to the object containing the wrapped service entries.

Definition at line 607 of file session_management.h.

Referenced by HF::Core::BindManagement::Server< Entries >::entries(), and HF::Core::DeviceManagement::Server< Entries >::entries().

             {
                return const_cast<Container &>(_entries);
             }

Here is the caller graph for this function:

◆ entries() [3/4]

template<typename _Entries>

Common::Result HF::Core::SessionManagement::Server< _Entries >::entries	(	uint16_t	offset,
		uint8_t	count,
		Common::ByteArray &	payload
	)

inlineprotectedvirtual

Create a GetEntriesResponse message message with, count entries starting from the given offset and serialize the created message into the given byte array in payload.

Remarks: if offset + count > [number of entries], the message will truncated to the available entries starting from the given offset.

Parameters

[in]	offset	the offset to start reading the entries.
[in]	count	number of entries to read.
[out]	payload	byte array to serialize the entries to.

Return values

Common::Result::OK	message created successfully;
Common::Result::FAIL_ARG	if `offset` is bigger than the number of entries.

Implements HF::Core::SessionManagement::AbstractServer.

Definition at line 642 of file session_management.h.

             {
                GetEntriesResponse<value_type> response;

                response.code = check_offset(offset, count, entries_size());

                if (response.code == Common::Result::OK)
                {
                   auto start = _entries.begin();
                   std::advance(start, offset);

                   auto end = start;
                   std::advance(end, count);
                   std::copy(start, end, std::back_inserter(response.entries));
                }

                payload = Common::ByteArray(response.size());

                response.pack(payload);

                return response.code;
             }

◆ entries() [4/4]

template<typename _Entry>

virtual void HF::Core::SessionManagement::Client< _Entry >::entries ( const GetEntriesResponse< _Entry > & response )

inlinevirtual

This event is called when a response to a get entries is received.

Parameters

[in] response the response received.

Definition at line 837 of file session_management.h.

             {
                UNUSED(response);
             }

◆ entries_size() [1/2]

virtual uint16_t HF::Core::SessionManagement::AbstractServer::entries_size ( ) const

protectedpure virtual

Get the number of entries present in the container.

Returns: number of entries in the wrapped service.

Implemented in HF::Core::SessionManagement::Server< _Entries >, and HF::Core::SessionManagement::Server< Entries >.

◆ entries_size() [2/2]

template<typename _Entries>

uint16_t HF::Core::SessionManagement::Server< _Entries >::entries_size ( ) const

inlineprotectedvirtual

Get the number of entries present in the container.

Returns: number of entries in the wrapped service.

Implements HF::Core::SessionManagement::AbstractServer.

Definition at line 635 of file session_management.h.

Referenced by HF::Core::SessionManagement::Server< Entries >::entries().

             {
                return static_cast<uint16_t>(_entries.size());
             }

Here is the caller graph for this function:

◆ exists() [1/2]

virtual bool HF::Core::SessionManagement::IServer::exists ( uint16_t address ) const

pure virtual

Check if a session for the device with the given address exists.

Parameters

[in] address device address to check is a session exists.

Return values

true	if a session exists,
false	otherwise.

Implemented in HF::Core::SessionManagement::AbstractServer.

◆ exists() [2/2]

bool HF::Core::SessionManagement::AbstractServer::exists ( uint16_t address ) const

inlinevirtual

Check if a session for the device with the given address exists.

Parameters

[in] address device address to check is a session exists.

Return values

true	if a session exists,
false	otherwise.

Implements HF::Core::SessionManagement::IServer.

Definition at line 379 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::find(), and HF::Core::SessionManagement::AbstractServer::sessions.

             {
                return find(address) != sessions.end();
             }

Here is the call graph for this function:

◆ find() [1/2]

iterator HF::Core::SessionManagement::AbstractServer::find ( uint16_t address )

inlineprotected

Find the session associated with the given device address.

Parameters

[in] address device address to search a session for.

Returns: an iterator to the session found or Container::end() otherwise.

Definition at line 438 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::sessions.

Referenced by HF::Core::SessionManagement::AbstractServer::end_session(), HF::Core::SessionManagement::AbstractServer::exists(), HF::Core::SessionManagement::AbstractServer::is_valid(), and HF::Core::SessionManagement::AbstractServer::start_session().

             {
                /* *INDENT-OFF* */
                return std::find_if (sessions.begin (), sessions.end (),
                                     [address](const Session &session)
                {
                   return address == session.address;
                });
                /* *INDENT-ON* */
             }

Here is the caller graph for this function:

◆ find() [2/2]

const_iterator HF::Core::SessionManagement::AbstractServer::find ( uint16_t address ) const

inlineprotected

Find the session associated with the given device address.

Parameters

[in] address device address to search a session for.

Returns: a constant iterator to the session found or Container::end() otherwise.

Definition at line 456 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::sessions.

             {
                /* *INDENT-OFF* */
                return std::find_if (sessions.cbegin (), sessions.cend (),
                                     [address](const Session &session)
                {
                   return address == session.address;
                });
                /* *INDENT-ON* */
             }

◆ get_entries()

template<uint8_t _role, uint16_t _uid, uint8_t _member>

void HF::Core::SessionManagement::AbstractClient::get_entries	(	uint16_t	offset,
		uint8_t	count = `0`
	)		const

inlineprotected

Helper method to send a message to read, count entries starting at offset from the server.

Parameters

[in]	offset	index to start reading the entries from.
[in]	count	number of entries to read.

Definition at line 776 of file session_management.h.

References HF::Common::Interface::id, HF::Protocol::Message::itf, HF::Protocol::Message::Interface::member, HF::Core::SessionManagement::GetEntriesMessage::pack(), HF::Protocol::Message::payload, HF::Common::Interface::role, HF::Core::SessionManagement::AbstractClient::send(), and HF::Core::SessionManagement::GetEntriesMessage::size().

             {
                SessionManagement::GetEntriesMessage msg(offset, count);

                Protocol::Address addr(0, 0);
                Protocol::Message message;

                message.itf.role   = _role;
                message.itf.id     = _uid;
                message.itf.member = _member;

                message.payload    = Common::ByteArray(msg.size());

                msg.pack(message.payload);

                const_cast<AbstractClient *>(this)->send(addr, message);
             }

Here is the call graph for this function:

◆ handle_command() [1/2]

Common::Result HF::Core::SessionManagement::AbstractServer::handle_command	(	CMD	cmd,
		Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset = `0`
	)

protected

Handle command request/response messages.

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Parameters

[in]	cmd	the session operation to process.
[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

◆ handle_command() [2/2]

Common::Result HF::Core::SessionManagement::AbstractClient::handle_command	(	CMD	cmd,
		Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset = `0`
	)

protected

Handle command request/response messages.

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Parameters

[in]	cmd	the session operation to process.
[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

◆ is_valid() [1/2]

virtual bool HF::Core::SessionManagement::IServer::is_valid ( uint16_t address ) const

pure virtual

Check if the session for the device with the given address is valid, i.e., the underling entries have not been modified since the start of the session.

Parameters

[in] address device address to check is the session is valid.

Return values

true	if the session exists and is valid,
false	otherwise.

Implemented in HF::Core::SessionManagement::AbstractServer.

◆ is_valid() [2/2]

bool HF::Core::SessionManagement::AbstractServer::is_valid ( uint16_t address ) const

inlinevirtual

Check if the session for the device with the given address is valid, i.e., the underling entries have not been modified since the start of the session.

Parameters

[in] address device address to check is the session is valid.

Return values

true	if the session exists and is valid,
false	otherwise.

Implements HF::Core::SessionManagement::IServer.

Definition at line 384 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::find(), and HF::Core::SessionManagement::AbstractServer::sessions.

             {
                auto it = find(address);

                if (it != sessions.end())
                {
                   return it->valid;
                }

                return false;
             }

Here is the call graph for this function:

◆ pack()

uint16_t HF::Core::SessionManagement::GetEntriesMessage::pack	(	Common::ByteArray &	array,
		uint16_t	offset = `0`
	)		const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns: the number of bytes written.

Definition at line 121 of file session_management.h.

References HF_SERIALIZABLE_CHECK, HF::Core::SessionManagement::GetEntriesMessage::min_size, HF::Core::SessionManagement::GetEntriesMessage::offset, and HF::Common::ByteArray::write().

Referenced by HF::Core::SessionManagement::AbstractClient::get_entries().

             {
                HF_SERIALIZABLE_CHECK(array, offset, min_size);

                offset += array.write(offset, this->offset);
                array.write(offset, this->count);

                return min_size;
             }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ payload_size() [1/2]

uint16_t HF::Core::SessionManagement::AbstractServer::payload_size ( CMD cmd ) const

protected

Get the minimum number of bytes necessary to pack/unpack a message of the given command.

Parameters

[in] cmd the command to get the number of bytes for.

Returns: number of bytes required.

◆ payload_size() [2/2]

uint16_t HF::Core::SessionManagement::AbstractClient::payload_size ( CMD cmd ) const

protected

Get the minimum number of bytes necessary to pack/unpack a message of the given command.

Parameters

[in] cmd the command to get the number of bytes for.

Returns: number of bytes required.

◆ request()

template<uint8_t _role, uint16_t _uid, uint8_t _member>

void HF::Core::SessionManagement::AbstractClient::request ( ) const

inlineprotected

Helper method to create a session management request.

Template Parameters

_role	role to use in the created message.
_uid	interface UID to use in the message.
_member	interface member ID to use.

Definition at line 803 of file session_management.h.

References HF::Common::Interface::id, HF::Protocol::Message::itf, HF::Protocol::Message::Interface::member, HF::Common::Interface::role, and HF::Core::SessionManagement::AbstractClient::send().

Referenced by HF::Core::BindManagement::Client::end_session(), HF::Core::DeviceManagement::Client::end_session(), HF::Core::BindManagement::Client::start_session(), and HF::Core::DeviceManagement::Client::start_session().

             {
                Protocol::Address addr(0, 0);
                Protocol::Message message;

                message.itf.role   = _role;
                message.itf.id     = _uid;
                message.itf.member = _member;

                const_cast<AbstractClient *>(this)->send(addr, message);
             }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ save()

template<typename Parent>

Common::Result HF::Core::SessionManagement::EntriesWrapper< Parent >::save ( const value_type & entry )

inline

Store the given entry to persistent storage.

Parameters

[in] entry the entry to save to storage.

Return values

Common::Result::OK	if the entry was saved,
Common::Result::FAIL_UNKNOWN	otherwise.

Definition at line 575 of file session_management.h.

             {
                auto res = Parent::save(entry);

                manager.invalidate();
                return res;
             }

◆ send() [1/2]

virtual void HF::Core::SessionManagement::AbstractServer::send	(	const Protocol::Address &	addr,
		Protocol::Message &	message
	)

protectedpure virtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implemented in HF::Core::DeviceManagement::Server< _Entries >, HF::Core::DeviceManagement::Server< Entries >, HF::Core::BindManagement::Server< _Entries >, and HF::Core::BindManagement::Server< Entries >.

◆ send() [2/2]

virtual void HF::Core::SessionManagement::AbstractClient::send	(	const Protocol::Address &	addr,
		Protocol::Message &	message
	)

protectedpure virtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implemented in HF::Core::DeviceManagement::Client, and HF::Core::BindManagement::Client.

Referenced by HF::Core::SessionManagement::AbstractClient::get_entries(), and HF::Core::SessionManagement::AbstractClient::request().

Here is the caller graph for this function:

◆ size()

uint16_t HF::Core::SessionManagement::GetEntriesMessage::size ( ) const

inline

Number bytes needed to serialize the message.

Returns: number of bytes the message requires to be serialized.

Definition at line 115 of file session_management.h.

References HF::Core::SessionManagement::GetEntriesMessage::min_size.

Referenced by HF::Core::SessionManagement::AbstractClient::get_entries().

             {
                return min_size;
             }

Here is the caller graph for this function:

◆ start_session() [1/2]

virtual void HF::Core::SessionManagement::IServer::start_session ( uint16_t address )

pure virtual

Start a session for the device with the given address.

Only one session is associated with any given device at any time.

Parameters

[in] address device address to start the session for.

Implemented in HF::Core::SessionManagement::AbstractServer.

◆ start_session() [2/2]

void HF::Core::SessionManagement::AbstractServer::start_session ( uint16_t address )

inlinevirtual

Start a session for the device with the given address.

Only one session is associated with any given device at any time.

Parameters

[in] address device address to start the session for.

Implements HF::Core::SessionManagement::IServer.

Definition at line 355 of file session_management.h.

References HF::Core::SessionManagement::AbstractServer::find(), and HF::Core::SessionManagement::AbstractServer::sessions.

             {
                auto it = find(address);

                if (it == sessions.end())   // Session does not exist.
                {
                   sessions.push_back(Session(address, true));
                }
                else  // Session already exists. Update state.
                {
                   it->valid = true;
                }
             }

Here is the call graph for this function:

◆ unpack()

uint16_t HF::Core::SessionManagement::GetEntriesMessage::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = `0`
	)

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns: the number of bytes read.

Definition at line 132 of file session_management.h.

References HF_SERIALIZABLE_CHECK, HF::Core::SessionManagement::GetEntriesMessage::min_size, HF::Core::SessionManagement::GetEntriesMessage::offset, and HF::Common::ByteArray::read().

             {
                HF_SERIALIZABLE_CHECK(array, offset, min_size);

                offset += array.read(offset, this->offset);
                array.read(offset, this->count);

                return min_size;
             }

Here is the call graph for this function:

Variable Documentation

◆ address

uint16_t HF::Core::SessionManagement::AbstractServer::Session::address

Device address for session.

Definition at line 321 of file session_management.h.

◆ count [1/2]

uint16_t HF::Core::SessionManagement::StartResponse::count

Number of device entries.

Definition at line 58 of file session_management.h.

◆ count [2/2]

uint8_t HF::Core::SessionManagement::GetEntriesMessage::count

Number of entries to be sent in the response.

Definition at line 104 of file session_management.h.

◆ offset

uint16_t HF::Core::SessionManagement::GetEntriesMessage::offset

Start index for the first entry to be provided.

Definition at line 103 of file session_management.h.

Referenced by HF::Core::SessionManagement::GetEntriesMessage::pack(), and HF::Core::SessionManagement::GetEntriesMessage::unpack().

◆ valid

bool HF::Core::SessionManagement::AbstractServer::Session::valid

Indicate if the session is still valid.

Definition at line 322 of file session_management.h.

Data Structures

Enumerations

Functions

Variables

Events

Detailed Description

Enumeration Type Documentation

◆ CMD

Function Documentation

◆ EntriesWrapper() [1/2]

◆ EntriesWrapper() [2/2]

◆ Server()

◆ Session()

◆ StartResponse()

◆ check_offset()

◆ check_session()

◆ destroy()

◆ end_session() [1/2]

◆ end_session() [2/2]

◆ entries() [1/4]

◆ entries() [2/4]

◆ entries() [3/4]

◆ entries() [4/4]

◆ entries_size() [1/2]

◆ entries_size() [2/2]

◆ exists() [1/2]

◆ exists() [2/2]

◆ find() [1/2]

◆ find() [2/2]

◆ get_entries()

◆ handle_command() [1/2]

◆ handle_command() [2/2]

◆ is_valid() [1/2]

◆ is_valid() [2/2]

◆ pack()

◆ payload_size() [1/2]

◆ payload_size() [2/2]

◆ request()

◆ save()

◆ send() [1/2]

◆ send() [2/2]

◆ size()

◆ start_session() [1/2]

◆ start_session() [2/2]

◆ unpack()

Variable Documentation

◆ address

◆ count [1/2]

◆ count [2/2]

◆ offset

◆ valid
