HF::Core::SessionManagement::AbstractServer Class Reference

Parent class for session management functionality - Server side. More...

#include <session_management.h>

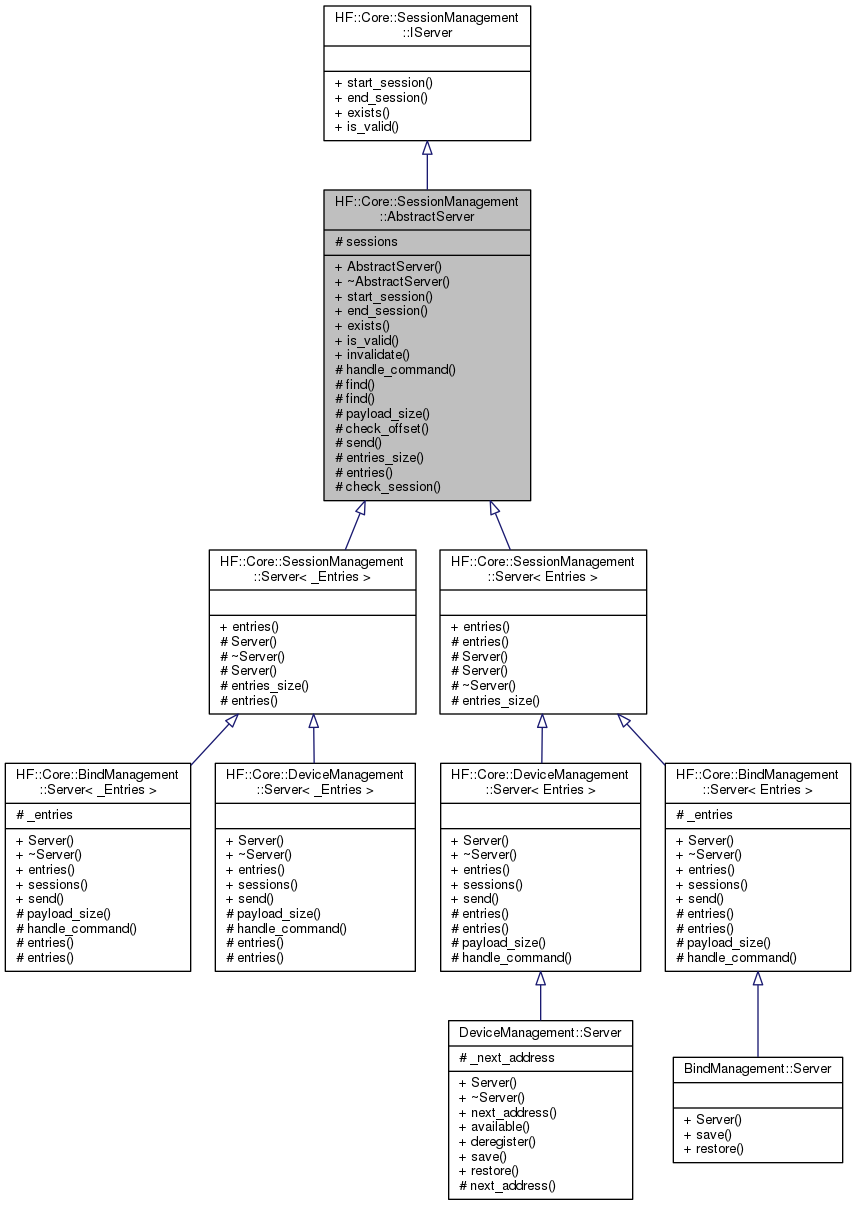

Inheritance diagram for HF::Core::SessionManagement::AbstractServer:

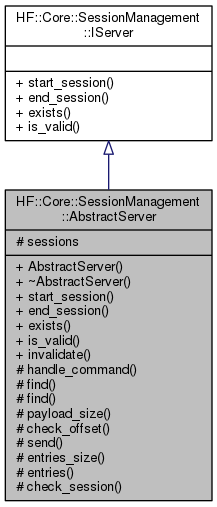

Collaboration diagram for HF::Core::SessionManagement::AbstractServer:

Data Structures
struct	Session
	Session database entry. More...

Public Member Functions
	AbstractServer ()
	Constructor.
void	start_session (uint16_t address)
	Start a session for the device with the given address. More...
void	end_session (uint16_t address)
	Terminate the session associated with the device with the given address. More...
bool	exists (uint16_t address) const
	Check if a session for the device with the given address exists. More...
bool	is_valid (uint16_t address) const
	Check if the session for the device with the given address is valid, i.e., the underling entries have not been modified since the start of the session. More...
void	invalidate ()
	Invalidate all sessions.

Protected Member Functions
Common::Result	handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0)
	Handle command request/response messages. More...
iterator	find (uint16_t address)
	Find the session associated with the given device address. More...
const_iterator	find (uint16_t address) const
	Find the session associated with the given device address. More...
uint16_t	payload_size (CMD cmd) const
	Get the minimum number of bytes necessary to pack/unpack a message of the given command. More...
Common::Result	check_offset (uint16_t offset, uint8_t &count, uint16_t size) const
	Check if the given offset is valid and adjust the count value if necessary. More...
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message msg to the network address given by addr. More...
virtual uint16_t	entries_size () const =0
	Get the number of entries present in the container. More...
virtual Common::Result	entries (uint16_t offset, uint8_t count, Common::ByteArray &payload)=0
	Create a GetEntriesResponse message message with, count entries starting from the given offset and serialize the created message into the given byte array in payload. More...
Common::Result	check_session (uint16_t address, Common::ByteArray &payload) const
	Check if a session for the given device address exists and if it is valid. More...

Protected Attributes
Container	sessions
	Session's database.

Detailed Description

Parent class for session management functionality - Server side.

Definition at line 309 of file session_management.h.

---

The documentation for this class was generated from the following file:

• session_management.h
