Device Management interface : Client side. More...

#include <device_management.h>

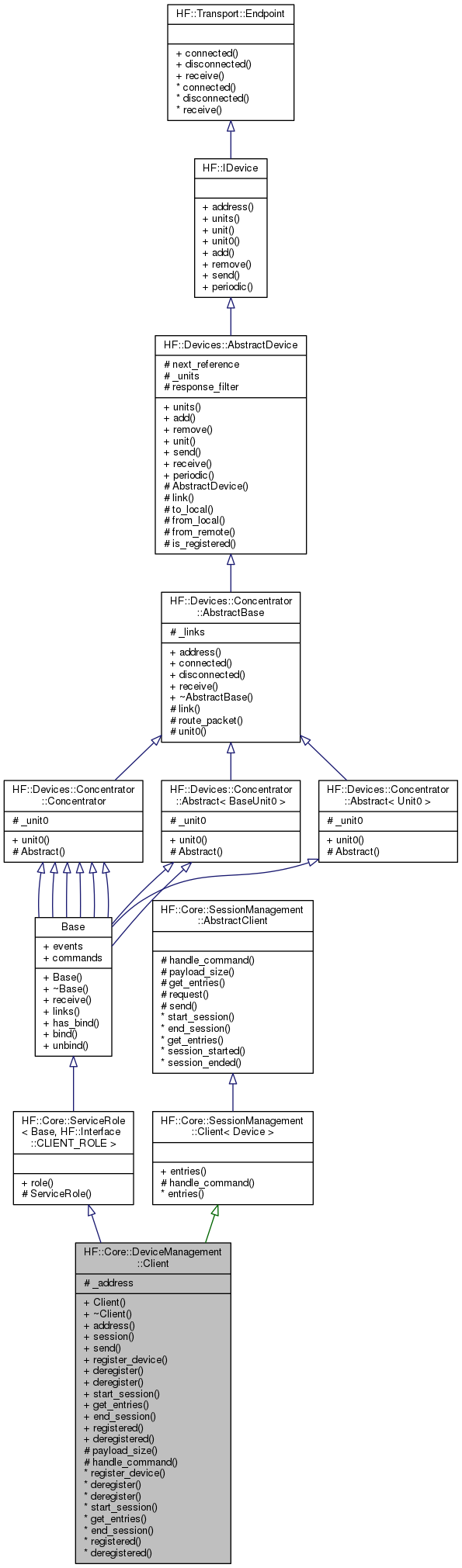

Inheritance diagram for HF::Core::DeviceManagement::Client:

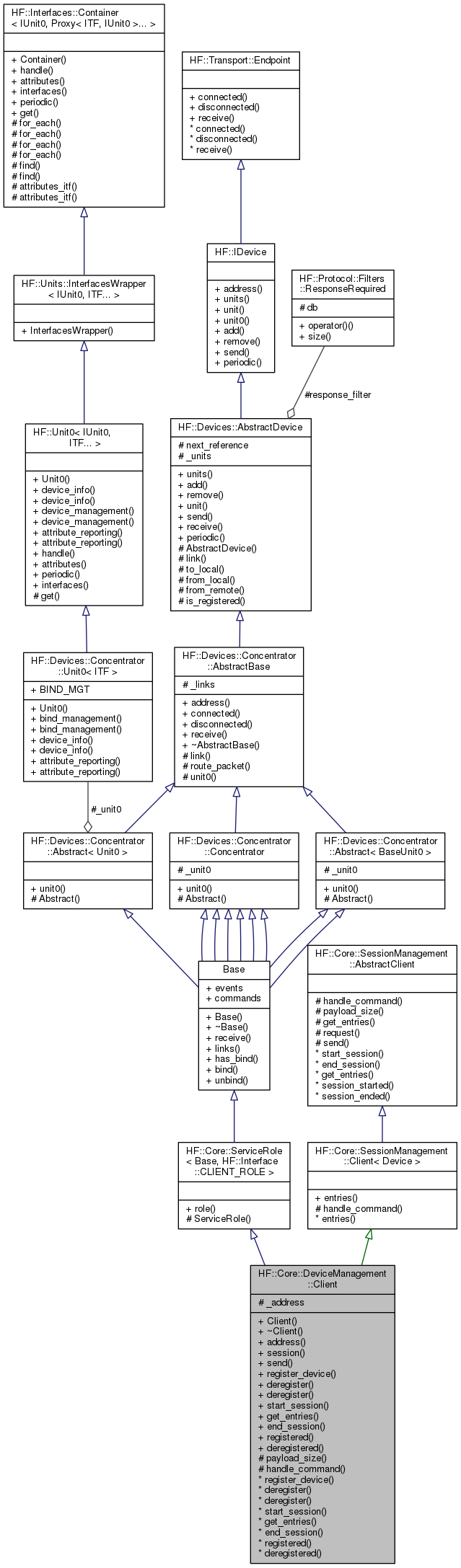

Collaboration diagram for HF::Core::DeviceManagement::Client:

Public Types
typedef SessionManagement::Client< Device >	SessionMgr
	Device HAN-FUN Address.

Public Member Functions
	Client (Unit0 &unit)
	Constructor. More...

virtual uint16_t	address () const
	Return the address given by the HF Concentrator to the Device. More...

SessionMgr &	session ()
	Reference to the session management API. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

Commands
void	register_device ()
	Send a register message.

void	deregister (uint16_t address)
	Send a de-register message for the given `address`. More...

void	deregister ()
	Send a de-register message for current address.

void	start_session () const
	Start read entries session.

void	get_entries (uint16_t offset, uint8_t count=0) const
	Read entries. More...

void	end_session () const
	End read entries session.

Events
virtual void	registered (RegisterResponse &response)
	This method is called when a response to a registration message is received. More...

virtual void	deregistered (Protocol::Response &response)
	This method is called when a response to a de-registration message is received. More...

Public Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::CLIENT_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from Base
void	receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

bool	has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Check if bind exists. More...

uint8_t	bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Create a new bind entry. More...

bool	unbind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Remove the binding entry for the given devices. More...

Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices >
CoreServices *	unit0 () const
	Get the unit 0 used by this concentrator device. More...

Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase
uint16_t	address () const
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

void	connected (HF::Transport::Link *link)
	Callback to report that a new transport `link` was been created to a remote device. More...

void	disconnected (HF::Transport::Link *link)
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Events

Additional Inherited Members
Protected Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::CLIENT_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase
HF::Transport::Link *	link (uint16_t addr) const
	Return the link that can be used to send a packet to the device with the given address. More...

virtual void	route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Route the given packet to the corresponding device. More...

Protected Member Functions inherited from HF::Devices::AbstractDevice
virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

virtual void	entries (const GetEntriesResponse< Device > &response)
	This event is called when a response to a get entries is received. More...

Protected Member Functions inherited from HF::Core::SessionManagement::AbstractClient
Common::Result	handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0)
	Handle command request/response messages. More...

uint16_t	payload_size (CMD cmd) const
	Get the minimum number of bytes necessary to pack/unpack a message of the given command. More...

template<uint8_t _role, uint16_t _uid, uint8_t _member>
void	get_entries (uint16_t offset, uint8_t count=0) const
	Helper method to send a message to read, `count` entries starting at `offset` from the server. More...

template<uint8_t _role, uint16_t _uid, uint8_t _member>
void	request () const
	Helper method to create a session management request. More...

Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase
Common::SimpleList< Transport::Link * >	_links
	List of links present in this concentrator.

Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

Device Management interface : Client side.

Definition at line 404 of file device_management.h.

Constructor & Destructor Documentation

◆ Client()

HF::Core::DeviceManagement::Client::Client ( Unit0 & unit )

inline

Constructor.

Parameters

[in] unit reference to the unit containing this service.

Definition at line 422 of file device_management.h.

                                :
                Service(unit), SessionMgr(), _address(Protocol::BROADCAST_ADDR)
             {}

Member Function Documentation

◆ address()

virtual uint16_t HF::Core::DeviceManagement::Client::address ( ) const

inlinevirtual

Return the address given by the HF Concentrator to the Device.

Returns: the device HAN-FUN address.

Implements HF::IDevice.

Definition at line 433 of file device_management.h.

             {
                return _address;
             }

◆ deregister()

void HF::Core::DeviceManagement::Client::deregister ( uint16_t address )

Send a de-register message for the given address.

Parameters

[in] address the address of the device to de-register.

◆ deregistered()

virtual void HF::Core::DeviceManagement::Client::deregistered ( Protocol::Response & response )

virtual

This method is called when a response to a de-registration message is received.

Parameters

[in] response the response received.

◆ get_entries()

void HF::Core::DeviceManagement::Client::get_entries	(	uint16_t	offset,
		uint8_t	count = `0`
	)		const

inlinevirtual

Read entries.

Parameters

[in]	offset	start read at offset.
[in]	count	number of entries to read.

Implements HF::Core::SessionManagement::AbstractClient.

Definition at line 494 of file device_management.h.

References HF::Interface::DEVICE_MANAGEMENT, and HF::Core::DeviceManagement::GET_ENTRIES_CMD.

             {
                SessionMgr::get_entries<SERVER_ROLE, Interface::DEVICE_MANAGEMENT,
                                        GET_ENTRIES_CMD>(offset, count);
             }

◆ registered()

virtual void HF::Core::DeviceManagement::Client::registered ( RegisterResponse & response )

virtual

This method is called when a response to a registration message is received.

Parameters

[in] response the register response that was received.

◆ send()

void HF::Core::DeviceManagement::Client::send	(	const Protocol::Address &	addr,
		Protocol::Message &	message
	)

inlinevirtual

Send message msg to the network address given by addr.

Parameters

[in]	addr	HF network address.
[in]	message	pointer to the message to be sent to the network.

Implements HF::Core::SessionManagement::AbstractClient.

Definition at line 540 of file device_management.h.

References HF::Devices::AbstractDevice::send().

             {
                Service::send(addr, message);
             }

Here is the call graph for this function:

◆ session()

SessionMgr& HF::Core::DeviceManagement::Client::session ( )

inline

Reference to the session management API.

Returns: reference to the object implementing the session management API for this device management client.

Definition at line 444 of file device_management.h.

             {
                return *this;
             }

The documentation for this class was generated from the following file:

device_management.h
