HF::Protocol::Response Struct Reference

Parent class for the response messages. More...

#include <protocol.h>

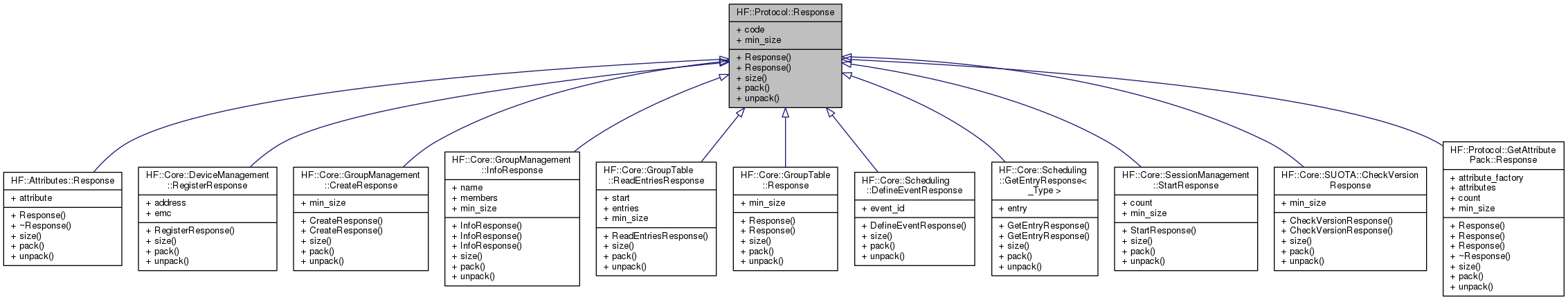

Inheritance diagram for HF::Protocol::Response:

Collaboration diagram for HF::Protocol::Response:

Public Member Functions
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Static Public Attributes
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum number of bytes required by this message.

Detailed Description

Parent class for the response messages.

Definition at line 368 of file protocol.h.

Member Function Documentation

pack()

uint16_t HF::Protocol::Response::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Referenced by HF::Core::SUOTA::CheckVersionResponse::pack(), HF::Core::GroupTable::Response::pack(), HF::Core::GroupTable::ReadEntriesResponse::pack(), and HF::Core::Scheduling::GetEntryResponse< _Type >::pack().

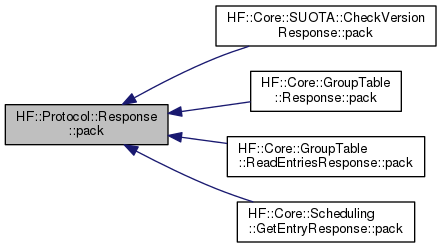

Here is the caller graph for this function:

size()

uint16_t HF::Protocol::Response::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Referenced by HF::Core::SUOTA::CheckVersionResponse::size(), HF::Core::GroupTable::Response::size(), and HF::Core::GroupTable::ReadEntriesResponse::size().

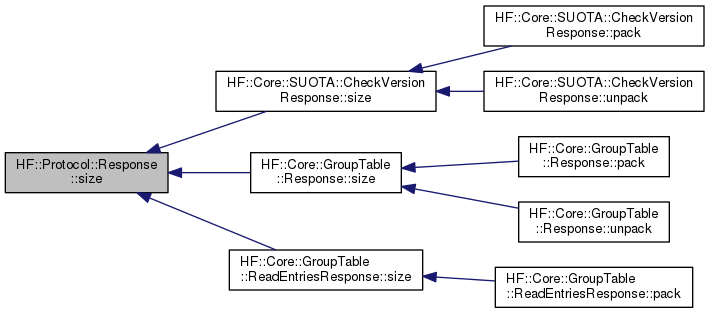

Here is the caller graph for this function:

unpack()

uint16_t HF::Protocol::Response::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Referenced by HF::Core::SUOTA::CheckVersionResponse::unpack(), HF::Core::GroupTable::Response::unpack(), HF::Core::GroupTable::ReadEntriesResponse::unpack(), and HF::Core::Scheduling::GetEntryResponse< _Type >::unpack().

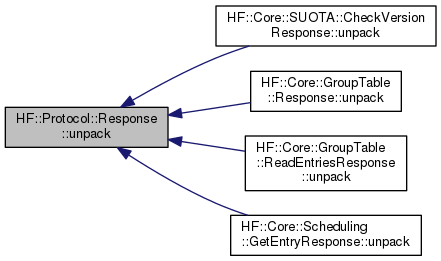

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following file:

• protocol.h
