This class represents a HAN-FUN Concentrator. More...
#include <base.h>

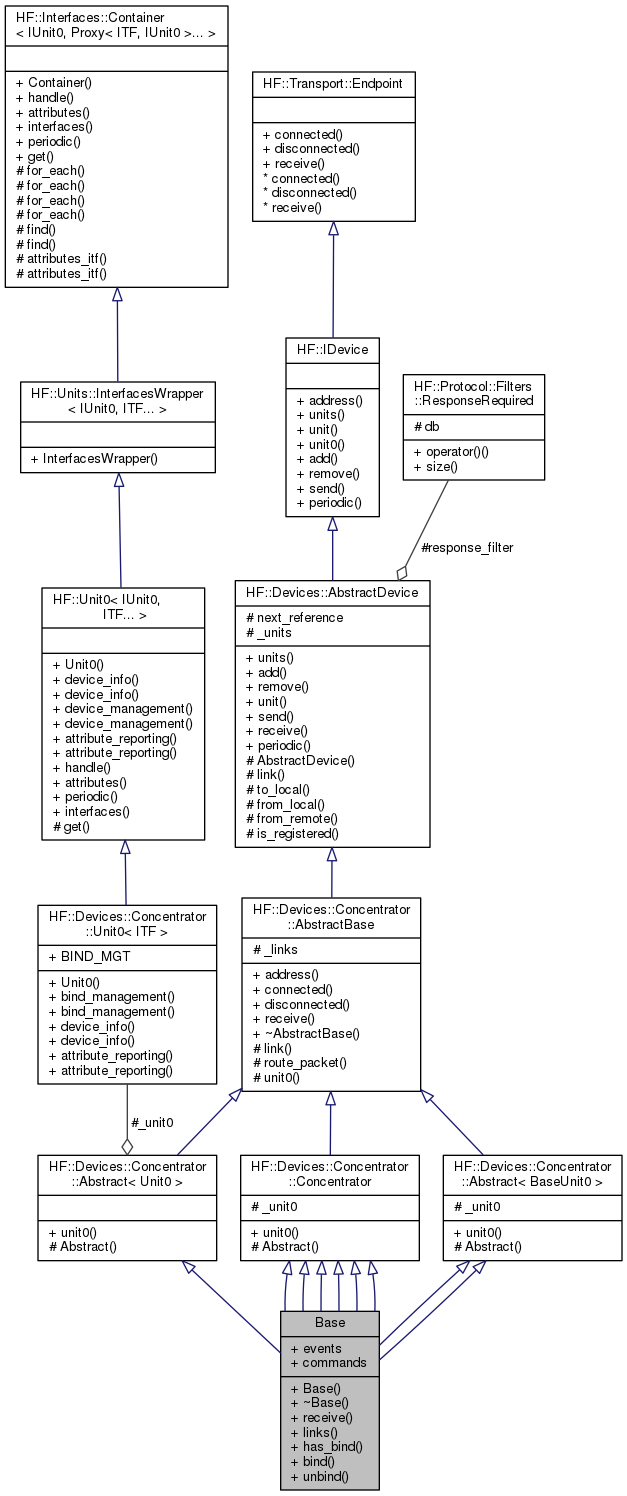

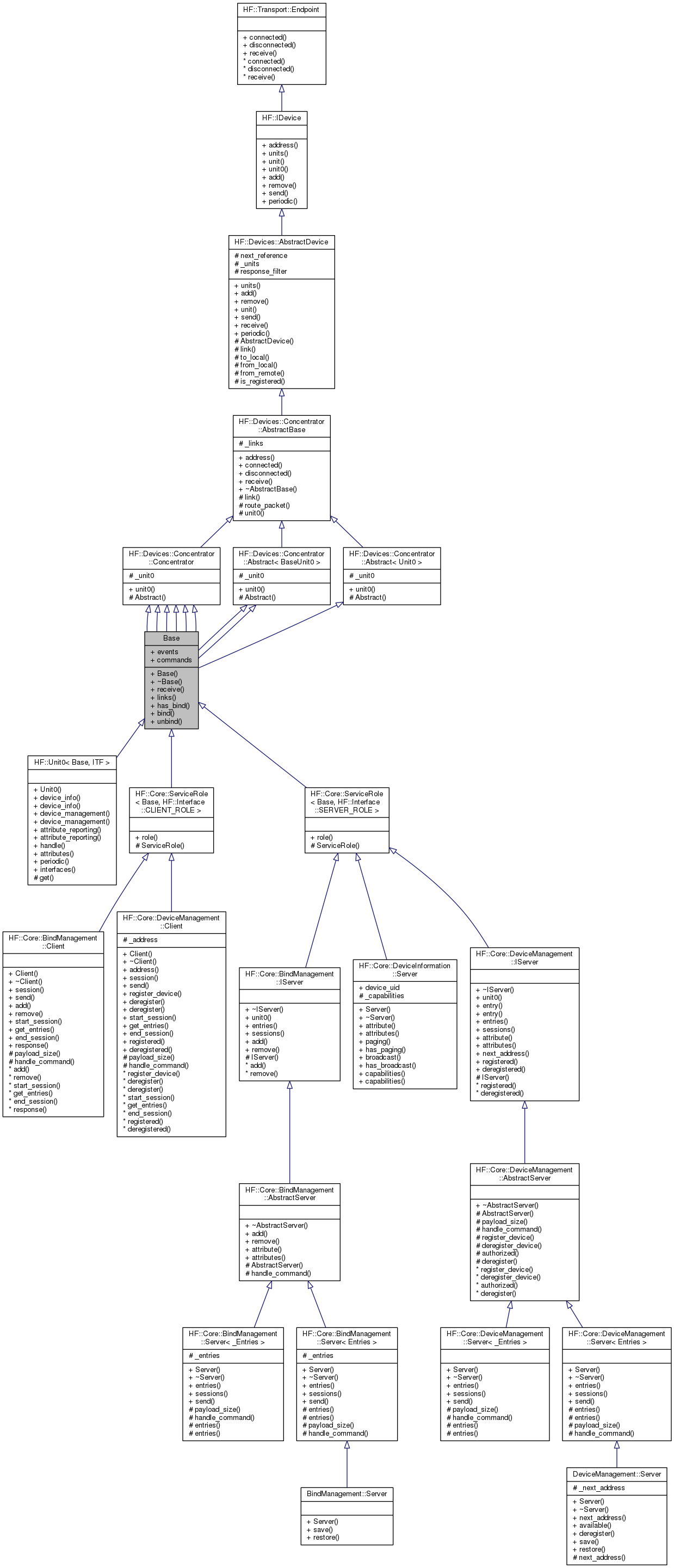

Inheritance diagram for Base: Collaboration diagram for Base:Public Member Functions | |
| void | receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset) |
| Callback to deliver a packet received from the transport layer. More... | |
| bool | has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Check if bind exists. More... | |
| uint8_t | bind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Create a new bind entry. More... | |
| bool | unbind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Remove the binding entry for the given devices. More... | |
| Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices > | |
| CoreServices * | unit0 () const |
| Get the unit 0 used by this concentrator device. More... | |
| Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase | |
| uint16_t | address () const |
Return the device address on the HAN-FUN network, when the device is registered, or HF_BROADCAST_ADDR otherwise. More... | |
| void | connected (HF::Transport::Link *link) |
Callback to report that a new transport link was been created to a remote device. More... | |
| void | disconnected (HF::Transport::Link *link) |
Callback to the report that the given transport link no longer is valid and MUST not be used to send messages to the corresponding end-point. More... | |
| Public Member Functions inherited from HF::Devices::AbstractDevice | |
| const IUnits & | units () const |
| Return the list of units registered in this device. More... | |
| void | add (Units::IUnit *unit) |
| Add unit to devices unit lists. More... | |
| void | remove (Units::IUnit *unit) |
| Remove unit from device's unit list. More... | |
| Units::IUnit * | unit (uint8_t id) const |
| Return pointer to the unit with the given id. More... | |
| void | send (Protocol::Packet &packet) |
Send given packet into the HAN-FUN network. More... | |
| void | periodic (uint32_t time) |
| Handle periodic processing. More... | |
Events | |
Additional Inherited Members | |
| Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase | |
| HF::Transport::Link * | link (uint16_t addr) const |
| Return the link that can be used to send a packet to the device with the given address. More... | |
| virtual void | route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Route the given packet to the corresponding device. More... | |
| Protected Member Functions inherited from HF::Devices::AbstractDevice | |
| virtual bool | to_local (const Protocol::Packet &packet) const |
| Check if the given packet is for this device. More... | |
| bool | from_local (const Protocol::Packet &packet) const |
| Check if the given packet is from the local device. More... | |
| bool | from_remote (const Protocol::Packet &packet) |
| Check if the given packet is from the a remote device. More... | |
| bool | is_registered () |
| Check if the device has a valid, i.e. More... | |
| Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase | |
| Common::SimpleList< Transport::Link * > | _links |
| List of links present in this concentrator. | |
| Protected Attributes inherited from HF::Devices::AbstractDevice | |
| uint8_t | next_reference |
| Last reference number used to send a packet. | |
| IUnits | _units |
| List containing pointers to the units present in the device. | |
| Protocol::Filters::ResponseRequired | response_filter |
| Support for generating missing responses for messages. | |
