Device Management interface : Server side default implementation. More...

#include <device_management.h>

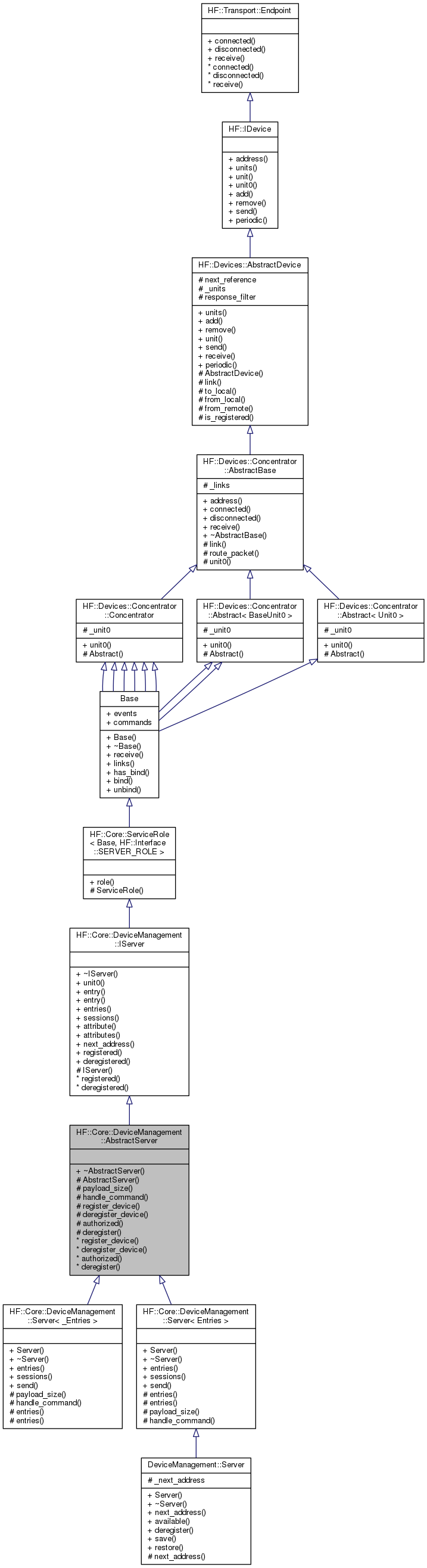

Inheritance diagram for HF::Core::DeviceManagement::AbstractServer:

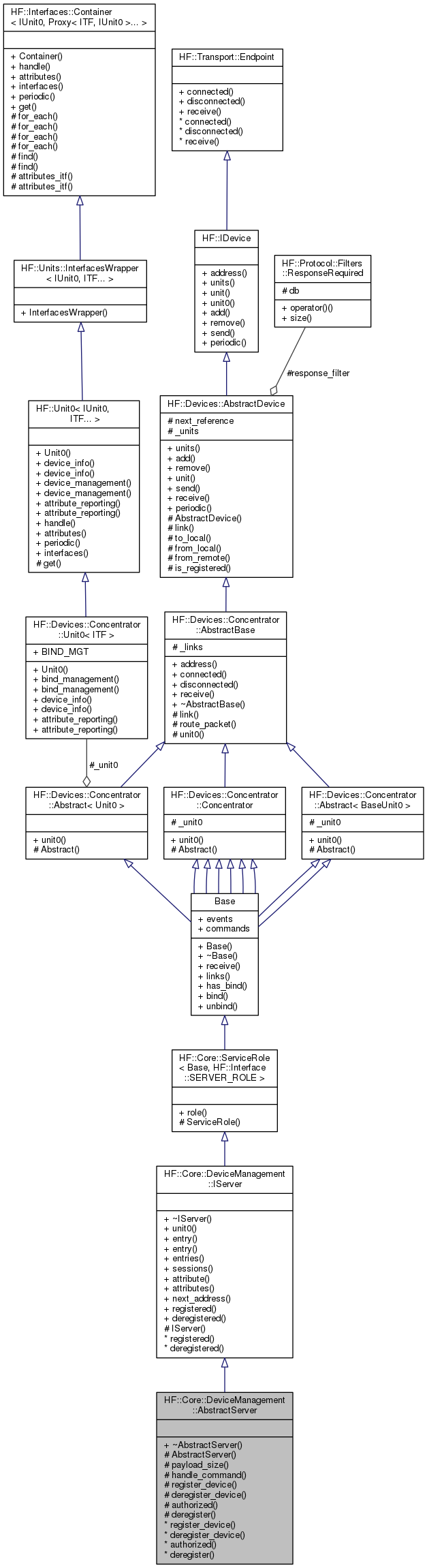

Collaboration diagram for HF::Core::DeviceManagement::AbstractServer:

Protected Member Functions
	AbstractServer (Unit0 &unit)
	Constructor. More...

Events
virtual Common::Result	register_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	This method is called when a registration message is received.

virtual Common::Result	deregister_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	This method is called when a de-registration message is received.

Commands
virtual bool	authorized (uint8_t member, DevicePtr &source, DevicePtr &destination)
	This method serves to indicate if a given `member` of the interface can be used by the `source` device affecting the `destination` device configuration on the system. More...

virtual Common::Result	deregister (DevicePtr &device)
	De-register the device that corresponds to the given Device entry. More...

Protected Member Functions inherited from HF::Core::DeviceManagement::IServer
	IServer (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase
HF::Transport::Link *	link (uint16_t addr) const
	Return the link that can be used to send a packet to the device with the given address. More...

virtual void	route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Route the given packet to the corresponding device. More...

Protected Member Functions inherited from HF::Devices::AbstractDevice
virtual bool	to_local (const Protocol::Packet &packet) const
	Check if the given packet is for this device. More...

bool	from_local (const Protocol::Packet &packet) const
	Check if the given packet is from the local device. More...

bool	from_remote (const Protocol::Packet &packet)
	Check if the given packet is from the a remote device. More...

bool	is_registered ()
	Check if the device has a valid, i.e. More...

Additional Inherited Members
Public Member Functions inherited from HF::Core::DeviceManagement::IServer
HF::Devices::Concentrator::IUnit0 &	unit0 () const
	Return a reference to the unit that this service belongs to. More...

DevicePtr	entry (uint16_t address) const
	Return the Device entry for the given address. More...

DevicePtr	entry (const HF::UID::UID &uid) const
	Return the Device entry for the given UID. More...

virtual IEntries &	entries () const =0
	Get a reference to the current object implementing the persistence API, for the device information. More...

virtual SessionManagement::IServer &	sessions ()=0
	Reference to the session management API. More...

virtual uint16_t	next_address ()
	Return next available address for registering a device. More...

virtual void	registered (DevicePtr &device)
	Indicate that a device has been registered. More...

virtual void	deregistered (DevicePtr &device)
	Indicate that a device has been de-registered. More...

Public Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from Base
void	receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset)
	Callback to deliver a packet received from the transport layer. More...

bool	has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Check if bind exists. More...

uint8_t	bind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Create a new bind entry. More...

bool	unbind (uint16_t dev_addr_1, uint16_t dev_addr_2)
	Remove the binding entry for the given devices. More...

Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices >
CoreServices *	unit0 () const
	Get the unit 0 used by this concentrator device. More...

Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase
uint16_t	address () const
	Return the device address on the HAN-FUN network, when the device is registered, or `HF_BROADCAST_ADDR` otherwise. More...

void	connected (HF::Transport::Link *link)
	Callback to report that a new transport `link` was been created to a remote device. More...

void	disconnected (HF::Transport::Link *link)
	Callback to the report that the given transport `link` no longer is valid and MUST not be used to send messages to the corresponding end-point. More...

Public Member Functions inherited from HF::Devices::AbstractDevice
const IUnits &	units () const
	Return the list of units registered in this device. More...

void	add (Units::IUnit *unit)
	Add unit to devices unit lists. More...

void	remove (Units::IUnit *unit)
	Remove unit from device's unit list. More...

Units::IUnit *	unit (uint8_t id) const
	Return pointer to the unit with the given id. More...

void	send (Protocol::Packet &packet)
	Send given `packet` into the HAN-FUN network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Events
Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase
Common::SimpleList< Transport::Link * >	_links
	List of links present in this concentrator.

Protected Attributes inherited from HF::Devices::AbstractDevice
uint8_t	next_reference
	Last reference number used to send a packet.

IUnits	_units
	List containing pointers to the units present in the device.

Protocol::Filters::ResponseRequired	response_filter
	Support for generating missing responses for messages.

Detailed Description

Device Management interface : Server side default implementation.

Definition at line 686 of file device_management.h.

Constructor & Destructor Documentation

◆ AbstractServer()

HF::Core::DeviceManagement::AbstractServer::AbstractServer ( Unit0 & unit )

inlineprotected

Constructor.

Parameters

[in] unit reference to the unit containing this service.

Definition at line 701 of file device_management.h.

701 : IServer(unit)

702 {}

HF::Devices::AbstractDevice::unit

Units::IUnit * unit(uint8_t id) const

Return pointer to the unit with the given id.

HF::Core::DeviceManagement::IServer::IServer

IServer(Unit0 &unit)

Constructor.

Definition: device_management.h:679

Member Function Documentation

◆ authorized()

virtual bool HF::Core::DeviceManagement::AbstractServer::authorized	(	uint8_t	member,
		DevicePtr &	source,
		DevicePtr &	destination
	)

protectedvirtual

This method serves to indicate if a given member of the interface can be used by the source device affecting the destination device configuration on the system.

Parameters

[in]	member	interface member UID.
[in]	source	device entry for the requesting device.
[in]	destination	device entry for the affected device.

Return values

true	the operation is allowed,
false	otherwise.

◆ deregister()

virtual Common::Result HF::Core::DeviceManagement::AbstractServer::deregister ( DevicePtr & device )

protectedvirtual

De-register the device that corresponds to the given Device entry.

Warning: this method by-passes the authorization scheme.

Parameters

[in] device pointer to the device entry to de-register.

Returns: the result of the destroy method.

Referenced by DeviceManagement::Server::deregister().

Here is the caller graph for this function:

The documentation for this struct was generated from the following file:

device_management.h
