Attribute Reporting - Server Role. More...

#include <attribute_reporting.h>

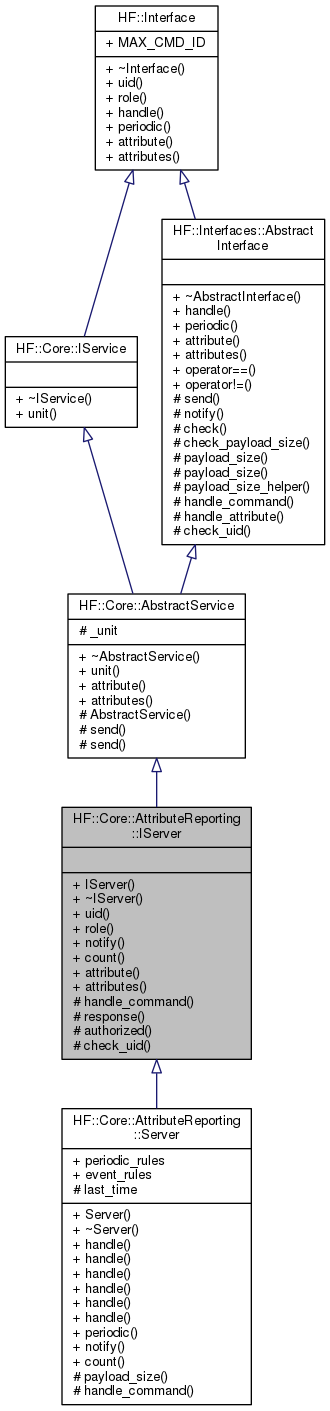

Inheritance diagram for HF::Core::AttributeReporting::IServer:

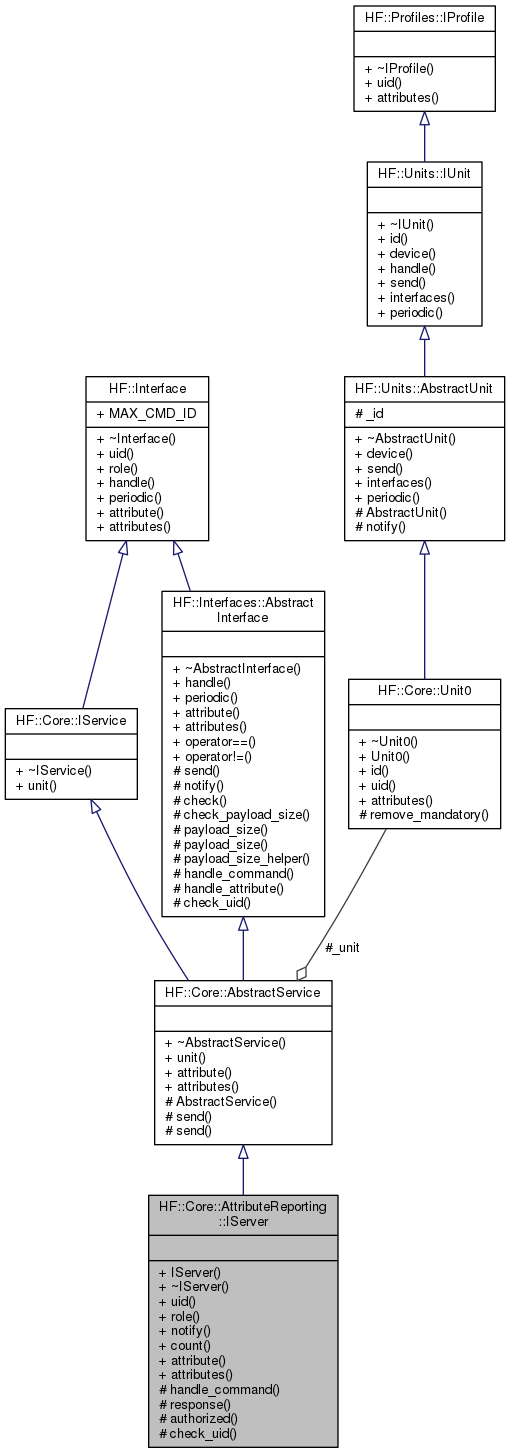

Collaboration diagram for HF::Core::AttributeReporting::IServer:

Public Member Functions
	IServer (Unit0 &unit)
	Constructor. More...

uint16_t	uid () const
	This method returns the interface UID. More...

Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

virtual void	notify (uint8_t unit, const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value)
	Process an attribute change from `old_value` to `new_value` for the given `unit`. More...

virtual uint16_t	count (Type type) const
	Get the number of rules for the given `type`. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	response (Protocol::Packet &packet, Reference &report, Common::Result result)
	Send the response to a command with the given `result`. More...

virtual bool	authorized (uint8_t member, Protocol::Address &source)
	Check if the given command is authorized for the device with the given address. More...

bool	check_uid (uint16_t uid) const
	Check if the given UID matches the interface UID. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Detailed Description

Attribute Reporting - Server Role.

This class provides the minimal implementation for the Attribute reporting server role functionality.

All requests will get a HF::Common::Result::FAIL_RESOURCES response.

Definition at line 1572 of file attribute_reporting.h.

Constructor & Destructor Documentation

◆ IServer()

HF::Core::AttributeReporting::IServer::IServer ( Unit0 & unit )

inline

Constructor.

Parameters

[in] unit reference to the unit containing this service.

Definition at line 1579 of file attribute_reporting.h.

                                 :
                AbstractService(unit)
             {}

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Core::AttributeReporting::IServer::attribute ( uint8_t uid )

inlinevirtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

Definition at line 1635 of file attribute_reporting.h.

References HF::Core::create_attribute(), and uid().

             {
                return Core::create_attribute(this, uid);
             }

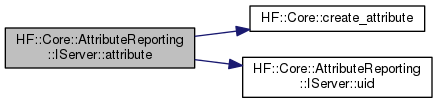

Here is the call graph for this function:

◆ attributes()

HF::Attributes::UIDS HF::Core::AttributeReporting::IServer::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

inlinevirtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

Definition at line 1640 of file attribute_reporting.h.

References HF::Core::AttributeReporting::EVENT_REPORT_COUNT_ATTR, HF::Core::AttributeReporting::PERIODIC_REPORT_COUNT_ATTR, HF::Core::AttributeReporting::REPORT_COUNT_ATTR, and UNUSED.

             {
                UNUSED(pack_id);
                return HF::Attributes::UIDS {REPORT_COUNT_ATTR, PERIODIC_REPORT_COUNT_ATTR,
                                             EVENT_REPORT_COUNT_ATTR};
             }

◆ authorized()

virtual bool HF::Core::AttributeReporting::IServer::authorized	(	uint8_t	member,
		Protocol::Address &	source
	)

inlineprotectedvirtual

Check if the given command is authorized for the device with the given address.

Parameters

[in]	member	interface member to check.
[in]	source	device address of the incoming command.

Return values

true	the command if authorized.
false	otherwise.

Definition at line 1674 of file attribute_reporting.h.

References UNUSED.

             {
                UNUSED(member);
                UNUSED(source);

                return true;
             }

◆ check_uid()

bool HF::Core::AttributeReporting::IServer::check_uid ( uint16_t uid ) const

inlineprotectedvirtual

Check if the given UID matches the interface UID.

Parameters

[in] uid the UID value to check against the interface UID.

Return values

true	the UIDs match,
false	otherwise.

Implements HF::Interfaces::AbstractInterface.

Definition at line 1682 of file attribute_reporting.h.

References uid().

             {
                return IServer::uid() == uid;
             }

Here is the call graph for this function:

◆ count()

virtual uint16_t HF::Core::AttributeReporting::IServer::count ( Type type ) const

inlinevirtual

Get the number of rules for the given type.

Parameters

[in] type attribute reporting type to get the number of rules for.

Returns: number of rules for the given type.

Reimplemented in HF::Core::AttributeReporting::Server.

Definition at line 1625 of file attribute_reporting.h.

References UNUSED.

             {
                UNUSED(type);
                return 0;
             }

◆ handle_command()

Common::Result HF::Core::AttributeReporting::IServer::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

Reimplemented in HF::Core::AttributeReporting::Server.

◆ notify()

virtual void HF::Core::AttributeReporting::IServer::notify	(	uint8_t	unit,
		const HF::Attributes::IAttribute &	old_value,
		const HF::Attributes::IAttribute &	new_value
	)

inlinevirtual

Process an attribute change from old_value to new_value for the given unit.

This method checks if the change in the given attribute matches the conditions present in any of the attribute reporting rules.

Parameters

[in]	unit	unit ID where the attribute is present.
[in]	old_value	old value for the attribute.
[in]	new_value	new value for the attribute.

Reimplemented in HF::Core::AttributeReporting::Server.

Definition at line 1610 of file attribute_reporting.h.

References HF::Core::AbstractService::unit(), and UNUSED.

             {
                UNUSED(unit);
                UNUSED(old_value);
                UNUSED(new_value);
             }

Here is the call graph for this function:

◆ response()

void HF::Core::AttributeReporting::IServer::response	(	Protocol::Packet &	packet,
		Reference &	report,
		Common::Result	result
	)

protected

Send the response to a command with the given result.

Parameters

[in]	packet	incoming packet to generate the response for.
[in]	report	report identification.
[in]	result	operation result.

◆ role()

Interface::Role HF::Core::AttributeReporting::IServer::role ( ) const

inlinevirtual

Return the Interface::Role this interface implements.

Returns: the Interface::Role implemented by the interface.

Implements HF::Interface.

Definition at line 1594 of file attribute_reporting.h.

References HF::Interface::SERVER_ROLE.

             {
                return HF::Interface::SERVER_ROLE;
             }

◆ uid()

uint16_t HF::Core::AttributeReporting::IServer::uid ( ) const

inlinevirtual

This method returns the interface UID.

Subclasses MUST override this method to provide a valid value for the interface being implemented.

This method returns a uint16_t and not a Interface::UID, to provide support for proprietary interfaces.

Returns: the UID for the interface.

Implements HF::Interface.

Definition at line 1589 of file attribute_reporting.h.

References HF::Interface::ATTRIBUTE_REPORTING.

Referenced by attribute(), and check_uid().

             {
                return HF::Interface::ATTRIBUTE_REPORTING;
             }

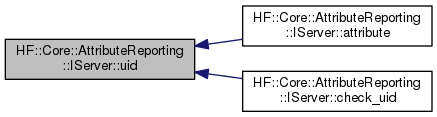

Here is the caller graph for this function:

The documentation for this struct was generated from the following file:

attribute_reporting.h
