Attribute Reporting

This module contains the classes that implement the Attribute Reporting service. More...

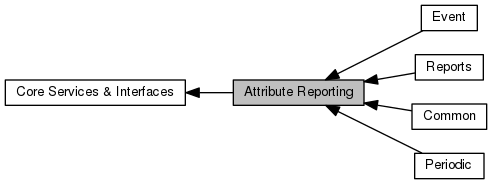

Collaboration diagram for Attribute Reporting:

Modules
	Common
	This module contains the common definitions for the Attribute Reporting service implementation.
	Event
	This module contains the class that implement the support for the event rules in the Attribute Reporting service.
	Periodic
	This module contains the class that implement the support for the periodic rules in the Attribute Reporting service.
	Reports
	This module contains the classes that implement the messages used in the Attribute Reporting service implementation.

Data Structures
struct	HF::Core::AttributeReporting::Client
	Attribute Reporting - Client Role. More...
struct	HF::Core::AttributeReporting::AbstractClient
	Helper class for using the Attribute Reporting service. More...
struct	HF::Core::AttributeReporting::IServer
	Attribute Reporting - Server Role. More...
struct	HF::Core::AttributeReporting::Server
	Attribute Reporting - Server Role. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (HF::Core::AttributeReporting::IServer *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::AttributeReporting::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::AttributeReporting::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This module contains the classes that implement the Attribute Reporting service.

Function Documentation

create_attribute()

HF::Attributes::IAttribute* HF::Core::create_attribute	(	HF::Core::AttributeReporting::IServer *	server,
		uint8_t	uid
	)

Create an attribute object that can hold the attribute with the given uid.

If server is not equal to nullptr then initialize it with the current value.

Parameters

[in]	server	pointer to the object to read the current value from.
[in]	uid	attribute's UID to create the attribute object for.

Returns

pointer to an attribute object or nullptr if the attribute UID does not exist.

Referenced by HF::Core::AttributeReporting::IServer::attribute().

Here is the caller graph for this function:

operator<<() [1/2]

std::ostream& operator<<	(	std::ostream &	stream,
		const HF::Core::AttributeReporting::CMD	command
	)

Convert the given command into a string and write it to the given stream.

Parameters

[in]	stream	out stream to write the string to.
[in]	command	role value to convert to a string.

Returns

stream

operator<<() [2/2]

std::ostream& operator<<	(	std::ostream &	stream,
		const HF::Core::AttributeReporting::Attributes	attribute
	)

Convert the given attribute into a string and write it to the given stream.

Parameters

[in]	stream	out stream to write the string to.
[in]	attribute	attribute value to convert to a string.

Returns

stream
