Attribute Reporting - Client Role. More...

#include <attribute_reporting.h>

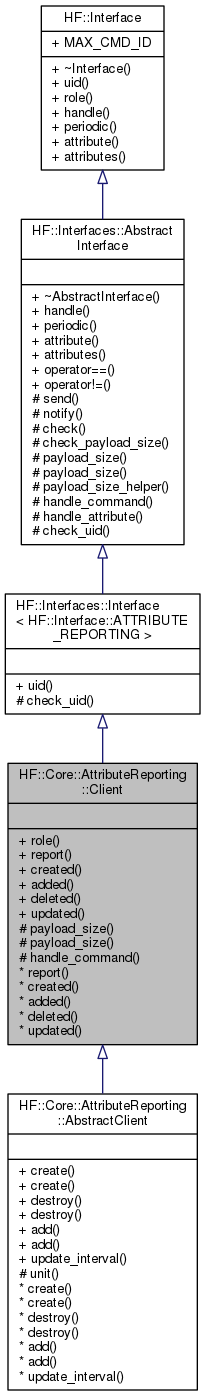

Inheritance diagram for HF::Core::AttributeReporting::Client:

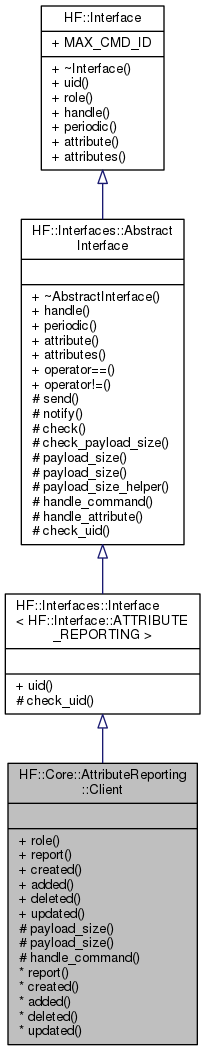

Collaboration diagram for HF::Core::AttributeReporting::Client:

Public Member Functions
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Events
virtual void	report (Type type, const Protocol::Address &address, const Common::ByteArray &payload, uint16_t offset)
	Event indicating a `PERIODIC_REPORT_CMD` or a `EVENT_REPORT_CMD`. More...

virtual void	created (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `CREATE_PERIODIC_CMD` or `CREATE_EVENT_CMD`. More...

virtual void	added (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `ADD_PERIODIC_ENTRY_CMD` or `ADD_EVENT_ENTRY_CMD`. More...

virtual void	deleted (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `DELETE_REPORT_CMD`. More...

virtual void	updated (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `UPDATE_INTERVAL_CMD`. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ATTRIBUTE_REPORTING >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Protected Member Functions
uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ATTRIBUTE_REPORTING >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Attribute Reporting - Client Role.

Definition at line 1361 of file attribute_reporting.h.

Member Function Documentation

◆ added()

virtual void HF::Core::AttributeReporting::Client::added	(	const Protocol::Address &	address,
		const Response &	response
	)

inlinevirtual

Event indicating the result of a ADD_PERIODIC_ENTRY_CMD or ADD_EVENT_ENTRY_CMD.

Parameters

[in]	address	device address that originated the event.
[in]	response	result of the operation.

Definition at line 1420 of file attribute_reporting.h.

References HF::Protocol::response(), and UNUSED.

             {
                UNUSED(address);
                UNUSED(response);
             }

Here is the call graph for this function:

◆ created()

virtual void HF::Core::AttributeReporting::Client::created	(	const Protocol::Address &	address,
		const Response &	response
	)

inlinevirtual

Event indicating the result of a CREATE_PERIODIC_CMD or CREATE_EVENT_CMD.

Parameters

[in]	address	device address that originated the event.
[in]	response	result of the operation.

Definition at line 1407 of file attribute_reporting.h.

References HF::Protocol::response(), and UNUSED.

             {
                UNUSED(address);
                UNUSED(response);
             }

Here is the call graph for this function:

◆ deleted()

virtual void HF::Core::AttributeReporting::Client::deleted	(	const Protocol::Address &	address,
		const Response &	response
	)

inlinevirtual

Event indicating the result of a DELETE_REPORT_CMD.

Parameters

[in]	address	device address that originated the event.
[in]	response	result of the operation.

Definition at line 1432 of file attribute_reporting.h.

References HF::Protocol::response(), and UNUSED.

             {
                UNUSED(address);
                UNUSED(response);
             }

Here is the call graph for this function:

◆ handle_command()

Common::Result HF::Core::AttributeReporting::Client::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ payload_size() [1/2]

uint16_t HF::Core::AttributeReporting::Client::payload_size ( Protocol::Message & message ) const

protectedvirtual

Return the minimal payload size that should be present for the given message.

Parameters

[in] message message that was received.

Returns: the minimum size in bytes that the packet payload should hold.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ payload_size() [2/2]

uint16_t HF::Core::AttributeReporting::Client::payload_size ( Protocol::Message::Interface & itf ) const

protectedvirtual

Return the minimal payload size that a message should hold when addressed at the given interface.

Parameters

[in] itf the interface being address.

Returns: the minimum number of bytes for the message for the interface.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ report()

virtual void HF::Core::AttributeReporting::Client::report	(	Type	type,
		const Protocol::Address &	address,
		const Common::ByteArray &	payload,
		uint16_t	offset
	)

inlinevirtual

Event indicating a PERIODIC_REPORT_CMD or a EVENT_REPORT_CMD.

Parameters

[in]	type	type of report.
[in]	address	device address that originated the event.
[in]	payload	data in the report.
[in]	offset	offset from which to start reading the data of the the report in the `payload`.

Definition at line 1391 of file attribute_reporting.h.

References UNUSED.

             {
                UNUSED(type);
                UNUSED(address);
                UNUSED(payload);
                UNUSED(offset);
             }

◆ role()

Interface::Role HF::Core::AttributeReporting::Client::role ( ) const

inlinevirtual

Return the Interface::Role this interface implements.

Returns: the Interface::Role implemented by the interface.

Implements HF::Interface.

Definition at line 1367 of file attribute_reporting.h.

References HF::Interface::CLIENT_ROLE.

             {
                return HF::Interface::CLIENT_ROLE;
             }

◆ updated()

virtual void HF::Core::AttributeReporting::Client::updated	(	const Protocol::Address &	address,
		const Response &	response
	)

inlinevirtual

Event indicating the result of a UPDATE_INTERVAL_CMD.

Parameters

[in]	address	device address that originated the event.
[in]	response	result of the operation.

Definition at line 1444 of file attribute_reporting.h.

References HF::Protocol::response(), and UNUSED.

             {
                UNUSED(address);
                UNUSED(response);
             }

Here is the call graph for this function:

The documentation for this struct was generated from the following file:

attribute_reporting.h
