Helper class for using the Attribute Reporting service. More...

#include <attribute_reporting.h>

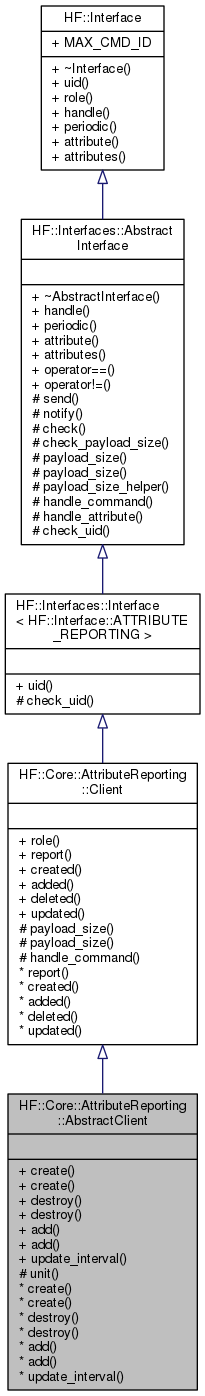

Inheritance diagram for HF::Core::AttributeReporting::AbstractClient:

Collaboration diagram for HF::Core::AttributeReporting::AbstractClient:

Public Member Functions
Commands
void	create (Protocol::Address &destination)
	Create a new attribute reporting event rule on the device with the given `destination` address, for the device/unit that contains this interface. More...

void	create (Protocol::Address &destination, uint32_t interval)
	Create a new attribute reporting periodic rule on the device with the given `destination` address and the given `interval`, for the device/unit that contains this interface. More...

void	destroy (Protocol::Address &destination, Type type, uint8_t report_id)
	Remove the rule with the given `type` and the given `report_id`, on the device with the given `destination` address. More...

void	destroy (Protocol::Address &destination, Reference report)
	Remove the rule for the given `report` reference, on the device with the given `destination` address. More...

void	add (Protocol::Address &destination, Reference report, periodic_iterator begin, periodic_iterator end)
	Add the periodic entries from `start` to `end` into the rule with the given `report` reference, on the device with the given `destination` address. More...

void	add (Protocol::Address &destination, Reference report, event_iterator begin, event_iterator end)
	Add the event entries from `start` to `end` into the rule with the given `report` reference, on the device with the given `destination` address. More...

void	update_interval (Protocol::Address &destination, Reference report, uint32_t interval)
	Update the interval of an existent report. More...

Public Member Functions inherited from HF::Core::AttributeReporting::Client
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

virtual void	report (Type type, const Protocol::Address &address, const Common::ByteArray &payload, uint16_t offset)
	Event indicating a `PERIODIC_REPORT_CMD` or a `EVENT_REPORT_CMD`. More...

virtual void	created (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `CREATE_PERIODIC_CMD` or `CREATE_EVENT_CMD`. More...

virtual void	added (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `ADD_PERIODIC_ENTRY_CMD` or `ADD_EVENT_ENTRY_CMD`. More...

virtual void	deleted (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `DELETE_REPORT_CMD`. More...

virtual void	updated (const Protocol::Address &address, const Response &response)
	Event indicating the result of a `UPDATE_INTERVAL_CMD`. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ATTRIBUTE_REPORTING >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Protected Member Functions
virtual HF::Units::IUnit &	unit () const =0
	Get the unit that contains this interface. More...

Protected Member Functions inherited from HF::Core::AttributeReporting::Client
uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ATTRIBUTE_REPORTING >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Helper class for using the Attribute Reporting service.

Definition at line 1467 of file attribute_reporting.h.

Member Function Documentation

◆ add() [1/2]

void HF::Core::AttributeReporting::AbstractClient::add	(	Protocol::Address &	destination,
		Reference	report,
		periodic_iterator	begin,
		periodic_iterator	end
	)

Add the periodic entries from start to end into the rule with the given report reference, on the device with the given destination address.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	report	report reference
[in]	begin	iterator to the start of the periodic entries to add.
[in]	end	iterator to the end of the periodic entries to add.

◆ add() [2/2]

void HF::Core::AttributeReporting::AbstractClient::add	(	Protocol::Address &	destination,
		Reference	report,
		event_iterator	begin,
		event_iterator	end
	)

Add the event entries from start to end into the rule with the given report reference, on the device with the given destination address.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	report	report reference
[in]	begin	iterator to the start of the event entries to add.
[in]	end	iterator to the end of the event entries to add.

◆ create() [1/2]

void HF::Core::AttributeReporting::AbstractClient::create ( Protocol::Address & destination )

Create a new attribute reporting event rule on the device with the given destination address, for the device/unit that contains this interface.

Parameters

[in] destination device address the rule should be sent to.

◆ create() [2/2]

void HF::Core::AttributeReporting::AbstractClient::create	(	Protocol::Address &	destination,
		uint32_t	interval
	)

Create a new attribute reporting periodic rule on the device with the given destination address and the given interval, for the device/unit that contains this interface.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	interval	time interval in seconds for the periodic rule.

◆ destroy() [1/2]

void HF::Core::AttributeReporting::AbstractClient::destroy	(	Protocol::Address &	destination,
		Type	type,
		uint8_t	report_id
	)

Remove the rule with the given type and the given report_id, on the device with the given destination address.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	type	report type (HF::Core::AttributeReporting::Type)
[in]	report_id	report ID.

◆ destroy() [2/2]

void HF::Core::AttributeReporting::AbstractClient::destroy	(	Protocol::Address &	destination,
		Reference	report
	)

Remove the rule for the given report reference, on the device with the given destination address.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	report	report reference to remove the rule for.

◆ unit()

virtual HF::Units::IUnit& HF::Core::AttributeReporting::AbstractClient::unit ( ) const

protectedpure virtual

Get the unit that contains this interface.

Returns: reference to unit that contains this interface.

◆ update_interval()

void HF::Core::AttributeReporting::AbstractClient::update_interval	(	Protocol::Address &	destination,
		Reference	report,
		uint32_t	interval
	)

Update the interval of an existent report.

Parameters

[in]	destination	device address the rule should be sent to.
[in]	report	report reference
[in]	interval	time interval in seconds for the periodic rule.

The documentation for this struct was generated from the following file:

attribute_reporting.h
