This class represents a group of devices. More...

#include <group_management.h>

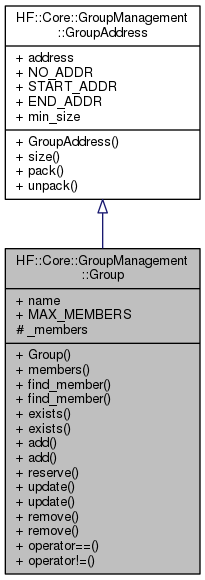

Inheritance diagram for HF::Core::GroupManagement::Group:

Collaboration diagram for HF::Core::GroupManagement::Group:

Public Member Functions
	Group (uint16_t address=0, std::string name="")
	Constructor. More...

const Container &	members () const
	Return a reference to the members of the group. More...

Container::iterator	find_member (const Member &member)
	Find a group member equal to the given `member`. More...

Container::iterator	find_member (uint16_t device, uint8_t unit)
	Find a group member equal to the given `member`. More...

bool	exists (const Member &member)
	Check if a member equal to the given `member` already exists in the group. More...

bool	exists (uint16_t device, uint8_t unit)
	Check if a member equal to the given `member` already exists in the group. More...

bool	add (const Member &member)
	Add the given `member` to the group. More...

bool	add (uint16_t device, uint8_t unit)
	Add the given `member` to the group. More...

bool	reserve ()
	Reserve a member in group members entries. More...

bool	update (const Member &member)
	Update a reserved entry with the given `member`. More...

bool	update (uint16_t device, uint8_t unit)
	Update a reserved entry with the given `member`. More...

bool	remove (const Member &member)
	Remove the given `member` from the entries of the group. More...

bool	remove (uint16_t device, uint8_t unit)
	Remove the given `member` from the entries of the group. More...

bool	operator== (const Group &other) const
	Equals operator.

bool	operator!= (const Group &other) const
	Not equals operator.

Public Member Functions inherited from HF::Core::GroupManagement::GroupAddress
	GroupAddress (uint16_t address=0)
	Constructor. More...

uint16_t	size () const
	Number bytes needed to serialize the message. More...

uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
std::string	name
	Group Name

Data Fields inherited from HF::Core::GroupManagement::GroupAddress
uint16_t	address
	Group Address

Protected Attributes
Container	_members
	Group Members

Additional Inherited Members
Static Public Attributes inherited from HF::Core::GroupManagement::GroupAddress
static constexpr uint16_t	NO_ADDR = 0x0000
	Empty Group Address. More...

static constexpr uint16_t	START_ADDR = 0x0001
	First HAN-FUN Group Address. More...

static constexpr uint16_t	END_ADDR = 0x7FFF
	Last HAN-FUN Group Address. More...

static constexpr uint16_t	min_size = sizeof(uint16_t)
	Minimum pack/unpack required data size.

Detailed Description

This class represents a group of devices.

Definition at line 145 of file group_management.h.

Constructor & Destructor Documentation

◆ Group()

HF::Core::GroupManagement::Group::Group	(	uint16_t	address = `0`,
		std::string	name = `""`
	)

inline

Constructor.

Parameters

[in]	address	the group's address.
[in]	name	the group's name.

Definition at line 166 of file group_management.h.

                                                             :
                GroupAddress(address), name(name)
             {}

Member Function Documentation

◆ add() [1/2]

bool HF::Core::GroupManagement::Group::add ( const Member & member )

Add the given member to the group.

Parameters

[in] member reference to a member to add to the group.

Return values

true	if the member was added;
false	otherwise.

Referenced by add().

Here is the caller graph for this function:

◆ add() [2/2]

bool HF::Core::GroupManagement::Group::add	(	uint16_t	device,
		uint8_t	unit
	)

inline

Add the given member to the group.

Parameters

[in]	device	device address for the new member to add.
[in]	unit	unit ID for the new member to add.

Return values

true	if the member was added;
false	otherwise.

Definition at line 259 of file group_management.h.

References add().

             {
                const Member member(device, unit);

                return add(member);
             }

Here is the call graph for this function:

◆ exists() [1/2]

bool HF::Core::GroupManagement::Group::exists ( const Member & member )

inline

Check if a member equal to the given member already exists in the group.

Parameters

[in] member reference to the member to check presence of.

Return values

true	if the member is already present in the group;
false	otherwise.

Definition at line 219 of file group_management.h.

References find_member(), and members().

             {
                return !(find_member(member) == members().end());
             }

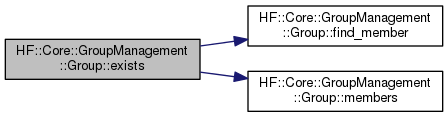

Here is the call graph for this function:

◆ exists() [2/2]

bool HF::Core::GroupManagement::Group::exists	(	uint16_t	device,
		uint8_t	unit
	)

inline

Check if a member equal to the given member already exists in the group.

Parameters

[in]	device	device address to check the existence for.
[in]	unit	unit ID to check the existence for.

Return values

true	if the member is already present in the group;
false	otherwise.

Definition at line 233 of file group_management.h.

References find_member(), and members().

             {
                const Member member(device, unit);

                return !(find_member(member) == members().end());
             }

Here is the call graph for this function:

◆ find_member() [1/2]

Container::iterator HF::Core::GroupManagement::Group::find_member ( const Member & member )

Find a group member equal to the given member.

Parameters

[in] member reference to a Member instance to look for.

Return values

iterator	to the element in the `Container` if exists,
Container::end()	otherwise.

Referenced by exists(), and find_member().

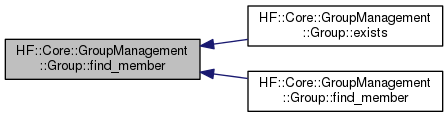

Here is the caller graph for this function:

◆ find_member() [2/2]

Container::iterator HF::Core::GroupManagement::Group::find_member	(	uint16_t	device,
		uint8_t	unit
	)

inline

Find a group member equal to the given member.

Parameters

[in]	device	device address for the member to look for.
[in]	unit	unit ID for the member to look for.

Return values

iterator	to the element in the `Container` if exists,
Container::end()	otherwise.

Definition at line 203 of file group_management.h.

References find_member().

             {
                const Member member(device, unit);

                return find_member(member);
             }

Here is the call graph for this function:

◆ members()

const Container& HF::Core::GroupManagement::Group::members ( ) const

inline

Return a reference to the members of the group.

Returns: reference to the members of the group.

Definition at line 179 of file group_management.h.

References _members.

Referenced by exists(), and reserve().

             {
                return _members;
             }

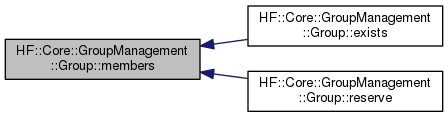

Here is the caller graph for this function:

◆ remove() [1/2]

bool HF::Core::GroupManagement::Group::remove ( const Member & member )

Remove the given member from the entries of the group.

Parameters

[in] member reference to the member to remove from the group.

Return values

true	if the entry was removed;
false	otherwise.

◆ remove() [2/2]

bool HF::Core::GroupManagement::Group::remove	(	uint16_t	device,
		uint8_t	unit
	)

inline

Remove the given member from the entries of the group.

Parameters

device	device address of the member to remove.
unit	unit ID of the member to remove.

Return values

true	if the entry was removed;
false	otherwise.

Definition at line 324 of file group_management.h.

             {
                const Member member(device, unit);

                return remove(member);
             }

◆ reserve()

bool HF::Core::GroupManagement::Group::reserve ( )

inline

Reserve a member in group members entries.

Return values

true	if the entry was reserved;
false	otherwise.

Definition at line 272 of file group_management.h.

References _members, HF_ASSERT, members(), and HF::Core::GroupManagement::GroupAddress::size().

             {
                HF_ASSERT(members().size() < MAX_MEMBERS, {return false;});
                _members.push_back(Member());
                return true;
             }

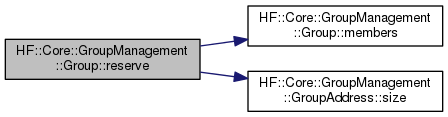

Here is the call graph for this function:

◆ update() [1/2]

bool HF::Core::GroupManagement::Group::update ( const Member & member )

Update a reserved entry with the given member.

Parameters

[in] member reference to the member to update the reserved entry to.

Return values

true	if the entry was updated;
false	otherwise.

Referenced by update().

Here is the caller graph for this function:

◆ update() [2/2]

bool HF::Core::GroupManagement::Group::update	(	uint16_t	device,
		uint8_t	unit
	)

inline

Update a reserved entry with the given member.

Parameters

device	device address to update the reserved entry with.
unit	unit ID to update the reserved entry with.

Return values

true	if the entry was updated;
false	otherwise.

Definition at line 298 of file group_management.h.

References update().

             {
                const Member member(device, unit);

                return update(member);
             }

Here is the call graph for this function:

The documentation for this struct was generated from the following file:

group_management.h
