Scheduling Service : Server side implementation. More...

#include <scheduling.h>

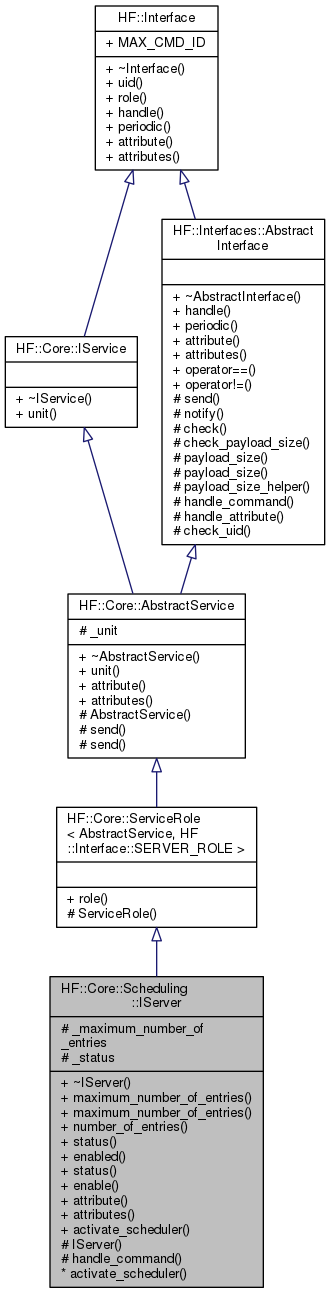

Inheritance diagram for HF::Core::Scheduling::IServer:

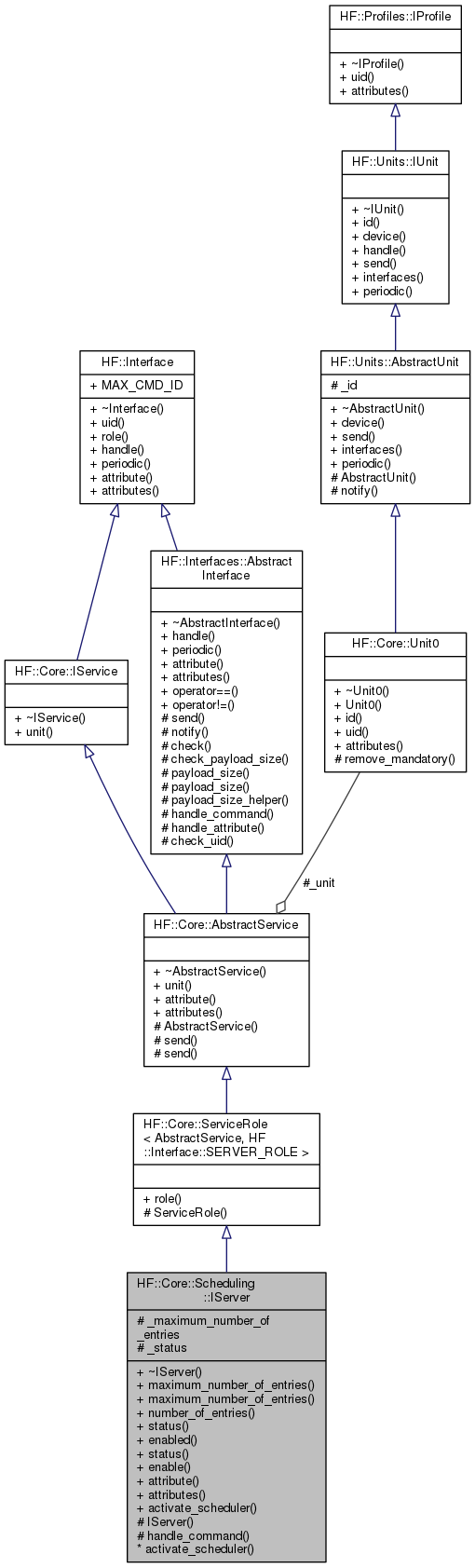

Collaboration diagram for HF::Core::Scheduling::IServer:

Public Member Functions
virtual	~IServer ()
	Destructor.

uint8_t	maximum_number_of_entries () const
	Get the Maximum Number Of Entries for the Scheduling server. More...

void	maximum_number_of_entries (uint8_t __value)
	Set the Maximum Number Of Entries for the Scheduling server. More...

virtual uint8_t	number_of_entries () const =0
	Get the Number Of Entries for the Scheduling server. More...

bool	status () const
	Get the Status for the Scheduling server. More...

bool	enabled () const
	Check if scheduler is enabled. More...

void	status (bool __value)
	Set the Status for the Scheduling server. More...

void	enable (bool __value)
	Enable/Disable scheduler. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Events
virtual Common::Result	activate_scheduler (const Protocol::Packet &packet, const ActivateScheduler &msg)
	Callback that is called when a `Scheduling::ACTIVATE_SCHEDULER_CMD`, is received. More...

Public Member Functions inherited from HF::Core::ServiceRole< AbstractService, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interface
virtual uint16_t	uid () const =0
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
	IServer (Unit0 &unit)
	Constructor.

Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Core::ServiceRole< AbstractService, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual bool	check_uid (uint16_t uid) const =0
	Check if the given UID matches the interface UID. More...

Protected Attributes
uint8_t	_maximum_number_of_entries
	Maximum Number Of Entries.

bool	_status
	Server Status

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Scheduling Service : Server side implementation.

This class provides the server side of the Scheduling interface.

Definition at line 753 of file scheduling.h.

Member Function Documentation

◆ activate_scheduler()

virtual Common::Result HF::Core::Scheduling::IServer::activate_scheduler	(	const Protocol::Packet &	packet,
		const ActivateScheduler &	msg
	)

virtual

Callback that is called when a Scheduling::ACTIVATE_SCHEDULER_CMD, is received.

Parameters

[in]	packet	the packet received.
[in]	msg	the activate scheduler message received.

Return values

Common::Result::OK,if	the scheduler was enabled/disabled.
Common::Result::FAIL_ARG	otherwise.

◆ attribute()

HF::Attributes::IAttribute* HF::Core::Scheduling::IServer::attribute ( uint8_t uid )

virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

◆ attributes()

HF::Attributes::UIDS HF::Core::Scheduling::IServer::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

virtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ enable()

void HF::Core::Scheduling::IServer::enable ( bool __value )

inline

Enable/Disable scheduler.

Parameters

[in] __value true / false –> enable/disable scheduler.

Definition at line 851 of file scheduling.h.

References status().

             {
                status(__value);
             }

Here is the call graph for this function:

◆ enabled()

bool HF::Core::Scheduling::IServer::enabled ( ) const

inline

Check if scheduler is enabled.

Return values

true	if the scheduler is enabled,
false	otherwise.

Definition at line 834 of file scheduling.h.

References status().

             {
                return status();
             }

Here is the call graph for this function:

◆ handle_command()

Common::Result HF::Core::Scheduling::IServer::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ maximum_number_of_entries() [1/2]

uint8_t HF::Core::Scheduling::IServer::maximum_number_of_entries ( ) const

Get the Maximum Number Of Entries for the Scheduling server.

Returns: the current Maximum Number Of Entries.

◆ maximum_number_of_entries() [2/2]

void HF::Core::Scheduling::IServer::maximum_number_of_entries ( uint8_t __value )

Set the Maximum Number Of Entries for the Scheduling server.

Parameters

[in] __value the Maximum Number Of Entries value to set the server to.

◆ number_of_entries()

virtual uint8_t HF::Core::Scheduling::IServer::number_of_entries ( ) const

pure virtual

Get the Number Of Entries for the Scheduling server.

Returns: the current Number Of Entries.

◆ status() [1/2]

bool HF::Core::Scheduling::IServer::status ( ) const

Get the Status for the Scheduling server.

Return values

true	if the scheduler is enabled,
false	otherwise.

Referenced by enable(), and enabled().

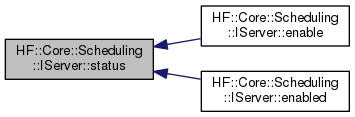

Here is the caller graph for this function:

◆ status() [2/2]

void HF::Core::Scheduling::IServer::status ( bool __value )

Set the Status for the Scheduling server.

Parameters

[in] __value the Status value to set the server to.

The documentation for this class was generated from the following file:

scheduling.h
