Batch Program Management Interfaces::Interface : Server side implementation. More...

#include <batch_program_management.h>

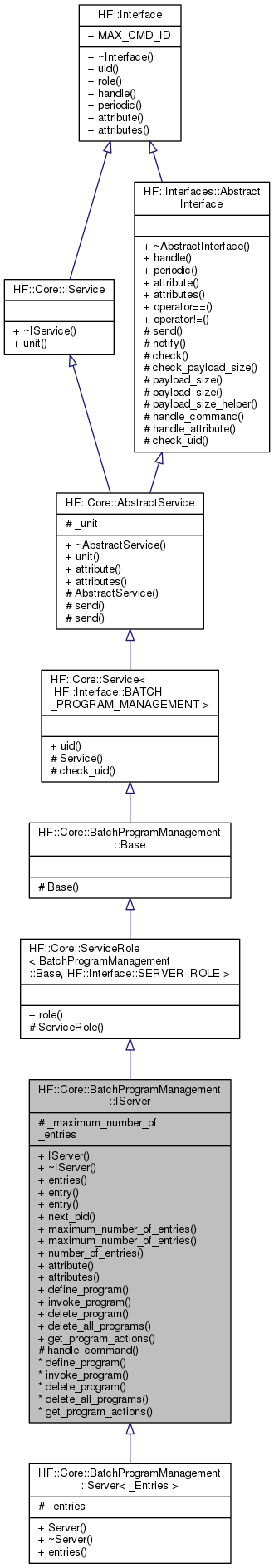

Inheritance diagram for HF::Core::BatchProgramManagement::IServer:

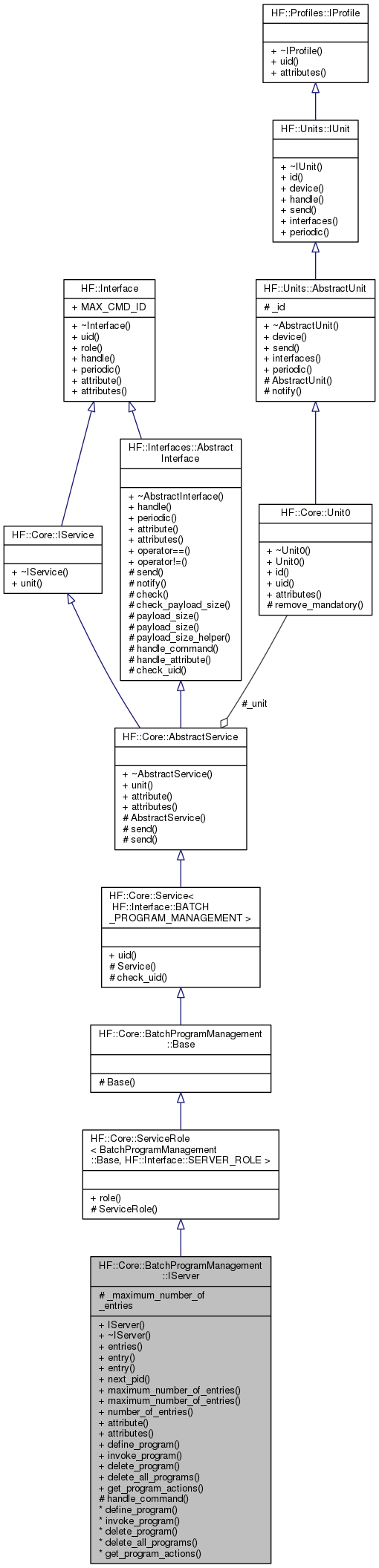

Collaboration diagram for HF::Core::BatchProgramManagement::IServer:

Public Member Functions
	IServer (Unit0 &unit)
	Constructor.

virtual	~IServer ()
	Destructor.

virtual IEntries &	entries () const =0
	Get a reference to the current object implementing the persistence API, for the device information. More...

EntryPtr	entry (const uint8_t pid) const
	Get the program entry given by `pid`. More...

EntryPtr	entry (const std::string &name) const
	Get the program entry given by `name`. More...

uint8_t	next_pid () const
	Return next available PID for the program. More...

uint8_t	maximum_number_of_entries () const
	Get the Maximum Number Of Entries for the Batch Program Management server. More...

void	maximum_number_of_entries (uint8_t __value)
	Set the Maximum Number Of Entries for the Batch Program Management server. More...

uint8_t	number_of_entries () const
	Get the Number Of Entries for the Batch Program Management server. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Events
virtual Common::Result	define_program (const Protocol::Packet &packet, DefineProgram &msg)
	Callback that is called when a `BatchProgramManagement::DEFINE_PROGRAM_CMD`, is received. More...

virtual Common::Result	invoke_program (const Protocol::Packet &packet, InvokeProgram &msg)
	Callback that is called when a `BatchProgramManagement::INVOKE_PROGRAM_CMD`, is received. More...

virtual Common::Result	delete_program (const Protocol::Packet &packet, DeleteProgram &msg)
	Callback that is called when a `BatchProgramManagement::DELETE_PROGRAM_CMD`, is received. More...

virtual Common::Result	delete_all_programs (const Protocol::Packet &packet)
	Callback that is called when a `BatchProgramManagement::DELETE_ALL_PROGRAMS_CMD`, is received. More...

virtual Common::Result	get_program_actions (const Protocol::Packet &packet, GetProgramActions &msg)
	Callback that is called when a `BatchProgramManagement::GET_PROGRAM_ACTIONS_CMD`, is received. More...

Public Member Functions inherited from HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::SERVER_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::SERVER_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::BatchProgramManagement::Base
	Base (Unit0 &unit)
	Constructor.

Protected Member Functions inherited from HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT >
	Service (Unit0 &unit)
	Constructor. More...

bool	check_uid (uint16_t uid) const
	Check if the given `uid` value matches the service's `UID` value. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Attributes
uint8_t	_maximum_number_of_entries
	Maximum Number Of Entries.

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

Batch Program Management Interfaces::Interface : Server side implementation.

This class provides the server side of the Batch Program Management interface.

Definition at line 512 of file batch_program_management.h.

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Core::BatchProgramManagement::IServer::attribute ( uint8_t uid )

virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Implements HF::Interface.

◆ attributes()

HF::Attributes::UIDS HF::Core::BatchProgramManagement::IServer::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

virtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ define_program()

virtual Common::Result HF::Core::BatchProgramManagement::IServer::define_program	(	const Protocol::Packet &	packet,
		DefineProgram &	msg
	)

virtual

Callback that is called when a BatchProgramManagement::DEFINE_PROGRAM_CMD, is received.

Parameters

[in]	packet	the network packet received.
[in]	msg	the DefineProgram message received.

Return values

Result::OK	if the request was processed,
Result::FAIL_ARG	if the message contains invalid arguments to the request,
Result::FAIL_RESOURCES	if the new entry could not be created,
Result::FAIL_UNKNOWN	otherwise.

◆ delete_all_programs()

virtual Common::Result HF::Core::BatchProgramManagement::IServer::delete_all_programs ( const Protocol::Packet & packet )

virtual

Callback that is called when a BatchProgramManagement::DELETE_ALL_PROGRAMS_CMD, is received.

Parameters

[in] packet the network packet received.

Return values

Result::OK

◆ delete_program()

virtual Common::Result HF::Core::BatchProgramManagement::IServer::delete_program	(	const Protocol::Packet &	packet,
		DeleteProgram &	msg
	)

virtual

Callback that is called when a BatchProgramManagement::DELETE_PROGRAM_CMD, is received.

Parameters

[in]	packet	the network packet received.
[in]	msg	the DeleteProgram message received.

Return values

Result::OK	if the request was processed,
Result::FAIL_ARG	if the message contains invalid arguments to the request.

◆ entries()

virtual IEntries& HF::Core::BatchProgramManagement::IServer::entries ( ) const

pure virtual

Get a reference to the current object implementing the persistence API, for the device information.

Returns: reference to the current object for the persistence API.

Implemented in HF::Core::BatchProgramManagement::Server< _Entries >.

Referenced by entry(), and next_pid().

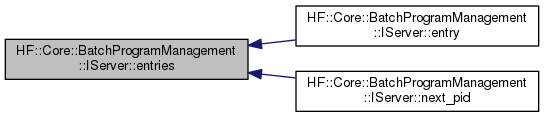

Here is the caller graph for this function:

◆ entry() [1/2]

EntryPtr HF::Core::BatchProgramManagement::IServer::entry ( const uint8_t pid ) const

inline

Get the program entry given by pid.

Parameters

[in] pid Program ID for the program to retrieve.

Returns: a pointer to the program entry if it exists, nullptr otherwise.

Definition at line 625 of file batch_program_management.h.

References entries(), and HF::Core::BatchProgramManagement::IEntries::find().

             {
                return entries().find(pid);
             }

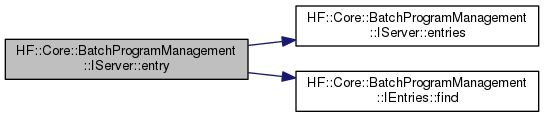

Here is the call graph for this function:

◆ entry() [2/2]

EntryPtr HF::Core::BatchProgramManagement::IServer::entry ( const std::string & name ) const

inline

Get the program entry given by name.

Parameters

[in] name program name of the program to retrieve.

Returns: a pointer to the program entry if it exists, nullptr otherwise.

Definition at line 638 of file batch_program_management.h.

References entries(), and HF::Core::BatchProgramManagement::IEntries::find().

             {
                return entries().find(name);
             }

Here is the call graph for this function:

◆ get_program_actions()

virtual Common::Result HF::Core::BatchProgramManagement::IServer::get_program_actions	(	const Protocol::Packet &	packet,
		GetProgramActions &	msg
	)

virtual

Callback that is called when a BatchProgramManagement::GET_PROGRAM_ACTIONS_CMD, is received.

Parameters

[in]	packet	the network packet received.
[in]	msg	the get program actions message received.

Return values

Result::OK	if the request was processed,
Result::FAIL_ARG	if the message contains invalid arguments to the request.

◆ handle_command()

Common::Result HF::Core::BatchProgramManagement::IServer::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ invoke_program()

virtual Common::Result HF::Core::BatchProgramManagement::IServer::invoke_program	(	const Protocol::Packet &	packet,
		InvokeProgram &	msg
	)

virtual

Callback that is called when a BatchProgramManagement::INVOKE_PROGRAM_CMD, is received.

Parameters

[in]	packet	the network packet received.
[in]	msg	the InvokeProgram message received.

Return values

Result::OK	if the request was processed,
Result::FAIL_ARG	if the message contains invalid arguments to the request.

◆ maximum_number_of_entries() [1/2]

uint8_t HF::Core::BatchProgramManagement::IServer::maximum_number_of_entries ( ) const

Get the Maximum Number Of Entries for the Batch Program Management server.

Returns: the current Maximum Number Of Entries.

◆ maximum_number_of_entries() [2/2]

void HF::Core::BatchProgramManagement::IServer::maximum_number_of_entries ( uint8_t __value )

Set the Maximum Number Of Entries for the Batch Program Management server.

Parameters

[in] __value the Maximum Number Of Entries value to set the server to.

◆ next_pid()

uint8_t HF::Core::BatchProgramManagement::IServer::next_pid ( ) const

inline

Return next available PID for the program.

Returns: the PID to use in the program entry, or Entry::AVAILABLE_PID if no PID is available.

Definition at line 646 of file batch_program_management.h.

References entries(), and HF::Core::BatchProgramManagement::IEntries::next_pid().

             {
                return entries().next_pid();
             }

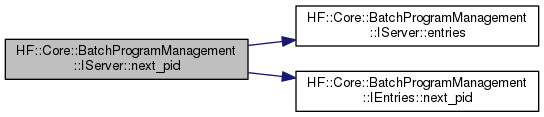

Here is the call graph for this function:

◆ number_of_entries()

uint8_t HF::Core::BatchProgramManagement::IServer::number_of_entries ( ) const

Get the Number Of Entries for the Batch Program Management server.

Returns: the current Number Of Entries.

The documentation for this class was generated from the following file:

batch_program_management.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ attribute()

◆ attributes()

◆ define_program()

◆ delete_all_programs()

◆ delete_program()

◆ entries()

◆ entry() [1/2]

◆ entry() [2/2]

◆ get_program_actions()

◆ handle_command()

◆ invoke_program()

◆ maximum_number_of_entries() [1/2]

◆ maximum_number_of_entries() [2/2]

◆ next_pid()

◆ number_of_entries()
