HF::Core::BatchProgramManagement::IEntries Struct Reference

Batch Program Management - Persistent Storage API. More...

#include <batch_program_management.h>

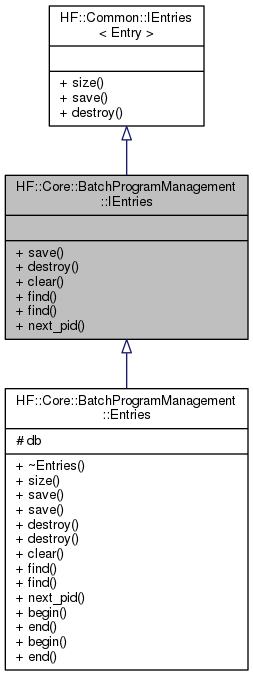

Inheritance diagram for HF::Core::BatchProgramManagement::IEntries:

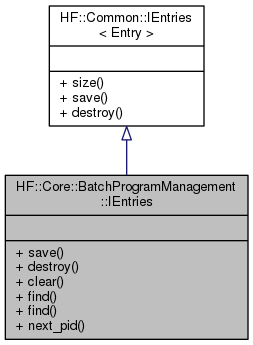

Collaboration diagram for HF::Core::BatchProgramManagement::IEntries:

Public Member Functions
virtual Common::Result	save (const uint8_t pid, const std::string &name, std::vector< Action > &actions)=0
	Store the given entry to persistent storage. More...
virtual Common::Result	destroy (const uint8_t pid)=0
	Remove the program with the given pid ftom. More...
virtual void	clear (void)=0
	Erase all the DB entries.
virtual EntryPtr	find (const uint8_t pid) const =0
	Find the program with the given pid. More...
virtual EntryPtr	find (const std::string &name) const =0
	Find the program with the given name. More...
virtual uint8_t	next_pid () const =0
	Return next available PID for the program. More...
Public Member Functions inherited from HF::Common::IEntries< Entry >
virtual uint16_t	size () const=0
	Return the number of entries in the container. More...
virtual Result	save (const Entry &entry)=0
	Store the given entry to persistent storage. More...
virtual Result	destroy (const Entry &entry)=0
	Destroy the given entry in the persistent storage. More...

Detailed Description

Batch Program Management - Persistent Storage API.

Definition at line 347 of file batch_program_management.h.

Member Function Documentation

destroy()

virtual Common::Result HF::Core::BatchProgramManagement::IEntries::destroy ( const uint8_t  pid )

pure virtual

Remove the program with the given pid ftom.

Parameters

[in]

pid

the Program ID to destroy.

Return values

Result::OK	if the entry was destroyed,
Result::FAIL_ARG	if no entry with pid exists,
Result::FAIL_UNKNOWN	otherwise.

Implemented in HF::Core::BatchProgramManagement::Entries.

find() [1/2]

virtual EntryPtr HF::Core::BatchProgramManagement::IEntries::find ( const uint8_t  pid ) const

pure virtual

Find the program with the given pid.

Parameters

[in]

pid

the Program ID to search for.

Returns

pointer to the program with the given pid, nullptr otherwise.

Implemented in HF::Core::BatchProgramManagement::Entries.

Referenced by HF::Core::BatchProgramManagement::IServer::entry().

Here is the caller graph for this function:

find() [2/2]

virtual EntryPtr HF::Core::BatchProgramManagement::IEntries::find ( const std::string &  name ) const

pure virtual

Find the program with the given name.

Parameters

[in]

name

program name to search for.

Returns

pointer to the program with the given name, nullptr otherwise.

Implemented in HF::Core::BatchProgramManagement::Entries.

next_pid()

virtual uint8_t HF::Core::BatchProgramManagement::IEntries::next_pid ( ) const

pure virtual

Return next available PID for the program.

Returns

the PID to use in the program entry, or Entry::AVAILABLE_PID if no PID is available.

Implemented in HF::Core::BatchProgramManagement::Entries.

Referenced by HF::Core::BatchProgramManagement::IServer::next_pid().

Here is the caller graph for this function:

save()

virtual Common::Result HF::Core::BatchProgramManagement::IEntries::save ( const uint8_t  pid, const std::string &  name, std::vector< Action > &  actions  )

pure virtual

Store the given entry to persistent storage.

Parameters

[in]	pid	Program ID for the new entry.
[in]	name	name for the new batch program.
[in]	actions	Action list for the batch program.

Return values

Common::Result::OK	if the entry was saved,
Common::Result::FAIL_UNKNOWN	otherwise.

Implemented in HF::Core::BatchProgramManagement::Entries.

---

The documentation for this struct was generated from the following file:

• batch_program_management.h
