Helper template to declare a Batch Program server with custom entries backend. More...
#include <batch_program_management.h>

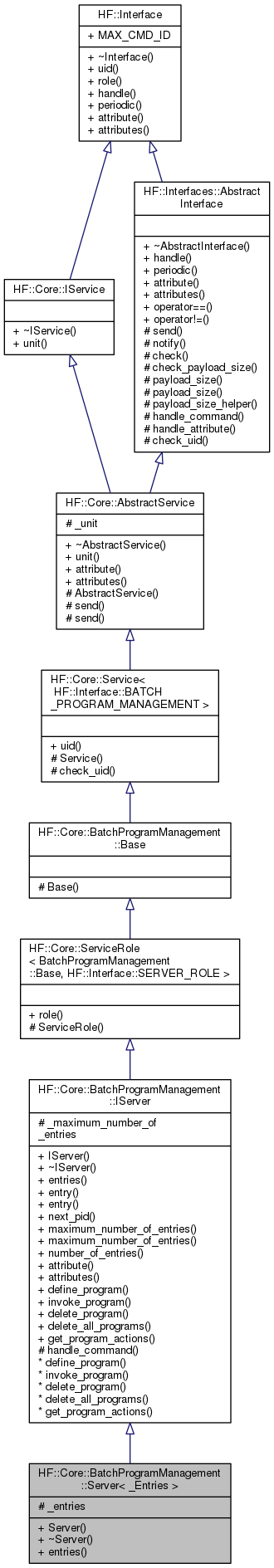

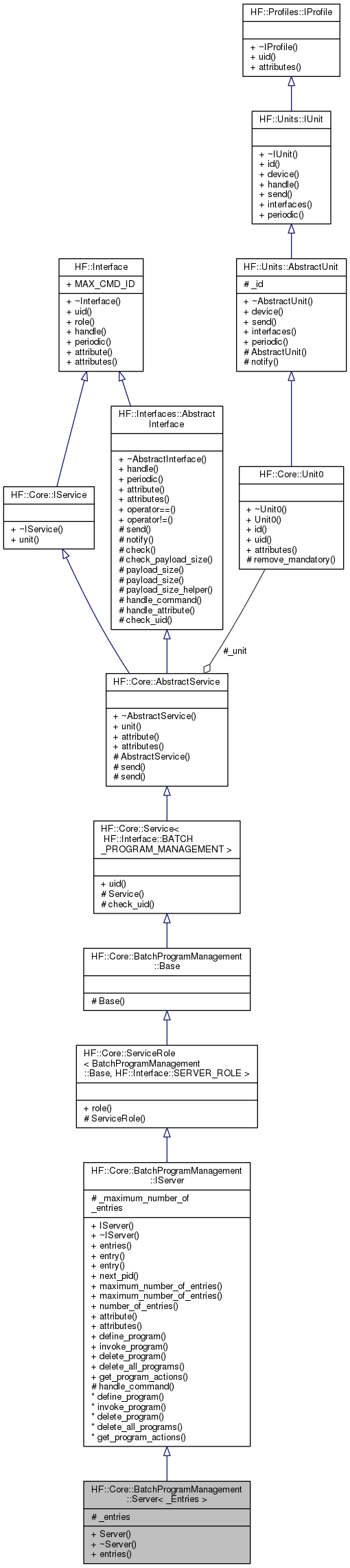

Inheritance diagram for HF::Core::BatchProgramManagement::Server< _Entries >: Collaboration diagram for HF::Core::BatchProgramManagement::Server< _Entries >:Public Member Functions | |
| _Entries & | entries () const |
| Get a reference to the current object implementing the persistence API, for the device information. More... | |
| Public Member Functions inherited from HF::Core::BatchProgramManagement::IServer | |
| IServer (Unit0 &unit) | |
| Constructor. | |
| virtual | ~IServer () |
| Destructor. | |
| EntryPtr | entry (const uint8_t pid) const |
Get the program entry given by pid. More... | |
| EntryPtr | entry (const std::string &name) const |
Get the program entry given by name. More... | |
| uint8_t | next_pid () const |
| Return next available PID for the program. More... | |
| uint8_t | maximum_number_of_entries () const |
| Get the Maximum Number Of Entries for the Batch Program Management server. More... | |
| void | maximum_number_of_entries (uint8_t __value) |
| Set the Maximum Number Of Entries for the Batch Program Management server. More... | |
| uint8_t | number_of_entries () const |
| Get the Number Of Entries for the Batch Program Management server. More... | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
| HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| virtual Common::Result | define_program (const Protocol::Packet &packet, DefineProgram &msg) |
Callback that is called when a BatchProgramManagement::DEFINE_PROGRAM_CMD, is received. More... | |
| virtual Common::Result | invoke_program (const Protocol::Packet &packet, InvokeProgram &msg) |
Callback that is called when a BatchProgramManagement::INVOKE_PROGRAM_CMD, is received. More... | |
| virtual Common::Result | delete_program (const Protocol::Packet &packet, DeleteProgram &msg) |
Callback that is called when a BatchProgramManagement::DELETE_PROGRAM_CMD, is received. More... | |
| virtual Common::Result | delete_all_programs (const Protocol::Packet &packet) |
Callback that is called when a BatchProgramManagement::DELETE_ALL_PROGRAMS_CMD, is received. More... | |
| virtual Common::Result | get_program_actions (const Protocol::Packet &packet, GetProgramActions &msg) |
Callback that is called when a BatchProgramManagement::GET_PROGRAM_ACTIONS_CMD, is received. More... | |
| Public Member Functions inherited from HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::SERVER_ROLE > | |
| Interface::Role | role () const |
| Return the Interface::Role this interface implements. More... | |
| Public Member Functions inherited from HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT > | |
| uint16_t | uid () const |
| This method returns the interface UID. More... | |
| Public Member Functions inherited from HF::Core::AbstractService | |
| Unit0 & | unit () const |
| The device this unit is associated with. | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
| HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| Public Member Functions inherited from HF::Interfaces::AbstractInterface | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| void | periodic (uint32_t time) |
| Handle periodic processing. More... | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
Additional Inherited Members | |
| Public Types inherited from HF::Interface | |
| enum | Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 } |
| Interface roles. More... | |
| enum | UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF } |
| Interfaces Unique Identifiers (UID). More... | |
| Static Public Attributes inherited from HF::Interface | |
| static constexpr uint8_t | MAX_CMD_ID = 0xFF |
| Maximum value for command IDs in interfaces. | |
| Protected Member Functions inherited from HF::Core::BatchProgramManagement::IServer | |
| Common::Result | handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Protected Member Functions inherited from HF::Core::ServiceRole< BatchProgramManagement::Base, HF::Interface::SERVER_ROLE > | |
| ServiceRole (Unit0 &unit) | |
| Constructor. More... | |
| Protected Member Functions inherited from HF::Core::BatchProgramManagement::Base | |
| Base (Unit0 &unit) | |
| Constructor. | |
| Protected Member Functions inherited from HF::Core::Service< HF::Interface::BATCH_PROGRAM_MANAGEMENT > | |
| Service (Unit0 &unit) | |
| Constructor. More... | |
| bool | check_uid (uint16_t uid) const |
Check if the given uid value matches the service's UID value. More... | |
| Protected Member Functions inherited from HF::Core::AbstractService | |
| AbstractService (Unit0 &unit) | |
| Constructor. More... | |
| void | send (const Protocol::Address &addr, Protocol::Message &message) |
Send message msg to the network address given by addr. More... | |
| void | send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link) |
| Create and send a new packet with the given message to the given address. More... | |
| Protected Member Functions inherited from HF::Interfaces::AbstractInterface | |
| virtual void | notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const |
| Notify that an attribute value as changed. More... | |
| Common::Result | check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
| Check if message has correct attributes to be processed by the interface. More... | |
| Common::Result | check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
Check if payload data size if sufficient for processing the message. More... | |
| virtual uint16_t | payload_size (Protocol::Message &message) const |
| Return the minimal payload size that should be present for the given message. More... | |
| virtual uint16_t | payload_size (Protocol::Message::Interface &itf) const |
| Return the minimal payload size that a message should hold when addressed at the given interface. More... | |
| template<typename _Message > | |
| uint16_t | payload_size_helper () const |
| Helper function template to retrieve minimum size required for serializing/deserializing the class given. More... | |
| virtual Common::Result | handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Protected Attributes inherited from HF::Core::BatchProgramManagement::IServer | |
| uint8_t | _maximum_number_of_entries |
| Maximum Number Of Entries. | |
| Protected Attributes inherited from HF::Core::AbstractService | |
| Unit0 & | _unit |
| Reference to the unit the service belongs to. | |
Helper template to declare a Batch Program server with custom entries backend.
Definition at line 697 of file batch_program_management.h.
|
inlinevirtual |
Get a reference to the current object implementing the persistence API, for the device information.
Implements HF::Core::BatchProgramManagement::IServer.
Definition at line 705 of file batch_program_management.h.
