Simple Button Interface : Server side implementation. More...

#include <simple_button.h>

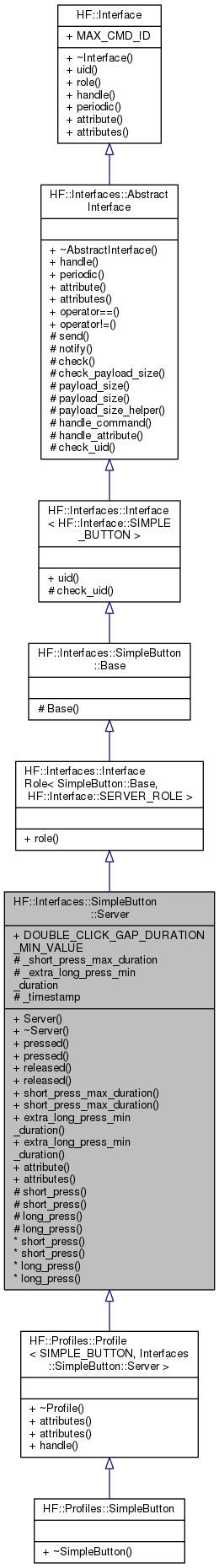

Inheritance diagram for HF::Interfaces::SimpleButton::Server:

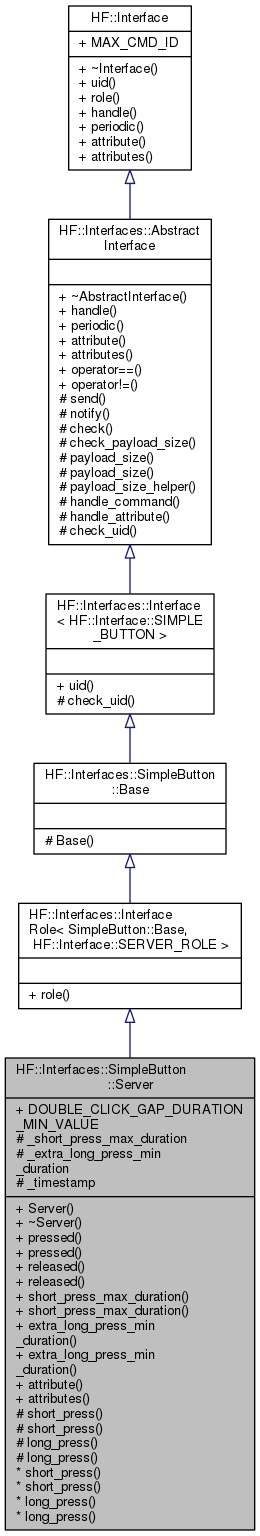

Collaboration diagram for HF::Interfaces::SimpleButton::Server:

Public Member Functions
	Server ()
	Constructor.

virtual	~Server ()
	Destructor.

void	pressed (const Protocol::Address &addr, uint16_t timestamp)
	This method is used to indicate that the button was pressed and generate the appropriate message, to the given address. More...

void	pressed (uint16_t timestamp)
	This method is used to indicate that the button was pressed. More...

void	released (const Protocol::Address &addr, uint16_t timestamp)
	This method is used to indicate that the button was released and generate the appropriate message, to the given address. More...

void	released (uint16_t timestamp)
	This method is used to indicate that the button was released and generate the appropriate message, to the given broadcast address based on the difference between the `timestamp` of the last call to `pressed` and the given `timestamp`. More...

uint16_t	short_press_max_duration () const
	Get the Short Press Max Duration for the Simple Button server. More...

virtual void	short_press_max_duration (uint16_t __value)
	Set the Short Press Max Duration for the Simple Button server. More...

uint16_t	extra_long_press_min_duration () const
	Get the Extra Long Press Min Duration for the Simple Button server. More...

virtual void	extra_long_press_min_duration (uint16_t __value)
	Set the Extra Long Press Min Duration for the Simple Button server. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< SimpleButton::Base, HF::Interface::SERVER_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_BUTTON >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Static Public Attributes
static constexpr uint16_t	DOUBLE_CLICK_GAP_DURATION_MIN_VALUE = 0x0064
	This is the minimum value that the Double Click Gap Duration can have.

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Member Functions
Commands
void	short_press (const Protocol::Address &addr)
	Send a HAN-FUN message containing a `SimpleButton::SHORT_PRESS_CMD`, to the given network address. More...

void	short_press ()
	Send a HAN-FUN message containing a `SimpleButton::SHORT_PRESS_CMD`, to the broadcast network address.

void	long_press (const Protocol::Address &addr)
	Send a HAN-FUN message containing a `SimpleButton::LONG_PRESS_CMD`, to the given network address. More...

void	long_press ()
	Send a HAN-FUN message containing a `SimpleButton::LONG_PRESS_CMD`, to the broadcast network address.

Protected Member Functions inherited from HF::Interfaces::SimpleButton::Base
	Base ()
	Constructor.

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_BUTTON >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Attributes
uint16_t	_short_press_max_duration
	Short Press Max Duration.

uint16_t	_extra_long_press_min_duration
	Extra Long Press Minimum Duration.

uint16_t	_timestamp
	Timestamp of last call. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Detailed Description

Simple Button Interface : Server side implementation.

This class provides the server side of the Simple Button interface.

Definition at line 157 of file simple_button.h.

Member Function Documentation

◆ attribute()

HF::Attributes::IAttribute* HF::Interfaces::SimpleButton::Server::attribute ( uint8_t uid )

virtual

Return a pointer to the interface attribute with the given uid.

Parameters

[in] uid identifier of the attribute in the interface.

Returns: a pointer to the attribute if it exists, nullptr otherwise.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ attributes()

HF::Attributes::UIDS HF::Interfaces::SimpleButton::Server::attributes ( uint8_t pack_id = HF::Attributes::Pack::MANDATORY ) const

virtual

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in] pack_id the Attribute pack ID to get the attributes UIDs for.

Returns: vector containing the attributes UIDs.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ extra_long_press_min_duration() [1/2]

uint16_t HF::Interfaces::SimpleButton::Server::extra_long_press_min_duration ( ) const

Get the Extra Long Press Min Duration for the Simple Button server.

Returns: the current Extra Long Press Min Duration.

◆ extra_long_press_min_duration() [2/2]

virtual void HF::Interfaces::SimpleButton::Server::extra_long_press_min_duration ( uint16_t __value )

virtual

Set the Extra Long Press Min Duration for the Simple Button server.

Parameters

[in] __value the Extra Long Press Min Duration value to set the server to.

◆ long_press()

void HF::Interfaces::SimpleButton::Server::long_press ( const Protocol::Address & addr )

protected

Send a HAN-FUN message containing a SimpleButton::LONG_PRESS_CMD, to the given network address.

Parameters

[in] addr the network address to send the message to.

◆ pressed() [1/2]

void HF::Interfaces::SimpleButton::Server::pressed	(	const Protocol::Address &	addr,
		uint16_t	timestamp
	)

This method is used to indicate that the button was pressed and generate the appropriate message, to the given address.

Parameters

[in]	addr	the network address to send any generated message to.
[in]	timestamp	time in milliseconds the button was released.

Referenced by pressed().

Here is the caller graph for this function:

◆ pressed() [2/2]

void HF::Interfaces::SimpleButton::Server::pressed ( uint16_t timestamp )

inline

This method is used to indicate that the button was pressed.

Parameters

[in] timestamp time in milliseconds the button was pressed.

Definition at line 213 of file simple_button.h.

References pressed().

             {
                Protocol::Address addr;
                pressed(addr, timestamp);
             }

Here is the call graph for this function:

◆ released() [1/2]

void HF::Interfaces::SimpleButton::Server::released	(	const Protocol::Address &	addr,
		uint16_t	timestamp
	)

This method is used to indicate that the button was released and generate the appropriate message, to the given address.

Warning: Calling this method without calling pressed before has undefined behavior.

Parameters

[in]	addr	the network address to send any generated message to.
[in]	timestamp	time in milliseconds the button was released.

Referenced by released().

Here is the caller graph for this function:

◆ released() [2/2]

void HF::Interfaces::SimpleButton::Server::released ( uint16_t timestamp )

inline

This method is used to indicate that the button was released and generate the appropriate message, to the given broadcast address based on the difference between the timestamp of the last call to pressed and the given timestamp.

Warning: Calling this method without calling pressed before has undefined behavior.

Parameters

[in] timestamp time in milliseconds the button was released.

Definition at line 239 of file simple_button.h.

References released().

             {
                Protocol::Address addr;
                released(addr, timestamp);
             }

Here is the call graph for this function:

◆ short_press()

void HF::Interfaces::SimpleButton::Server::short_press ( const Protocol::Address & addr )

protected

Send a HAN-FUN message containing a SimpleButton::SHORT_PRESS_CMD, to the given network address.

Parameters

[in] addr the network address to send the message to.

◆ short_press_max_duration() [1/2]

uint16_t HF::Interfaces::SimpleButton::Server::short_press_max_duration ( ) const

Get the Short Press Max Duration for the Simple Button server.

Returns: the current Short Press Max Duration.

◆ short_press_max_duration() [2/2]

virtual void HF::Interfaces::SimpleButton::Server::short_press_max_duration ( uint16_t __value )

virtual

Set the Short Press Max Duration for the Simple Button server.

Parameters

[in] __value the Short Press Max Duration value to set the server to.

Field Documentation

◆ _timestamp

uint16_t HF::Interfaces::SimpleButton::Server::_timestamp

protected

Timestamp of last call.

Definition at line 169 of file simple_button.h.

The documentation for this class was generated from the following file:

simple_button.h
