Group Table Service : Client side implementation. More...

#include <group_table.h>

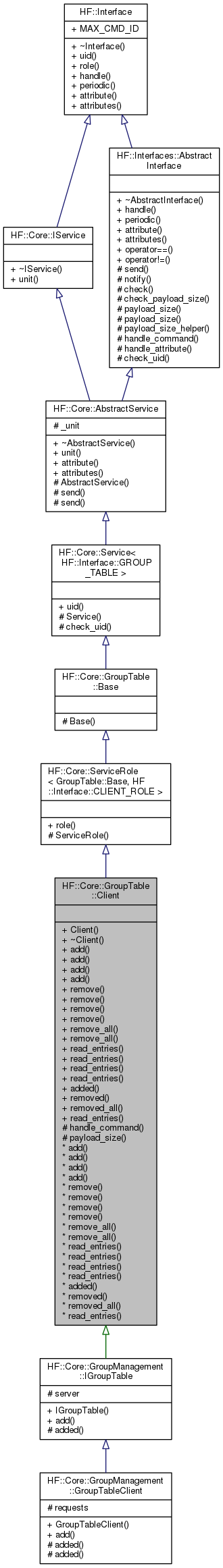

Inheritance diagram for HF::Core::GroupTable::Client:

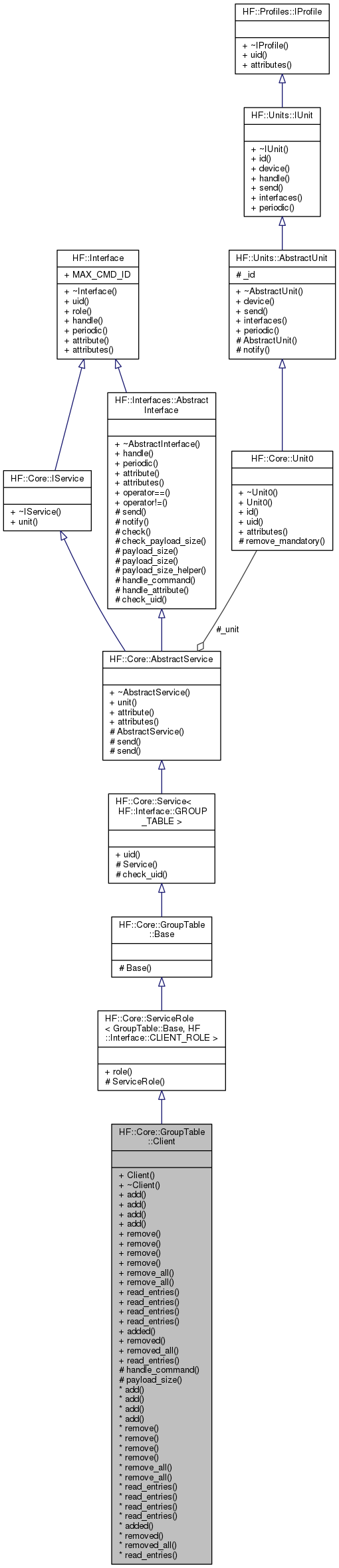

Collaboration diagram for HF::Core::GroupTable::Client:

Public Member Functions
Commands
void	add (const Protocol::Address &addr, const Entry &entry)
	Send a HAN-FUN message containing a `GroupTable::ADD_CMD`, to the given network address. More...

void	add (const uint16_t device, const Entry &entry)
	Send a HAN-FUN message containing a `GroupTable::ADD_CMD`, to the given `device` and the given `entry`. More...

void	add (const Protocol::Address &addr, uint16_t group, uint8_t unit)
	Send a HAN-FUN message containing a `GroupTable::ADD_CMD`, to the given network address, for the given `group` and `unit`. More...

void	add (const uint16_t device, uint16_t group, uint8_t unit)
	Send a HAN-FUN message containing a `GroupTable::ADD_CMD`, to the given `device`, for the given `group` and `unit`. More...

void	remove (const Protocol::Address &addr, const Entry &entry)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_CMD`, to the given network address. More...

void	remove (const uint16_t device, const Entry &entry)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_CMD`, to the given `device` and the given `entry`. More...

void	remove (const Protocol::Address &addr, uint16_t group, uint8_t unit)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_CMD`, to the given network address, for the given `group` and `unit`. More...

void	remove (const uint16_t device, uint16_t group, uint8_t unit)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_CMD`, to the given `device`, for the given `group` and `unit`. More...

void	remove_all (const Protocol::Address &addr)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_ALL_CMD`, to the given network address. More...

void	remove_all (uint16_t device)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_ALL_CMD`, to the device with the given address. More...

void	read_entries (const Protocol::Address &addr, const ReadEntries &params)
	Send a HAN-FUN message containing a `GroupTable::READ_ENTRIES_CMD`, to the given network address. More...

void	read_entries (const Protocol::Address &addr, const uint8_t offset, const uint8_t count)
	Send a HAN-FUN message containing a `GroupTable::READ_ENTRIES_CMD`, to the given network address. More...

void	read_entries (const uint16_t device, const ReadEntries &params)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_ALL_CMD`, to the device with the given address. More...

void	read_entries (const uint16_t device, const uint8_t offset, const uint8_t count)
	Send a HAN-FUN message containing a `GroupTable::REMOVE_ALL_CMD`, to the device with the given address. More...

Events
virtual void	added (const Protocol::Address &addr, const GroupTable::Response &response)
	Callback for processing the response of a `GroupTable::ADD_CMD`. More...

virtual void	removed (const Protocol::Address &addr, const GroupTable::Response &response)
	Callback for processing the response of a `GroupTable::REMOVE_CMD`. More...

virtual void	removed_all (const Protocol::Address &addr, const Protocol::Response &response)
	Callback for processing the response of a `GroupTable::REMOVE_ALL_CMD`. More...

virtual void	read_entries (const Protocol::Address &addr, const ReadEntriesResponse &response)
	Callback for processing the response of a `GroupTable::READ_ENTRIES_CMD`. More...

Public Member Functions inherited from HF::Core::ServiceRole< GroupTable::Base, HF::Interface::CLIENT_ROLE >
Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_TABLE >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Core::AbstractService
Unit0 &	unit () const
	The device this unit is associated with.

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

Protected Member Functions
Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

Protected Member Functions inherited from HF::Core::ServiceRole< GroupTable::Base, HF::Interface::CLIENT_ROLE >
	ServiceRole (Unit0 &unit)
	Constructor. More...

Protected Member Functions inherited from HF::Core::GroupTable::Base
	Base (Unit0 &unit)
	Constructor.

Protected Member Functions inherited from HF::Core::Service< HF::Interface::GROUP_TABLE >
	Service (Unit0 &unit)
	Constructor. More...

bool	check_uid (uint16_t uid) const
	Check if the given `uid` value matches the service's `UID` value. More...

Protected Member Functions inherited from HF::Core::AbstractService
	AbstractService (Unit0 &unit)
	Constructor. More...

void	send (const Protocol::Address &addr, Protocol::Message &message)
	Send message `msg` to the network address given by `addr`. More...

void	send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link)
	Create and send a new packet with the given message to the given address. More...

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Attributes inherited from HF::Core::AbstractService
Unit0 &	_unit
	Reference to the unit the service belongs to.

Detailed Description

Group Table Service : Client side implementation.

This class provides the client side of the Group Table interface.

Definition at line 610 of file group_table.h.

Member Function Documentation

◆ add() [1/4]

void HF::Core::GroupTable::Client::add	(	const Protocol::Address &	addr,
		const Entry &	entry
	)

Send a HAN-FUN message containing a GroupTable::ADD_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	entry	the group table entry to add.

Referenced by add().

Here is the caller graph for this function:

◆ add() [2/4]

void HF::Core::GroupTable::Client::add	(	const uint16_t	device,
		const Entry &	entry
	)

inline

Send a HAN-FUN message containing a GroupTable::ADD_CMD, to the given device and the given entry.

Parameters

[in]	device	the device address to send the entry to.
[in]	entry	the group table entry to add.

Definition at line 638 of file group_table.h.

References add().

             {
                Protocol::Address addr(device, 0);
                add(addr, entry);
             }

Here is the call graph for this function:

◆ add() [3/4]

void HF::Core::GroupTable::Client::add	(	const Protocol::Address &	addr,
		uint16_t	group,
		uint8_t	unit
	)

inline

Send a HAN-FUN message containing a GroupTable::ADD_CMD, to the given network address, for the given group and unit.

Parameters

[in]	addr	the network address to send the message to.
[in]	group	the group address for the entry to add.
[in]	unit	the unit ID for the entry to add.

Definition at line 652 of file group_table.h.

References add(), and HF::Core::AbstractService::unit().

             {
                Entry entry(group, unit);

                add(addr, entry);
             }

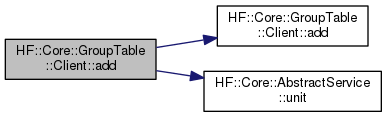

Here is the call graph for this function:

◆ add() [4/4]

void HF::Core::GroupTable::Client::add	(	const uint16_t	device,
		uint16_t	group,
		uint8_t	unit
	)

inline

Send a HAN-FUN message containing a GroupTable::ADD_CMD, to the given device, for the given group and unit.

Parameters

[in]	device	the device address to send the entry to.
[in]	group	the group address for the entry to add.
[in]	unit	the unit ID for the entry to add.

Definition at line 667 of file group_table.h.

References add(), and HF::Core::AbstractService::unit().

             {
                Protocol::Address addr(device, 0);
                Entry entry(group, unit);
                add(addr, entry);
             }

Here is the call graph for this function:

◆ added()

virtual void HF::Core::GroupTable::Client::added	(	const Protocol::Address &	addr,
		const GroupTable::Response &	response
	)

virtual

Callback for processing the response of a GroupTable::ADD_CMD.

Parameters

[in]	addr	address for device that sent the response.
[in]	response	the response received.

Reimplemented in HF::Core::GroupManagement::GroupTableClient.

◆ handle_command()

Common::Result HF::Core::GroupTable::Client::handle_command	(	Protocol::Packet &	packet,
		Common::ByteArray &	payload,
		uint16_t	offset
	)

protectedvirtual

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns: the result of the message processing.

Handle command request/response messages, i.e. :

Protocol::Message:Type::COMMAND_REQ;
Protocol::Message:Type::COMMAND_RESP_REQ;
Protocol::Message:Type::COMMAND_RES;

Reimplemented from HF::Interfaces::AbstractInterface.

◆ payload_size()

uint16_t HF::Core::GroupTable::Client::payload_size ( Protocol::Message::Interface & itf ) const

protectedvirtual

Return the minimal payload size that a message should hold when addressed at the given interface.

Parameters

[in] itf the interface being address.

Returns: the minimum number of bytes for the message for the interface.

Reimplemented from HF::Interfaces::AbstractInterface.

◆ read_entries() [1/5]

void HF::Core::GroupTable::Client::read_entries	(	const Protocol::Address &	addr,
		const ReadEntries &	params
	)

Send a HAN-FUN message containing a GroupTable::READ_ENTRIES_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	params	parameters to the GroupTable::READ_ENTRIES_CMD.

Referenced by read_entries().

Here is the caller graph for this function:

◆ read_entries() [2/5]

void HF::Core::GroupTable::Client::read_entries	(	const Protocol::Address &	addr,
		const uint8_t	offset,
		const uint8_t	count
	)

inline

Send a HAN-FUN message containing a GroupTable::READ_ENTRIES_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	offset	offset to start reading the entries from.
[in]	count	number of entries to read.

Definition at line 763 of file group_table.h.

References read_entries().

             {
                ReadEntries params(offset, count);

                read_entries(addr, params);
             }

Here is the call graph for this function:

◆ read_entries() [3/5]

void HF::Core::GroupTable::Client::read_entries	(	const uint16_t	device,
		const ReadEntries &	params
	)

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_ALL_CMD, to the device with the given address.

Parameters

[in]	device	the device's network address to send the message to.
[in]	params	parameters to the GroupTable::READ_ENTRIES_CMD.

Definition at line 778 of file group_table.h.

References read_entries().

             {
                Protocol::Address addr(device, 0);
                read_entries(addr, params);
             }

Here is the call graph for this function:

◆ read_entries() [4/5]

void HF::Core::GroupTable::Client::read_entries	(	const uint16_t	device,
		const uint8_t	offset,
		const uint8_t	count
	)

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_ALL_CMD, to the device with the given address.

Parameters

[in]	device	the device's network address to send the message to.
[in]	offset	offset to start reading the entries from.
[in]	count	number of entries to read.

Definition at line 792 of file group_table.h.

References read_entries().

             {
                Protocol::Address addr(device, 0);
                ReadEntries params(offset, count);
                read_entries(addr, params);
             }

Here is the call graph for this function:

◆ read_entries() [5/5]

virtual void HF::Core::GroupTable::Client::read_entries	(	const Protocol::Address &	addr,
		const ReadEntriesResponse &	response
	)

virtual

Callback for processing the response of a GroupTable::READ_ENTRIES_CMD.

Parameters

[in]	addr	address for device that sent the response.
[in]	response	the response received.

◆ remove() [1/4]

void HF::Core::GroupTable::Client::remove	(	const Protocol::Address &	addr,
		const Entry &	entry
	)

Send a HAN-FUN message containing a GroupTable::REMOVE_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	entry	the group table entry to remove.

◆ remove() [2/4]

void HF::Core::GroupTable::Client::remove	(	const uint16_t	device,
		const Entry &	entry
	)

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_CMD, to the given device and the given entry.

Parameters

[in]	device	the device address to remove the entry from.
[in]	entry	the group table entry to remove.

Definition at line 690 of file group_table.h.

             {
                Protocol::Address addr(device, 0);
                remove(addr, entry);
             }

◆ remove() [3/4]

void HF::Core::GroupTable::Client::remove	(	const Protocol::Address &	addr,
		uint16_t	group,
		uint8_t	unit
	)

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_CMD, to the given network address, for the given group and unit.

Parameters

[in]	addr	the network address to send the message to.
[in]	group	the group address for the entry to remove.
[in]	unit	the unit ID for the entry to remove.

Definition at line 704 of file group_table.h.

References HF::Core::AbstractService::unit().

             {
                Entry entry(group, unit);

                remove(addr, entry);
             }

Here is the call graph for this function:

◆ remove() [4/4]

void HF::Core::GroupTable::Client::remove	(	const uint16_t	device,
		uint16_t	group,
		uint8_t	unit
	)

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_CMD, to the given device, for the given group and unit.

Parameters

[in]	device	the device address to send the entry to.
[in]	group	the group address for the entry to remove.
[in]	unit	the unit ID for the entry to remove.

Definition at line 719 of file group_table.h.

References HF::Core::AbstractService::unit().

             {
                Protocol::Address addr(device, 0);
                Entry entry(group, unit);
                remove(addr, entry);
             }

Here is the call graph for this function:

◆ remove_all() [1/2]

void HF::Core::GroupTable::Client::remove_all ( const Protocol::Address & addr )

Send a HAN-FUN message containing a GroupTable::REMOVE_ALL_CMD, to the given network address.

Parameters

[in] addr the network address to send the message to.

Referenced by remove_all().

Here is the caller graph for this function:

◆ remove_all() [2/2]

void HF::Core::GroupTable::Client::remove_all ( uint16_t device )

inline

Send a HAN-FUN message containing a GroupTable::REMOVE_ALL_CMD, to the device with the given address.

Parameters

[in] device the device's network address to send the message to.

Definition at line 740 of file group_table.h.

References remove_all().

             {
                Protocol::Address addr(device, 0);
                remove_all(addr);
             }

Here is the call graph for this function:

◆ removed()

virtual void HF::Core::GroupTable::Client::removed	(	const Protocol::Address &	addr,
		const GroupTable::Response &	response
	)

virtual

Callback for processing the response of a GroupTable::REMOVE_CMD.

Parameters

[in]	addr	address for device that sent the response.
[in]	response	the response received.

◆ removed_all()

virtual void HF::Core::GroupTable::Client::removed_all	(	const Protocol::Address &	addr,
		const Protocol::Response &	response
	)

virtual

Callback for processing the response of a GroupTable::REMOVE_ALL_CMD.

Parameters

[in]	addr	address for device that sent the response.
[in]	response	the response received.

The documentation for this struct was generated from the following file:

group_table.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add() [1/4]

◆ add() [2/4]

◆ add() [3/4]

◆ add() [4/4]

◆ added()

◆ handle_command()

◆ payload_size()

◆ read_entries() [1/5]

◆ read_entries() [2/5]

◆ read_entries() [3/5]

◆ read_entries() [4/5]

◆ read_entries() [5/5]

◆ remove() [1/4]

◆ remove() [2/4]

◆ remove() [3/4]

◆ remove() [4/4]

◆ remove_all() [1/2]

◆ remove_all() [2/2]

◆ removed()

◆ removed_all()
