HF::Core::GroupTable::Response Struct Reference

Base class for responses. More...

#include <group_table.h>

Inheritance diagram for HF::Core::GroupTable::Response:

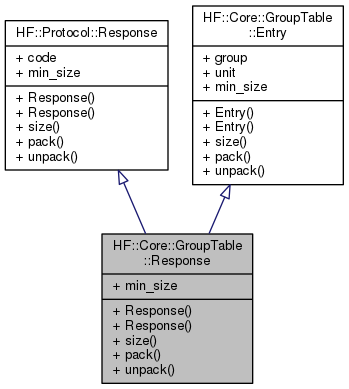

Collaboration diagram for HF::Core::GroupTable::Response:

Public Member Functions
	Response (Common::Result code=Common::Result::FAIL_UNKNOWN, uint16_t group=0x0000, uint8_t unit=0x00)
	Constructor. More...
	Response (Common::Result code, const Entry &entry)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Protocol::Response
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Core::GroupTable::Entry
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Protocol::Response
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum number of bytes required by this message.
Static Public Attributes inherited from HF::Core::GroupTable::Entry
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Additional Inherited Members
Data Fields inherited from HF::Core::GroupTable::Entry
uint16_t	group
	Group address the entry belongs to. More...
uint8_t	unit
	Unit ID to route the group messages to. More...

Detailed Description

Base class for responses.

Definition at line 156 of file group_table.h.

Constructor & Destructor Documentation

Response() [1/2]

HF::Core::GroupTable::Response::Response ( Common::Result  code = Common::Result::FAIL_UNKNOWN, uint16_t  group = 0x0000, uint8_t  unit = 0x00  )

inline

Constructor.

Parameters

[in]	code	response code.
[in]	group	group address for response.
[in]	unit	unit ID for response.

Definition at line 165 of file group_table.h.

                                                                  :
               Protocol::Response(code), Entry(group, unit) {}

Response() [2/2]

HF::Core::GroupTable::Response::Response ( Common::Result  code, const Entry &  entry  )

inline

Constructor.

Parameters

[in]	code	response code.
[in]	entry	group entry for response.

Definition at line 175 of file group_table.h.

                                                           :
               Protocol::Response(code), Entry(entry) {}

Member Function Documentation

pack()

uint16_t HF::Core::GroupTable::Response::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Definition at line 193 of file group_table.h.

References HF_SERIALIZABLE_CHECK, HF::Core::GroupTable::Entry::pack(), HF::Protocol::Response::pack(), and size().

            {
               HF_SERIALIZABLE_CHECK(array, offset, size());

               uint16_t start = offset;

               offset += Protocol::Response::pack(array, offset);
               offset += Entry::pack(array, offset);

               return offset - start;
            }

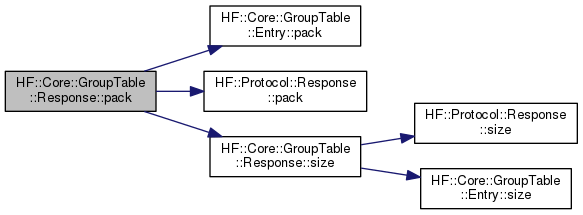

Here is the call graph for this function:

size()

uint16_t HF::Core::GroupTable::Response::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 187 of file group_table.h.

References HF::Core::GroupTable::Entry::size(), and HF::Protocol::Response::size().

Referenced by pack(), and unpack().

            {
               return Protocol::Response::size() + Entry::size();
            }

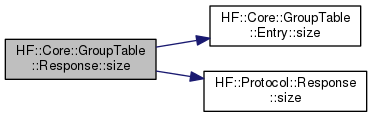

Here is the call graph for this function:

Here is the caller graph for this function:

unpack()

uint16_t HF::Core::GroupTable::Response::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Definition at line 206 of file group_table.h.

References HF_SERIALIZABLE_CHECK, size(), HF::Core::GroupTable::Entry::unpack(), and HF::Protocol::Response::unpack().

            {
               HF_SERIALIZABLE_CHECK(array, offset, size());

               uint16_t start = offset;

               offset += Protocol::Response::unpack(array, offset);
               offset += Entry::unpack(array, offset);

               return offset - start;
            }

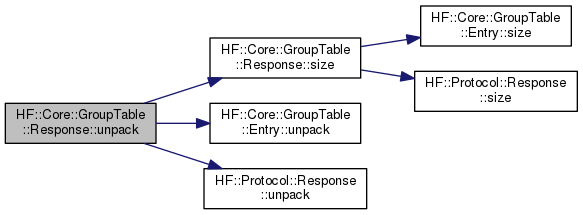

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• group_table.h
