Custom Device Management class. More...
#include <base.h>

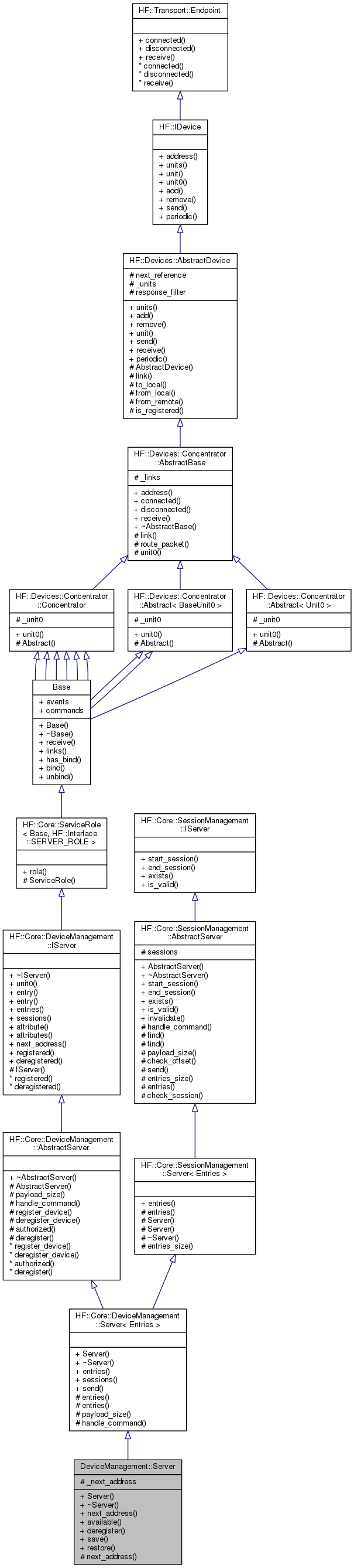

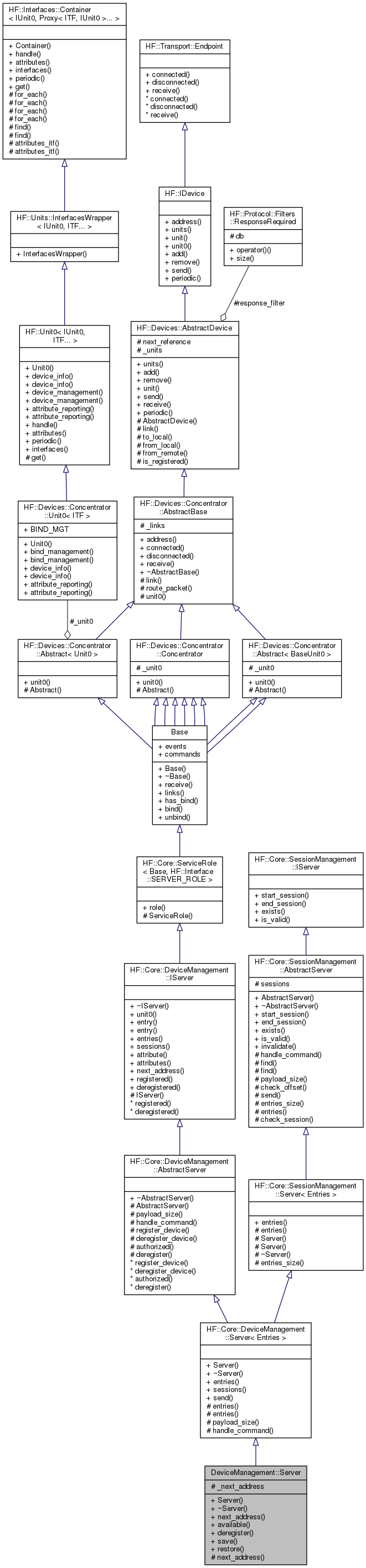

Inheritance diagram for DeviceManagement::Server: Collaboration diagram for DeviceManagement::Server:Public Member Functions | |
| uint16_t | next_address (uint16_t addr) |
| Set the device address for the next registration message. More... | |
| bool | available (uint16_t address) |
Check if the given address is available for registration. More... | |
| bool | deregister (uint16_t address) |
De-register the device with the given address. More... | |
| void | save (Json::Value &root) |
| Save the device entries into the JSON database. More... | |
| void | restore (Json::Value root) |
| Restore the device entries from the JSON database. More... | |
| Public Member Functions inherited from HF::Core::DeviceManagement::Server< Entries > | |
| Server (Unit0 &unit) | |
| Constructor. More... | |
| Public Member Functions inherited from HF::Core::DeviceManagement::IServer | |
| HF::Devices::Concentrator::IUnit0 & | unit0 () const |
| Return a reference to the unit that this service belongs to. More... | |
| DevicePtr | entry (uint16_t address) const |
| Return the Device entry for the given address. More... | |
| DevicePtr | entry (const HF::UID::UID &uid) const |
| Return the Device entry for the given UID. More... | |
| virtual void | registered (DevicePtr &device) |
| Indicate that a device has been registered. More... | |
| virtual void | deregistered (DevicePtr &device) |
| Indicate that a device has been de-registered. More... | |
| Public Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE > | |
| Interface::Role | role () const |
| Return the Interface::Role this interface implements. More... | |
| Public Member Functions inherited from Base | |
| void | receive (HF::Protocol::Packet &packet, HF::Common::ByteArray &payload, uint16_t offset) |
| Callback to deliver a packet received from the transport layer. More... | |
| bool | has_bind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Check if bind exists. More... | |
| uint8_t | bind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Create a new bind entry. More... | |
| bool | unbind (uint16_t dev_addr_1, uint16_t dev_addr_2) |
| Remove the binding entry for the given devices. More... | |
| Public Member Functions inherited from HF::Devices::Concentrator::Abstract< CoreServices > | |
| CoreServices * | unit0 () const |
| Get the unit 0 used by this concentrator device. More... | |
| Public Member Functions inherited from HF::Devices::Concentrator::AbstractBase | |
| uint16_t | address () const |
Return the device address on the HAN-FUN network, when the device is registered, or HF_BROADCAST_ADDR otherwise. More... | |
| void | connected (HF::Transport::Link *link) |
Callback to report that a new transport link was been created to a remote device. More... | |
| void | disconnected (HF::Transport::Link *link) |
Callback to the report that the given transport link no longer is valid and MUST not be used to send messages to the corresponding end-point. More... | |
| Public Member Functions inherited from HF::Devices::AbstractDevice | |
| const IUnits & | units () const |
| Return the list of units registered in this device. More... | |
| void | add (Units::IUnit *unit) |
| Add unit to devices unit lists. More... | |
| void | remove (Units::IUnit *unit) |
| Remove unit from device's unit list. More... | |
| Units::IUnit * | unit (uint8_t id) const |
| Return pointer to the unit with the given id. More... | |
| void | send (Protocol::Packet &packet) |
Send given packet into the HAN-FUN network. More... | |
| void | periodic (uint32_t time) |
| Handle periodic processing. More... | |
Events | |
| Public Member Functions inherited from HF::Core::SessionManagement::Server< Entries > | |
| Container & | entries () const |
| Return the container for the service entries. More... | |
| Public Member Functions inherited from HF::Core::SessionManagement::AbstractServer | |
| AbstractServer () | |
| Constructor. | |
| void | start_session (uint16_t address) |
Start a session for the device with the given address. More... | |
| void | end_session (uint16_t address) |
Terminate the session associated with the device with the given address. More... | |
| bool | exists (uint16_t address) const |
Check if a session for the device with the given address exists. More... | |
| bool | is_valid (uint16_t address) const |
Check if the session for the device with the given address is valid, i.e., the underling entries have not been modified since the start of the session. More... | |
| void | invalidate () |
| Invalidate all sessions. | |
Protected Member Functions | |
| uint16_t | next_address () |
| Return next available address for registering a device. More... | |
| Protected Member Functions inherited from HF::Core::DeviceManagement::Server< Entries > | |
| Container & | entries () const |
| Return the container for the service entries. More... | |
| Protected Member Functions inherited from HF::Core::DeviceManagement::AbstractServer | |
| AbstractServer (Unit0 &unit) | |
| Constructor. More... | |
| virtual Common::Result | register_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| This method is called when a registration message is received. | |
| virtual Common::Result | deregister_device (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| This method is called when a de-registration message is received. | |
| virtual bool | authorized (uint8_t member, DevicePtr &source, DevicePtr &destination) |
This method serves to indicate if a given member of the interface can be used by the source device affecting the destination device configuration on the system. More... | |
| virtual Common::Result | deregister (DevicePtr &device) |
| De-register the device that corresponds to the given Device entry. More... | |
| Protected Member Functions inherited from HF::Core::DeviceManagement::IServer | |
| IServer (Unit0 &unit) | |
| Constructor. More... | |
| Protected Member Functions inherited from HF::Core::ServiceRole< Base, HF::Interface::SERVER_ROLE > | |
| ServiceRole (Unit0 &unit) | |
| Constructor. More... | |
| Protected Member Functions inherited from HF::Devices::Concentrator::AbstractBase | |
| HF::Transport::Link * | link (uint16_t addr) const |
| Return the link that can be used to send a packet to the device with the given address. More... | |
| virtual void | route_packet (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Route the given packet to the corresponding device. More... | |
| Protected Member Functions inherited from HF::Devices::AbstractDevice | |
| virtual bool | to_local (const Protocol::Packet &packet) const |
| Check if the given packet is for this device. More... | |
| bool | from_local (const Protocol::Packet &packet) const |
| Check if the given packet is from the local device. More... | |
| bool | from_remote (const Protocol::Packet &packet) |
| Check if the given packet is from the a remote device. More... | |
| bool | is_registered () |
| Check if the device has a valid, i.e. More... | |
| Protected Member Functions inherited from HF::Core::SessionManagement::Server< Entries > | |
| Server (const Server &other) | |
| Copy-Constructor. More... | |
| Protected Member Functions inherited from HF::Core::SessionManagement::AbstractServer | |
| Common::Result | handle_command (CMD cmd, Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset=0) |
| Handle command request/response messages. More... | |
| iterator | find (uint16_t address) |
Find the session associated with the given device address. More... | |
| const_iterator | find (uint16_t address) const |
Find the session associated with the given device address. More... | |
| uint16_t | payload_size (CMD cmd) const |
| Get the minimum number of bytes necessary to pack/unpack a message of the given command. More... | |
| Common::Result | check_offset (uint16_t offset, uint8_t &count, uint16_t size) const |
Check if the given offset is valid and adjust the count value if necessary. More... | |
| Common::Result | check_session (uint16_t address, Common::ByteArray &payload) const |
Check if a session for the given device address exists and if it is valid. More... | |
Protected Attributes | |
| uint16_t | _next_address |
| The address the next registering device will be assigned. | |
| Protected Attributes inherited from HF::Devices::Concentrator::AbstractBase | |
| Common::SimpleList< Transport::Link * > | _links |
| List of links present in this concentrator. | |
| Protected Attributes inherited from HF::Devices::AbstractDevice | |
| uint8_t | next_reference |
| Last reference number used to send a packet. | |
| IUnits | _units |
| List containing pointers to the units present in the device. | |
| Protocol::Filters::ResponseRequired | response_filter |
| Support for generating missing responses for messages. | |
| Protected Attributes inherited from HF::Core::SessionManagement::AbstractServer | |
| Container | sessions |
| Session's database. | |
Custom Device Management class.
This class allows for the application to select the address to be given to next device that registers.
|
inline |
Set the device address for the next registration message.
| [in] | addr | address to use in the next registration. |
Definition at line 84 of file base.h.
References _next_address.
