Unit implementing a Simple Light. More...
#include <node.h>

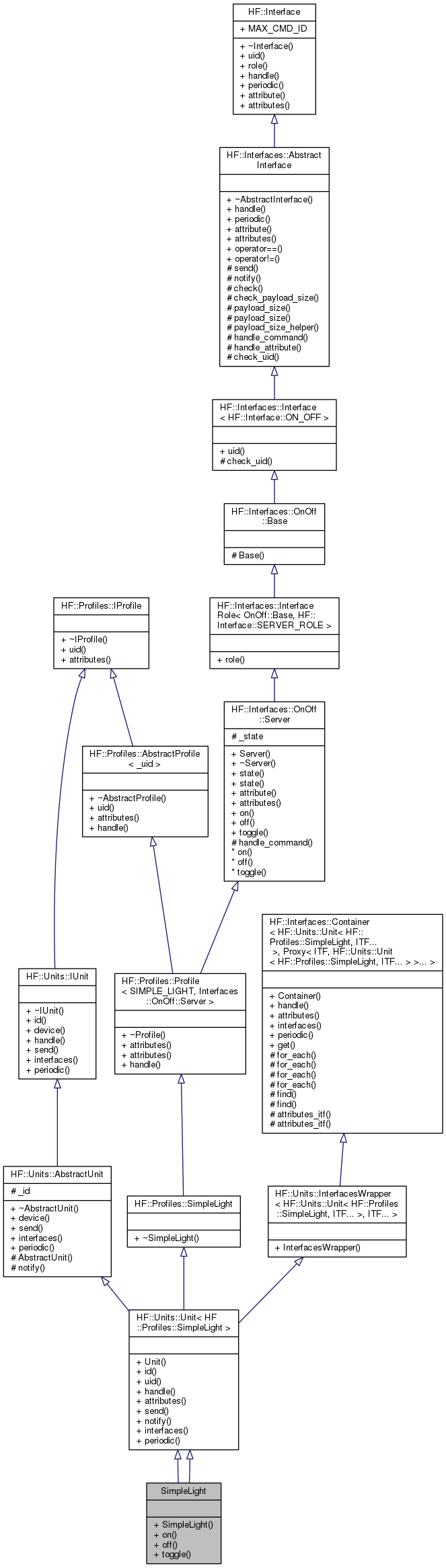

Inheritance diagram for SimpleLight: Collaboration diagram for SimpleLight:Public Member Functions | |
| SimpleLight (uint8_t index, HF::IDevice &device) | |
| Constructor. More... | |
| void | on (HF::Protocol::Address &source) |
Callback that is called when a ON_CMD message is received. More... | |
| void | off (HF::Protocol::Address &source) |
Callback that is called when a OFF_CMD message is received. More... | |
| void | toggle (HF::Protocol::Address &source) |
Callback that is called when a TOGGLE_CMD message is received. More... | |
| Public Member Functions inherited from HF::Units::Unit< HF::Profiles::SimpleLight > | |
| Unit (uint8_t id, IDevice &device) | |
| Constructor. More... | |
| uint8_t | id () const |
| Get the id number of this unit on the device. More... | |
| uint16_t | uid () const |
| Return this profile HAN-FUN UID. More... | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| HF::Attributes::List | attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More... | |
| void | send (const Protocol::Address &addr, Protocol::Message &message) |
Send message msg to the network address given by addr. More... | |
| void | notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const |
| Notify the attribute reporting service that the given attribute has changed value. More... | |
| std::vector< Common::Interface > | interfaces () const |
| Return the list of optional interfaces implemented by this unit. More... | |
| Public Member Functions inherited from HF::Units::AbstractUnit | |
| IDevice & | device () const |
| Reference to the device this unit belongs to. More... | |
| void | send (const Protocol::Address &addr, Protocol::Message &message, Transport::Link *link) |
| Create and send a new packet with the given message to the given address. More... | |
| Public Member Functions inherited from HF::Profiles::Profile< SIMPLE_LIGHT, Interfaces::OnOff::Server > | |
| virtual HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const =0 |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| virtual Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0 |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Profiles::AbstractProfile< _uid > | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Interfaces::OnOff::Server | |
| Server () | |
| Constructor. | |
| virtual | ~Server () |
| Destructor. | |
| void | state (bool state) |
| Setter : set the state attribute to given value. More... | |
| bool | state () |
| Getter : get the current state of the interface : More... | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
| HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| Public Member Functions inherited from HF::Interfaces::InterfaceRole< OnOff::Base, HF::Interface::SERVER_ROLE > | |
| HF::Interface::Role | role () const |
| Return the Interface::Role this interface implements. More... | |
| Public Member Functions inherited from HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleLight, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleLight, ITF... > >... > | |
| Container (HF::Units::Unit< HF::Profiles::SimpleLight, ITF... > &base) | |
| Constructor. More... | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| void | attributes (HF::Attributes::List &attr_list, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More... | |
| std::vector< Common::Interface > | interfaces () const |
| Return the list of interfaces present in the wrapper. More... | |
| const std::tuple_element< N, interfaces_t >::type::base * | get () const |
| Retrieve a pointer to the N optional interface implemented by this unit. More... | |
Additional Inherited Members | |
| Public Types inherited from HF::Interface | |
| enum | Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 } |
| Interface roles. More... | |
| enum | UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF } |
| Interfaces Unique Identifiers (UID). More... | |
| Static Public Attributes inherited from HF::Interface | |
| static constexpr uint8_t | MAX_CMD_ID = 0xFF |
| Maximum value for command IDs in interfaces. | |
| Protected Member Functions inherited from HF::Units::AbstractUnit | |
| AbstractUnit (IDevice &device) | |
| Constructor. More... | |
| void | notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const |
| Notify the attribute reporting service that the given attribute has changed value. More... | |
| Protected Member Functions inherited from HF::Interfaces::OnOff::Server | |
| Common::Result | handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::ON_OFF > | |
| bool | check_uid (uint16_t uid) const |
| Protected Member Functions inherited from HF::Interfaces::AbstractInterface | |
| Common::Result | check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
| Check if message has correct attributes to be processed by the interface. More... | |
| Common::Result | check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
Check if payload data size if sufficient for processing the message. More... | |
| virtual uint16_t | payload_size (Protocol::Message &message) const |
| Return the minimal payload size that should be present for the given message. More... | |
| virtual uint16_t | payload_size (Protocol::Message::Interface &itf) const |
| Return the minimal payload size that a message should hold when addressed at the given interface. More... | |
| template<typename _Message > | |
| uint16_t | payload_size_helper () const |
| Helper function template to retrieve minimum size required for serializing/deserializing the class given. More... | |
| virtual Common::Result | handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Protected Member Functions inherited from HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleLight, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleLight, ITF... > >... > | |
| void | for_each (std::function< void(HF::Interface &)> func) const |
| Call the given function for all the interfaces. More... | |
| void | for_each (std::function< void(HF::Interface &)> func) |
| Call the given function for all the interfaces. More... | |
| void | for_each (std::function< void(HF::Interface &)> func) const |
| Helper template function to implement the HF::Units::Unit::for_each functionality. More... | |
| void | for_each (std::function< void(HF::Interface &)> func) const |
| Helper template function to implement the HF::Units::Unit::for_each functionality. More... | |
| HF::Interface * | find (uint16_t itf_uid) const |
| Find the interface with the given UID. More... | |
| HF::Interface * | find (uint16_t itf_uid) const |
| Final template instantiation that finds the wrapped interface with the given UID. More... | |
| void | attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Helper function used to provide HF::Units::Unit::attributes functionality. More... | |
| void | attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Helper function used to provide HF::Units::Unit::attributes functionality. More... | |
| Protected Attributes inherited from HF::Units::AbstractUnit | |
| uint8_t | _id |
| Unit ID used to identify a given unit in a given HAN-FUN device. | |
| Protected Attributes inherited from HF::Interfaces::OnOff::Server | |
| bool | _state |
| Current server state. More... | |
|
inline |
Constructor.
| [in] | index | unit id. |
| [in] | device | reference to the device that holds this unit. |
Definition at line 52 of file node.h.
References SimpleLight(), and HF::Units::Unit< HF::Profiles::SimpleLight >::Unit().
Referenced by SimpleLight().
Here is the call graph for this function: Here is the caller graph for this function:
