HF::Interfaces::Container< Base, Proxies > Class Template Reference

Helper class to add optional interfaces to other classes. More...

#include <interface.h>

Collaboration diagram for HF::Interfaces::Container< Base, Proxies >:

Public Member Functions
	Container (Base &base)
	Constructor. More...
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
void	attributes (HF::Attributes::List &attr_list, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...
std::vector< Common::Interface >	interfaces () const
	Return the list of interfaces present in the wrapper. More...
template<uint8_t N>
const std::tuple_element< N, interfaces_t >::type::base *	get () const
	Retrieve a pointer to the N optional interface implemented by this unit. More...

Protected Member Functions
void	for_each (std::function< void(HF::Interface &)> func) const
	Call the given function for all the interfaces. More...
void	for_each (std::function< void(HF::Interface &)> func)
	Call the given function for all the interfaces. More...
template<uint8_t N, typename Head , typename... Tail>
HF::Interface *	find (uint16_t itf_uid) const
	Find the interface with the given UID. More...
template<uint8_t N>
HF::Interface *	find (uint16_t itf_uid) const
	Final template instantiation that finds the wrapped interface with the given UID. More...
template<uint8_t N, typename Head , typename... Tail>
void	for_each (std::function< void(HF::Interface &)> func) const
	Helper template function to implement the HF::Units::Unit::for_each functionality. More...
template<uint8_t N>
void	for_each (std::function< void(HF::Interface &)> func) const
	Helper template function to implement the HF::Units::Unit::for_each functionality. More...
template<uint8_t N, typename Head , typename... Tail>
void	attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Helper function used to provide HF::Units::Unit::attributes functionality. More...
template<uint8_t N>
void	attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Helper function used to provide HF::Units::Unit::attributes functionality. More...

Detailed Description

template<typename Base, typename... Proxies>
class HF::Interfaces::Container< Base, Proxies >

Helper class to add optional interfaces to other classes.

Definition at line 445 of file interface.h.

Constructor & Destructor Documentation

Container()

template<typename Base, typename... Proxies>

HF::Interfaces::Container< Base, Proxies >::Container ( Base &  base )

inline

Constructor.

Parameters

[in]

base

reference to the object containing the interfaces.

Definition at line 459 of file interface.h.

                              : _interfaces(Proxies(base) ...)
         {}

Member Function Documentation

attributes()

template<typename Base, typename... Proxies>

void HF::Interfaces::Container< Base, Proxies >::attributes ( HF::Attributes::List &  attr_list, Common::Interface  itf, uint8_t  pack_id, const HF::Attributes::UIDS &  uids  ) const

inline

Return a list of all the attributes for a given interface, pack id and list of attributes UID's.

Parameters

[in]	itf	interface UID.
[in]	pack_id	attribute pack id.
[in]	uids	list of attributes UID's.

Returns

attribute list.

Parameters

[in,out]

attr_list

list to place the attributes UIDs.

Definition at line 483 of file interface.h.

Referenced by HF::Profiles::ProfileN< DIMMABLE_COLOUR_BULB, OnOffServer, ColourControlServer, LevelControlServer >::attributes().

         {
            attributes_itf<0, Proxies...>(attr_list, itf, pack_id, uids);
         }

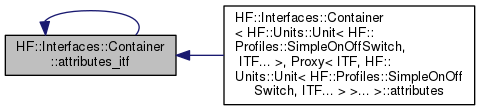

Here is the caller graph for this function:

attributes_itf() [1/2]

template<typename Base, typename... Proxies>

template<uint8_t N, typename Head , typename... Tail>

void HF::Interfaces::Container< Base, Proxies >::attributes_itf ( HF::Attributes::List &  attrs, Common::Interface  itf, uint8_t  pack_id, const HF::Attributes::UIDS &  uids  ) const

inlineprotected

Helper function used to provide HF::Units::Unit::attributes functionality.

Parameters

[out]	attrs	attribute list to append the attributes for the interface to.
[in]	itf	interface to get the attributes for.
[in]	pack_id	attributes pack id to use when retrieving the attributes.
[in]	uids	list of attribute uids to get attributes for if pack_id is HF::Attributes::Pack::DYNAMIC.

Template Parameters

N	index in the wrapped interfaces tuple to check if UID matches.
Head	class for the wrapped interface at the given index.
Tail	the classes associated with the remaining wrapped interfaces.

Definition at line 653 of file interface.h.

Referenced by HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::attributes(), and HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::attributes_itf().

         {
            const auto &head = std::get<N>(this->_interfaces);

            if (head.uid() == itf.id)
            {
               auto result = HF::Attributes::get(head, pack_id, uids);
               attrs.merge(result);
            }
            else
            {
               attributes_itf<N + 1, Tail...>(attrs, itf, pack_id, uids);
            }
         }

Here is the caller graph for this function:

attributes_itf() [2/2]

template<typename Base, typename... Proxies>

template<uint8_t N>

void HF::Interfaces::Container< Base, Proxies >::attributes_itf ( HF::Attributes::List &  attrs, Common::Interface  itf, uint8_t  pack_id, const HF::Attributes::UIDS &  uids  ) const

inlineprotected

Helper function used to provide HF::Units::Unit::attributes functionality.

Template expansion end.

Parameters

[out]	attrs	attribute list to append the attributes for the interface to.
[in]	itf	interface to get the attributes for.
[in]	pack_id	attributes pack id to use when retrieving the attributes.
[in]	uids	list of attribute uids to get attributes for if pack_id is HF::Attributes::Pack::DYNAMIC.

Template Parameters

N	index in the wrapped interfaces tuple to check if UID matches.

Definition at line 683 of file interface.h.

         {
            UNUSED(attrs);
            UNUSED(itf);
            UNUSED(pack_id);
            UNUSED(uids);
         }

find() [1/2]

template<typename Base, typename... Proxies>

template<uint8_t N, typename Head , typename... Tail>

HF::Interface* HF::Interfaces::Container< Base, Proxies >::find ( uint16_t  itf_uid ) const

inlineprotected

Find the interface with the given UID.

Parameters

itf_uid

the interface UID to search for in the wrapped interfaces.

Template Parameters

N	index in the interfaces tuple to check if UID matches.
Head	class for the interface at the given index.
Tail	the classes associated with the remaining optional interfaces.

Returns

a pointer to the interface or nullptr if the interface is not present.

Definition at line 570 of file interface.h.

Referenced by HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::find(), and HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::handle().

         {
            static_assert(std::is_base_of<HF::Interface, Head>::value,
                          "Head must be of type HF::Interface");

            const Head &head = std::get<N>(_interfaces);

            if (head.uid() == itf_uid)
            {
               return const_cast<Head *>(&head);
            }
            else
            {
               return find<N + 1, Tail...>(itf_uid);
            }
         }

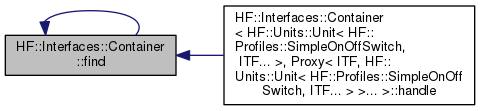

Here is the caller graph for this function:

find() [2/2]

template<typename Base, typename... Proxies>

template<uint8_t N>

HF::Interface* HF::Interfaces::Container< Base, Proxies >::find ( uint16_t  itf_uid ) const

inlineprotected

Final template instantiation that finds the wrapped interface with the given UID.

Parameters

itf_uid

the interface UID to search for in the wrapped interfaces.

Template Parameters

N	index in the interfaces tuple to check if UID matches.

Returns

nullptr, i.e. the interface is not present.

Definition at line 598 of file interface.h.

         {
            UNUSED(itf_uid);
            return nullptr;
         }

for_each() [1/4]

template<typename Base, typename... Proxies>

void HF::Interfaces::Container< Base, Proxies >::for_each ( std::function< void(HF::Interface &)>  func ) const

inlineprotected

Call the given function for all the interfaces.

Parameters

[in]

func

function to call with each of the optional implemented interfaces.

Definition at line 540 of file interface.h.

Referenced by HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::for_each(), and HF::Interfaces::Container< HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... >, Proxy< ITF, HF::Units::Unit< HF::Profiles::SimpleOnOffSwitch, ITF... > >... >::interfaces().

         {
            for_each<0, Proxies...>(func);
         }

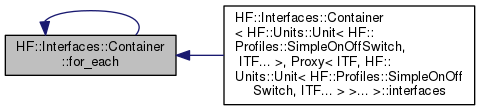

Here is the caller graph for this function:

for_each() [2/4]

template<typename Base, typename... Proxies>

void HF::Interfaces::Container< Base, Proxies >::for_each ( std::function< void(HF::Interface &)>  func )

inlineprotected

Call the given function for all the interfaces.

Parameters

[in]

func

function to call with each of the optional implemented interfaces.

Definition at line 550 of file interface.h.

         {
            for_each<0, Proxies...>(func);
         }

for_each() [3/4]

template<typename Base, typename... Proxies>

template<uint8_t N, typename Head , typename... Tail>

void HF::Interfaces::Container< Base, Proxies >::for_each ( std::function< void(HF::Interface &)>  func ) const

inlineprotected

Helper template function to implement the HF::Units::Unit::for_each functionality.

Parameters

[in]

func

function to call with the reference for the wrapped interface at index N.

Template Parameters

N	index in the wrapped interfaces tuple to check if UID matches.
Head	class for the wrapped interface at the given index.
Tail	the classes associated with the remaining wrapped interfaces.

Definition at line 615 of file interface.h.

         {
            const auto &head = std::get<N>(this->_interfaces);

            func(*(const_cast<HF::Interface *>(static_cast<const HF::Interface *>(&head))));

            for_each<N + 1, Tail...>(func);
         }

for_each() [4/4]

template<typename Base, typename... Proxies>

template<uint8_t N>

void HF::Interfaces::Container< Base, Proxies >::for_each ( std::function< void(HF::Interface &)>  func ) const

inlineprotected

Helper template function to implement the HF::Units::Unit::for_each functionality.

Parameters

[in]

func

function to call with the reference for the wrapped interface at index N.

Template Parameters

N	index in the wrapped interfaces tuple to check if UID matches.

Definition at line 633 of file interface.h.

         {
            UNUSED(func);
         }

get()

template<typename Base, typename... Proxies>

template<uint8_t N>

const std::tuple_element<N, interfaces_t>::type::base* HF::Interfaces::Container< Base, Proxies >::get ( ) const

inline

Retrieve a pointer to the N optional interface implemented by this unit.

Template Parameters

N	index of the interface to retrieve the pointer to.

Returns

a pointer to the optional implemented interface.

Definition at line 528 of file interface.h.

         {
            return &std::get<N>(_interfaces);
         }

handle()

template<typename Base, typename... Proxies>

Common::Result HF::Interfaces::Container< Base, Proxies >::handle ( Protocol::Packet &  packet, Common::ByteArray &  payload, uint16_t  offset  )

inline

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns

the result of the message processing.

Definition at line 463 of file interface.h.

Referenced by HF::Profiles::ProfileN< DIMMABLE_COLOUR_BULB, OnOffServer, ColourControlServer, LevelControlServer >::handle().

         {
            HF::Interface *itf = find<0, Proxies...>(packet.message.itf.id);

            if (itf != nullptr)
            {
               return itf->handle(packet, payload, offset);
            }
            else
            {
               return Common::Result::FAIL_SUPPORT;
            }
         }

Here is the caller graph for this function:

interfaces()

template<typename Base, typename... Proxies>

std::vector<Common::Interface> HF::Interfaces::Container< Base, Proxies >::interfaces ( ) const

inline

Return the list of interfaces present in the wrapper.

Returns

a vector containing the UIDs for the interfaces wrapped by this class.

Definition at line 495 of file interface.h.

         {
            std::vector<Common::Interface> result;
            result.reserve(sizeof ... (Proxies));

            Common::Interface temp;
            /* *INDENT-OFF* */
            for_each ([&result, &temp](HF::Interface &itf)
            {
                temp.id = itf.uid ();
                temp.role = itf.role ();
                result.push_back (temp);
            });
            /* *INDENT-ON* */

            return result;
         }

---

The documentation for this class was generated from the following file:

• interface.h
