HF::Profiles::Profile< _uid, Interface > Struct Template Reference

Class template for profiles containing only one interface. More...

#include <profiles.h>

Inheritance diagram for HF::Profiles::Profile< _uid, Interface >:

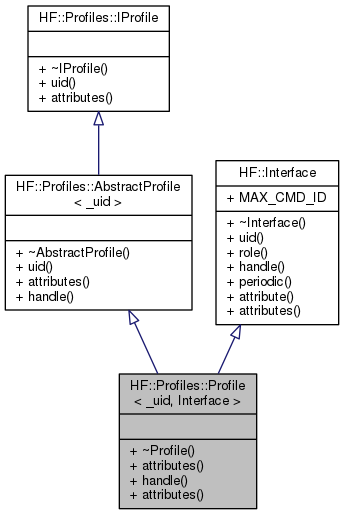

Collaboration diagram for HF::Profiles::Profile< _uid, Interface >:

Public Member Functions
HF::Attributes::List	attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...
virtual Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0
	Handle incoming messages from the network. More...
virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const=0
	Return a vector containing the attribute UIDs, for the given pack ID. More...
Public Member Functions inherited from HF::Profiles::AbstractProfile< _uid >
uint16_t	uid () const
	Return this profile HAN-FUN UID. More...
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
Public Member Functions inherited from HF::Interface
virtual uint16_t	uid () const =0
	This method returns the interface UID. More...
virtual Interface::Role	role () const =0
	Return the Interface::Role this interface implements. More...
virtual Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0
	Handle incoming messages from the network. More...
virtual void	periodic (uint32_t time)=0
	Handle periodic processing. More...
virtual HF::Attributes::IAttribute *	attribute (uint8_t uid)=0
	Return a pointer to the interface attribute with the given uid. More...
virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const =0
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...
enum	UID {   DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004,   DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008,   WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102,   POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400,   ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202,   SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302,   SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306,   SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...
Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Detailed Description

template<uint16_t _uid, class Interface>
struct HF::Profiles::Profile< _uid, Interface >

Class template for profiles containing only one interface.

Definition at line 305 of file profiles.h.

Member Function Documentation

attributes() [1/2]

template<uint16_t _uid, class Interface>

virtual HF::Attributes::UIDS HF::Interface::attributes

Return a vector containing the attribute UIDs, for the given pack ID.

Parameters

[in]

pack_id

the Attribute pack ID to get the attributes UIDs for.

Returns

vector containing the attributes UIDs.

attributes() [2/2]

template<uint16_t _uid, class Interface>

HF::Attributes::List HF::Profiles::Profile< _uid, Interface >::attributes ( Common::Interface  itf, uint8_t  pack_id, const HF::Attributes::UIDS &  uids  ) const

inlinevirtual

Return a list of all the attributes for a given interface, pack id and list of attributes UID's.

Parameters

[in]	itf	interface UID.
[in]	pack_id	attribute pack id.
[in]	uids	list of attributes UID's.

Returns

attribute list.

Reimplemented from HF::Profiles::AbstractProfile< _uid >.

Definition at line 314 of file profiles.h.

         {
            if (Interface::uid() == itf.id)
            {
               return HF::Attributes::get(*this, pack_id, uids);
            }
            else
            {
               return HF::Attributes::List();
            }
         }

handle()

template<uint16_t _uid, class Interface>

virtual Common::Result HF::Interface::handle

Handle incoming messages from the network.

Parameters

[in]	packet	the packet receive from the network.
[in]	payload	the byte array containing the data received from the network.
[in]	offset	the offset the payload start at in the byte array.

Returns

the result of the message processing.

---

The documentation for this struct was generated from the following file:

• profiles.h
