Colour Control Interface : Server side implementation. More...

#include <colour_control.h>

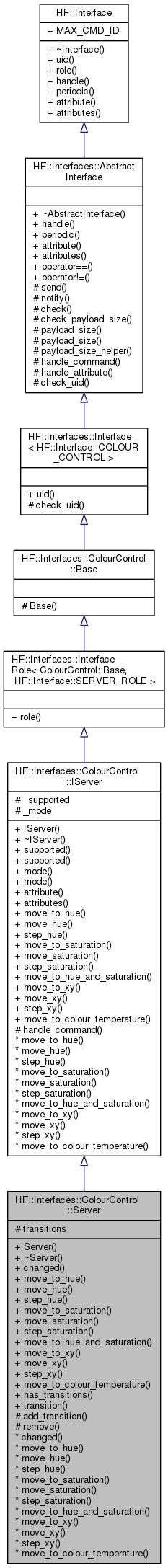

Inheritance diagram for HF::Interfaces::ColourControl::Server:

Collaboration diagram for HF::Interfaces::ColourControl::Server:

Public Types
typedef std::vector< ITransition * >	Container
	Container for the transitions.

Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Public Member Functions
	Server ()
	Constructor.

virtual	~Server ()
	Destructor.

Events
virtual void	changed (void)
	Inform the APP that a new transition was added.

Common::Result	move_to_hue (const Protocol::Address &addr, const MoveToHueMessage &message)
	Callback that is called when a `ColourControl::MOVE_TO_HUE_CMD`, is received. More...

Common::Result	move_hue (const Protocol::Address &addr, const MoveHueMessage &message)
	Callback that is called when a `ColourControl::MOVE_HUE_CMD`, is received. More...

Common::Result	step_hue (const Protocol::Address &addr, const StepHueMessage &message)
	Callback that is called when a `ColourControl::STEP_HUE_CMD`, is received. More...

Common::Result	move_to_saturation (const Protocol::Address &addr, const MoveToSaturationMessage &message)
	Callback that is called when a `ColourControl::MOVE_TO_SATURATION_CMD`, is received. More...

Common::Result	move_saturation (const Protocol::Address &addr, const MoveSaturationMessage &message)
	Callback that is called when a `ColourControl::MOVE_SATURATION_CMD`, is received. More...

Common::Result	step_saturation (const Protocol::Address &addr, const StepSaturationMessage &message)
	Callback that is called when a `ColourControl::STEP_SATURATION_CMD`, is received. More...

Common::Result	move_to_hue_and_saturation (const Protocol::Address &addr, const MoveToHueSaturationMessage &message)
	Callback that is called when a `ColourControl::MOVE_TO_HUE_AND_SATURATION_CMD`, is received. More...

Common::Result	move_to_xy (const Protocol::Address &addr, const MoveToXYMessage &message)
	Callback that is called when a `ColourControl::MOVE_TO_XY_CMD`, is received. More...

Common::Result	move_xy (const Protocol::Address &addr, const MoveXYMessage &message)
	Callback that is called when a `ColourControl::MOVE_XY_CMD`, is received. More...

Common::Result	step_xy (const Protocol::Address &addr, const StepXYMessage &message)
	Callback that is called when a `ColourControl::STEP_XY_CMD`, is received. More...

Common::Result	move_to_colour_temperature (const Protocol::Address &addr, const MoveToTemperatureMessage &message)
	Callback that is called when a `ColourControl::MOVE_TO_COLOUR_TEMPERATURE_CMD`, is received. More...

Public Member Functions inherited from HF::Interfaces::ColourControl::IServer
	IServer ()
	Constructor.

virtual	~IServer ()
	Destructor.

uint8_t	supported () const
	Get the supported modes bitmask for the Colour Control server. More...

void	supported (uint8_t __value)
	Set the supported modes bitmask for the Colour Control server. More...

uint8_t	mode () const
	Get the current active mode for the Colour Control server. More...

void	mode (uint8_t __value)
	Set the current mode for the Colour Control server. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< ColourControl::Base, HF::Interface::SERVER_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::COLOUR_CONTROL >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

Static Public Member Functions
static uint16_t	has_transitions ()
	Check if there are transitions to run. More...

static uint16_t	transition (void)
	Method responsible for updating the all the transitions. More...

Protected Member Functions
void	add_transition (ITransition *t)
	Add a transition to the list. More...

void	remove (IServer const &itf)
	Remove a transition from the list. More...

Protected Member Functions inherited from HF::Interfaces::ColourControl::IServer
Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Protected Member Functions inherited from HF::Interfaces::ColourControl::Base
	Base ()
	Constructor.

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::COLOUR_CONTROL >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Additional Inherited Members
Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Attributes inherited from HF::Interfaces::ColourControl::IServer
uint8_t	_supported
	Supported modes. More...

uint8_t	_mode
	Current Active Mode. More...

Detailed Description

Colour Control Interface : Server side implementation.

This class provides the server side of the Colour Control interface.

Definition at line 1542 of file colour_control.h.

Member Function Documentation

◆ add_transition()

void HF::Interfaces::ColourControl::Server::add_transition ( ITransition * t )

inlineprotected

Add a transition to the list.

Parameters

[in] t the transition to be added.

Definition at line 1636 of file colour_control.h.

References changed().

             {
                transitions.push_back(t);
                changed();
             }

Here is the call graph for this function:

◆ has_transitions()

static uint16_t HF::Interfaces::ColourControl::Server::has_transitions ( )

inlinestatic

Check if there are transitions to run.

Returns: The time left for the next transition, or 0 if there are no transitions.

Definition at line 1562 of file colour_control.h.

             {
                return transitions.empty() ? 0 : transitions.front()->remaining_time;
             }

◆ move_hue()

Common::Result HF::Interfaces::ColourControl::Server::move_hue	(	const Protocol::Address &	addr,
		const MoveHueMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_HUE_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveHueMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_saturation()

Common::Result HF::Interfaces::ColourControl::Server::move_saturation	(	const Protocol::Address &	addr,
		const MoveSaturationMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_SATURATION_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveSaturationMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_to_colour_temperature()

Common::Result HF::Interfaces::ColourControl::Server::move_to_colour_temperature	(	const Protocol::Address &	addr,
		const MoveToTemperatureMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_TO_COLOUR_TEMPERATURE_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveToTemperatureMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_to_hue()

Common::Result HF::Interfaces::ColourControl::Server::move_to_hue	(	const Protocol::Address &	addr,
		const MoveToHueMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_TO_HUE_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveToHueMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_to_hue_and_saturation()

Common::Result HF::Interfaces::ColourControl::Server::move_to_hue_and_saturation	(	const Protocol::Address &	addr,
		const MoveToHueSaturationMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_TO_HUE_AND_SATURATION_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveToHueSaturationMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_to_saturation()

Common::Result HF::Interfaces::ColourControl::Server::move_to_saturation	(	const Protocol::Address &	addr,
		const MoveToSaturationMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_TO_SATURATION_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveToSaturationMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_to_xy()

Common::Result HF::Interfaces::ColourControl::Server::move_to_xy	(	const Protocol::Address &	addr,
		const MoveToXYMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_TO_XY_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveToXYMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ move_xy()

Common::Result HF::Interfaces::ColourControl::Server::move_xy	(	const Protocol::Address &	addr,
		const MoveXYMessage &	message
	)

virtual

Callback that is called when a ColourControl::MOVE_XY_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `MoveXYMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ remove()

void HF::Interfaces::ColourControl::Server::remove ( IServer const & itf )

inlineprotected

Remove a transition from the list.

Parameters

[in] itf the server reference to search for a transition.

Definition at line 1647 of file colour_control.h.

             {
                auto compare = [&itf](ITransition *entry)
                               {
                                  if (&(entry->server) == &(itf))
                                  {
                                     delete entry;
                                     return true;
                                  }

                                  return false;
                               };

                transitions.erase(std::remove_if(transitions.begin(), transitions.end(),
                                                 compare), transitions.end());
             }

◆ step_hue()

Common::Result HF::Interfaces::ColourControl::Server::step_hue	(	const Protocol::Address &	addr,
		const StepHueMessage &	message
	)

virtual

Callback that is called when a ColourControl::STEP_HUE_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `StepHueMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ step_saturation()

Common::Result HF::Interfaces::ColourControl::Server::step_saturation	(	const Protocol::Address &	addr,
		const StepSaturationMessage &	message
	)

virtual

Callback that is called when a ColourControl::STEP_SATURATION_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `StepSaturationMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ step_xy()

Common::Result HF::Interfaces::ColourControl::Server::step_xy	(	const Protocol::Address &	addr,
		const StepXYMessage &	message
	)

virtual

Callback that is called when a ColourControl::STEP_XY_CMD, is received.

Parameters

[in]	addr	the network address to send the message to.
[in]	message	the `StepXYMessage` received.

Return values

Result::OK	if the request could be processed,
Result::FAIL_ARG	otherwise.

Reimplemented from HF::Interfaces::ColourControl::IServer.

◆ transition()

static uint16_t HF::Interfaces::ColourControl::Server::transition ( void )

static

Method responsible for updating the all the transitions.

This method updates the time remaining until a transition needs to be ran. If the remaining time is 0 then it runs the transition.

Note: This method should only be called when a transition should occur. This isn't a polling method.

Returns: period (in units of 100msec) until the next transition.

The documentation for this struct was generated from the following file:

colour_control.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_transition()

◆ has_transitions()

◆ move_hue()

◆ move_saturation()

◆ move_to_colour_temperature()

◆ move_to_hue()

◆ move_to_hue_and_saturation()

◆ move_to_saturation()

◆ move_to_xy()

◆ move_xy()

◆ remove()

◆ step_hue()

◆ step_saturation()

◆ step_xy()

◆ transition()
