HF::Interfaces::ColourControl::MoveToXYMessage Struct Reference

Move to XY Message class. More...

#include <colour_control.h>

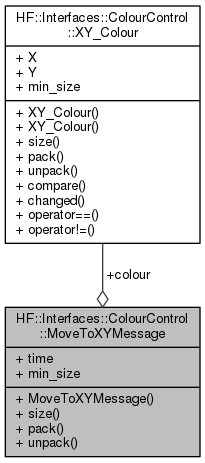

Collaboration diagram for HF::Interfaces::ColourControl::MoveToXYMessage:

Public Member Functions
	MoveToXYMessage (XY_Colour colour=XY_Colour(0, 0), uint16_t time=0)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
uint16_t	time
	time of a single step transition (units of 100msec). More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

Move to XY Message class.

This class implements the necessary functions for message serialization.

Definition at line 723 of file colour_control.h.

Constructor & Destructor Documentation

MoveToXYMessage()

HF::Interfaces::ColourControl::MoveToXYMessage::MoveToXYMessage ( XY_Colour  colour = XY_Colour(0, 0), uint16_t  time = 0  )

inline

Constructor.

Parameters

[in]	colour	the colour value.
[in]	time	time of a single step transition (units of 100msec).

Definition at line 734 of file colour_control.h.

                                                                                  :
               colour(colour), time(time)
            {}

Member Function Documentation

pack()

uint16_t HF::Interfaces::ColourControl::MoveToXYMessage::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Interfaces::ColourControl::MoveToXYMessage::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 744 of file colour_control.h.

References min_size.

            {
               return min_size;
            }

unpack()

uint16_t HF::Interfaces::ColourControl::MoveToXYMessage::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Field Documentation

time

uint16_t HF::Interfaces::ColourControl::MoveToXYMessage::time

time of a single step transition (units of 100msec).

Definition at line 726 of file colour_control.h.

---

The documentation for this struct was generated from the following file:

• colour_control.h
