HAN-FUN API
1.5.3
This project provides the common implementation of ULE Alliance's HAN-FUN application protocol.
|
|
HAN-FUN API
1.5.3
This project provides the common implementation of ULE Alliance's HAN-FUN application protocol.
|
Simple Power Meter profile implementation. More...
#include <profiles.h>

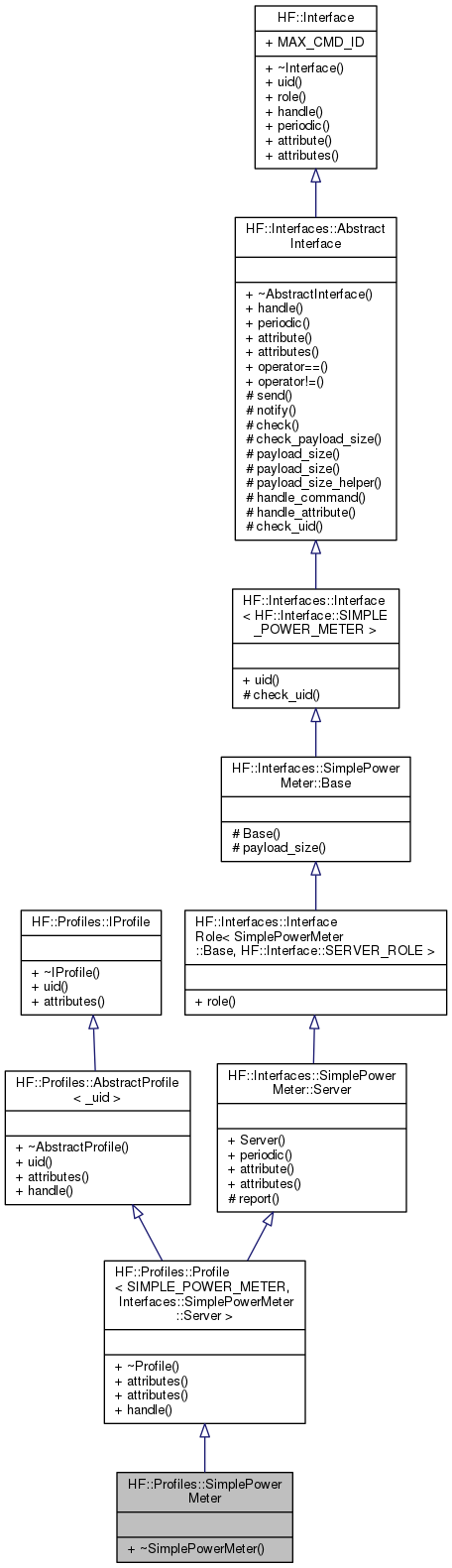

Inheritance diagram for HF::Profiles::SimplePowerMeter: Collaboration diagram for HF::Profiles::SimplePowerMeter:Additional Inherited Members | |
| Public Types inherited from HF::Interface | |
| enum | Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 } |
| Interface roles. More... | |
| enum | UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF } |
| Interfaces Unique Identifiers (UID). More... | |
| Public Member Functions inherited from HF::Profiles::Profile< SIMPLE_POWER_METER, Interfaces::SimplePowerMeter::Server > | |
| virtual HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const =0 |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| virtual Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0 |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Profiles::AbstractProfile< _uid > | |
| uint16_t | uid () const |
| Return this profile HAN-FUN UID. More... | |
| HF::Attributes::List | attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More... | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Interfaces::SimplePowerMeter::Server | |
| Server () | |
| Constructor. | |
| void | periodic (uint32_t time) |
| Handle periodic processing. More... | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
| HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| Public Member Functions inherited from HF::Interfaces::InterfaceRole< SimplePowerMeter::Base, HF::Interface::SERVER_ROLE > | |
| HF::Interface::Role | role () const |
| Return the Interface::Role this interface implements. More... | |
| Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_POWER_METER > | |
| uint16_t | uid () const |
| This method returns the interface UID. More... | |
| Public Member Functions inherited from HF::Interfaces::AbstractInterface | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Static Public Attributes inherited from HF::Interface | |
| static constexpr uint8_t | MAX_CMD_ID = 0xFF |
| Maximum value for command IDs in interfaces. | |
| Protected Member Functions inherited from HF::Interfaces::SimplePowerMeter::Server | |
| virtual Report * | report () |
| Create a report message. More... | |
| Protected Member Functions inherited from HF::Interfaces::SimplePowerMeter::Base | |
| uint16_t | payload_size (Protocol::Message::Interface &itf) const |
| Return the minimal payload size that a message should hold when addressed at the given interface. More... | |
| Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_POWER_METER > | |
| bool | check_uid (uint16_t uid) const |
| Protected Member Functions inherited from HF::Interfaces::AbstractInterface | |
| virtual void | send (const Protocol::Address &addr, Protocol::Message &message)=0 |
Send message msg to the network address given by addr. More... | |
| virtual void | notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const |
| Notify that an attribute value as changed. More... | |
| Common::Result | check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
| Check if message has correct attributes to be processed by the interface. More... | |
| Common::Result | check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
Check if payload data size if sufficient for processing the message. More... | |
| virtual uint16_t | payload_size (Protocol::Message &message) const |
| Return the minimal payload size that should be present for the given message. More... | |
| template<typename _Message > | |
| uint16_t | payload_size_helper () const |
| Helper function template to retrieve minimum size required for serializing/deserializing the class given. More... | |
| virtual Common::Result | handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| virtual Common::Result | handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
Simple Power Meter profile implementation.
Definition at line 736 of file profiles.h.
