Simple Meter report. More...

#include <simple_power_meter.h>

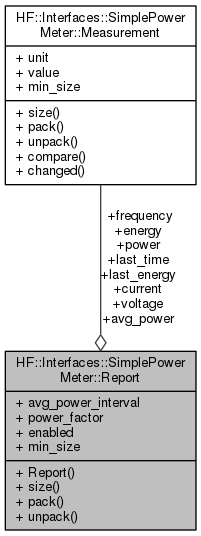

Collaboration diagram for HF::Interfaces::SimplePowerMeter::Report:

Public Member Functions
uint16_t	size () const
	Number bytes needed to serialize the message. More...

uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
Measurement	energy
	Energy measurement. More...

Measurement	last_energy
	Energy measurement at last reset. More...

Measurement	last_time
	Device time measurement at last reset. More...

Measurement	power
	Instantaneous Power measurement. More...

Measurement	avg_power
	Average Power measurement. More...

uint16_t	avg_power_interval
	Average Power Interval. More...

uint8_t	power_factor
	Power Factor. More...

Measurement	voltage
	Voltage measurement. More...

Measurement	current
	Current measurement. More...

Measurement	frequency
	Frequency measurement. More...

std::array< bool, __LAST_ATTR__+1 >	enabled
	This array contains an indication of with attributes should be packed or were unpacked.

Static Public Attributes
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum pack/unpack required data size.

Detailed Description

Simple Meter report.

Todo:: This needs a way to dynamically add only the attributes that are needed to the report.

Definition at line 222 of file simple_power_meter.h.

Member Function Documentation

◆ pack()

uint16_t HF::Interfaces::SimplePowerMeter::Report::pack	(	Common::ByteArray &	array,
		uint16_t	offset = `0`
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns: the number of bytes written.

◆ size()

uint16_t HF::Interfaces::SimplePowerMeter::Report::size ( ) const

Number bytes needed to serialize the message.

Returns: number of bytes the message requires to be serialized.

◆ unpack()

uint16_t HF::Interfaces::SimplePowerMeter::Report::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = `0`
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns: the number of bytes read.

Field Documentation

◆ avg_power

Measurement HF::Interfaces::SimplePowerMeter::Report::avg_power

Average Power measurement.

Definition at line 230 of file simple_power_meter.h.

◆ avg_power_interval

uint16_t HF::Interfaces::SimplePowerMeter::Report::avg_power_interval

Average Power Interval.

Definition at line 232 of file simple_power_meter.h.

◆ current

Measurement HF::Interfaces::SimplePowerMeter::Report::current

Current measurement.

Definition at line 237 of file simple_power_meter.h.

◆ energy

Measurement HF::Interfaces::SimplePowerMeter::Report::energy

Energy measurement.

Definition at line 224 of file simple_power_meter.h.

◆ frequency

Measurement HF::Interfaces::SimplePowerMeter::Report::frequency

Frequency measurement.

Definition at line 238 of file simple_power_meter.h.

◆ last_energy

Measurement HF::Interfaces::SimplePowerMeter::Report::last_energy

Energy measurement at last reset.

Definition at line 226 of file simple_power_meter.h.

◆ last_time

Measurement HF::Interfaces::SimplePowerMeter::Report::last_time

Device time measurement at last reset.

Definition at line 227 of file simple_power_meter.h.

◆ power

Measurement HF::Interfaces::SimplePowerMeter::Report::power

Instantaneous Power measurement.

Definition at line 229 of file simple_power_meter.h.

◆ power_factor

uint8_t HF::Interfaces::SimplePowerMeter::Report::power_factor

Power Factor.

Definition at line 234 of file simple_power_meter.h.

◆ voltage

Measurement HF::Interfaces::SimplePowerMeter::Report::voltage

Voltage measurement.

Definition at line 236 of file simple_power_meter.h.

The documentation for this struct was generated from the following file:

simple_power_meter.h
