Simple Button profile implementation. More...
#include <profiles.h>

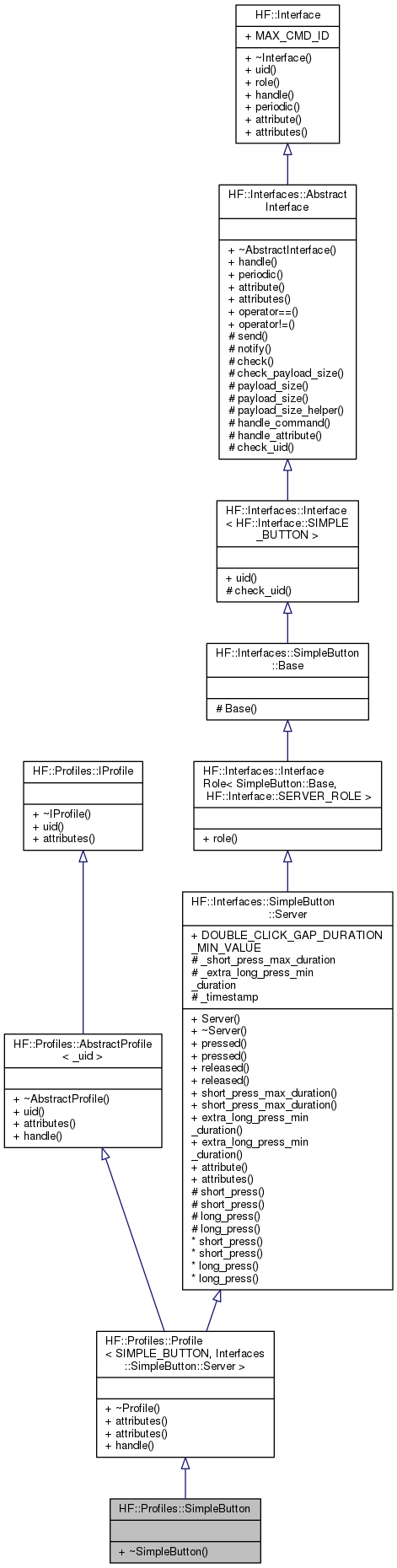

Inheritance diagram for HF::Profiles::SimpleButton: Collaboration diagram for HF::Profiles::SimpleButton:Additional Inherited Members | |
| Public Types inherited from HF::Interface | |
| enum | Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 } |
| Interface roles. More... | |
| enum | UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF } |
| Interfaces Unique Identifiers (UID). More... | |
| Public Member Functions inherited from HF::Profiles::Profile< SIMPLE_BUTTON, Interfaces::SimpleButton::Server > | |
| virtual HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const =0 |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| virtual Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)=0 |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Profiles::AbstractProfile< _uid > | |
| uint16_t | uid () const |
| Return this profile HAN-FUN UID. More... | |
| HF::Attributes::List | attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const |
| Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More... | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Public Member Functions inherited from HF::Interfaces::SimpleButton::Server | |
| Server () | |
| Constructor. | |
| virtual | ~Server () |
| Destructor. | |
| void | pressed (const Protocol::Address &addr, uint16_t timestamp) |
| This method is used to indicate that the button was pressed and generate the appropriate message, to the given address. More... | |
| void | pressed (uint16_t timestamp) |
| This method is used to indicate that the button was pressed. More... | |
| void | released (const Protocol::Address &addr, uint16_t timestamp) |
| This method is used to indicate that the button was released and generate the appropriate message, to the given address. More... | |
| void | released (uint16_t timestamp) |
This method is used to indicate that the button was released and generate the appropriate message, to the given broadcast address based on the difference between the timestamp of the last call to pressed and the given timestamp. More... | |
| uint16_t | short_press_max_duration () const |
| Get the Short Press Max Duration for the Simple Button server. More... | |
| virtual void | short_press_max_duration (uint16_t __value) |
| Set the Short Press Max Duration for the Simple Button server. More... | |
| uint16_t | extra_long_press_min_duration () const |
| Get the Extra Long Press Min Duration for the Simple Button server. More... | |
| virtual void | extra_long_press_min_duration (uint16_t __value) |
| Set the Extra Long Press Min Duration for the Simple Button server. More... | |
| HF::Attributes::IAttribute * | attribute (uint8_t uid) |
Return a pointer to the interface attribute with the given uid. More... | |
| HF::Attributes::UIDS | attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const |
| Return a vector containing the attribute UIDs, for the given pack ID. More... | |
| Public Member Functions inherited from HF::Interfaces::InterfaceRole< SimpleButton::Base, HF::Interface::SERVER_ROLE > | |
| HF::Interface::Role | role () const |
| Return the Interface::Role this interface implements. More... | |
| Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_BUTTON > | |
| uint16_t | uid () const |
| This method returns the interface UID. More... | |
| Public Member Functions inherited from HF::Interfaces::AbstractInterface | |
| Common::Result | handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| void | periodic (uint32_t time) |
| Handle periodic processing. More... | |
| Static Public Attributes inherited from HF::Interfaces::SimpleButton::Server | |
| static constexpr uint16_t | DOUBLE_CLICK_GAP_DURATION_MIN_VALUE = 0x0064 |
| This is the minimum value that the Double Click Gap Duration can have. | |
| Static Public Attributes inherited from HF::Interface | |
| static constexpr uint8_t | MAX_CMD_ID = 0xFF |
| Maximum value for command IDs in interfaces. | |
| Protected Member Functions inherited from HF::Interfaces::SimpleButton::Server | |
| void | short_press (const Protocol::Address &addr) |
Send a HAN-FUN message containing a SimpleButton::SHORT_PRESS_CMD, to the given network address. More... | |
| void | short_press () |
Send a HAN-FUN message containing a SimpleButton::SHORT_PRESS_CMD, to the broadcast network address. | |
| void | long_press (const Protocol::Address &addr) |
Send a HAN-FUN message containing a SimpleButton::LONG_PRESS_CMD, to the given network address. More... | |
| void | long_press () |
Send a HAN-FUN message containing a SimpleButton::LONG_PRESS_CMD, to the broadcast network address. | |
| Protected Member Functions inherited from HF::Interfaces::SimpleButton::Base | |
| Base () | |
| Constructor. | |
| Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::SIMPLE_BUTTON > | |
| bool | check_uid (uint16_t uid) const |
| Protected Member Functions inherited from HF::Interfaces::AbstractInterface | |
| virtual void | send (const Protocol::Address &addr, Protocol::Message &message)=0 |
Send message msg to the network address given by addr. More... | |
| virtual void | notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const |
| Notify that an attribute value as changed. More... | |
| Common::Result | check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
| Check if message has correct attributes to be processed by the interface. More... | |
| Common::Result | check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset) |
Check if payload data size if sufficient for processing the message. More... | |
| virtual uint16_t | payload_size (Protocol::Message &message) const |
| Return the minimal payload size that should be present for the given message. More... | |
| virtual uint16_t | payload_size (Protocol::Message::Interface &itf) const |
| Return the minimal payload size that a message should hold when addressed at the given interface. More... | |
| template<typename _Message > | |
| uint16_t | payload_size_helper () const |
| Helper function template to retrieve minimum size required for serializing/deserializing the class given. More... | |
| virtual Common::Result | handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| virtual Common::Result | handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset) |
| Handle incoming messages from the network. More... | |
| Protected Attributes inherited from HF::Interfaces::SimpleButton::Server | |
| uint16_t | _short_press_max_duration |
| Short Press Max Duration. | |
| uint16_t | _extra_long_press_min_duration |
| Extra Long Press Minimum Duration. | |
| uint16_t | _timestamp |
| Timestamp of last call. More... | |
Simple Button profile implementation.
Definition at line 810 of file profiles.h.
