Colour Control Interface : Client side implementation. More...

#include <colour_control.h>

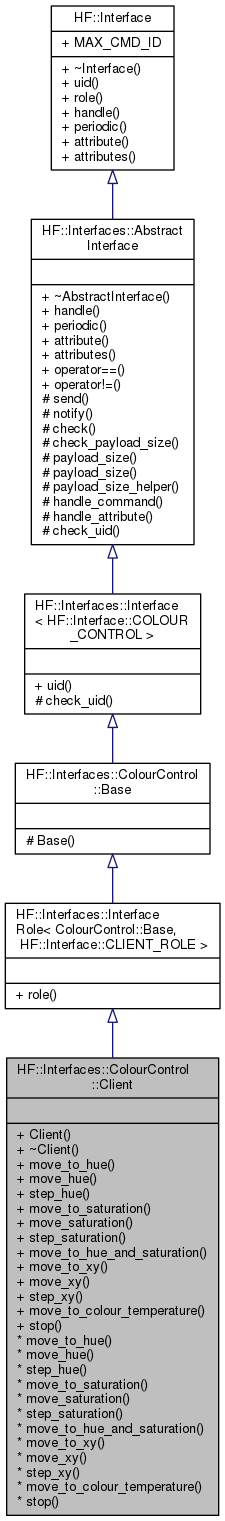

Inheritance diagram for HF::Interfaces::ColourControl::Client:

Collaboration diagram for HF::Interfaces::ColourControl::Client:

Public Member Functions
Commands
void	move_to_hue (const Protocol::Address &addr, uint16_t hue, Direction direction, uint16_t transition)
	Send a HAN-FUN message containing a `ColourControl::MOVE_TO_HUE_CMD`, to the given network address. More...

void	move_hue (const Protocol::Address &addr, Direction direction, uint16_t rate)
	Send a HAN-FUN message containing a `ColourControl::MOVE_HUE_CMD`, to the given network address. More...

void	step_hue (const Protocol::Address &addr, uint8_t step, Direction direction, uint8_t time)
	Send a HAN-FUN message containing a `ColourControl::STEP_HUE_CMD`, to the given network address. More...

void	move_to_saturation (const Protocol::Address &addr, uint8_t saturation, Direction direction, uint16_t transition)
	Send a HAN-FUN message containing a `ColourControl::MOVE_TO_SATURATION_CMD`, to the given network address. More...

void	move_saturation (const Protocol::Address &addr, Direction direction, uint8_t rate)
	Send a HAN-FUN message containing a `ColourControl::MOVE_SATURATION_CMD`, to the given network address. More...

void	step_saturation (const Protocol::Address &addr, uint8_t step, Direction direction, uint8_t time)
	Send a HAN-FUN message containing a `ColourControl::STEP_SATURATION_CMD`, to the given network address. More...

void	move_to_hue_and_saturation (const Protocol::Address &addr, HS_Colour colour, Direction direction, uint16_t time)
	Send a HAN-FUN message containing a `ColourControl::MOVE_TO_HUE_AND_SATURATION_CMD`, to the given network address. More...

void	move_to_xy (const Protocol::Address &addr, XY_Colour colour, uint16_t time)
	Send a HAN-FUN message containing a `ColourControl::MOVE_TO_XY_CMD`, to the given network address. More...

void	move_xy (const Protocol::Address &addr, int16_t X_rate, int16_t Y_rate)
	Send a HAN-FUN message containing a `ColourControl::MOVE_XY_CMD`, to the given network address. More...

void	step_xy (const Protocol::Address &addr, int16_t X_step, int16_t Y_step, uint8_t time)
	Send a HAN-FUN message containing a `ColourControl::STEP_XY_CMD`, to the given network address. More...

void	move_to_colour_temperature (const Protocol::Address &addr, uint16_t colour, uint16_t time)
	Send a HAN-FUN message containing a `ColourControl::MOVE_TO_COLOUR_TEMPERATURE_CMD`, to the given network address. More...

void	stop (const Protocol::Address &addr)
	Send a HAN-FUN message containing a `ColourControl::STOP_CMD`, to the given network address. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< ColourControl::Base, HF::Interface::CLIENT_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::COLOUR_CONTROL >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Member Functions inherited from HF::Interfaces::ColourControl::Base
	Base ()
	Constructor.

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::COLOUR_CONTROL >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

virtual uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Detailed Description

Colour Control Interface : Client side implementation.

This class provides the client side of the Colour Control interface.

Definition at line 1670 of file colour_control.h.

Member Function Documentation

◆ move_hue()

void HF::Interfaces::ColourControl::Client::move_hue	(	const Protocol::Address &	addr,
		Direction	direction,
		uint16_t	rate
	)

Send a HAN-FUN message containing a ColourControl::MOVE_HUE_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	direction	the direction of change.
[in]	rate	the rate of change.

◆ move_saturation()

void HF::Interfaces::ColourControl::Client::move_saturation	(	const Protocol::Address &	addr,
		Direction	direction,
		uint8_t	rate
	)

Send a HAN-FUN message containing a ColourControl::MOVE_SATURATION_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	direction	the direction of change.
[in]	rate	the rate of change.

◆ move_to_colour_temperature()

void HF::Interfaces::ColourControl::Client::move_to_colour_temperature	(	const Protocol::Address &	addr,
		uint16_t	colour,
		uint16_t	time
	)

Send a HAN-FUN message containing a ColourControl::MOVE_TO_COLOUR_TEMPERATURE_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	colour	the colour temperature to move to.
[in]	time	the number of milliseconds to perform the move in.

◆ move_to_hue()

void HF::Interfaces::ColourControl::Client::move_to_hue	(	const Protocol::Address &	addr,
		uint16_t	hue,
		Direction	direction,
		uint16_t	transition
	)

Send a HAN-FUN message containing a ColourControl::MOVE_TO_HUE_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	hue	the hue value to move to.
[in]	direction	the direction of change.
[in]	transition	the time interval to make the transition.

◆ move_to_hue_and_saturation()

void HF::Interfaces::ColourControl::Client::move_to_hue_and_saturation	(	const Protocol::Address &	addr,
		HS_Colour	colour,
		Direction	direction,
		uint16_t	time
	)

Send a HAN-FUN message containing a ColourControl::MOVE_TO_HUE_AND_SATURATION_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	colour	the new colour value.
[in]	direction	direction of movement.
[in]	time	transition time (in units of 100ms).

◆ move_to_saturation()

void HF::Interfaces::ColourControl::Client::move_to_saturation	(	const Protocol::Address &	addr,
		uint8_t	saturation,
		Direction	direction,
		uint16_t	transition
	)

Send a HAN-FUN message containing a ColourControl::MOVE_TO_SATURATION_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	saturation	the new saturation value.
[in]	direction	direction of movement.
[in]	transition	transition time (in units of 100ms).

◆ move_to_xy()

void HF::Interfaces::ColourControl::Client::move_to_xy	(	const Protocol::Address &	addr,
		XY_Colour	colour,
		uint16_t	time
	)

Send a HAN-FUN message containing a ColourControl::MOVE_TO_XY_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	colour	the new colour value.
[in]	time	transition time (in units of 100ms).

◆ move_xy()

void HF::Interfaces::ColourControl::Client::move_xy	(	const Protocol::Address &	addr,
		int16_t	X_rate,
		int16_t	Y_rate
	)

Send a HAN-FUN message containing a ColourControl::MOVE_XY_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	X_rate	the X rate of change (in units of sec).
[in]	Y_rate	the Y rate of change (in units of sec).

◆ step_hue()

void HF::Interfaces::ColourControl::Client::step_hue	(	const Protocol::Address &	addr,
		uint8_t	step,
		Direction	direction,
		uint8_t	time
	)

Send a HAN-FUN message containing a ColourControl::STEP_HUE_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	step	the step size.
[in]	direction	the direction of change.
[in]	time	time to perform a single step.

◆ step_saturation()

void HF::Interfaces::ColourControl::Client::step_saturation	(	const Protocol::Address &	addr,
		uint8_t	step,
		Direction	direction,
		uint8_t	time
	)

Send a HAN-FUN message containing a ColourControl::STEP_SATURATION_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	step	the step size.
[in]	direction	the direction of change.
[in]	time	time to perform a single step.

◆ step_xy()

void HF::Interfaces::ColourControl::Client::step_xy	(	const Protocol::Address &	addr,
		int16_t	X_step,
		int16_t	Y_step,
		uint8_t	time
	)

Send a HAN-FUN message containing a ColourControl::STEP_XY_CMD, to the given network address.

Parameters

[in]	addr	the network address to send the message to.
[in]	X_step	the X rate of change. (in units of sec)
[in]	Y_step	the Y rate of change. (in units of sec)
[in]	time	time to perform a single step. (in units of 100msec)

◆ stop()

void HF::Interfaces::ColourControl::Client::stop ( const Protocol::Address & addr )

Send a HAN-FUN message containing a ColourControl::STOP_CMD, to the given network address.

Parameters

[in] addr the network address to send the message to.

The documentation for this struct was generated from the following file:

colour_control.h
