HF::Interfaces::ColourControl::HS_Colour Struct Reference

Helper class that supports the Hue and Saturation colour mode. More...

#include <colour_control.h>

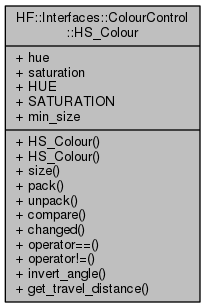

Collaboration diagram for HF::Interfaces::ColourControl::HS_Colour:

Public Member Functions
	HS_Colour (uint16_t _hue, uint8_t _saturation)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
int	compare (const HS_Colour &other) const
	Compare this attribute with the given attribute in other. More...
float	changed (const HS_Colour &other) const
	This method is used to get the percentage of change that the attribute has in relation to the value present in other. More...
bool	operator== (const HS_Colour &other) const
	Operator equal.
bool	operator!= (const HS_Colour &other) const
	Operator not equal.

Static Public Member Functions
static int32_t	invert_angle (int32_t angle, uint16_t max_value)
	Helper method to invert a traveling angle. More...
static int32_t	get_travel_distance (const Direction dir, uint16_t initial, uint16_t final, uint16_t max)
	Helper method to get the angle between two hue/saturation values. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

Helper class that supports the Hue and Saturation colour mode.

This class implements the necessary functions for message serialization.

Definition at line 117 of file colour_control.h.

Constructor & Destructor Documentation

HS_Colour()

HF::Interfaces::ColourControl::HS_Colour::HS_Colour ( uint16_t  _hue, uint8_t  _saturation  )

inline

Constructor.

Parameters

[in]	_hue	hue colour value.
[in]	_saturation	saturation colour value.

Definition at line 130 of file colour_control.h.

                                                         :
               saturation(_saturation)
            {
               hue = _hue < HUE ? _hue : HUE - 1;
            }

Member Function Documentation

changed()

float HF::Interfaces::ColourControl::HS_Colour::changed ( const HS_Colour &  other ) const

inline

This method is used to get the percentage of change that the attribute has in relation to the value present in other.

Parameters

[in]

other

attribute holding a previous value.

Returns

float indicating the percentage of change.

Definition at line 210 of file colour_control.h.

            {
               if (this->hue != other.hue)
               {
                  return (100 * (this->hue - other.hue) / static_cast<float>(this->hue));
               }
               else
               {
                  if (this->hue != other.hue)
                  {
                     return (100 * (this->hue - other.hue) / static_cast<float>(this->hue));
                  }
                  else
                  {
                     return 0.0f;
                  }
               }
            }

compare()

int HF::Interfaces::ColourControl::HS_Colour::compare ( const HS_Colour &  other ) const

inline

Compare this attribute with the given attribute in other.

This method should return < 0 if this attribute is less that, 0 if it is equal and > 0 if greater that the other attribute.

Parameters

[in]

other

attribute to compare to.

Return values

<0	if attribute less than other;
0	if attribute equal to other;
>0	if attribute greater than other.

Definition at line 190 of file colour_control.h.

            {
               if (this->hue != other.hue)
               {
                  return (this->hue - other.hue);
               }
               else
               {
                  if (this->hue != other.hue)
                  {
                     return (this->hue - other.hue);
                  }
                  else
                  {
                     return 0;
                  }
               }
            }

get_travel_distance()

static int32_t HF::Interfaces::ColourControl::HS_Colour::get_travel_distance ( const Direction  dir, uint16_t  initial, uint16_t  final, uint16_t  max  )

static

Helper method to get the angle between two hue/saturation values.

This method takes in consideration the direction of travel from the initial to the final value.

Parameters

[in]	dir	the travel direction.
[in]	initial	the initial value.
[in]	final	the final value.
[in]	max	the maximum value.

Returns

the angle between the final and initial value.

invert_angle()

static int32_t HF::Interfaces::ColourControl::HS_Colour::invert_angle ( int32_t  angle, uint16_t  max_value  )

static

Helper method to invert a traveling angle.

This method returns the exterior angle from an internal one, or an interior from an exterior angle.

Note

This also inverts the angle signal. If the input angle is positive (CW rotation), the output is negative (CCW rotation).

Parameters

[in]	angle	the angle to invert.
[in]	max_value	the max value for the angle.

Returns

the inverted angle.

pack()

uint16_t HF::Interfaces::ColourControl::HS_Colour::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Interfaces::ColourControl::HS_Colour::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 178 of file colour_control.h.

References min_size.

            {
               return min_size;
            }

unpack()

uint16_t HF::Interfaces::ColourControl::HS_Colour::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

---

The documentation for this struct was generated from the following file:

• colour_control.h
